- Model Number:Huawei HG8247H
- Type:ONU
- Place of Origin:Zhejiang, China, Hangzhou,China
- Brand Name:Huawei
- Use:FTTX
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- Product name:GPON ONU
- Brand:HUAWEI
- Model:HG8247H
- Color:White
- Package:Box
- Warranty:1year
- Ports:2POTS+4GE+CATV+Wi-Fi+USB
- Package WITH:1Pcs/Box, with Power Plug
- Compatible:Transition Networks
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Hangzhou
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

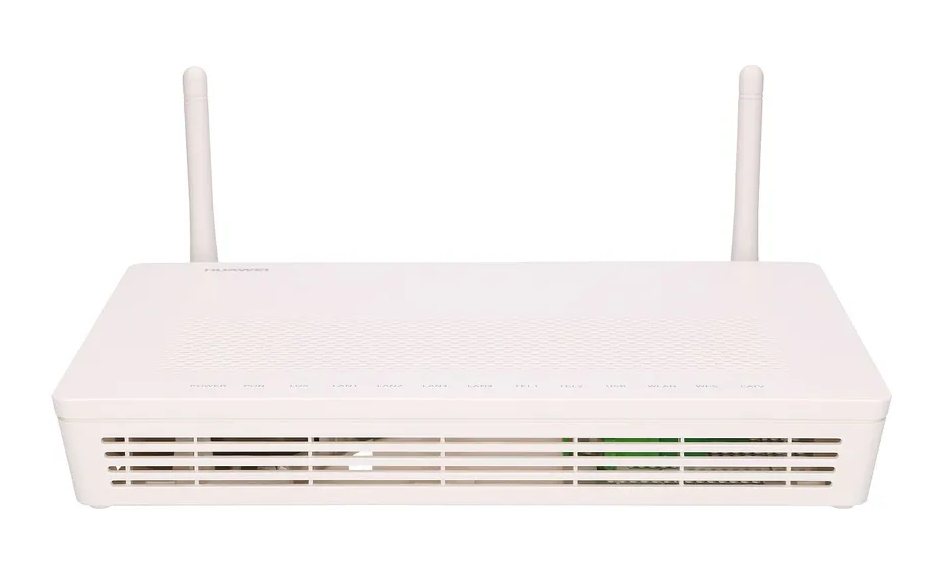

The HG8247H an optical network terminal (ONT), is a high-end home Bridge in FTTH solution. By using the GPON technology,ultra-broadband access is provided for home and SOHO users.

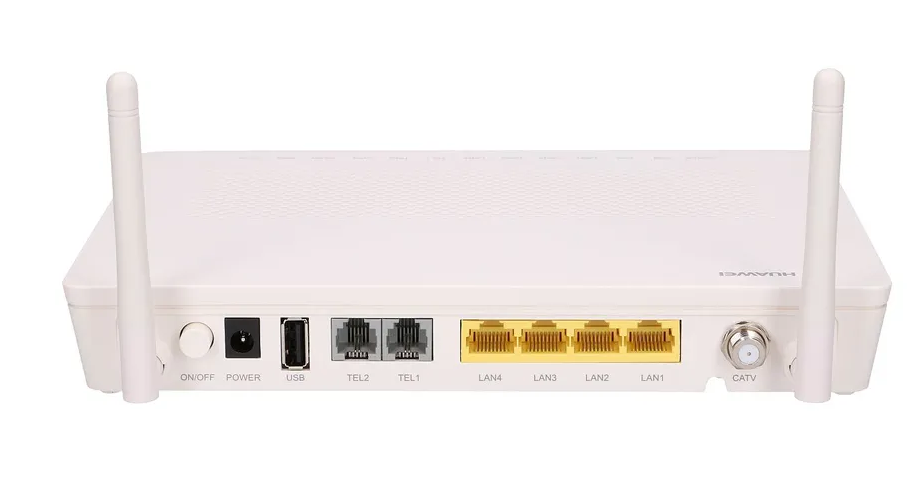

The HG8247H:4LAN+2POTS+USB+WIFI+RF
The HG8247H:4LAN+2POTS+USB+WIFI+RF
Product details
Application
Specification
|
Dimensions (HxWxD)
|
(220 x 160 x 32)mm (without an external antenna)
|
|
Weight
|
about 1000g
|
|
Operating temperature
|
0°C to +40°C
|
|
Supply Chain
|
qualfiber.com
|
|
Operating humidity
|
5%RH to 95%RH (non-condensing)
|
|
Power adapter input
|
100–240V AC, 50–60Hz
|
|
System power supply
|
11–13V DC, 2 A
|
|
Static power consumption
|
7.5W
|
|
Maximum power consumption
|
18W
|
|
Ports
|
2POTS+4GE+CATV+Wi-Fi+USB
|
|
Indicators
|
POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV
|
