- Model Number:Huawei HG8342R
- Type:ONU
- Place of Origin:Zhejiang, China, Hangzhou,China
- Brand Name:Huawei
- Use:FTTX
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- Product name:GPON ONU
- Brand:HUAWEI
- Model:HG8342R
- Color:White
- Package:Box
- Warranty:1year
- Ports:2POTS+4FE
- Package WITH:1Pcs/Box, with Power Plug
- Compatible:Transition Networks
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Hangzhou
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

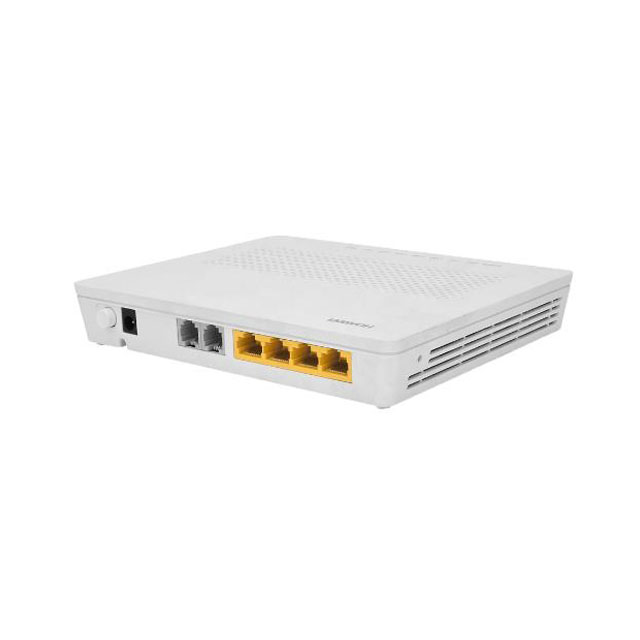

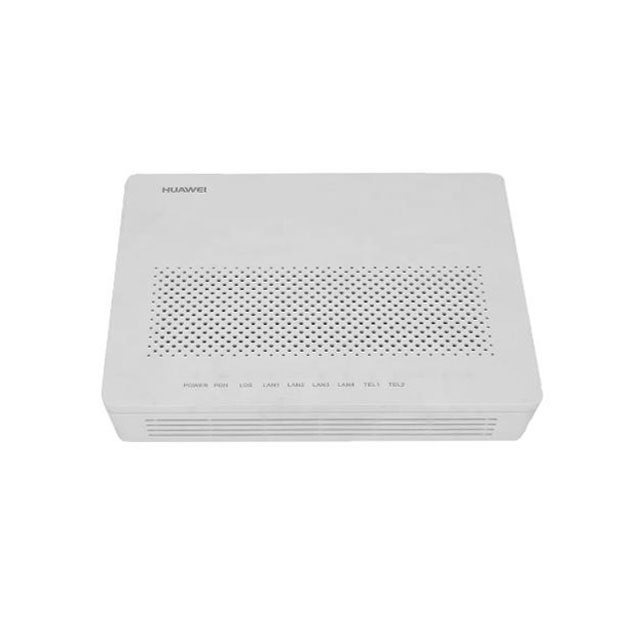

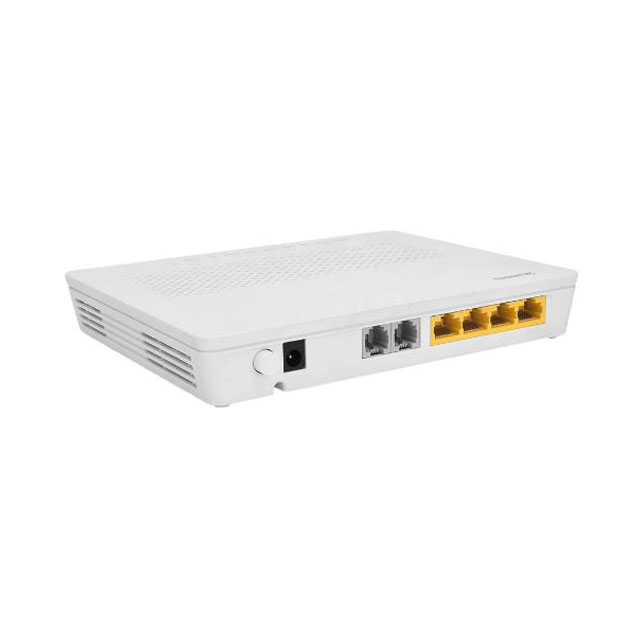

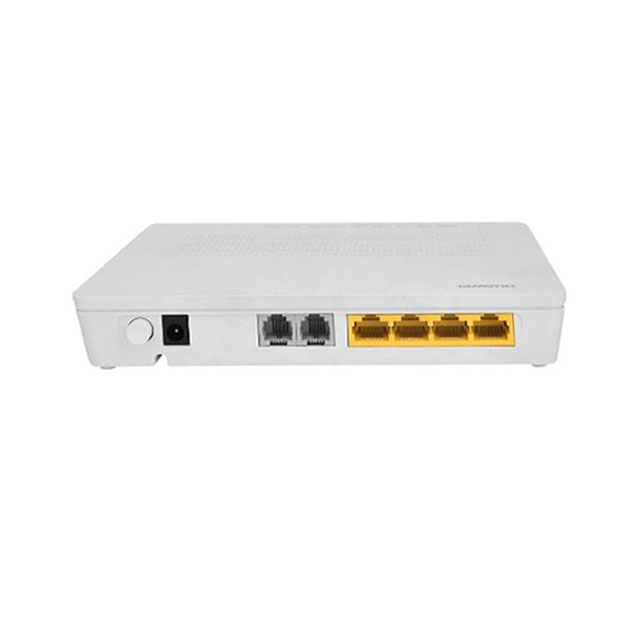

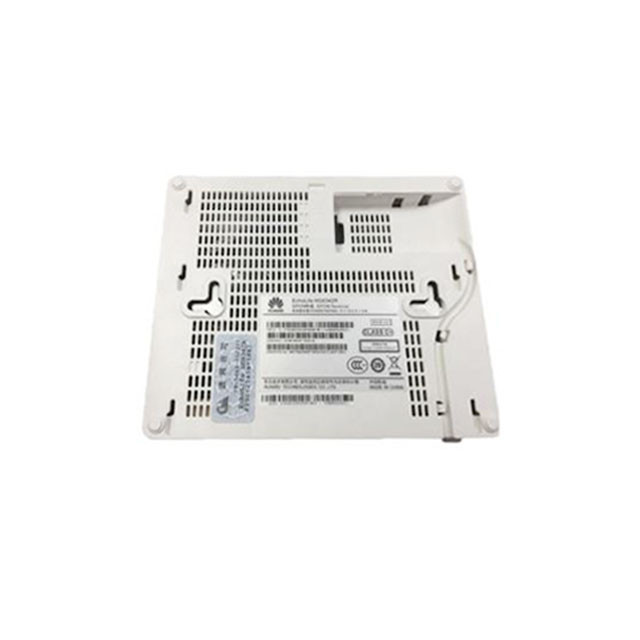

The Echo Life HG8342R, an optical network terminal (ONT), is a high-end home in FTTH solution. By using the GPON technology,ultra-broadband access is provided for home and SOHO users.
The HG8342R provides 2 POTS port, 4FE Ethernet ports and wireless,featuring high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and IPTV services.
The HG8342R provides 2 POTS port, 4FE Ethernet ports and wireless,featuring high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and IPTV services.
Product details
Application
Specification
|
Model
|
HG8342R
|
|
Out Port Contains
|
4FE+2TEL+USB+WIFI
|
|
Quality
|
90% New
|
|
USB
|
USB2.0
|
|
Firmware
|
English
|
|
Weight
|
<450g
|
|
Wavelength
|
Tx 1310nm, Rx 1490nm
|
|
Fiber Interface
|
SC/FC-UPC/APC Dual mode/Singal mode
|
|
RX sensitivity
|
>-28dBm(1490nm)
|
|
Machine Power
|
12V 1.0A
|
|
Button
|
Power
|
|
Working temperature
|
-10°C~+45°C
|
|
working humidity
|
5%-95%(non-condensation)
|
