SKU 1600492493768 Categories , Tag
    • Model Number:Huawei HG8247U
    • Type:ONU
    • Place of Origin: Shenzhen, China
    • Brand Name: Huawei
    • Use: FTTX
    • Warranty Time:1 year
    • Network: Wireless Lan, wifi, 4g
    • Product name: GPON ONU
    • Brand: HUAWEI
    • Model: HG8247U
    • Color: White
    • Package: Box
    • Warranty:1year
    • Receiver sensitivity:-27dBm
    • Wavelength:US 1310 nm, DS 1490 nm
    • Ports:4ge+2pots+2wi-fi+1usb+1rf
    • Supply Ability10000 Piece/Pieces per Month
    • Port : Shenzhen

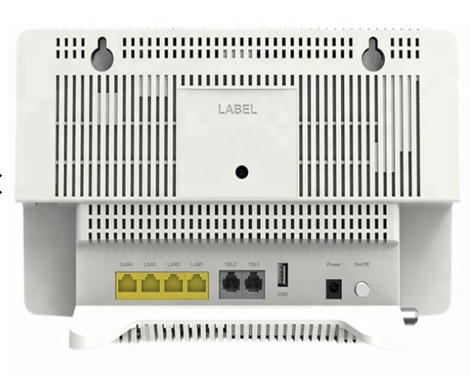

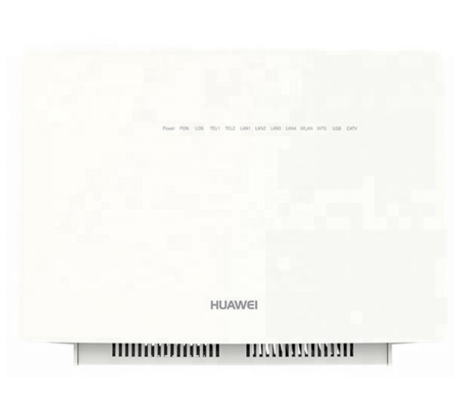

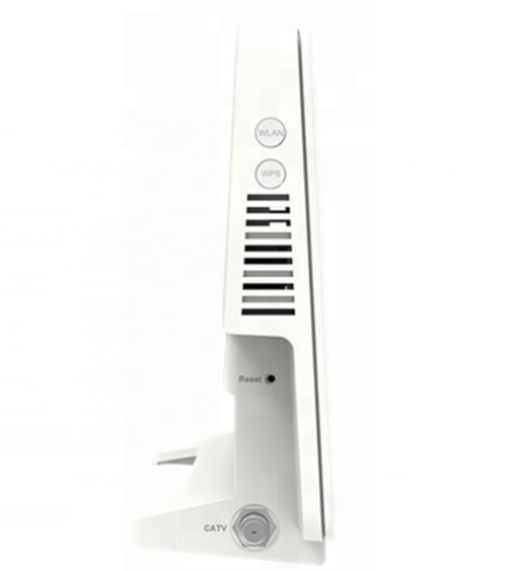

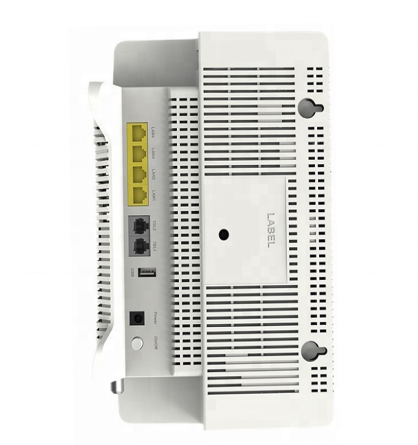

    • Picture Example:
    • Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
    Product Description
    Huawei HG8247U 4GE+2POTS+2Wi-Fi+1USB+1RF GPON ONT Huawei HG8247U FTTH GPON ONU CATV ONT Modem

    GPON Port

    • Class B+

    • Receiver sensitivity: -27dBm

    • Wavelengths: US 1310 nm, DS 1490 nm

    • Wavelength blocking filter (WBF)

    • Flexible mapping between GEM Port and TCONT

    • GPON: consistent with the SN or password authentication defined in G.984.3

    • Bi-directional FEC

    • SR-DBA and NSR-DBA

    Ethernet Port

    • Ethernet port-based VLAN tags and tag removal

    • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

    • QinQ VLAN

    • Limit on the number of learned MAC addresses

    • MAC address learning

    CATV Port

    • Bandwidth 54-870 MHz

    • Output resistance 75 ohms

    POTS Port

    • Maximum REN: 4

    • G.711A/μ, G.729a/b, and G.722 encoding/decoding

    • T.30/T.38/G.711 fax mode

    • DTMF

    • Emergency calls (with the SIP protocol)

    USB Port

    • USB2.0

    • FTP-based network storage

    • File/Print sharing based on SAMBA

    • DLNA DMS/UPnP AV (media server)

    WLAN

    • IEEE 802.11 b/g/n (2.4G)

    • IEEE 802.11 a/n/ac (5G)

    • 2 × 2 MIMO (2.4G); 3 × 3 MIMO (5G)

    • Antenna gain: 2 dBi

    • WMM/Multiple SSIDs/WPS

    • 2.4G/5G concurrent

    • Air interface rate:

    300 Mbit/s (2.4G)

    1300 Mbit/s (5G)

    Smart interconnection

    • Smart Wi-Fi coverage (V300R015C10)

    • SIP/H.248 auto-negotiation

    • Any port any service

    • Parental control (V300R015C10)

    • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

    Smart service

    • Smart Wi-Fi sharing:

    Portal/802.1x authentication

    SoftGRE-based sharing

    Association of one account with two POTS ports

    Smart O&M

    • Variable-length OMCI messages

    • Active/Passive rogue ONT detection and isolation

    • Call emulation, and circuit test and loop-line test

    • PPPoE/DHCP simulation testing

    • WLAN emulation

    Layer 3 Features

    • PPPoE/DHCP simulation testing

    • WLAN emulation

    • PPPoE/Static IP/DHCP

    • NAT/NAPT

    • Port forwarding

    • ALG, UPnP

    • DDNS/DNS server/DNS client

    • IPv6/IPv4 dual stack, and DS-Lite

    • Static/Default routes

    • Multiple services on one WAN port

    Multicast

    • IGMP v2/v3 proxy(V300R015C00)/snooping

    • MLD v1/v2 snooping

    • Multicast services through Wi-Fi

    QoS

    • Ethernet port rate limitation

    • 802.1p priority

    • SP/WRR/SP+WRR

    • Broadcast packet rate limitation

    Security

    • SPI firewall

    • Filtering based on MAC/IP/URL addresses

    Common O&M

    • OMCI/Web UI/TR069

    • Dual-system software backup and rollback

    Power Saving

    • Dynamic power saving

    • Indicator power saving

    • Scheduled Wi-Fi shutdown

    • COCv6

Specification

Huawei HG8247U ONU
