- Model Number:GFGN
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:ZTE
- Use:FTTx
- Warranty Time:1 year
- Network:None
-
- Supply Ability
- 250 Piece/Pieces per Week
-
- Packaging Details
Cartons
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 500>500Lead time (days)15To be negotiated
Overview

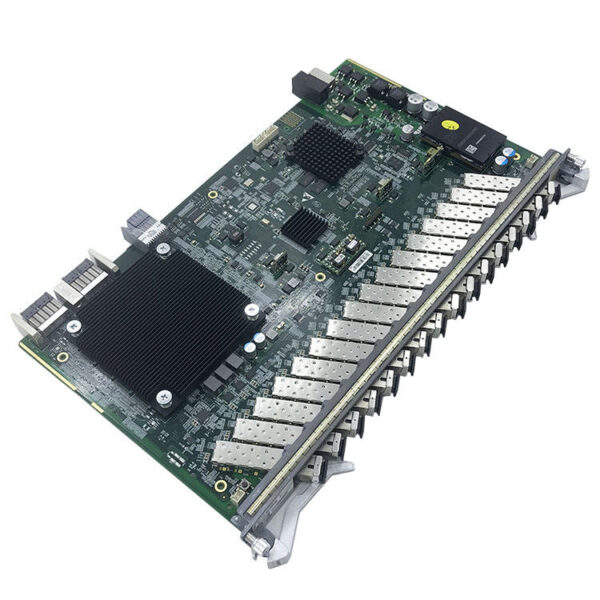

ZTE GFGN Service Board is 16-port GPON OLT interface board with C+ module applied to ZXA10 C600 C650 C680
ZXA10 C680 is an ultra-large capacity optical access OLT equipment based on TITAN platform. It can meet the needs of ultra-high bandwidth access, big video, fixed-mobile convergence, network reconfiguration, and carrier-grade QoS and security assurance.
ZXA10 C680 is a 60S high optical access convergence device, 36 line card slot, the industry’s most, can provide 576 GPON/10G PON ports.
ZXA10 C600 is a large-capacity optical access OLT equipment based on TITAN platform. It can meet the needs of ultra-high bandwidth access, big video, fixed-mobile convergence, network reconfiguration, and carrier-grade QoS and security assurance.
ZXA10 C600 is an 11U high-optical access device with 17/15 line card slots and can support 272/240 GPON/10G PON ports.
Specification
| Brand | ZTE |
| Model | GFGN |
| Encapsulation Type | SFP |
| Optical Connector Type | SC/PC |
| GPON Port | 16-GPON Port |
| Type | C+ Module : Single Fiber Bidirectional Optical Module, Class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimun Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Weight | 1.46kg |
| Dimensions (W x D x H) | 393.1 mm × 23.9 mm × 214 mm |
Product Pictures
