- Model Number:ZTE F401
- Type:ONU
- Place of Origin:Zhejiang, China, Hangzhou,China
- Brand Name:ZTE
- Use:FTTX
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- Product name:EPON ONU
- Brand:ZTE
- Model:ZTE F401
- Color:White
- Package:Box
- Warranty:1year
- Ports:1ge 1port
- Package WITH:1Pcs/Box, with Power Plug
- Compatible:Transition Networks
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Hangzhou
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

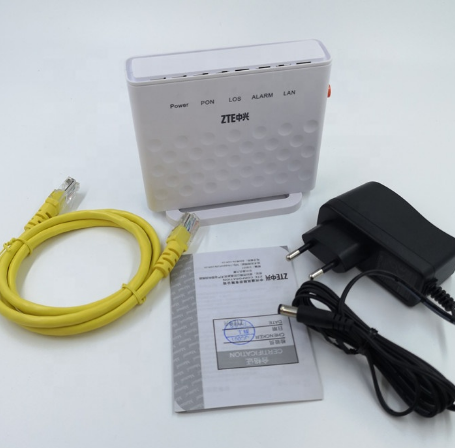

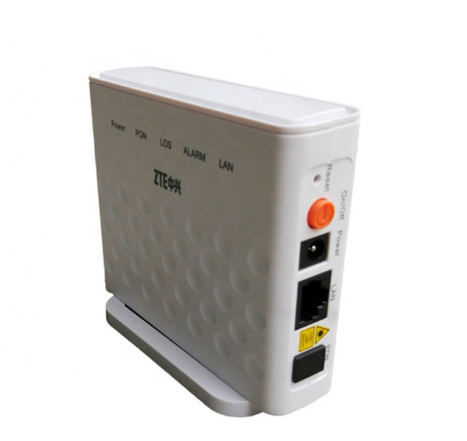

FTTH 1GE ZTE Chipset Gepon Onu Equivelant Zte Zxhn F401 With Single Lan Port EPON ONT
![](http://s.alicdn.com/@sc04/kf/H63e056f044e1412f9fc3ff48a72b3cc7i/258088691/H63e056f044e1412f9fc3ff48a72b3cc7i.png?quality=close)

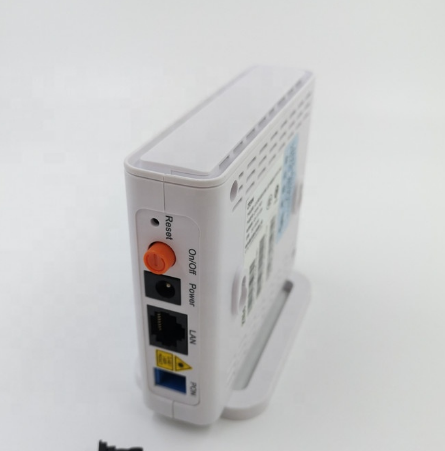

Product details
![](http://s.alicdn.com/@sc04/kf/Hca3c97e31e62432a990f29624fd3d60cv/258088691/Hca3c97e31e62432a990f29624fd3d60cv.png?quality=close)
![](http://s.alicdn.com/@sc04/kf/H0bd5ac1d4f1c490f856771d1f1669061p/258088691/H0bd5ac1d4f1c490f856771d1f1669061p.png?quality=close)
![](http://s.alicdn.com/@sc04/kf/He0b46c6a6b2747e995fe988a47e1ce6cl/258088691/He0b46c6a6b2747e995fe988a47e1ce6cl.png?quality=close)
Application
![](http://s.alicdn.com/@sc04/kf/H57887e1da0b94c34956de7e5db265287U/258088691/H57887e1da0b94c34956de7e5db265287U.png?quality=close)
Specification
Brand
|
ZTE
|
Model
|
F401
|
Optical port
|
1 x GPON interface (SC/PC or SC/APC)
|
Transmit rate
|
2.488Gbps downstream; 1.244Gbps upstream
|
Wavelength
|
Receiving: 1480~1500 nm Transmitting: 1290~1330 nm
|
Receiving Sensitivity
|
-28dBm
|
Transmitting Optical Power
|
0.5~5dBm
|
Power consumption
|
<6W
|
Dimensions
|
110mm(W) x 90mm(H) x 53mm(D)
|
Working temperature:
|
0oC ~ 40oC
|
Working humidity
|
5% ~ 95%
|
Weight
|
190g
|
Power supply
|
12V DC
|
User-Network Interface
|
1 x10/100/1000Base-T
|
