- Model Number:ZTE F609 V3.0
- Type:ONU
- Place of Origin:Zhejiang, China, Hangzhou,China
- Brand Name:ZTE
- Use:FTTX
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- Product name:GPON ONU
- Brand:ZTE
- Model:F609 v3.0
- Color:White
- Package:Box
- Warranty:1year
- Ports:1ge+3fe+voice+wifi
- Package WITH:1Pcs/Box, with Power Plug
- Compatible:Transition Networks
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Hangzhou
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description
The F609 is a high-end home gateway in ZTE FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The F609 provides two POTS ports, four GE/FE auto-adapting Ethernet ports, one USB port, and one Wi-Fi port.
The F609 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video
The F609 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video
![](http://s.alicdn.com/@sc04/kf/Hc144590da7db47668f4e667358c63ff1R/258088691/Hc144590da7db47668f4e667358c63ff1R.jpg?quality=close)

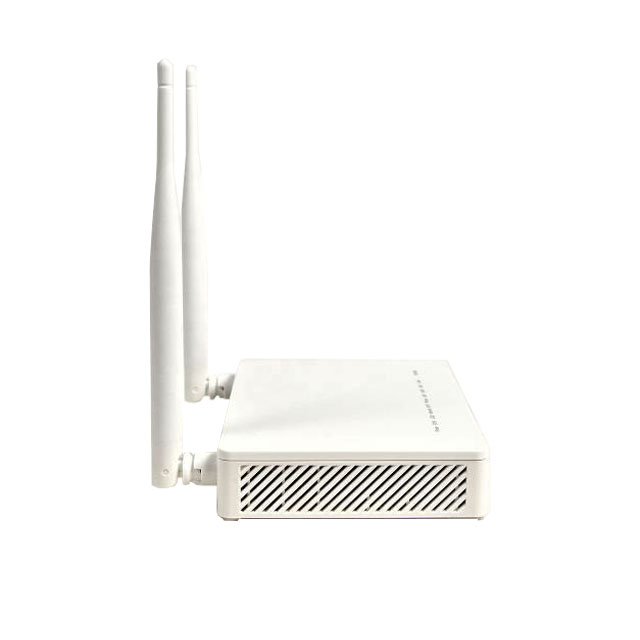

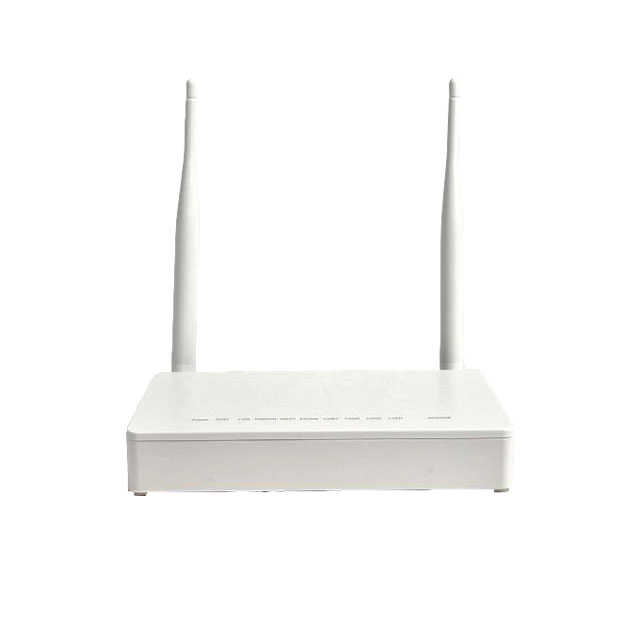

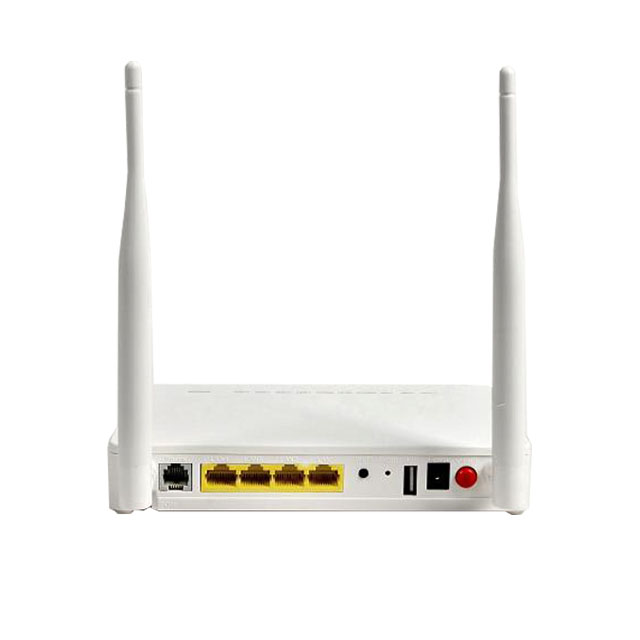

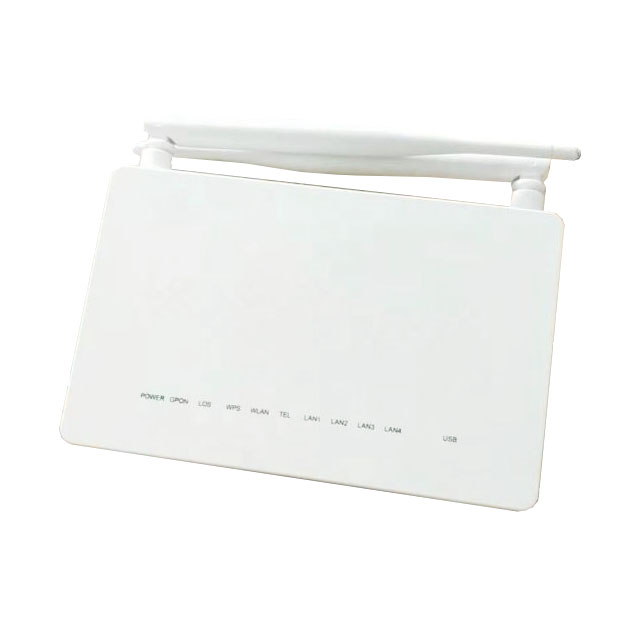

Product details
![](http://s.alicdn.com/@sc04/kf/Hc144590da7db47668f4e667358c63ff1R/258088691/Hc144590da7db47668f4e667358c63ff1R.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/H56ee2d5f25824a1fa15a6f8b7a7e69278/258088691/H56ee2d5f25824a1fa15a6f8b7a7e69278.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/H497f8088e6a14307bc853050b3cf77b2Q/258088691/H497f8088e6a14307bc853050b3cf77b2Q.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/H916c8d2c4736465fa77293173ba87519s/258088691/H916c8d2c4736465fa77293173ba87519s.jpg?quality=close)
Application
![](http://s.alicdn.com/@sc04/kf/H57887e1da0b94c34956de7e5db265287U/258088691/H57887e1da0b94c34956de7e5db265287U.png?quality=close)
Specification
GPON Interface
|
Optical port: 1 x GPON interface (SC/PC)
Transmission Distance: 0 ~ 20km Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream |
User Network Interface
|
4 x10/100/1000Base-T;Half/full duplex; Auto MDI/MDIX; Auto negotiation
2 x POTS interfaces 1 x Wi-Fi interface: IEEE 802.11b/g/n @2.4G Hz 1 x USB 2.0 host interface |
Optical Module
|
Receiving: 1480~1500 nm
Transmitting: 1290~1330 nm Receiving Sensitivity: -28dBm Transmitting Optical Power: 0.5~5dBm |
Main Function
|
Supported service:VoIP, Internet, IPTV
GPON: 8 T-CONTs, 32 GEM Ports VLAN: 802.1Q, 802.1P, 802.1ad MAC address table: 1K L3 function: DHCP server/Client, DNS Client, NAT IPv6: Dual Stack, DS-Lite VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38 Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK, WPA2-Enterprise Multicast: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping Multicast group per user port: 256 QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR Management: local web management, OMCI, TR069 Management: local web management, OMCI USB: DLNA DMS, USB backup, 3G/LTE dongle |
Physical Performance
|
Power consumption: <7W
Dimensions: 220mm(W) x 44mm(H) x160mm(D) Working temperature: 0℃ ~ 40℃ Working humidity: 5% ~ 95% Weight: about 2Kg Power supply: 12V DC Mounting mode: Desktop/Wall mounting Supports hidden and coiled fiber |
Packing & Delivery
![](https://s.alicdn.com/@sc01/kf/Hde9797be3b11454abef68e05fc1c47a1M.jpg?quality=close)
