- Model Number:ZTE ZXHN F623
- Type:ONU
- Place of Origin:Guangzhou
- Brand Name:Huawei
- Use:FTTH
- Warranty Time:1 year
- Network:Wired LAN, wifi
-
- Supply Ability
- 1000 Piece/Pieces per Week
-
- Packaging Details
cartons
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Overview
ZTE F623 FTTH is a high-end home gateway in FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. ZTE GPON ONU F623 comes1GE+3FE ports+1 phone port and WIFI with 2 antennas high gain wireless function
ZTE F623 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, it provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Specifications
| Brand | ZTE |
| Model | F623 |
| Optical port | 1 x GPON interface (SC/APC) |
| Transmission Distance | 0-20KM |
| Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream |
| User-Network Interface | 1 Ge Port and 3 Fe Port |
| 1 x Wi-Fi interface | |
| 1 x USB host interface | |
| 1x POTS interfaces | |
| Wavelength | Receiving: 1480~1500 nm Transmitting: 1290~1330 nm |
| Receiving Sensitivity | -28dBm |
| Transmitting Optical Power | 0.5~5dBm |
| Power consumption | <10W |
| Dimensions | 220mm(W) x 44mm(H) x 160mm(D) |
| Working temperature: | 0oC ~ 40oC |
| Working humidity | 5% ~ 95% |
| Weight | 380G |
| Power supply | 12V DC |
Features
- Supported service: Internet, IPTV
- GPON: 8 T-CONTs, 32 GEM Ports
- VLAN: 802.1Q, 802.1P, 802.1ad
- MAC address table: 256
- Multicast: IGMP v1/v2 Snooping
- Multicast group per user port: 256
- QoS: service flow classification based on physical port, Ethernet type; ingress rate limit; egress shaping

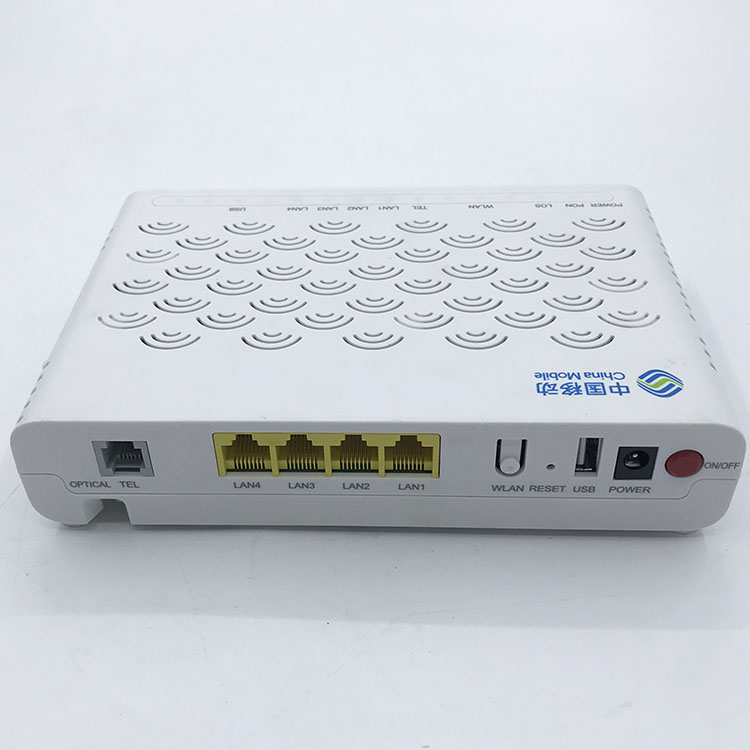

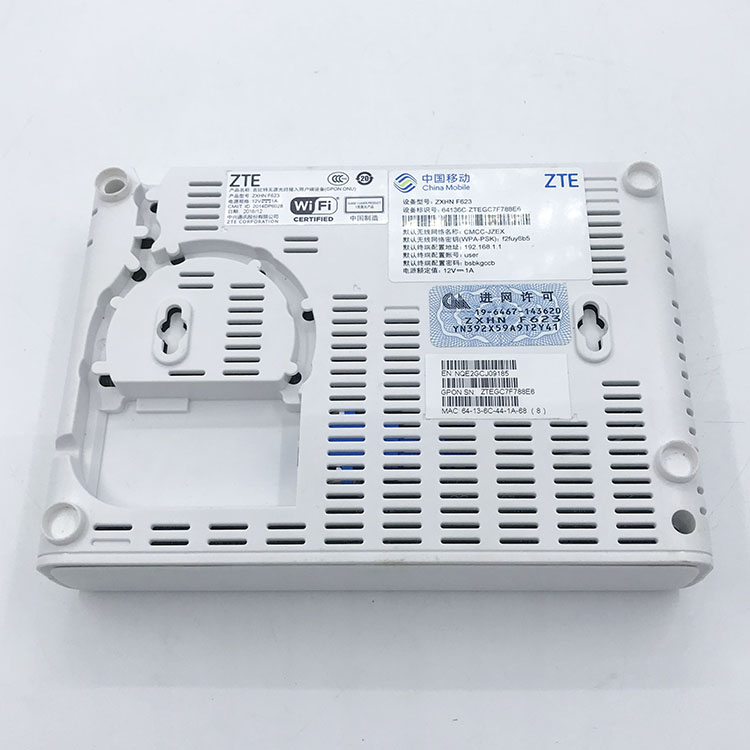

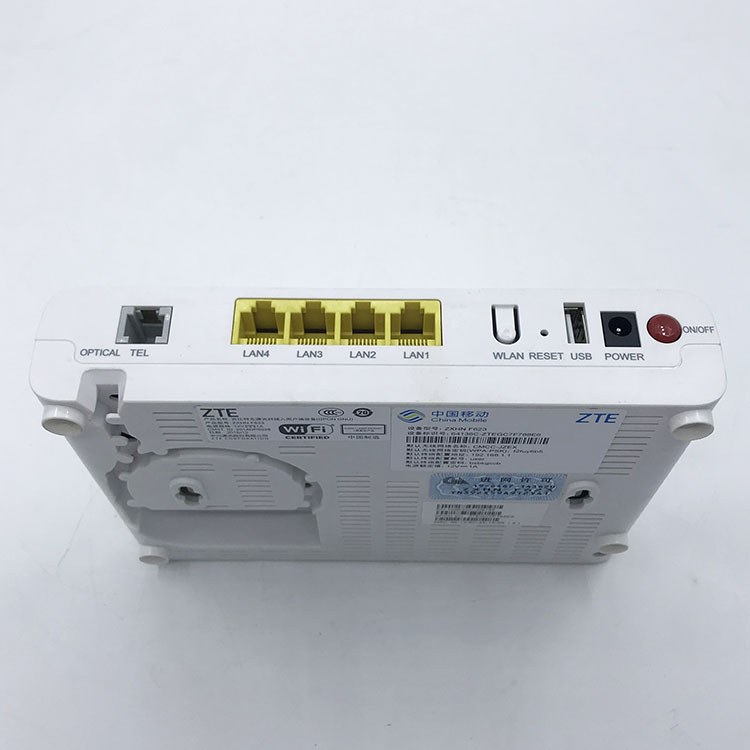

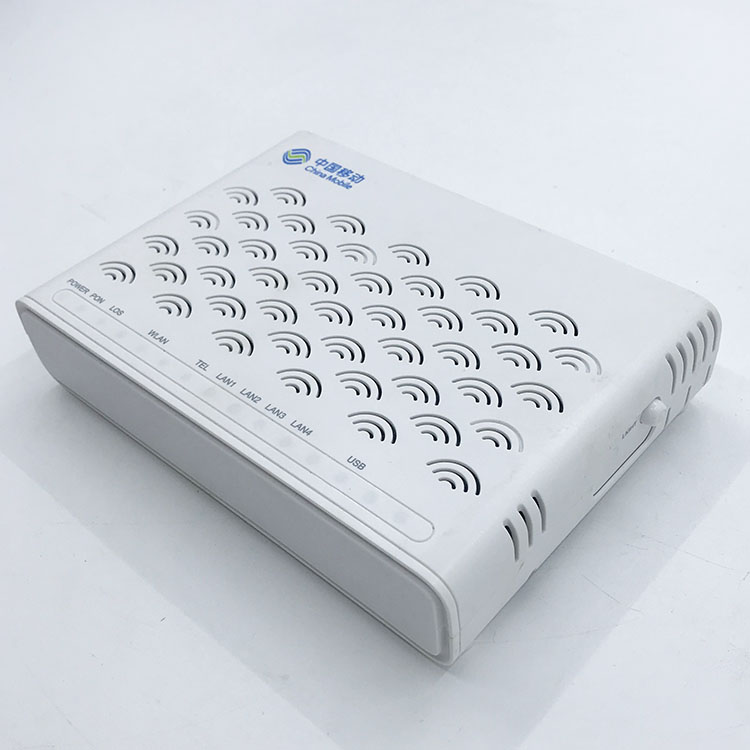

Product Pictures
