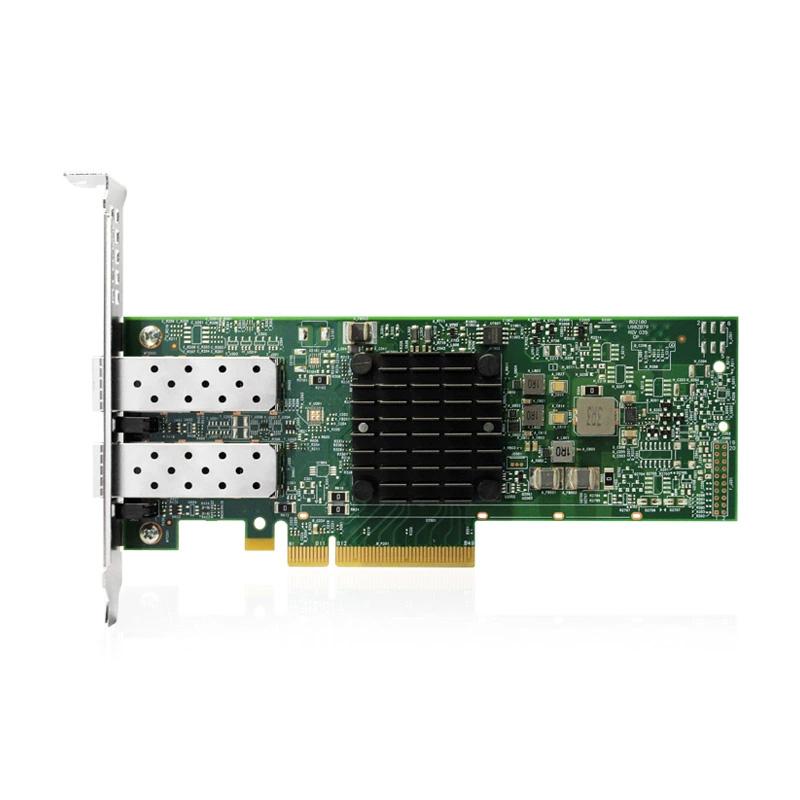

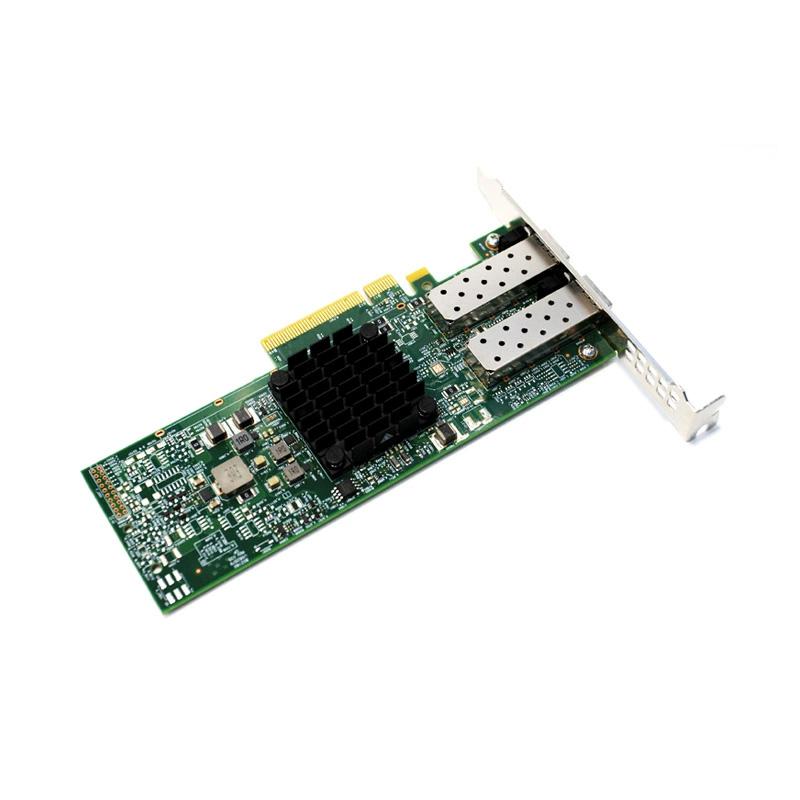

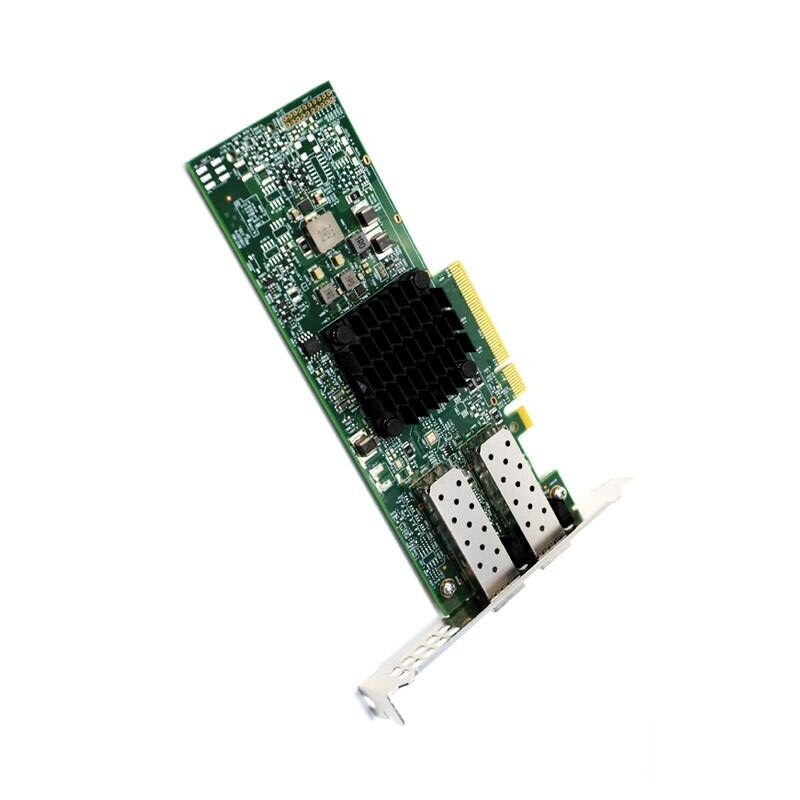

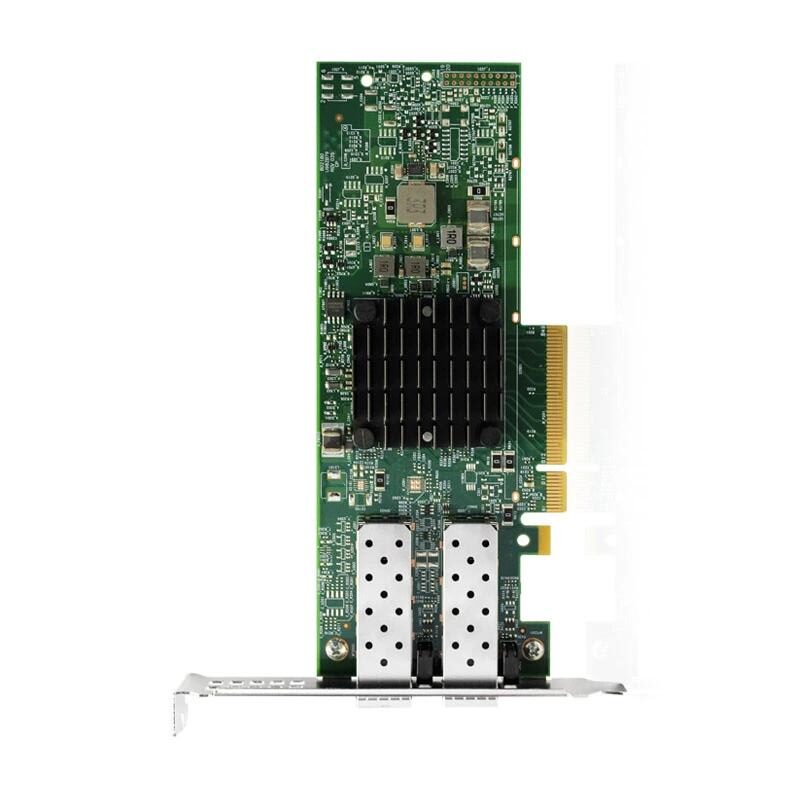

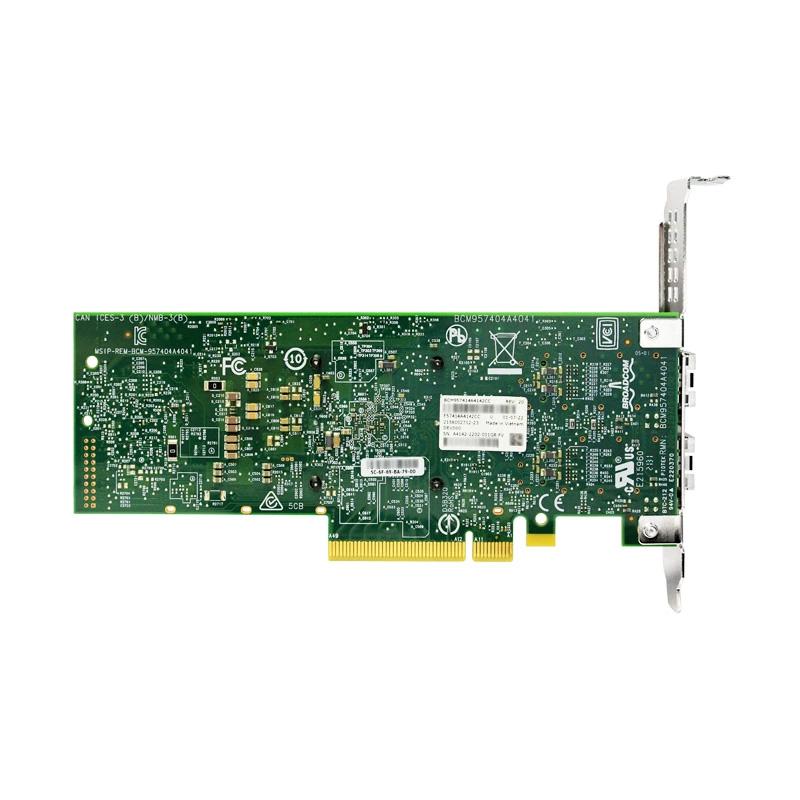

Broadcom BCM957414A4142CC P225P
The Broadcom BCM957414A4142CC (P225P) is a high-performance dual-port 25GbE network interface card designed for data-intensive enterprise, cloud, and storage environments. Featuring SFP28 connectivity and a PCIe 3.0 x8 interface, this NIC provides efficient, low-latency, and high-throughput networking for next-generation applications.
Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the P225P 2x25G PCIe NIC is designed to build highly-scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics.
Key Features of Broadcom BCM957414A4142CC
-
• Dual-Port 25 Gigabit Ethernet
Delivers up to 50Gb/s aggregate bandwidth for demanding workloads -
• SFP28 Interface
Supports a wide range of 25GbE optical and DAC transceivers -
• PCI Express 3.0 x8 Interface
Ensures high-speed data transfer and optimal bus performance -
• Advanced Offloads
Includes TCP/UDP/IP checksum offload, Large Send Offload (LSO), Receive Side Scaling (RSS), and more -
• Low Latency Architecture
Ideal for performance-sensitive environments such as high-frequency trading and real-time analytics -
• Virtualization Support
Supports SR-IOV for improved VM networking efficiency -
• Energy Efficient Ethernet (EEE)
Reduces power consumption during low data activity
Applications
- Cloud and Web2.0 data center servers
- Enterprise data center servers
- Private Cloud
- Machine Learning (ML) clusters
- High Performance Computing (HPC) clusters
- Multi-node container platforms
- NVMe storage disaggregation (NVMe-oF)
- Database servers
Technical Specifications
| Specification | Details |
|---|---|
| Model | BCM957414A4142CC (P225P) |
| Chipset | Broadcom BCM57414 |
| Ports | 2x 25GbE SFP28 |
| Form Factor | PCIe 3.0 x8 |
| Data Rate | 25Gbps per port |
| Connector Type | SFP28 |
| Bus Interface | PCI Express Gen3 x8 |
| Bracket | Typically includes both full and low-profile brackets |
| Offload Support | TSO, LRO, RSS, VLAN, Checksum, VxLAN, NVGRE |
| Virtualization | SR-IOV, VMware NetQueue, Microsoft VMQ |
| Compliance | RoHS, IEEE 802.3by, PCIe 3.0 |
| Operating Systems | Windows, Linux, VMware ESXi |
Ideal Applications Broadcom BCM957414A4142CC
-
• High-performance computing (HPC)
-
• Data centers and cloud service providers
-
• Network storage and iSCSI/NVMe-oF environments
-
• Virtualized and containerized infrastructure
