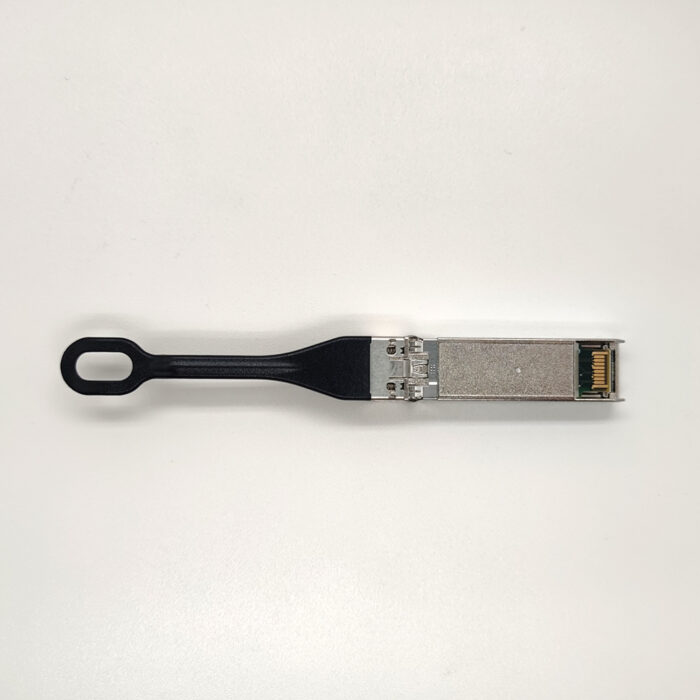

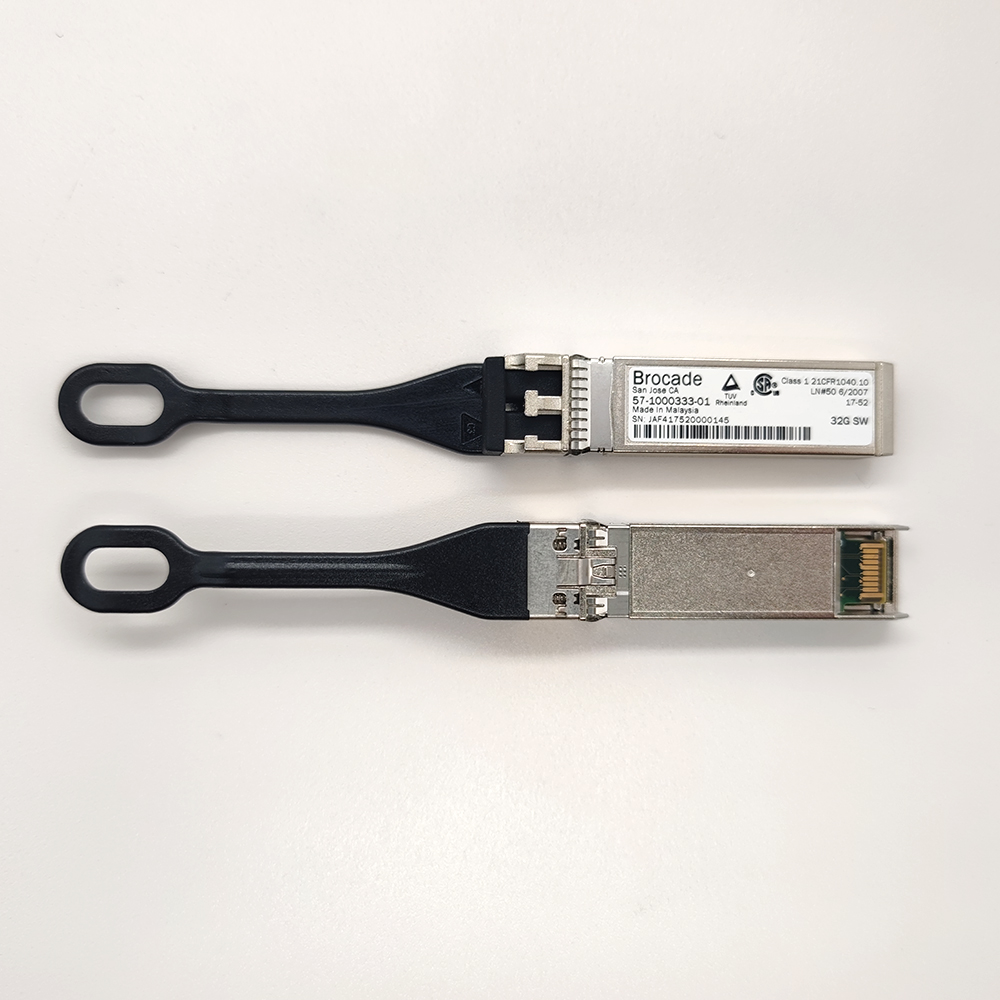

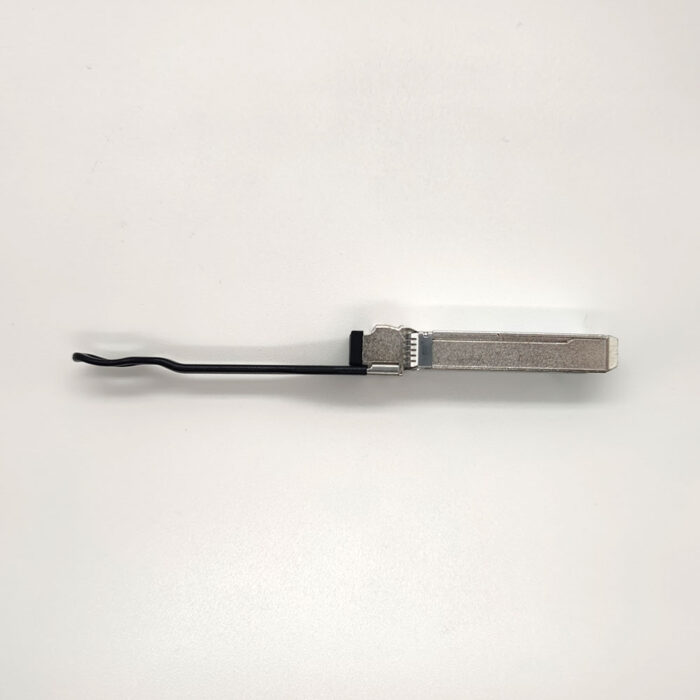

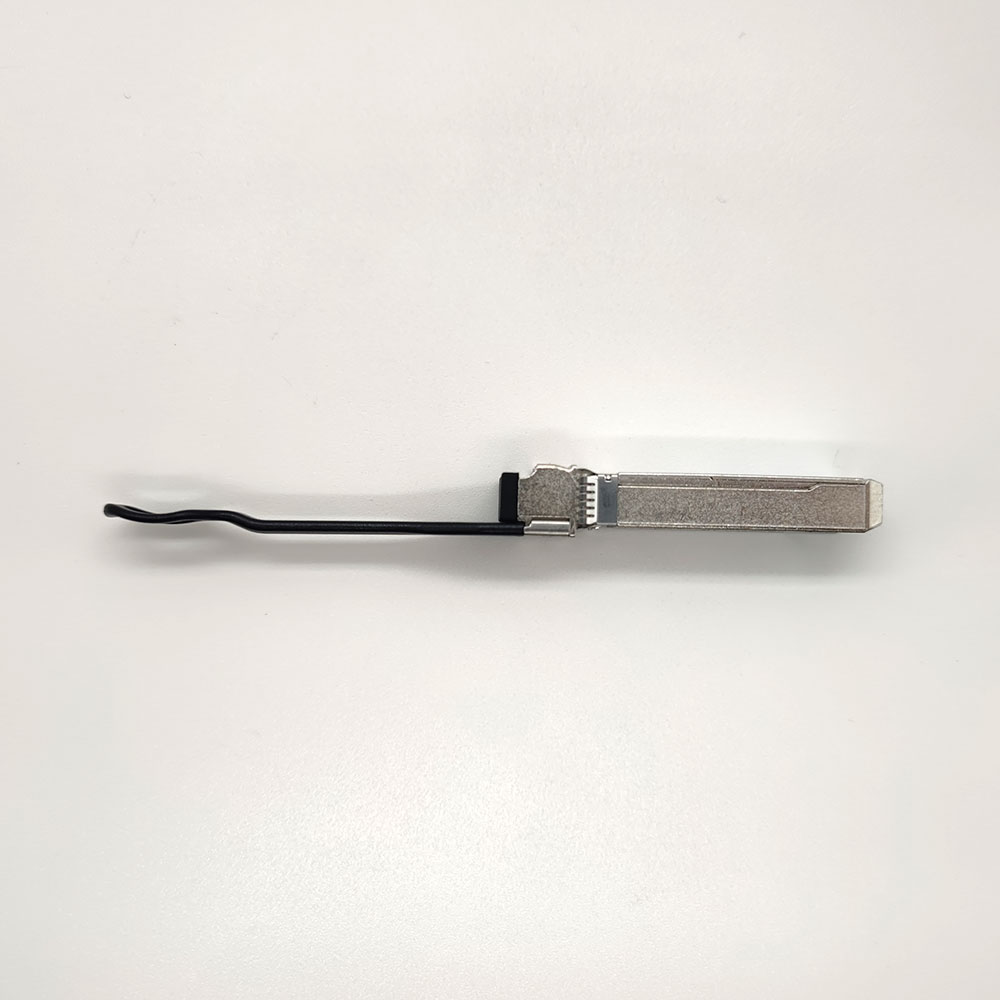

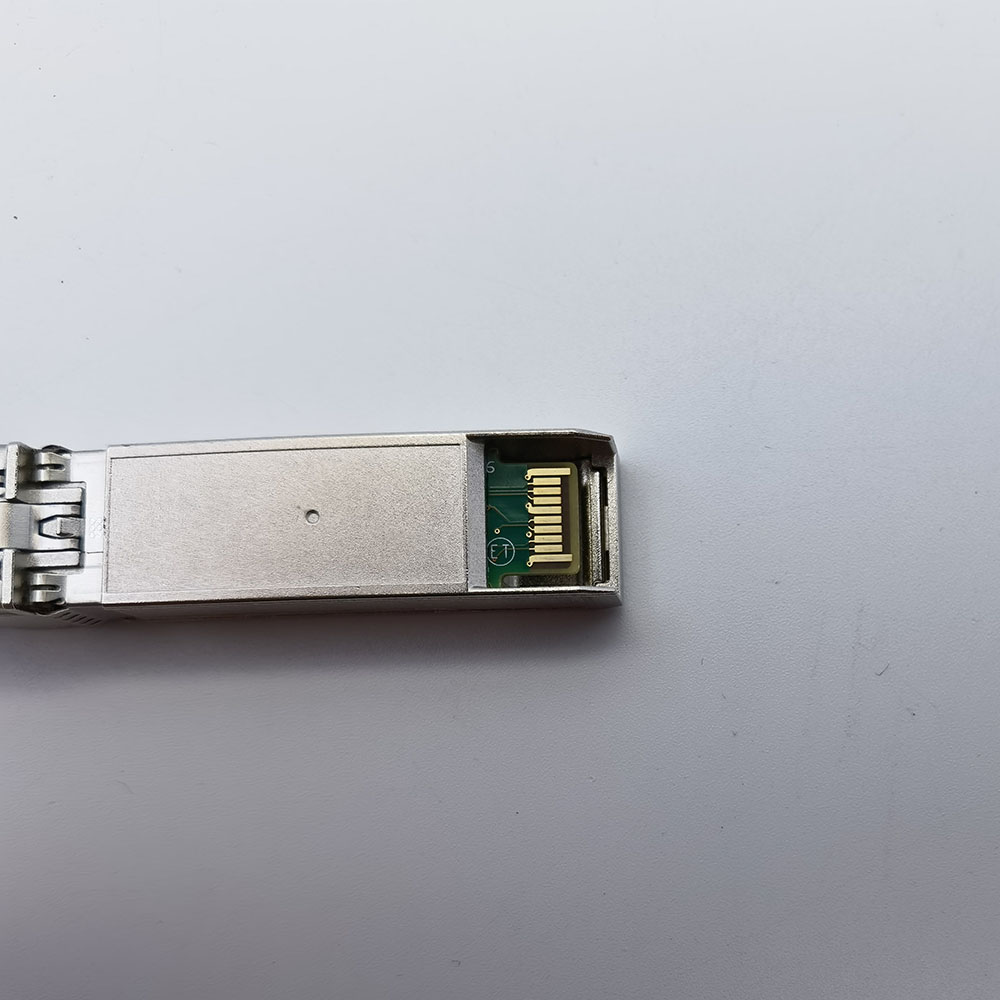

Brocade 57-1000333-01 Optical Transceiver Modules
The Brocade 57-1000333-01, are advanced optical transceivers engineered for high-speed Fibre Channel networks. These modules are designed to meet the demands of modern data centers, storage area networks (SANs), and enterprise environments, providing reliable and efficient connectivity.
Key Features 57-1000333-01:
- High-Speed Connectivity: Supports 64Gbps Fibre Channel (FC) for ultra-fast data transmission.
- Compact Form Factor: Standard SFP56 form factor enables high port density and scalability.
- Optimized for Brocade: Seamless integration with Brocade switches, routers, and SAN infrastructure.
- Varied Reach Options: Models designed for short-range, long-range, and extended-range applications.
- Low Power Consumption: Energy-efficient design reduces operational costs.
- Plug-and-Play Compatibility: Quick and easy deployment with minimal configuration.
Specifications:
| Attribute | 57-1000332-01 | 57-1000333-01 | 57-1000335-01 |
|---|---|---|---|
| Form Factor | SFP56 | SFP56 | SFP56 |
| Data Rate | 64Gbps (Fibre Channel) | 64Gbps (Fibre Channel) | 64Gbps (Fibre Channel) |
| Wavelength | 850nm | 1310nm | 1550nm |
| Transmission Distance | Up to 100m (OM3 fiber) | Up to 10km (SMF) | Up to 30km (SMF) |
| Connector Type | LC Duplex | LC Duplex | LC Duplex |
| Compliance | FC-PI-7, SFP56 MSA | FC-PI-7, SFP56 MSA | FC-PI-7, SFP56 MSA |
| Power Consumption | <2W | <2W | <2W |
| Operating Temperature | 0°C to 70°C | 0°C to 70°C | 0°C to 70°C |
Applications:
- Storage Area Networks (SANs): Designed for high-speed Fibre Channel SAN deployments, ensuring fast and reliable access to storage resources.
- Data Center Connectivity: Facilitates efficient connections between servers, storage, and networking devices.
- Enterprise Networks: Enhances backbone infrastructure for high-speed data transfers.
- Long-Distance Networking: Suitable for extended-distance applications.
Benefits:
- Flexible Options: Offers short-range, long-range, and extended-range connectivity to suit diverse networking needs.
- Ultra-Fast Performance: Provides 64Gbps throughput for modern, data-intensive applications.
- Energy Efficiency: Minimizes power usage, contributing to cost savings and sustainability.
- Reliability: Meets stringent standards for high-performance Fibre Channel networks.
- Scalability: Compact SFP56 form factor supports high-density port configurations.
Brocade 57-1000333-01
- Type: 32G Fibre Channel Long-Wave SFP+ Transceiver
- Data Rate: Up to 32 Gbps
- Wavelength: 1310nm
- Distance: Up to 10 km on Single-mode Fiber (SMF)
- Connector: LC Duplex
- Fiber Type: Single-mode Fiber (SMF)
- Application: Designed for long-range Fibre Channel connections, such as inter-data center or large campus networks.
- Compatibility: Supports Brocade switches and devices with 32G Fibre Channel interfaces.
- Features: Hot-swappable, supports digital optical monitoring (DOM).
Comparison Table:
| Feature | 57-1000332-01 | 57-1000333-01 | 57-1000335-01 |
|---|---|---|---|
| Type | 32G Fibre Channel SFP+ | 32G Fibre Channel Long-Wave SFP+ | 32G Fibre Channel Extended-Range SFP+ |
| Data Rate | Up to 32 Gbps | Up to 32 Gbps | Up to 32 Gbps |
| Wavelength | 850nm | 1310nm | 1550nm |
| Distance | Up to 100 meters (OM4 MMF) | Up to 10 km (SMF) | Up to 25 km (SMF) |
| Connector | LC Duplex | LC Duplex | LC Duplex |
| Fiber Type | Multi-mode Fiber (MMF) | Single-mode Fiber (SMF) | Single-mode Fiber (SMF) |
| Application | Short-range SAN connections | Long-range inter-data center links | Extended-range inter-data center links |
| Compatibility | Brocade 32G Fibre Channel devices | Brocade 32G Fibre Channel devices | Brocade 32G Fibre Channel devices |
| DOM Support | Yes | Yes | Yes |
| Hot-Swappable | Yes | Yes | Yes |
