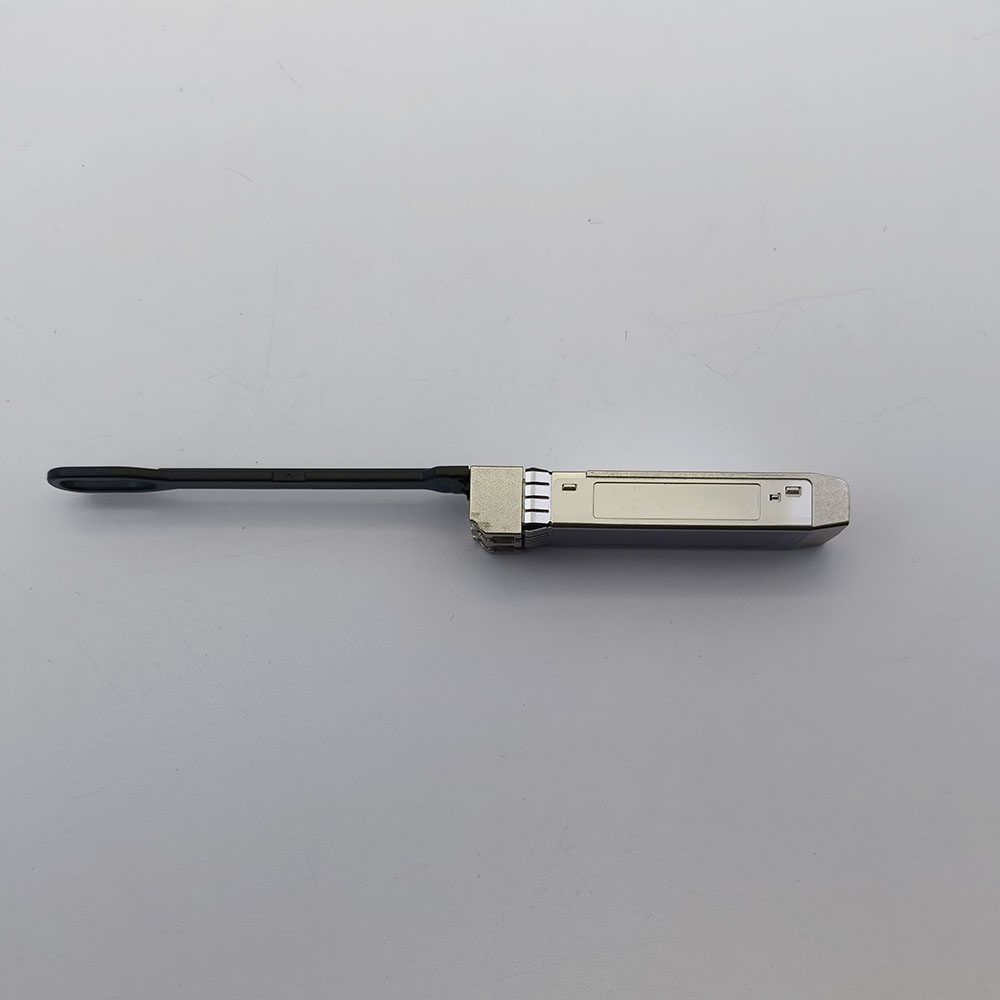

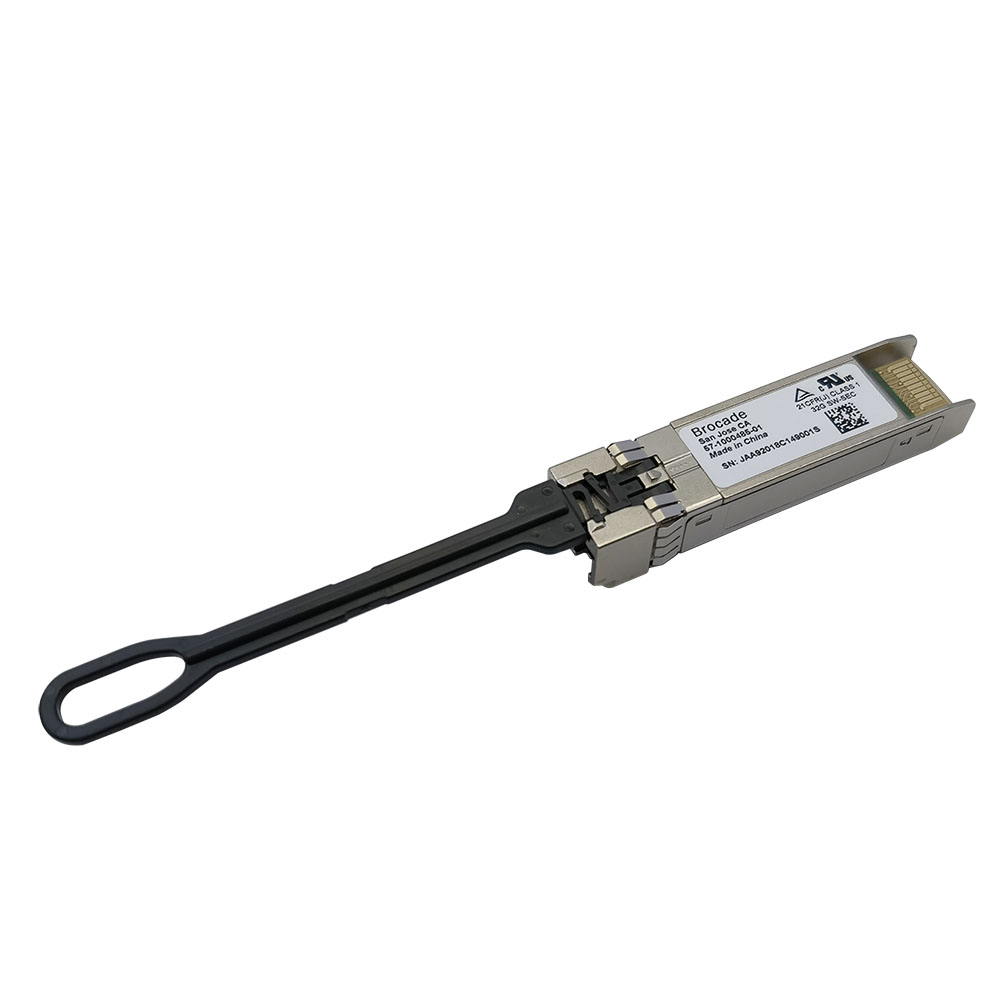

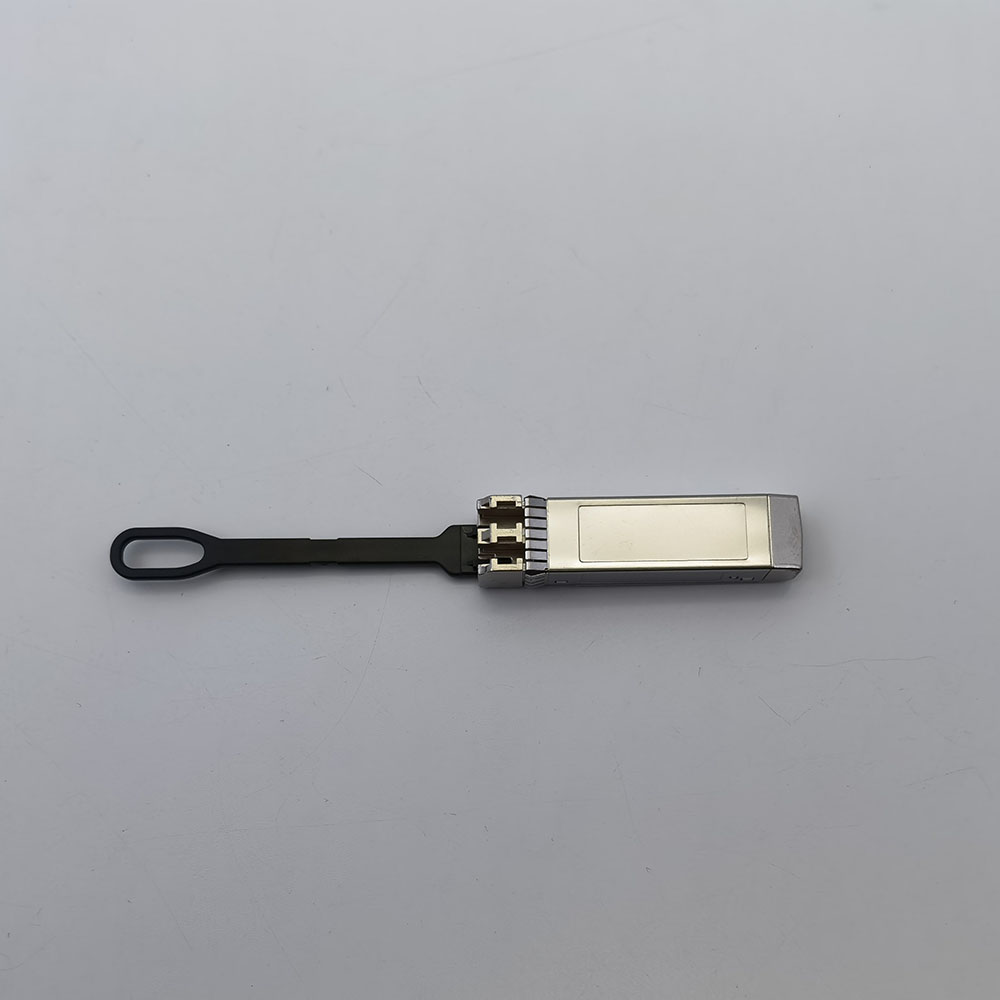

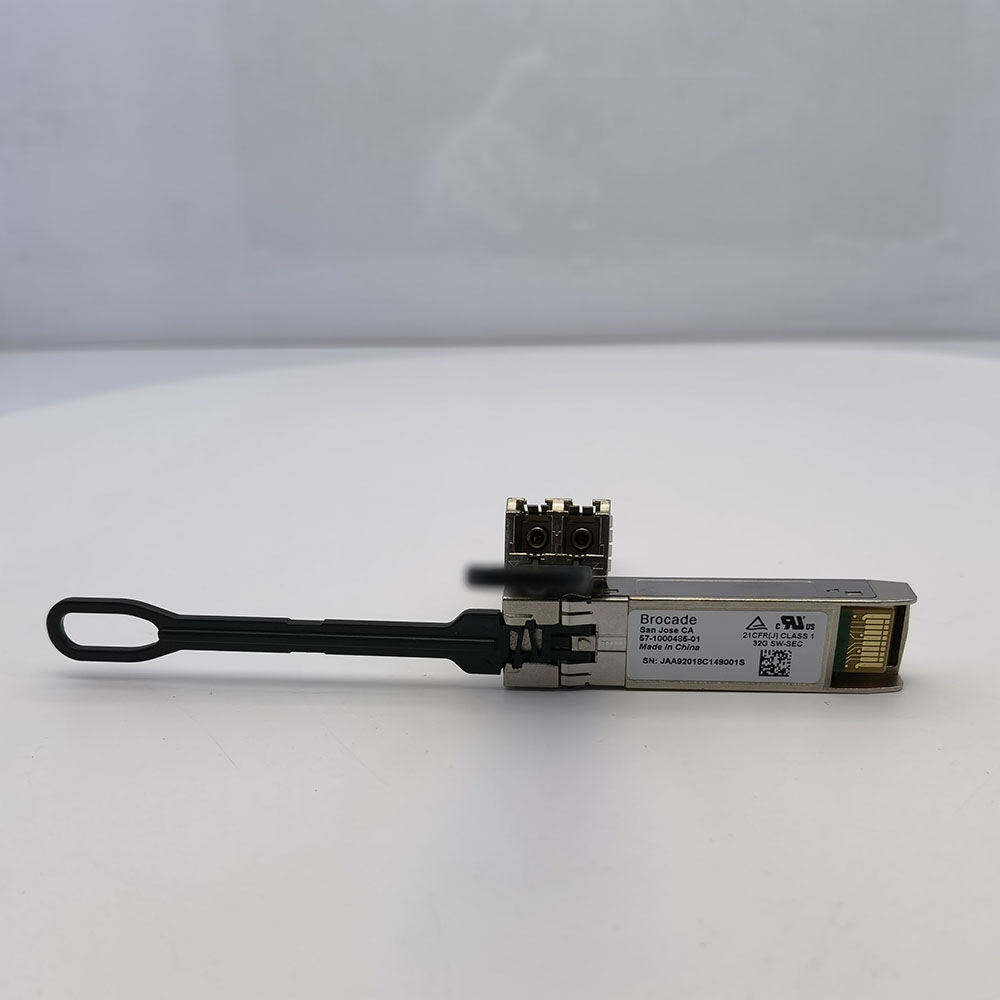

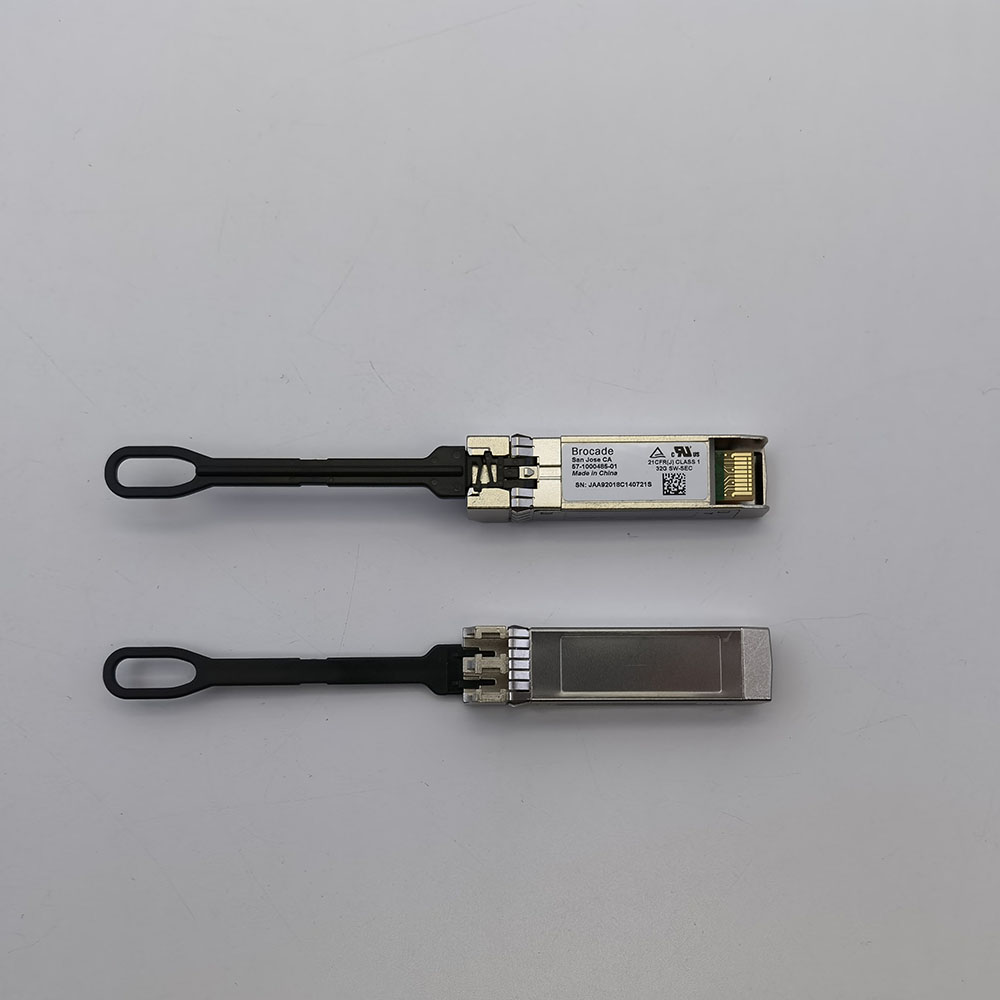

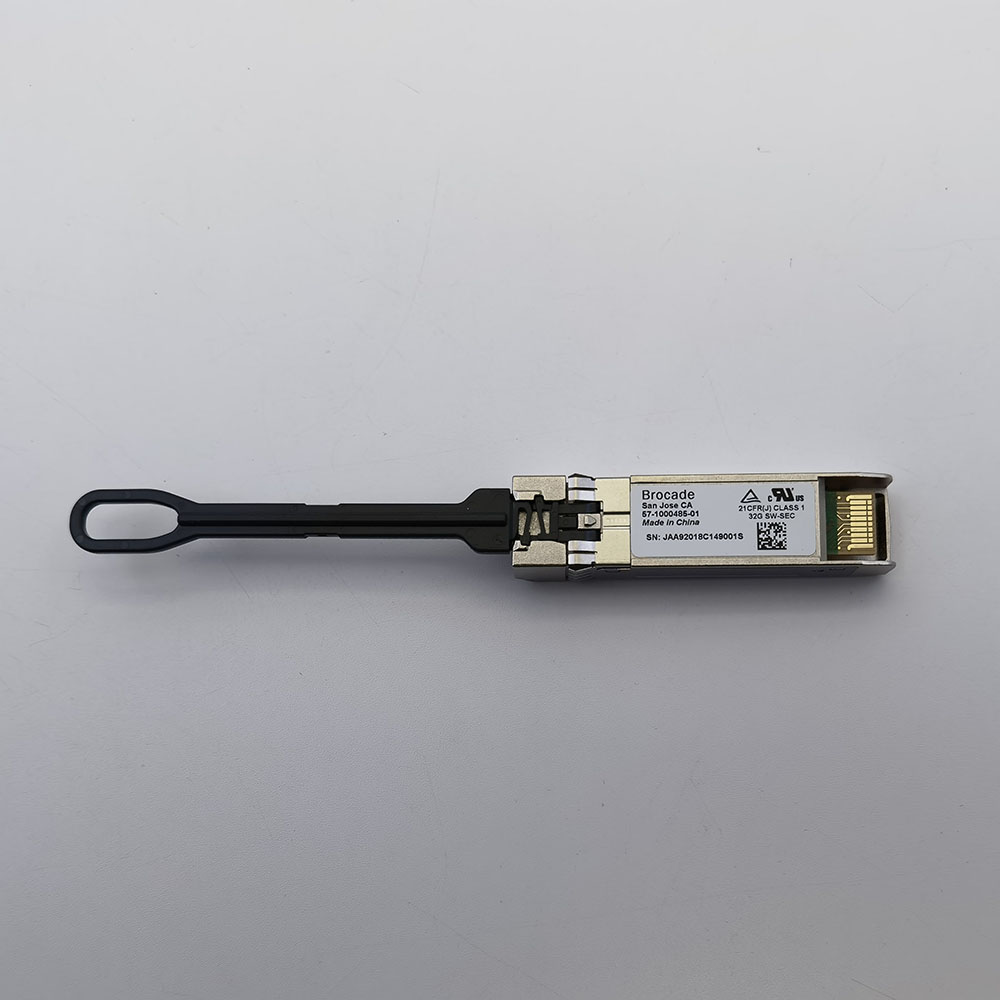

Overview: Brocade 57-1000485-01 Optical Transceivers Model
The Brocade 57-1000485-01, optical transceivers are high-performance modules designed to support advanced Fibre Channel networking. These transceivers cater to a variety of distance requirements while maintaining reliability, efficiency, and seamless integration with Brocade infrastructure.
57-1000485-01 Key Features:
- High-Speed Data Transmission: Supports 128Gbps Fibre Channel (FC) for cutting-edge performance.
- Compact Design: Standard SFP-DD or SFP56 form factor for high-density network configurations.
- Versatile Range Options: Models available for short-range (SR), long-range (LR), and extended-range (ER) connectivity.
- Optimized for Brocade: Ensures compatibility and seamless functionality with Brocade networking solutions.
- Energy Efficiency: Designed for low power consumption to reduce operational costs.
- Robust Build: High durability to meet the demands of modern data centers and enterprise applications.
Specifications:
| Attribute | 57-1000480-01 | 57-1000485-01 | 57-1000487-01 | 57-1000490-01 |
|---|---|---|---|---|
| Form Factor | SFP-DD | SFP-DD | SFP-DD | SFP56 |
| Data Rate | 128Gbps FC | 128Gbps FC | 128Gbps FC | 128Gbps FC |
| Wavelength | 850nm | 1310nm | 1550nm | 850nm |
| Transmission Distance | Up to 100m (OM4 fiber) | Up to 10km (SMF) | Up to 30km (SMF) | Up to 100m (OM4 fiber) |
| Connector Type | LC Duplex | LC Duplex | LC Duplex | LC Duplex |
| Compliance | FC-PI-7, SFP-DD MSA | FC-PI-7, SFP-DD MSA | FC-PI-7, SFP-DD MSA | FC-PI-7, SFP56 MSA |
| Power Consumption | <2W | <2W | <2W | <2W |
| Operating Temperature | 0°C to 70°C | 0°C to 70°C | 0°C to 70°C | 0°C to 70°C |
Applications:
- Data Center Interconnects: High-speed connections between servers, storage, and switches.
- Storage Area Networks (SANs): Reliable connectivity for mission-critical storage resources.
- Enterprise Networks: Enhances backbone links for faster data access and reduced latency.
- Extended Distance Applications: Supports long-range data replication and disaster recovery setups.
Benefits:
- Customizable Reach: Offers flexibility to choose transceivers based on specific distance and application needs.
- High Throughput: Delivers 128Gbps bandwidth for high-performance environments.
- Scalable Form Factor: SFP-DD and SFP56 designs allow for dense, scalable deployments.
- Energy Savings: Low power usage ensures cost efficiency in large-scale networks.
- Reliability: Built to meet stringent performance and durability standards.
Brocade 57-1000485-01
- Type: 64G Fibre Channel LW SFP+ Transceiver
- Data Rate: Up to 64 Gbps
- Wavelength: 1310nm
- Distance: Up to 10 km on Single-mode Fiber (SMF)
- Connector: LC Duplex
- Fiber Type: Single-mode Fiber (SMF)
- Application: Designed for medium- to long-range Fibre Channel links, including inter-data center connections.
- Features: Hot-swappable, supports digital optical monitoring (DOM).
Comparison Table:
| Feature | 57-1000480-01 | 57-1000485-01 | 57-1000487-01 | 57-1000490-01 |
|---|---|---|---|---|
| Type | 64G Fibre Channel SW SFP+ | 64G Fibre Channel LW SFP+ | 64G Fibre Channel Extended-Range SFP+ | 64G Fibre Channel CWDM SFP+ |
| Data Rate | Up to 64 Gbps | Up to 64 Gbps | Up to 64 Gbps | Up to 64 Gbps |
| Wavelength | 850nm | 1310nm | 1550nm | CWDM |
| Distance | Up to 100 meters (OM4 MMF) | Up to 10 km (SMF) | Up to 25 km (SMF) | Up to 40 km (SMF) |
| Connector | LC Duplex | LC Duplex | LC Duplex | LC Duplex |
| Fiber Type | Multi-mode Fiber (MMF) | Single-mode Fiber (SMF) | Single-mode Fiber (SMF) | Single-mode Fiber (SMF) |
| Application | Short-range SANs and data centers | Medium- to long-range connections | Extended-range deployments | Multiplexed long-range connections |
| Hot-Swappable | Yes | Yes | Yes | Yes |
| DOM Support | Yes | Yes | Yes | Yes |
Key Differences:
- Range and Fiber Type:
- 57-1000480-01: Short-range, multi-mode fiber up to 100 meters.
- 57-1000485-01: Medium-range, single-mode fiber up to 10 km.
- 57-1000487-01: Long-range, single-mode fiber up to 25 km.
- 57-1000490-01: Long-range with CWDM technology, up to 40 km.
- Wavelength:
- Varies based on range and application: 850nm, 1310nm, 1550nm, or CWDM.
- Use Case:
- 57-1000480-01: High-speed short-range SAN links.
- 57-1000485-01: Medium-range inter-data center connections.
- 57-1000487-01: Long-range SANs or campus environments.
- 57-1000490-01: Multiplexed data streams over long distances.
