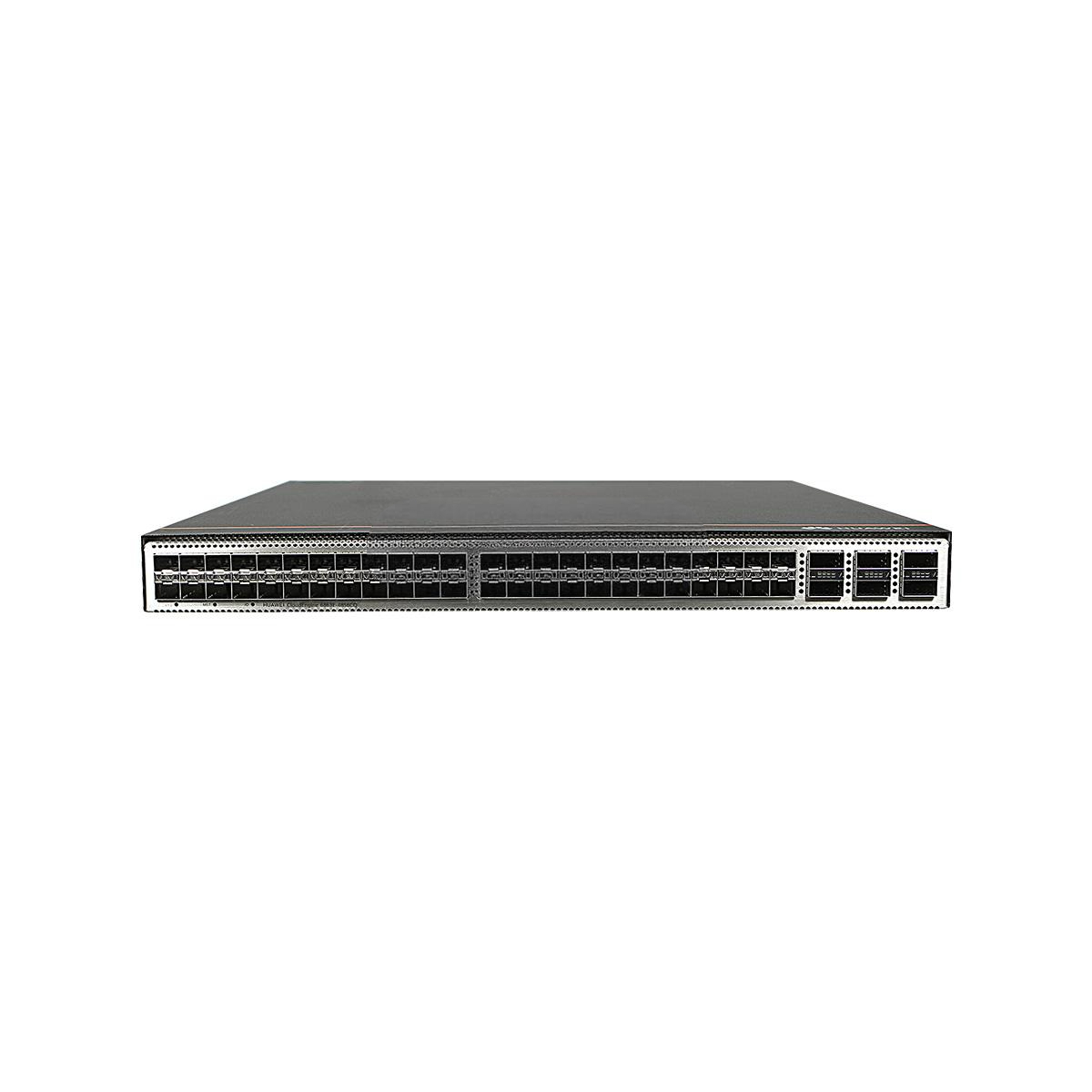

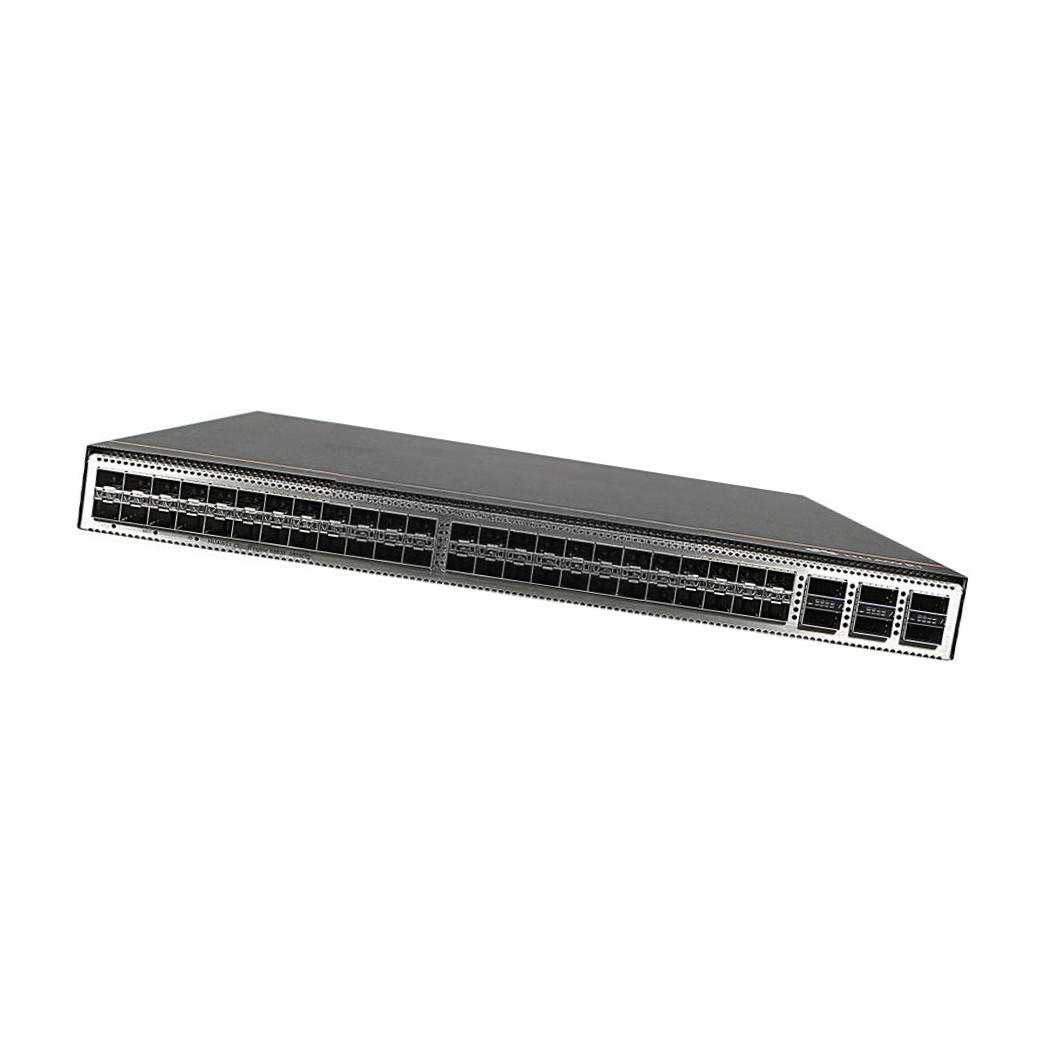

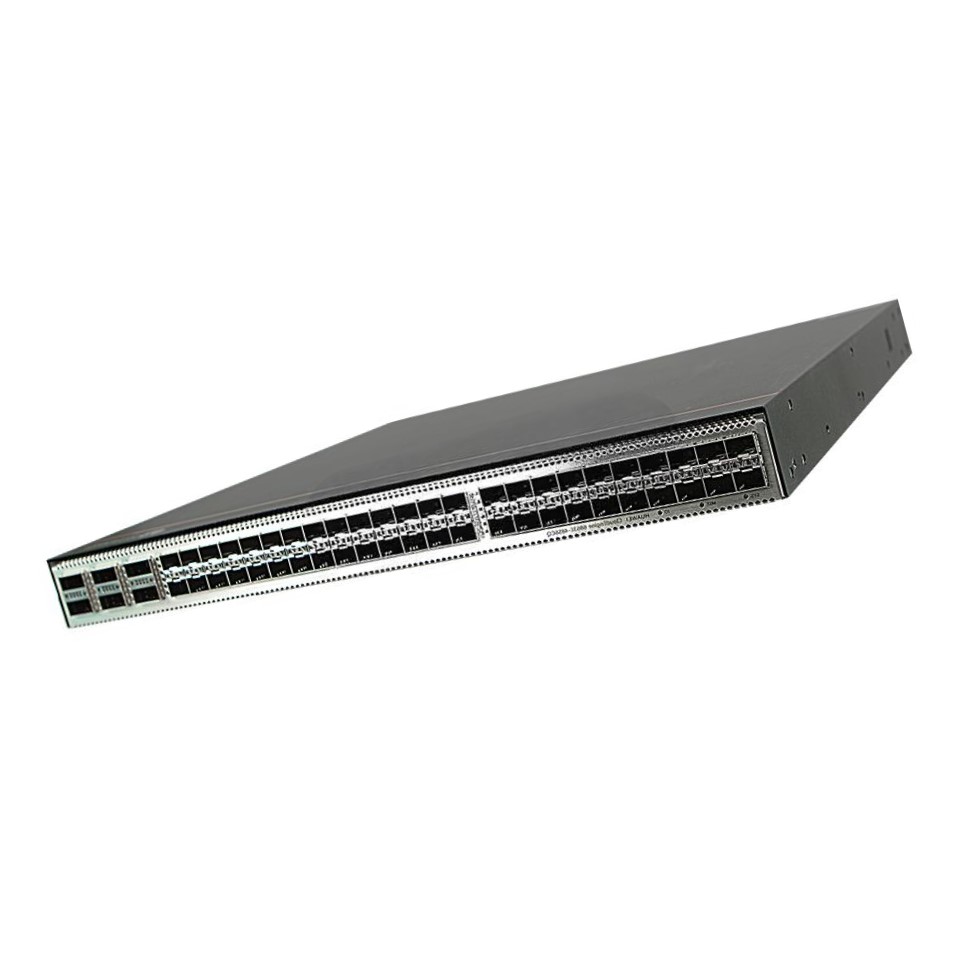

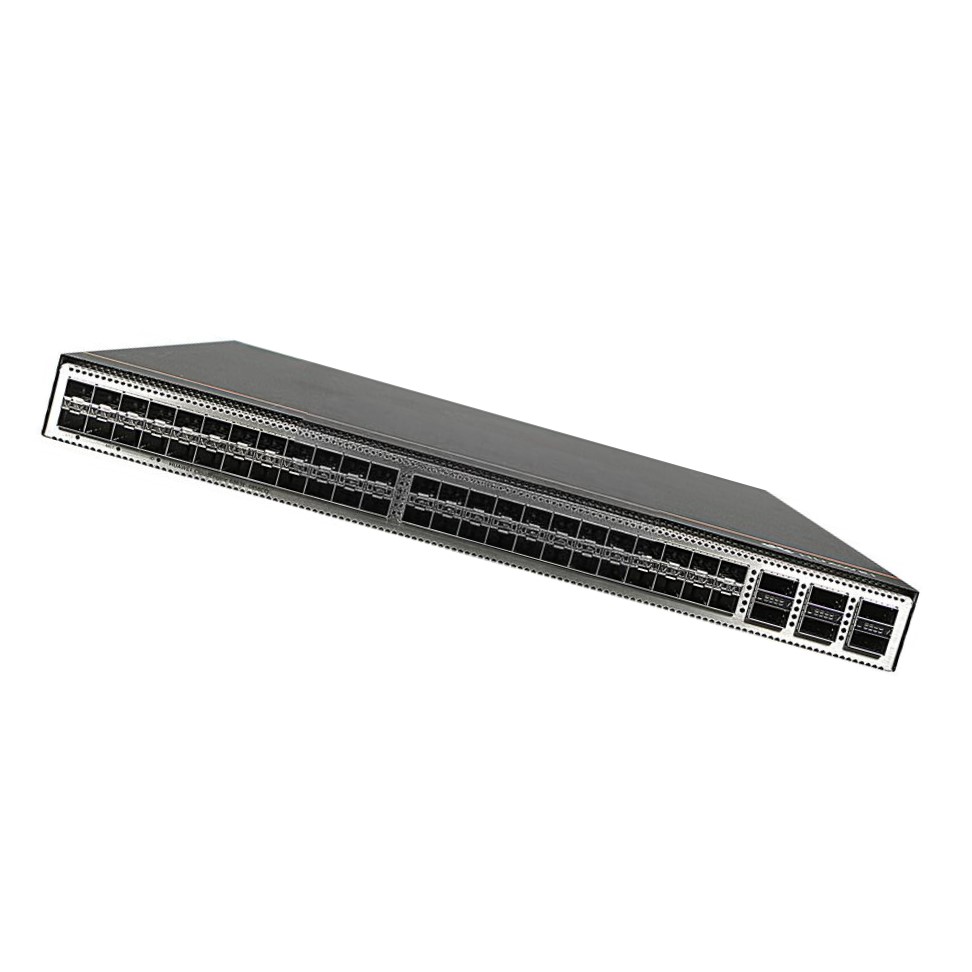

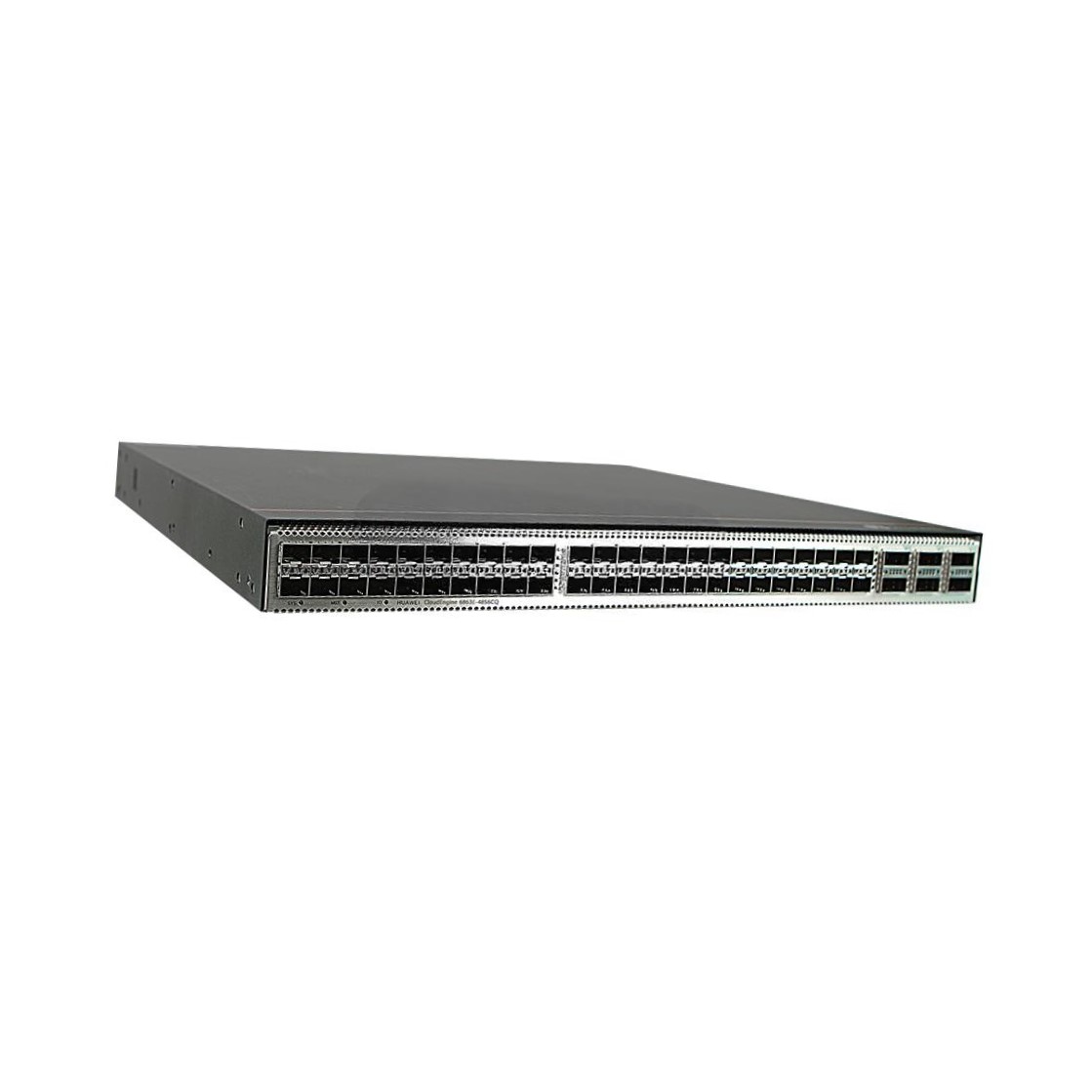

CE6863E-48S6CQ-B Huawei Brand New 6-Ports 100GE QSFP28, 2xAC
The CE6863E-48S6CQ-B Huawei Switch is a brand new, high-performance data center switch designed for ultra-high-density 10GE/25GE/100GE connectivity. Engineered for next-generation cloud, data center, and campus networks, this model offers 48 fixed 10GE/25GE SFP28 ports and 6 x 100GE QSFP28 uplink ports, delivering exceptional switching capacity and forwarding performance.
With its redundant 2xAC power supplies, hot-swappable modules, and advanced hardware architecture, the CE6863E-48S6CQ-B ensures carrier-grade reliability, energy efficiency, and non-disruptive maintenance — making it the ideal choice for enterprises and service providers seeking to build high-speed, scalable, and secure network infrastructures.
Key Features
-
Model: CE6863E-48S6CQ-B
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 48 x 10GE/25GE SFP28 + 6 x 100GE QSFP28 uplinks
-
Power Supply: 2 x AC hot-swappable redundant PSU modules
-
Performance: High throughput, low latency, and line-rate switching
-
Hardware Reliability: Carrier-grade design with redundant fans and power
-
Scalability: Supports flexible uplink options and virtual stacking
-
Energy Efficiency: Advanced power management reduces operational costs
-
Hot Swappable: Modules and power supplies can be replaced with no impact on services
-
Compatibility: Fully compatible with Huawei CloudEngine series ecosystem
Tech Specs
| Item | Specification |
|---|---|
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | Supported |
| Console Port | RJ45 |
| Power Supply Mode | AC, DC, HVDC |
| Rated Input Voltage | – AC: 100–240 V AC, 50/60 Hz – –48 V DC: –48 V DC to –60 V DC – 600 W AC & 240 V DC: 240 V DC – 1200 W HVDC: 240–380 V DC |
| Input Voltage Range | – AC: 90–290 V AC, 45–65 Hz – –48 V DC: –38.4 V DC to –72 V DC – 600 W AC & 240 V DC: 190–290 V DC – 1200 W HVDC: 190–400 V DC |
| Maximum Input Current | – 600 W AC & 240 V DC: 8 A (100 V AC – 240 V DC) / 4 A (240 V DC) – 1000 W DC: 30 A (–48 V DC to –60 V DC) – 1200 W HVDC: 8 A |
| Rated Output Power | – 600 W (AC & 240 V HVDC) – 1000 W (–48 V DC) – 1200 W (380 V HVDC) |
Interfaces
| Item | Specification |
|---|---|
| Downlink Service Interface | 48 × 25GE SFP28 Note: – Ports configurable to 10 Gbit/s or 1 Gbit/s (grouped in 4s). – 10GE LRM/80KM linear optical modules not supported. – Copper cables (1m 25GE; 1/3/5m 10GE) supported — auto-negotiation not supported. – 25GE copper cables: only for stack ports and M-LAG peer-link ports. |
| Uplink Service Interface | 6 × 100GE QSFP28 Note: – Configurable to 40 Gbit/s. – Cannot split to 4 × 25GE or 4 × 10GE. – 100GE/40GE copper cables (1/3/5m) supported — no auto-negotiation. – Copper cables for stack and M-LAG only. |
| Service Port Supporting Stack | 25GE and 100GE optical ports |
| RTC | Supported |
Power & Cooling
| Item | Specification |
|---|---|
| Switching Capacity | 3.6 Tbps (3600 Gbit/s) |
| Redundant Fans | 3+1 backup, hot swappable |
| Redundant Power Supply | 1+1 backup |
| Number of Power Modules | 2 |
| Power Surge Protection | AC: 6 kV (common/differential) DC: 4 kV (common) / 2 kV (differential) HVDC: 4 kV (common) / 2 kV (differential) |
| Fan Type & Number | Pluggable, 4 fans |
| Airflow Direction | Front-to-rear or rear-to-front (depends on fan & PSU selection) |
| Heat Dissipation Mode | Air cooling |
| Maximum Heat Dissipation | 1310 BTU/hour |
| Typical Heat Dissipation | 771 BTU/hr (high-speed cables, full load, dual PSUs) 891 BTU/hr (short-distance optical modules, full load, dual PSUs) |
| Static Heat Dissipation | 570 BTU/hour |
| Typical Power Consumption | 226 W (high-speed cables, full load) 261 W (short-distance optical modules, full load) |
| Static Power Consumption | 167 W |
| Maximum Power Consumption | 384 W |
Environmental
| Item | Specification |
|---|---|
| Operating Temp. (Long-term) | 0°C to 40°C (32°F to 104°F) at 0–1800 m altitude Note: For altitudes 1800–5000 m, reduce by 1°C per 220 m. |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Installation Type | Cabinet installation |
Physical
| Item | Specification |
|---|---|
| Dimensions (HxWxD) | 43.6 mm × 442.0 mm × 420.0 mm |
| Weight (with pack.) | 8.95 kg (19.73 lb) |
| Weight (w/o pack.) | 5.7 kg |
CE6863E-48S6CQ-B Applications
The CE6863E-48S6CQ-B is ideal for:
• Large-scale data centers requiring 10GE/25GE server access with 100GE uplinks
• Cloud networks supporting massive east-west traffic with scalable bandwidth
• Enterprise core and aggregation layers with high-density port requirements
• Campus backbone networks demanding high throughput and reliability
• ISPs and carriers needing carrier-grade hardware for mission-critical applications
