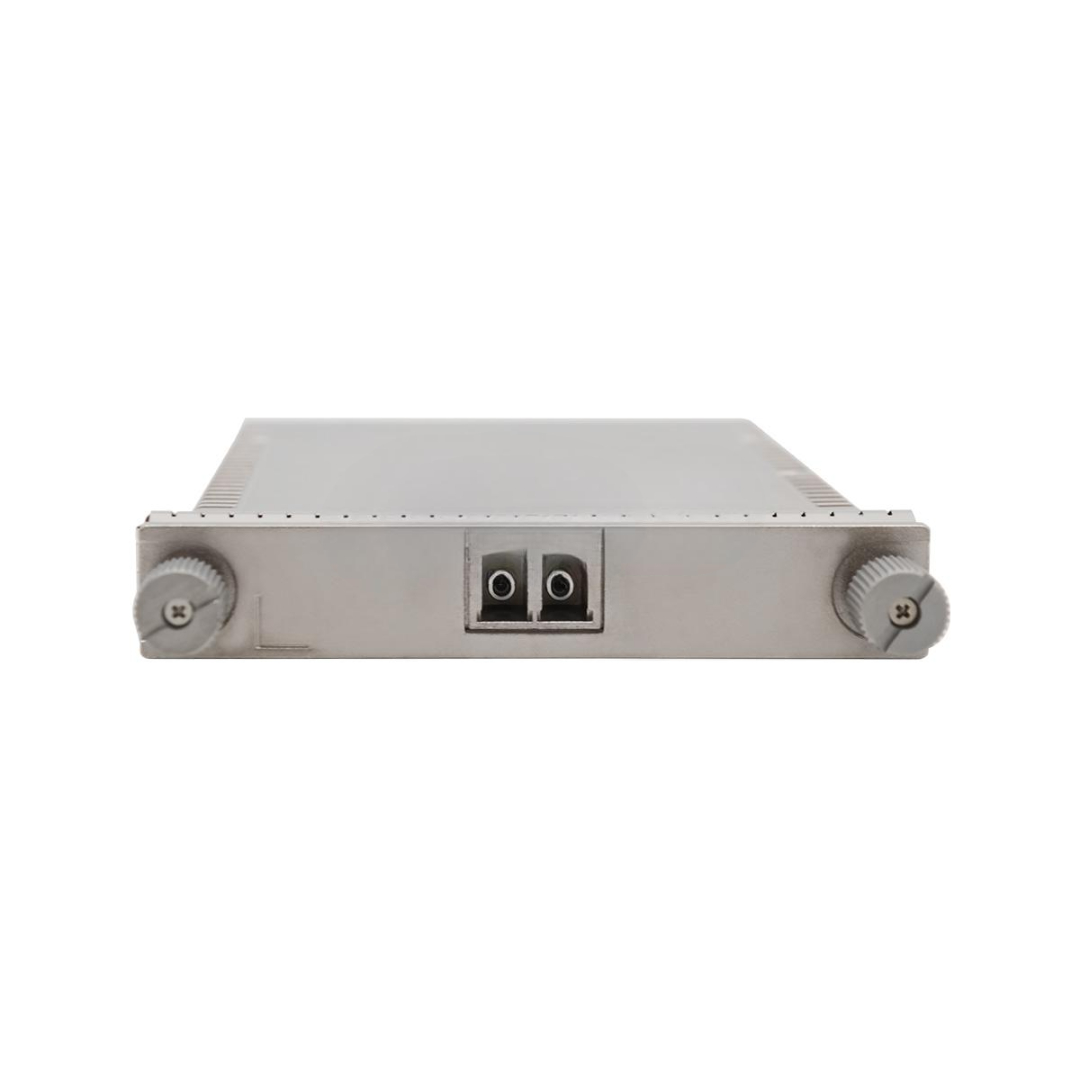

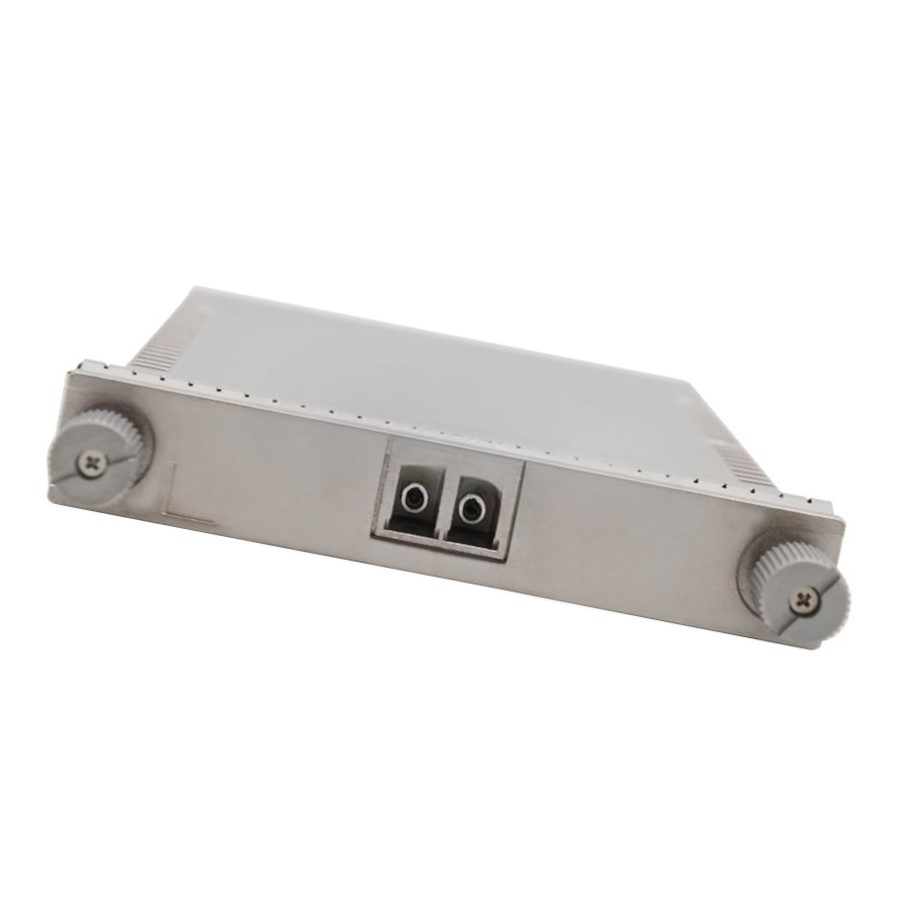

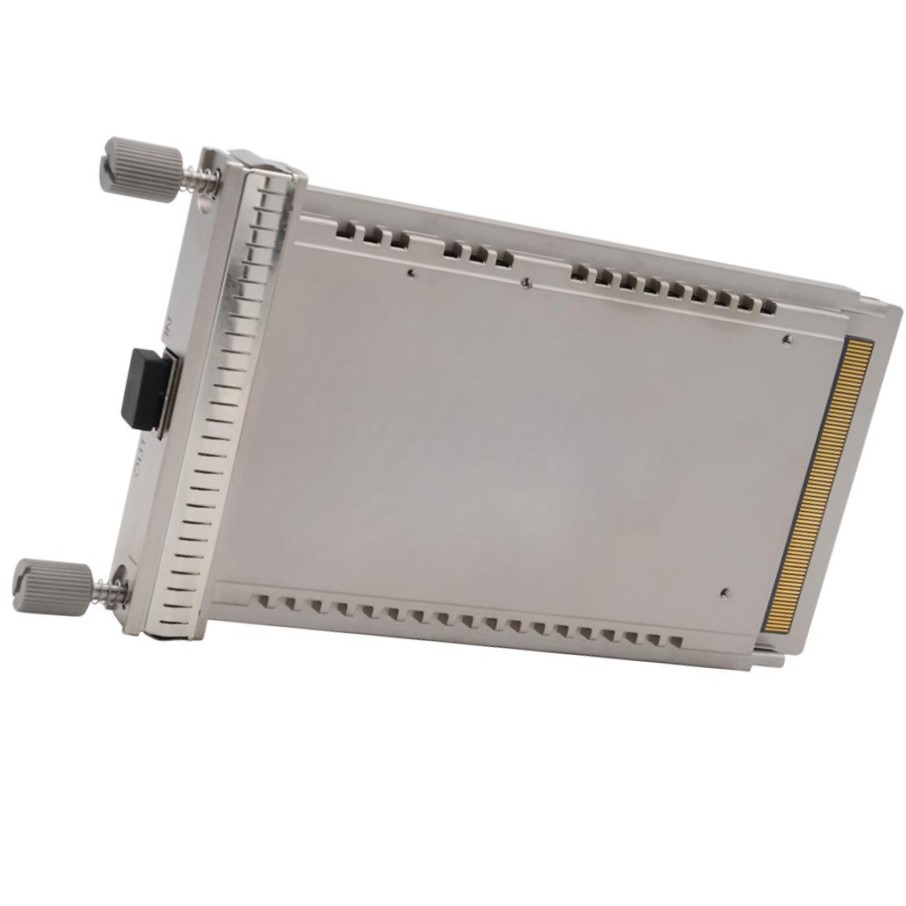

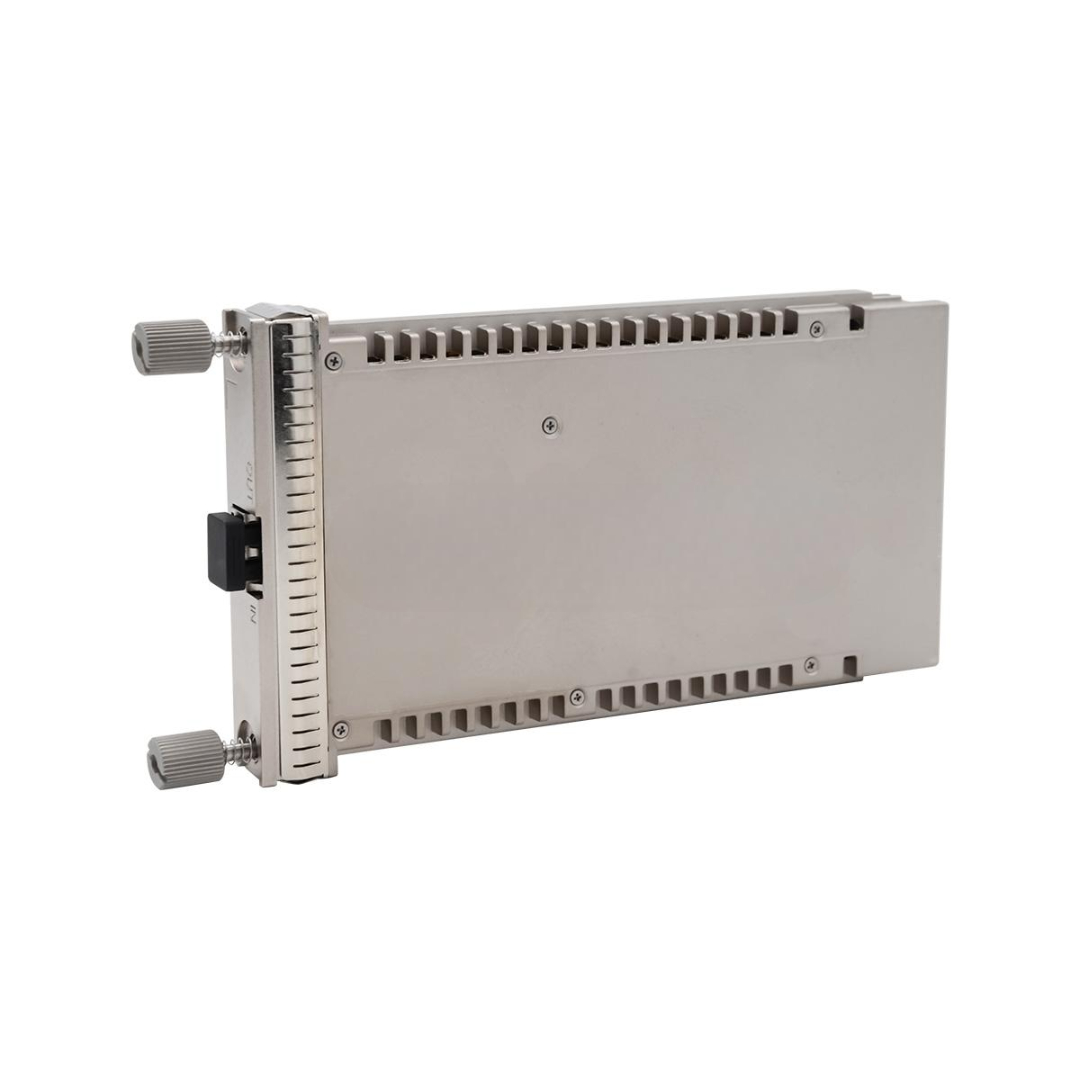

CFP/TN11C1CFPT5U Huawei Original New 100G T5U Transceiver Module
The CFP/TN11C1CFPT5U Huawei is a 100G original optical transceiver module, purpose-built for ultra-high-speed transmission over optical fiber networks. Operating in the CFP (C Form-factor Pluggable) format, this module is part of Huawei’s TN11 series, specifically optimized for OTN/SDH transmission platforms such as the Huawei OptiX OSN series. It delivers 100 Gbps line rate over long-distance links, leveraging advanced T5U modulation for reliable performance in metro and long-haul transport networks.
Key Features
- Model: CFP/TN11C1CFPT5U
- Condition: 100% Brand New, Original Huawei
- Transmission Rate: 100 Gbps line speed
- Form Factor: CFP (hot-swappable transceiver module)
- Modulation Type: T5U (advanced 5-carrier coherent modulation)
- Connector Type: Duplex LC/SC (depending on configuration)
- Reach: Up to 2000 km (with DCM-free coherent technology)
- Wavelength: C-Band (tunable across 50GHz grid)
- Forward Error Correction: SD-FEC or HD-FEC supported
- Digital Diagnostics: DDM/DOM for real-time monitoring
- Platform Compatibility: OSN 8800, OSN 9800, OSN 1800 series
Technical Specifications
| Specification | Details |
|---|---|
| Model | CFP/TN11C1CFPT5U |
| Transceiver Type | CFP (100G) |
| Transmission Speed | 100 Gbps |
| Modulation Format | T5U (5-Carrier Coherent Modulation) |
| Connector | LC/SC Duplex (based on slot requirement) |
| Transmission Distance | Up to 2000 km (amplified & coherent systems) |
| Wavelength Range | Tunable C-band (50GHz ITU grid) |
| FEC Support | Soft Decision FEC (SD-FEC) |
| Power Consumption | ≤ 30W |
| Interface Compliance | CFP MSA, ITU-T G.709, G.698.2, G.872 |
| DDM/DOM | Supported |
| Operating Temperature | 0°C to +70°C (standard) |
| Humidity | 5% to 95%, non-condensing |
| Hot-Swappable | Yes |
| Compatible Platforms | Huawei OSN 8800, OSN 9800, OSN 1800, etc. |
| Warranty | 1–3 Years Manufacturer Warranty |
Applications of CFP/TN11C1CFPT5U Huawei
- Core Optical Transport Networks – Supports backbone 100G transmission across long-haul distances
- Metro DWDM Rings – High-capacity coherent transport between aggregation nodes
- OTN Networks – Fully compatible with Huawei’s OTN cross-connect and switching fabric
- Data Center Interconnect (DCI) – Low-latency 100G connectivity between facilities
- Telecom & ISP Infrastructure – Stable long-distance transmission for Tier 1 carriers
Customization & OEM Options
- Pre-Tuned Wavelengths – Factory-tuned channels to match your DWDM grid
- Label Customization – Company-specific branding and barcode options
- Performance Testing – Optional extended burn-in and QA for mission-critical networks
- Rack Integration – Bundled with chassis, patch cables, and mounting solutions
- Temperature Range Variants – Extended industrial options available upon request
Wholesale & Global Procurement Info
- Huawei Certified Units – 100% original with verified S/N and firmware
- Bulk Availability – Competitive pricing for ISPs, carriers, and project integrators
- Ready Stock – Fast shipment for large-scale rollouts
- Secure Packaging – Foam-cushioned OEM trays, ESD-safe packaging
- Documentation Provided – Datasheets, optical budgets, and integration manuals
Why Choose CFP/TN11C1CFPT5U Huawei
- Proven 100G Performance — T5U coherent modulation supports long-haul transmission
- Huawei OEM Assurance — Perfectly matches OSN series network equipment
- High Compatibility — Compliant with ITU-T & CFP MSA standards
- Reliable Diagnostics — Real-time monitoring ensures network integrity
- Designed for Scale — Optimized for high-capacity network cores and metro rings
Contact Us for Pricing, Lead Time & Technical Support
Get in touch now for bulk orders, technical datasheets, and customized transceiver configurations for your 100G optical network deployments. Choose Huawei CFP/TN11C1CFPT5U for stable, scalable, and future-proof connectivity.
