- Model Number:F600
- Type:ONU
- Place of Origin:guangzhou
- Brand Name:Huawei
- Use:FTTH
- Warranty Time:1 year
- Network:Wired LAN, wifi
-
- Supply Ability
- 4000 Piece/Pieces per Week
-
- Packaging Details
cartons
-
- Port
Shenzhen
- Lead time:Quantity(pieces)1 – 8000>8000Lead time (days)15To be negotiated
Overview
ZTE F600 FTTH is a GPON Optical Network Terminal designed for FTTH scenario. It provides subscribers rich, colourful, individualized, convenient and comfortable services including video (IPTV) and high-speed internet access. It has a small, smart appearance and green, energy-saving advantage.
Specifications
| Brand | ZTE |
| Model | F600 |
| Optical port | 1 x GPON interface (SC/PC or SC/APC) |
| Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream |
| User-Network Interface | 1 x10/100/1000Base-T and 3 x10/100 BASE |
| Wavelength | Receiving: 1480~1500 nm Transmitting: 1290~1330 nm |
| Receiving Sensitivity | -28dBm |
| Transmitting Optical Power | 0.5~5dBm |
| Power consumption | <6W |
| Dimensions | 110mm(W) x 90mm(H) x 53mm(D) |
| Working temperature: | 0oC ~ 40oC |
| Working humidity | 5% ~ 95% |
| Weight | 190g |
| Power supply | 12V DC |
Features
- GPON interface: GPON standard, SC/APC, comply with ITU 984.1–G.984.5 standards
- Ethernet interface: Four GE interfaces, RJ-45, comply with IEEE 802.3 and IEEE 802.3u standards
- Broadband service access: Connected to the Internet through the GPON access method.
- Ethernet service access: Provides GE Ethernet interfaces, connected to the
- Ethernet devices, such as the user PC. Provides Internet access and IPTV services.
- Security: Provides multi-level authentication based on the device, user and service, and provides the data channel encryption for safety.
- QoS: Provides QoS services meeting the requirements of various services for the local devices and network
- Network management: Provides multi-mode network management

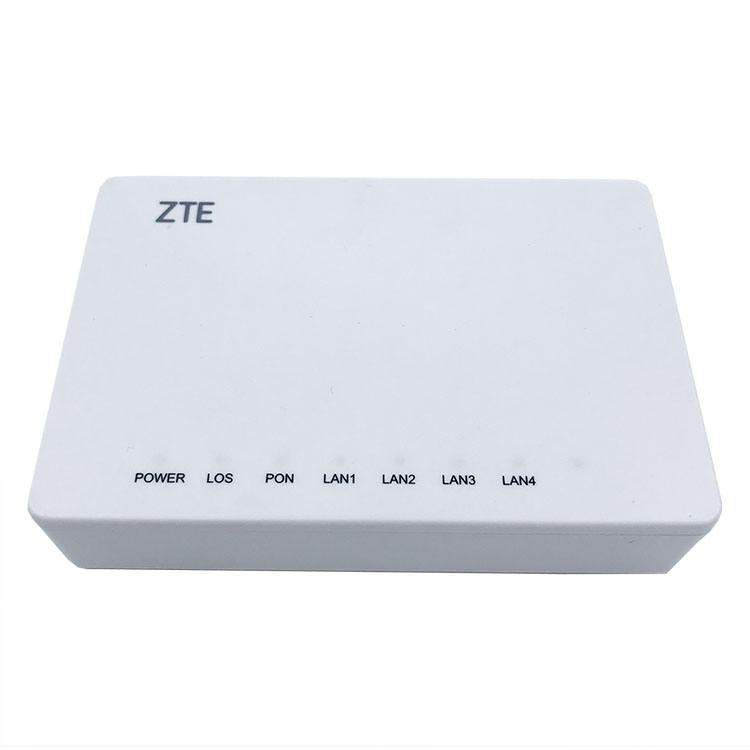

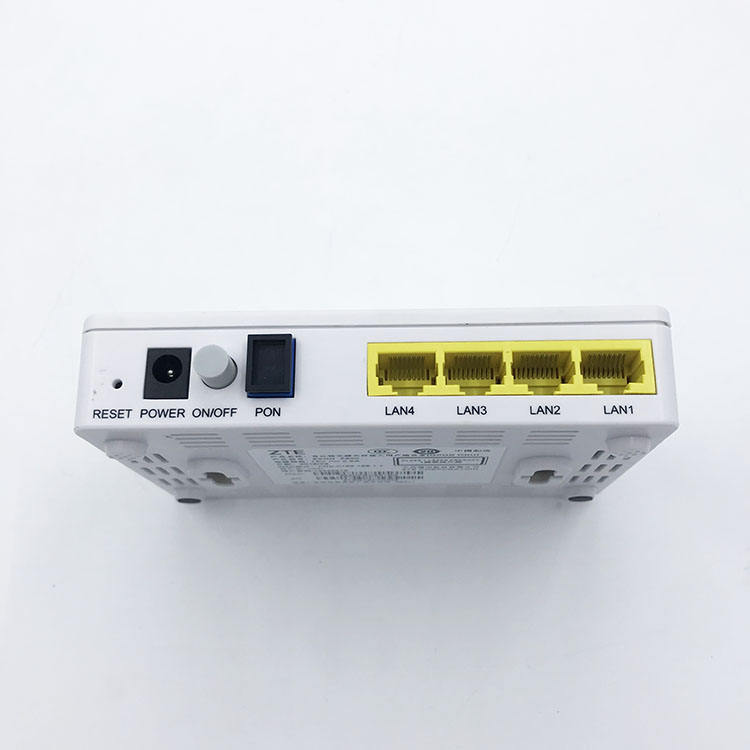

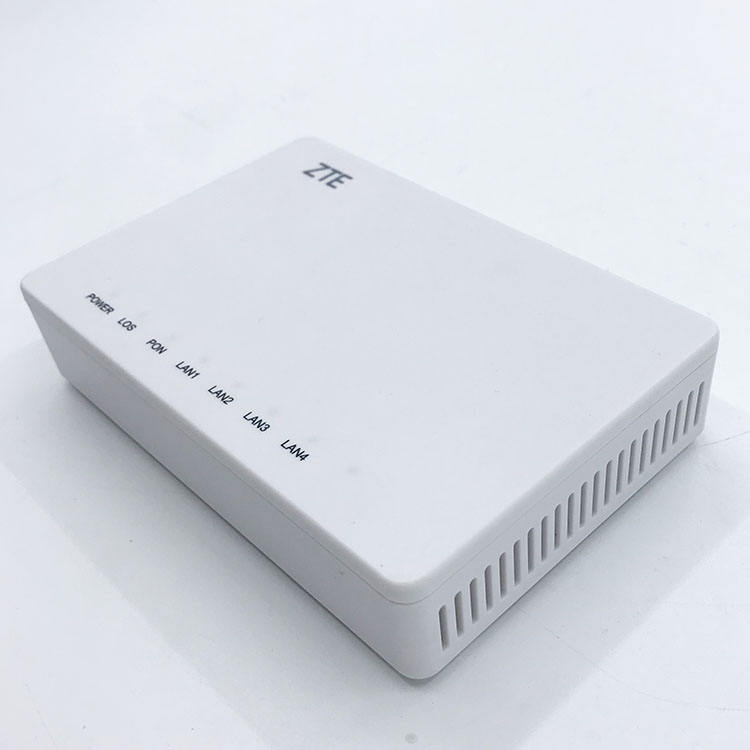

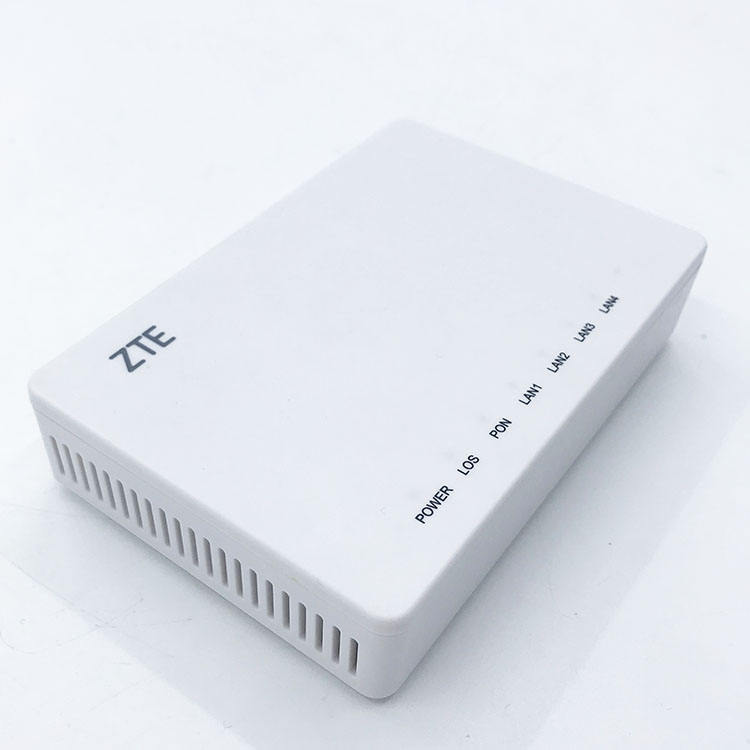

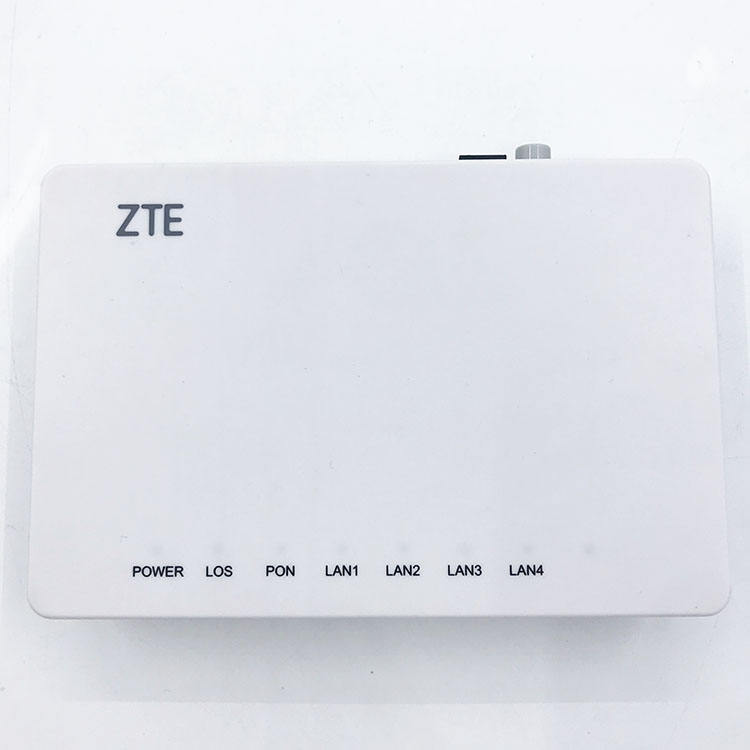

Product Pictures
