- Insertion loss:0.3dB, best 0.12dB(IEC Grade B)
- Certification:ISO9001:2018
- Connector:SC FC LC ST UPC APC
- Wavelength:1310nm/1490nm/1550nm
- Fiber Type:Multi-mode or single mode
- Material:PVC, LSZH
- Fiber:OM1 OM2 OM3 OM4 OM5
- Keywords:fiber optic patch cord
- Warranty:3 Years
- Length:0.5m/1m/2m/5m/customized
- Selling Units:Single item
- Single package size: 10X8X6 cm
- Single gross weight:0.100 kg
- Package Type:Plastic/ Carton/Customized for Fiber optical optic patch cord cable 3 meter pigtail fiber optic jumper
- Picture Example:
- Lead time:Quantity(pieces)1 – 10000>10000Lead time (days)10To be negotiated
China factory price fiber optic patch cord dulplex optical patch cord single mode G652D G657A1 PVC LSZH

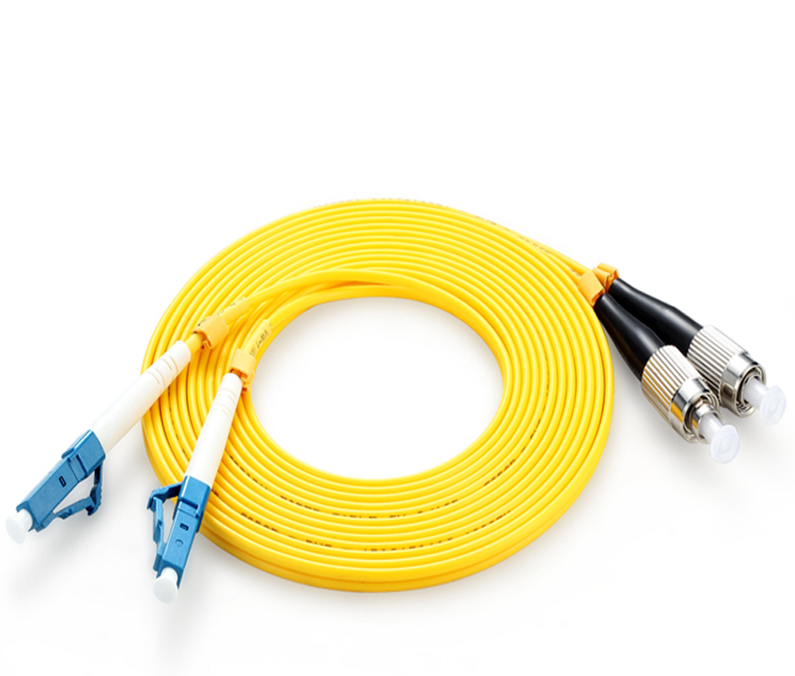

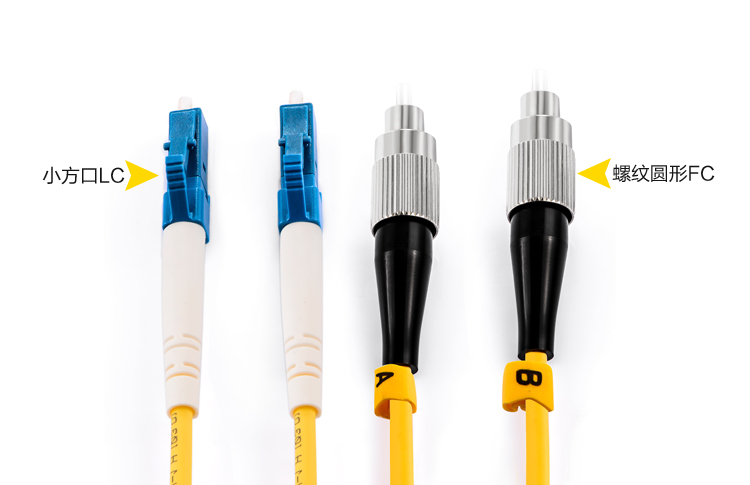

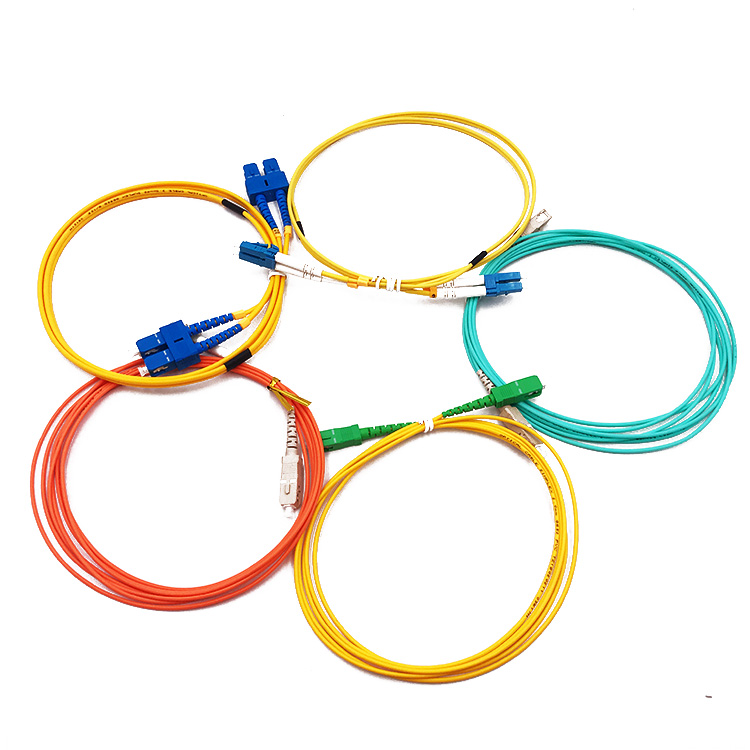

Detailed Images
Product Description
| Parametor | Unit | Value | |||
| Connector Type | FC/UPC,FC/APC,SC/UPC,LC/UPC,LC/APC,ST/PC,MPO | ||||
| Fiber Type | Multi-Mode | Single Mode | |||
| Insertion Loss | dB | Max.≤0.2 | Max.≤0.3 | ||
| Return Loss(Typ.) | dB | ≥36(no APC connector) | /PC | /UPC | /APC |
| ≥45 | ≥50 | ≥60 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| Connection Durability | times | ≥1000 | |||
| Operating/Storage Temperature | ℃ | -40~+80 |
|
Boot |
Connector |
Fiber Type |
Cable number |
Ferrule |
Connector |
|
0.9mm 2.0mm 3.0mm |
LC FC SC ST MU D4 MTRJ MPO DIN
|
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber Ribbon |
PC APC UPC |
1M 2M 3M4M 5M ……… Customized |
There are various types fiber optical patch cord in our factory, we also accept the customization.
