SKU 1600546095024 Category
  • Model Number:OTDR
  • Type:Testers &Tools
  • Place of Origin:Zhejiang, China
  • Use:Engineering
  • Warranty Time:1 YEAR
  • Product name:Chinese handheld OTDR 1310/1550nm dynamic range 37/35db event
  • Warranty:12 Months / 1 Year
  • Weight:10kg
  • Distance:512km
  • Package:Carton
  • Supply Ability
    10000 Carton/Cartons per Day
  • Packaging Details


  • Port

    Shanghai or NIingbo

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated

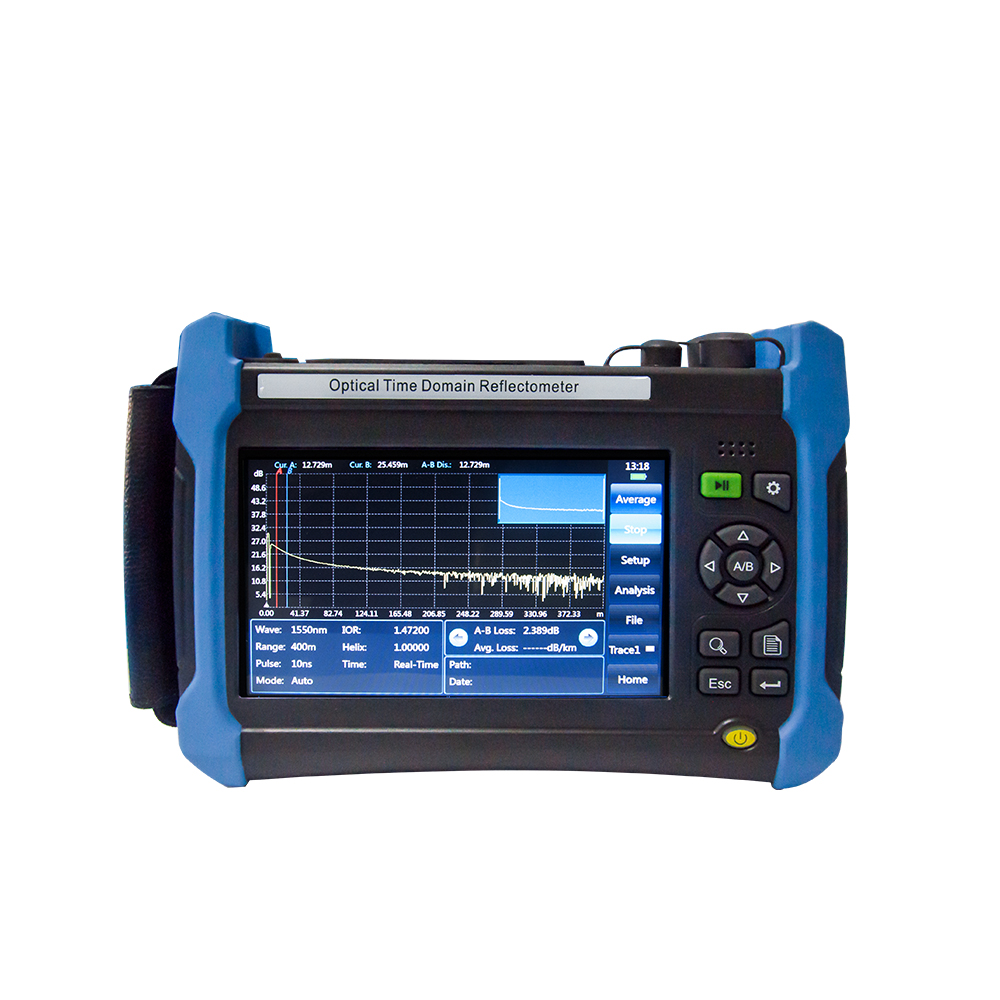

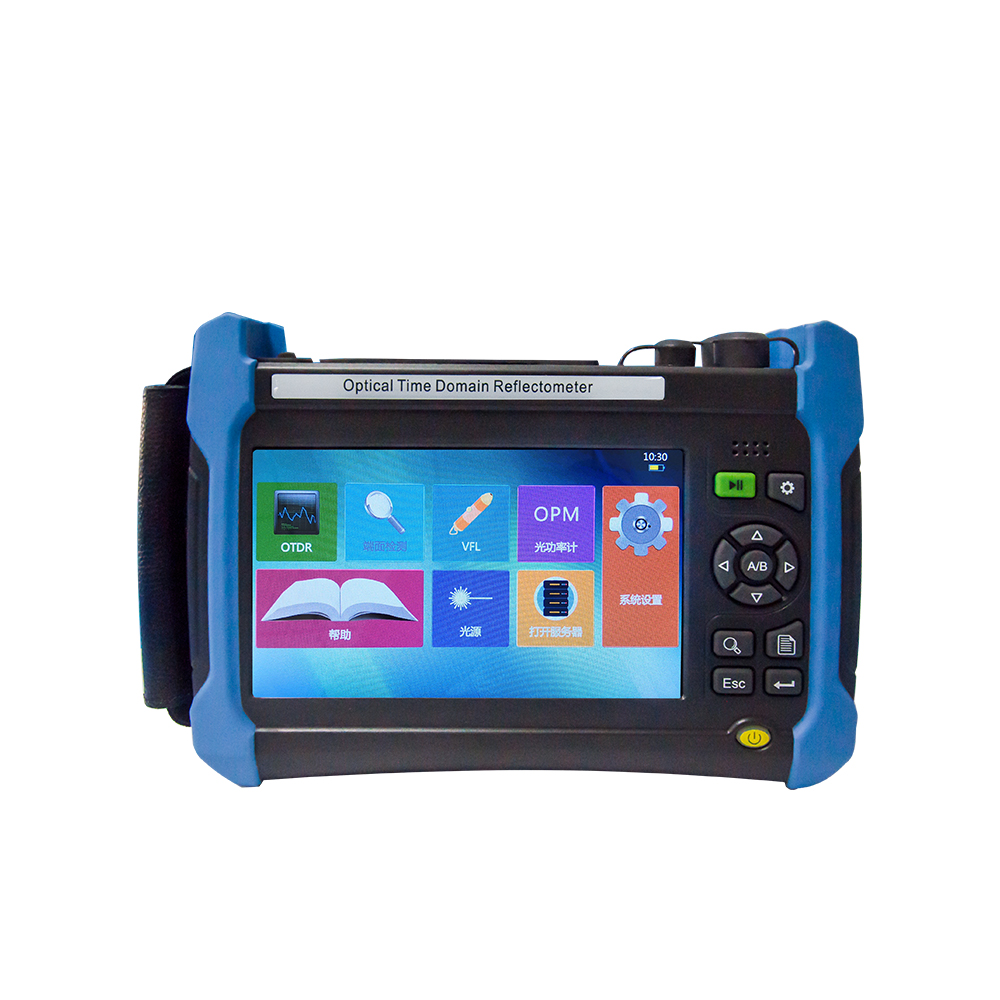

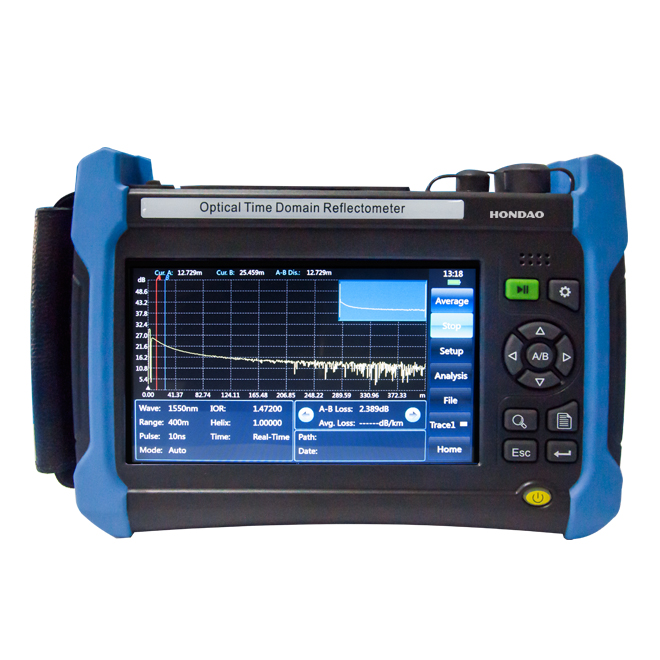

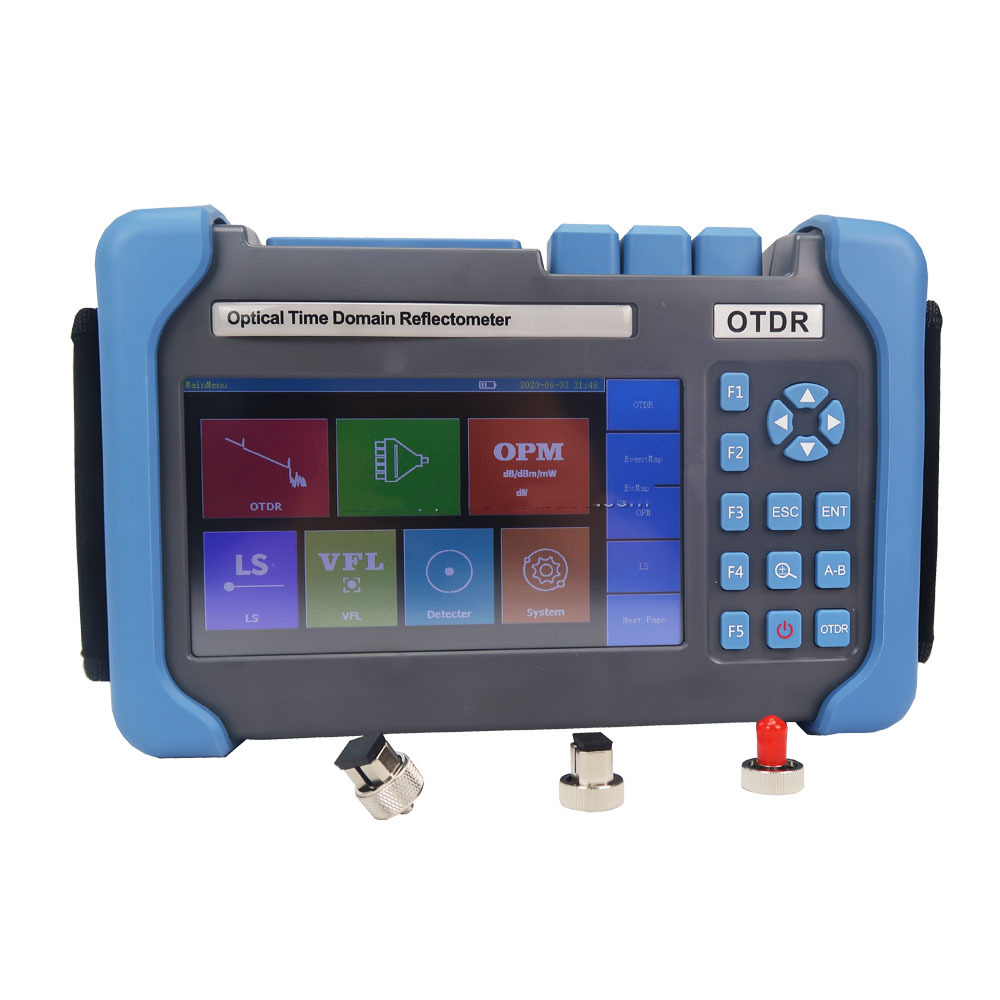

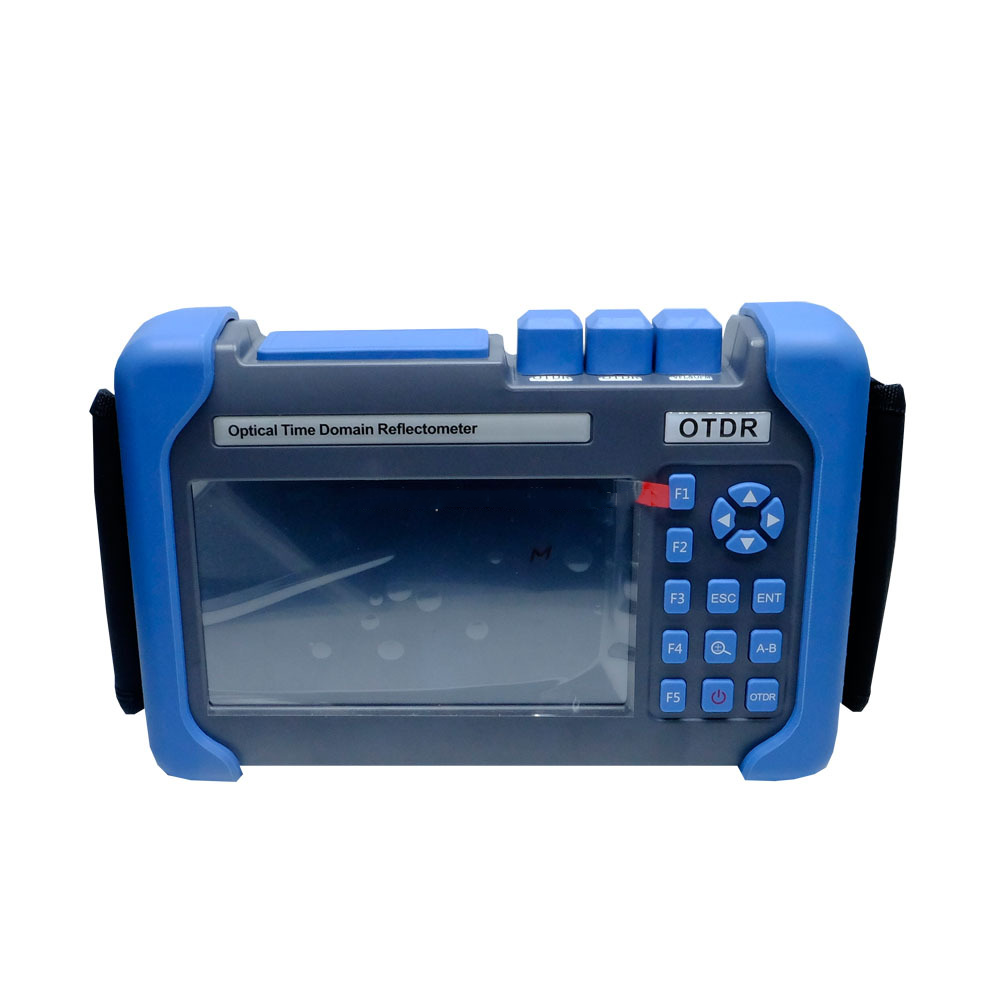

Chinese handheld OTDR 1310/1550nm dynamic range 37/35db event dead zone 1m
Product Description


This manual is applicable to optical time domain reflectometer. The optical time domain reflectometer is a multifunctional test instrument designed for FTTx network. It is mainly used to measure the length, transmission loss, joint loss and other physical properties of optical fiber, and to locate the event point and fault point in the optical fiber line. It is widely used for engineering cons truction, maintenance test and emergency repair in optical fiber communication system, as well as fiber optic cable development and production test.

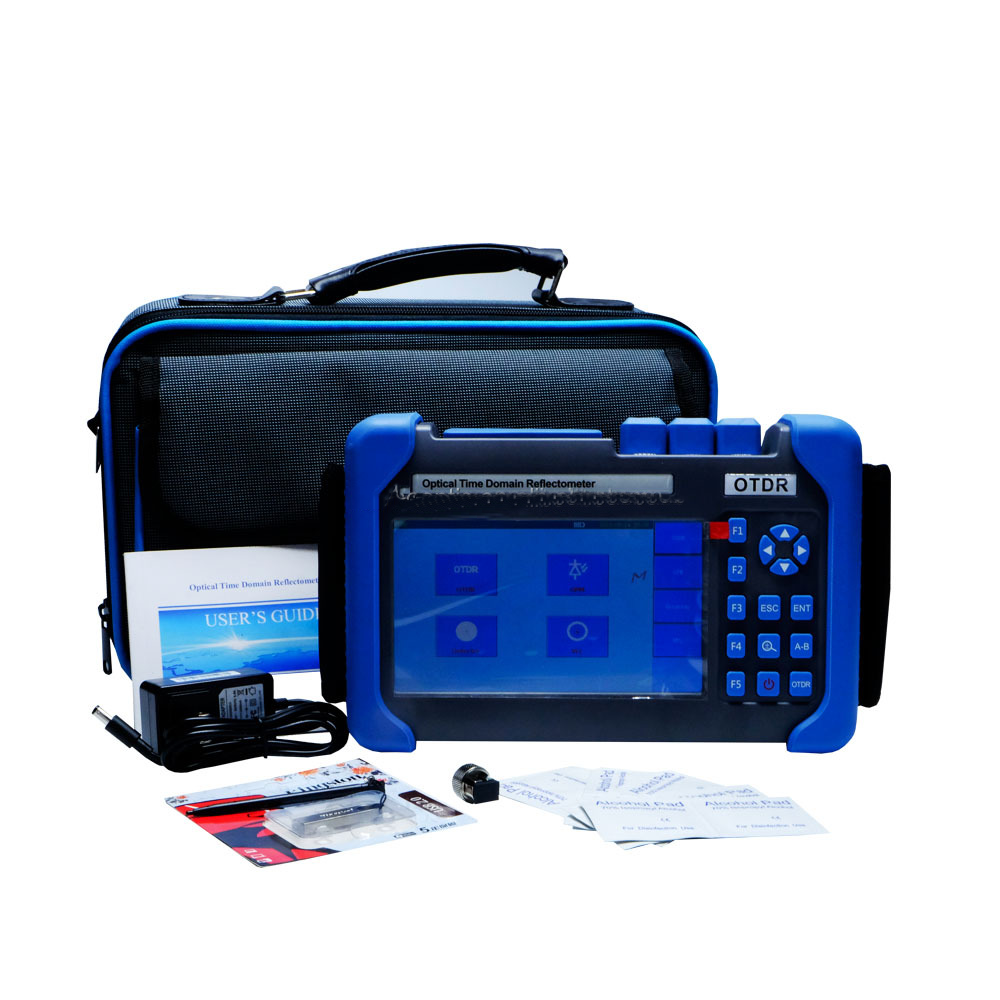

mainframe module
Display control module
Module of optical time domain reflectometer
OTDR measuring module
LiHion battery pack
Over 70Wh (built-in)
Power cord assembly
Input voltage: 100-240V, 50-60Hz, 2.0A                              Output voltage 15V, output current,4A
