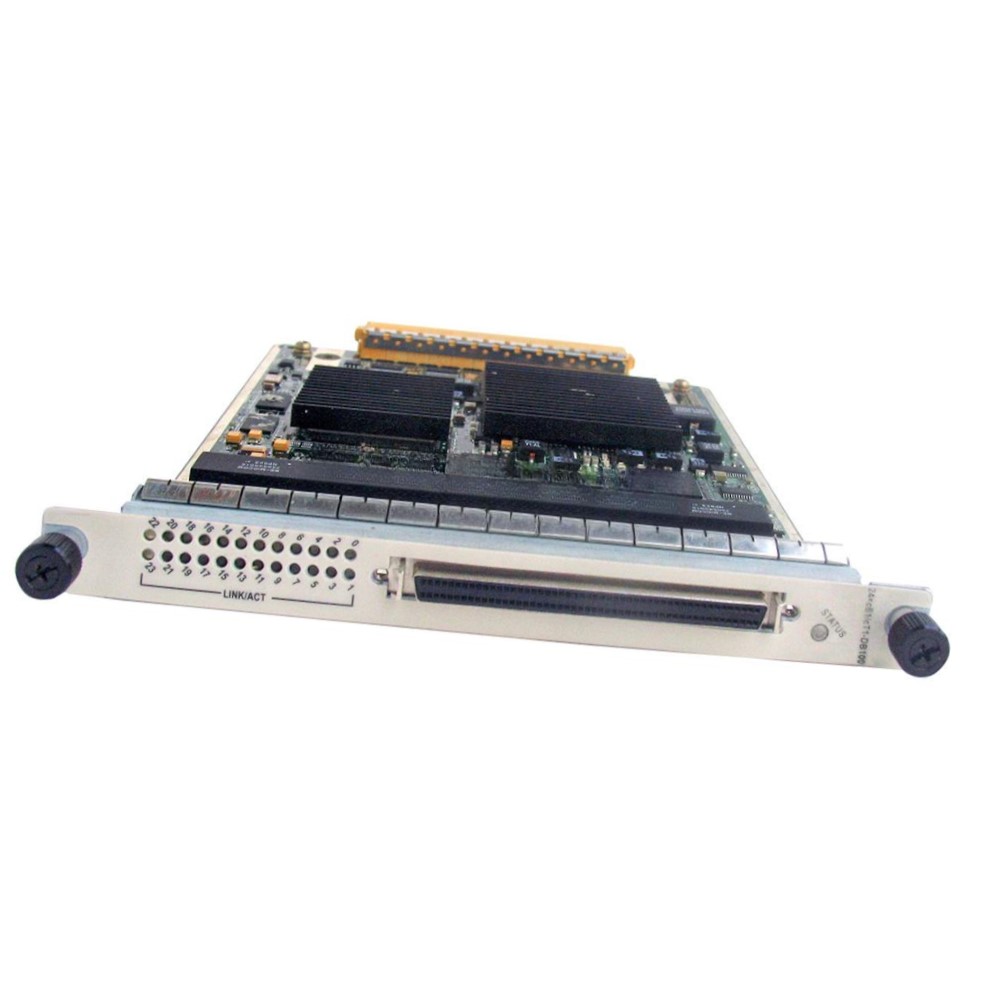

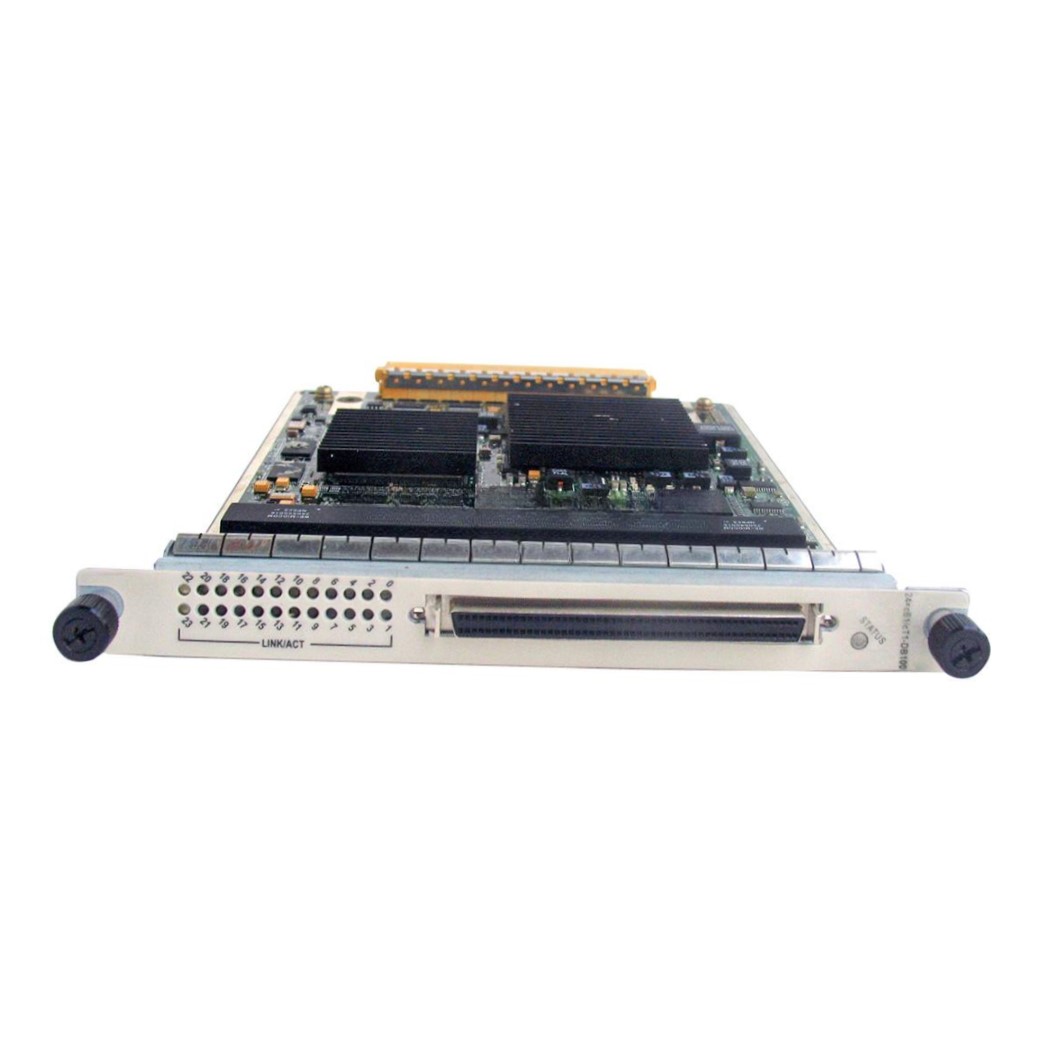

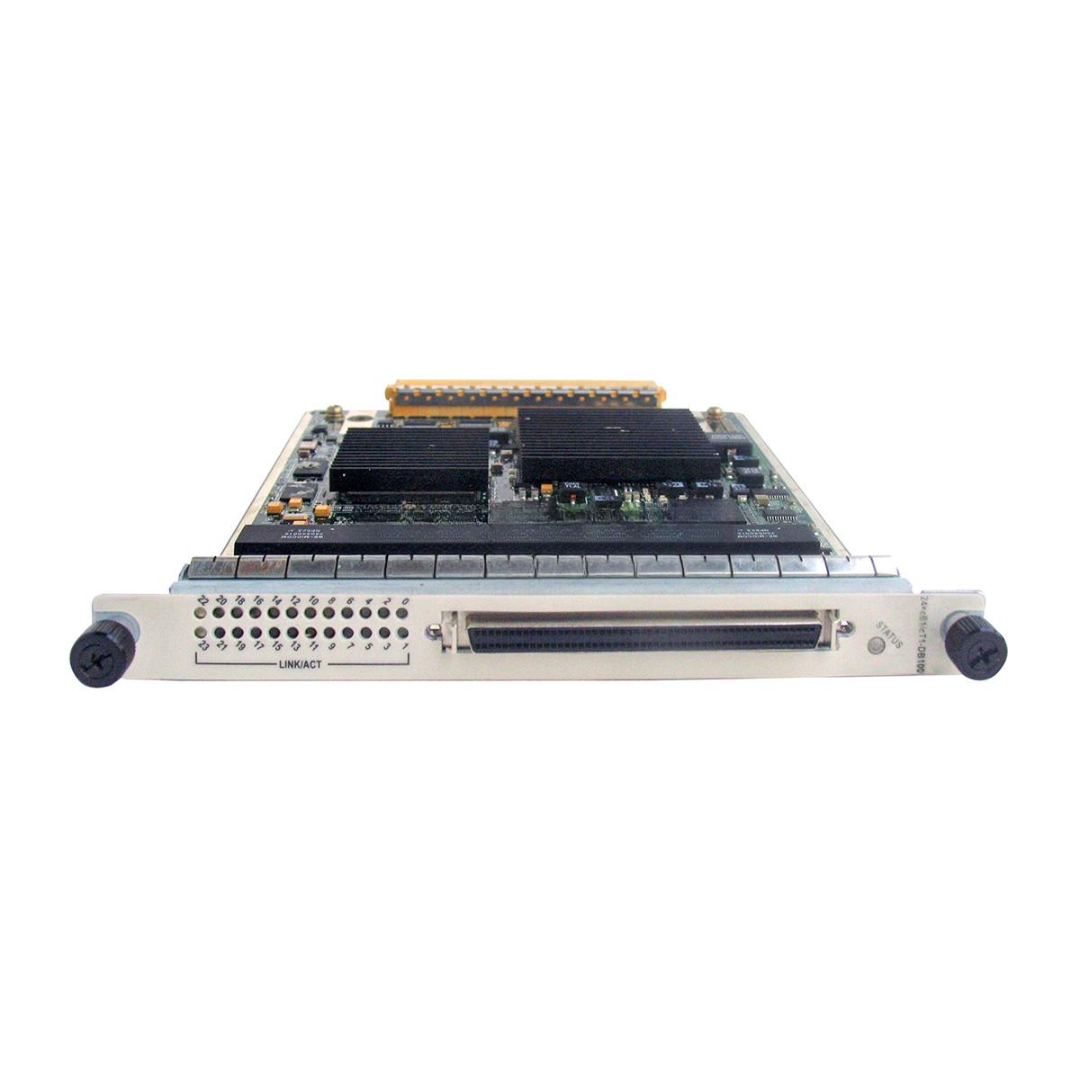

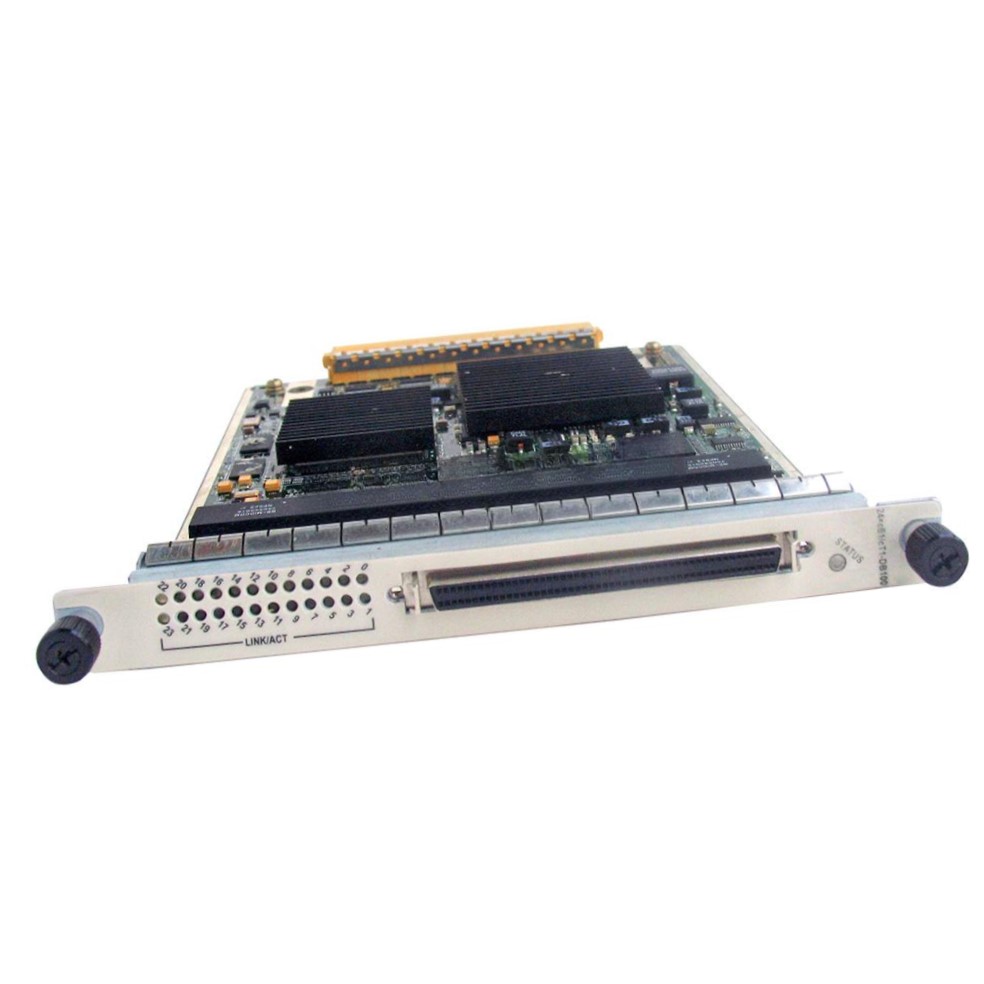

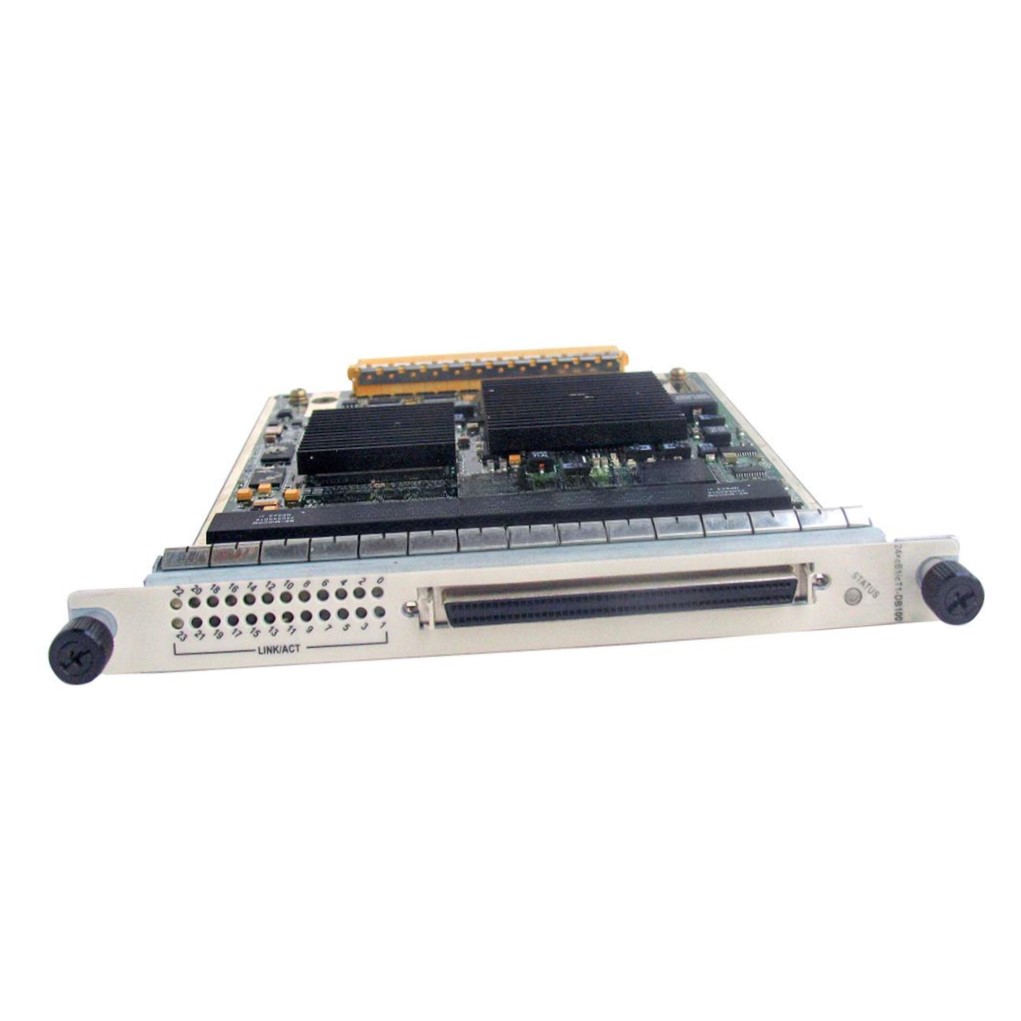

CR53-P10-24xcE1/cT1-DB100 Huawei Brand New Flexible Card
The CR53-P10-24xcE1/cT1-DB100 is a brand new, high-performance Huawei flexible card, designed to support 24 channels of cE1/cT1 interfaces. It is ideal for enterprise access, legacy TDM service transport, and interworking between traditional voice systems and modern IP/MPLS transport infrastructure. This flexible board is tailored for Huawei’s CR53 router platform and delivers carrier-grade voice and data service capabilities over PDH networks.
Engineered with reliability and scalability in mind, the CR53-P10-24xcE1/cT1-DB100 allows flexible deployment of digital voice and low-speed leased line services in large-scale telecom networks.
Key Features
-
Model: CR53-P10-24xcE1/cT1-DB100
-
Condition: 100% Brand New, Original Huawei
-
Interface Support: 24 x channelized E1/cT1 interfaces
-
Port Type: DB100 high-density connector
-
Application Type: Voice and legacy TDM transport
-
Protocol Support: Channelized PDH, Frame Relay, HDLC, CES
-
Hot-Pluggable: Supports in-service replacement
-
Flexible Configuration: Supports E1/T1 line switching, protection, and mapping
-
Network Compatibility: For Huawei CR53 and compatible routing platforms
-
Alarm & Monitoring: LOS, LOF, AIS, RDI, LCV, CRC, and per-channel diagnostics
Technical Specifications
| Specification | Details |
|---|---|
| Model | CR53-P10-24xcE1/cT1-DB100 |
| Port Count | 24 x cE1/cT1 |
| Connector Type | DB100 (high-density) |
| Supported Services | Channelized E1/T1, Circuit Emulation, Frame Relay |
| Line Rate | 2.048 Mbps (E1), 1.544 Mbps (T1) |
| Mapping & Grooming | Structured and unstructured CES, channel mapping |
| Compatibility | Huawei CR53 Routers and Unified Carrier Platforms |
| Power Consumption | ≤ 40W (typical) |
| Operating Temperature | 0°C to +55°C |
| Humidity Range | 5% – 95%, non-condensing |
| MTBF | >120,000 hours |
| Compliance | ITU-T G.703, G.704, G.823, ANSI T1.403 |
| Warranty | 1–3 Years Manufacturer Warranty |
CR53-P10-24xcE1/cT1-DB100Applications
-
Legacy TDM Services — Aggregation and transport of traditional voice and leased lines
-
Enterprise WAN Integration — PDH service access and interface with PBXs and routers
-
Telecom Operator Edge — cE1/cT1 demarcation and channel mapping for edge aggregation
-
Carrier Transport Networks — Voice and data multiplexing over packet-based infrastructure
-
TDM over IP Networks — Supports circuit emulation for legacy service preservation
Customization & OEM Options
-
Interface Mapping Templates — Pre-configured E1/T1 cross-connect settings
-
Cable Assemblies — DB100 breakout cables for rack installation
-
Private Labeling — OEM branding for regional resellers and telecom partners
-
Pre-Provisioned Boards — Boards can be factory-configured with service logic
-
Environment Options — Available in standard and extended temp models
Wholesale & Global Procurement
-
Genuine Huawei OEM Stock — Guaranteed original and brand-new condition
-
Volume Availability — Ideal for ISPs, telecom operators, and integrators
-
Bulk Discounts — Special pricing for project-based or repeat orders
-
Secure Packaging — Anti-static and shockproof for international transit
-
Quick Lead Times — Inventory ready for urgent deployments
-
Technical Support — Deployment planning, NMS integration, and post-sales service
Why Choose CR53-P10-24xcE1/cT1-DB100
High-Density Interface — Supports 24 cE1/cT1 lines on a single board
Cost-Effective Legacy Support — Maintain TDM services without full upgrades
Huawei Quality Assurance — Proven reliability in telecom-grade environments
Flexible Deployment — Easily integrated into hybrid TDM/IP networks
Global Compatibility — Standards-compliant for international carriers
CR53-P10-24xcE1/cT1-DB100 Contact Us for Pricing, Datasheet & Bulk Orders
Power your TDM transport and voice service networks with the Huawei CR53-P10-24xcE1/cT1-DB100 — a versatile and scalable solution for modernizing legacy infrastructure.
Inquire now for datasheets, quotes, and custom orders tailored to your deployment needs.
