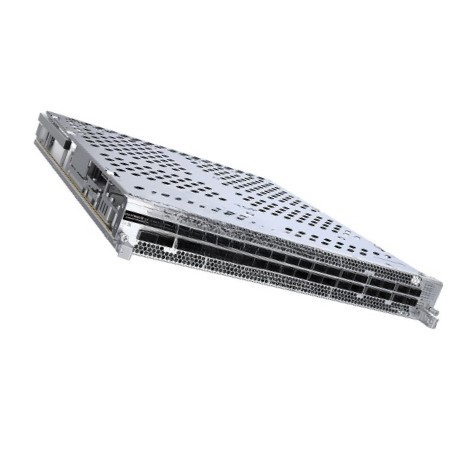

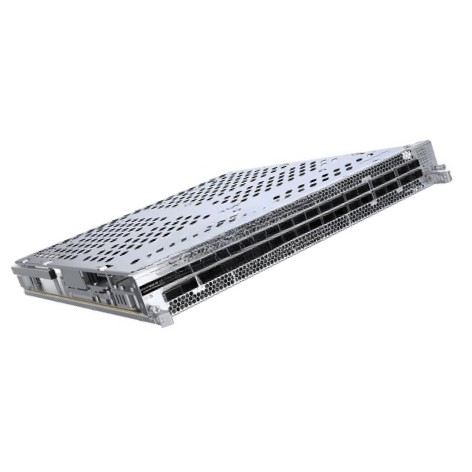

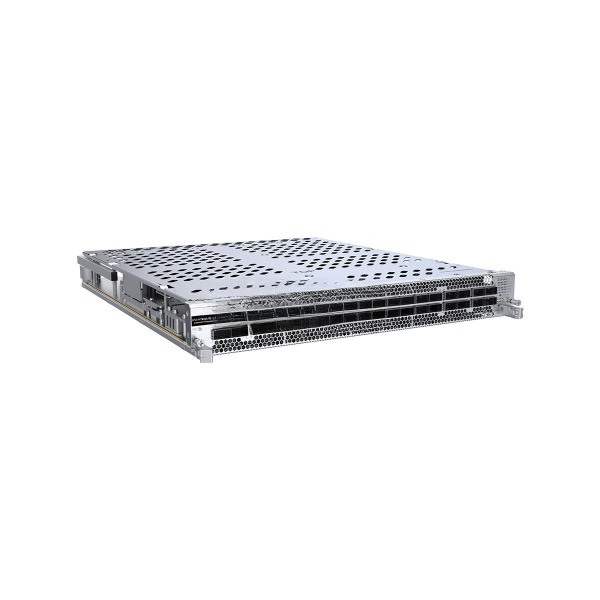

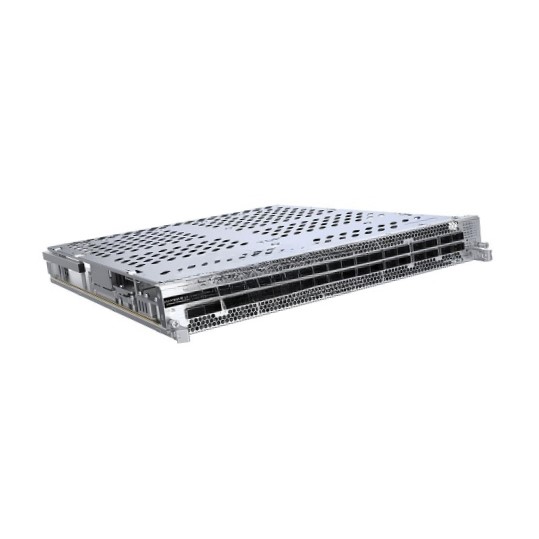

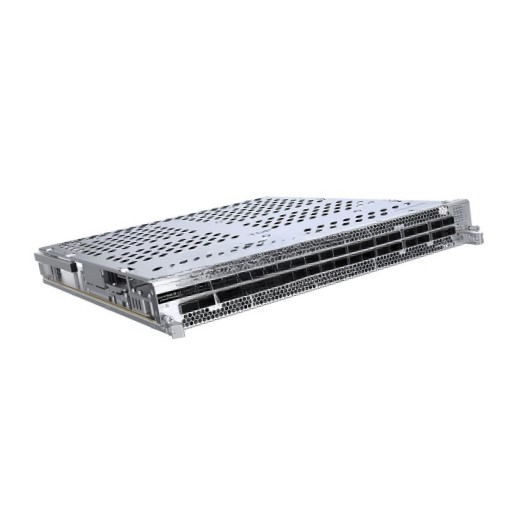

CR8D00EJKBCP Huawei Brand New QSFP Line Processing Unit
The CR8D00EJKBCP Huawei is an original, high-performance QSFP Line Processing Unit (LPU) designed to deliver ultra-fast, reliable data forwarding for Huawei’s high-end NE series routers and advanced carrier-grade network platforms. This module is engineered to handle massive bandwidth demands with multiple QSFP interfaces, providing flexible, high-capacity connectivity for core, metro, and data center networks.
Built with Huawei’s trusted engineering, the CR8D00EJKBCP integrates robust traffic management, secure hardware-based forwarding, and hot-swappable capabilities — ensuring high availability and minimal downtime for mission-critical operations.
Key Features
-
Model: CR8D00EJKBCP
-
Condition: 100% Brand New, Original Huawei
-
Type: QSFP Line Processing Unit (LPU)
-
Interfaces: High-speed QSFP ports for 40G/100G transmission
-
Performance: High-capacity packet forwarding with carrier-grade reliability
-
Flexibility: Supports various service cards for multiple network scenarios
-
Security: Hardware-based processing to protect data integrity and privacy
-
Reliability: Fully redundant design with support for hot-swappable operation
-
Compatibility: Compatible with Huawei NE series and other supported high-end chassis
-
Energy Efficiency: Optimized power consumption for large-scale deployments
Tech Specs
| Functions & Features | Description |
|---|---|
| Basic Function | Provides 36 × 400GE QSFP-DD interfaces on the line side. • Each QSFP-DD port supports 400 Gbit/s (default) or 100 Gbit/s. |
| Reliability & Availability | Hot-swappable design for high availability. |
| Restrictions & Remarks | 1. QSFP-DD ports default to 400 Gbit/s; supports 400GE/100GE. Use port split to switch the rate.2. Ports 0, 1, 2, 9, 10, 11, 18, 19, 20, 27, 28, 29 do not support FlexE. Other ports reserved for future FlexE (not supported in V800R021C00). 3. Cannot be used as CGN or SA interface board for traffic diversion or standalone SA. Do not use if CGN or SA services are enabled. |
| Breakout Supported | ✅ Yes • 400G ports: support 1×100GE, 2×100GE (from V800R22C00), and 4×100GE (from V800R23C00). • Enable using port split. |
| Interface Rate Auto-Sensing | ❌ Not supported |
| FlexE Supported | ❌ Not supported |
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (H × W × D) | 55.4 mm × 433 mm × 523.2 mm (2.18 in. × 17.05 in. × 20.60 in.) |
| Weight (without packaging) | 15.8 kg (34.83 lb) |
| Weight (with packaging) | 22.01 kg (48.52 lb) |
| Typical Power Consumption | 1693 W |
| Typical Heat Dissipation | 5492.8 BTU/hour |
| Long-Term Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Short-Term Operating Temperature | –5°C to +50°C (23°F to 122°F) |
CR8D00EJKBCP Huawei Applications
The CR8D00EJKBCP QSFP LPU is ideal for:
• Carrier backbone and metro networks with large-scale, high-speed transmission needs
• Data center interconnects (DCI) providing flexible 40G/100G connectivity
• Enterprise WAN cores requiring robust, secure, and scalable forwarding capacity
• Service provider edge and aggregation layers for bandwidth-intensive applications
• Future-ready network upgrades supporting new services and expanding traffic demands
CR8D00EJKBCP Huawei Customization & OEM Services
Deploy with confidence using our tailored services:
• Pre-configuration: Interface testing, firmware upgrades, and port mapping
• Private Labeling: OEM branding for resellers and systems integrators
• Custom Packaging: Secure, export-compliant bulk packaging for streamlined rollouts
• Enhanced Burn-In Testing: For mission-critical or compliance-heavy projects
Wholesale & Bulk Orders
We make it easy to source the CR8D00EJKBCP for large-scale network deployments:
• Factory-direct pricing with competitive volume discounts
• Fast global shipping with professional, secure export handling
• Dedicated project managers to assist with large or complex procurement needs
• Reliable stock availability to meet tight installation timelines
• Full technical support and warranty coverage for worry-free operation
CR8D00EJKBCP Huawei Why Choose Us
100% Original Huawei Hardware — genuine, fully tested, and certified
Flexible Customization — tailored to your unique network architecture
Competitive Wholesale Pricing — ideal for ISPs, carriers, and data center operators
Secure Global Logistics — safe, compliant packaging and timely delivery
Expert Technical Support — assistance from planning through deployment
Contact Us for a Quote
Empower your network with the Huawei CR8D00EJKBCP QSFP Line Processing Unit — the trusted choice for high-capacity, secure, and scalable data forwarding in demanding environments.
