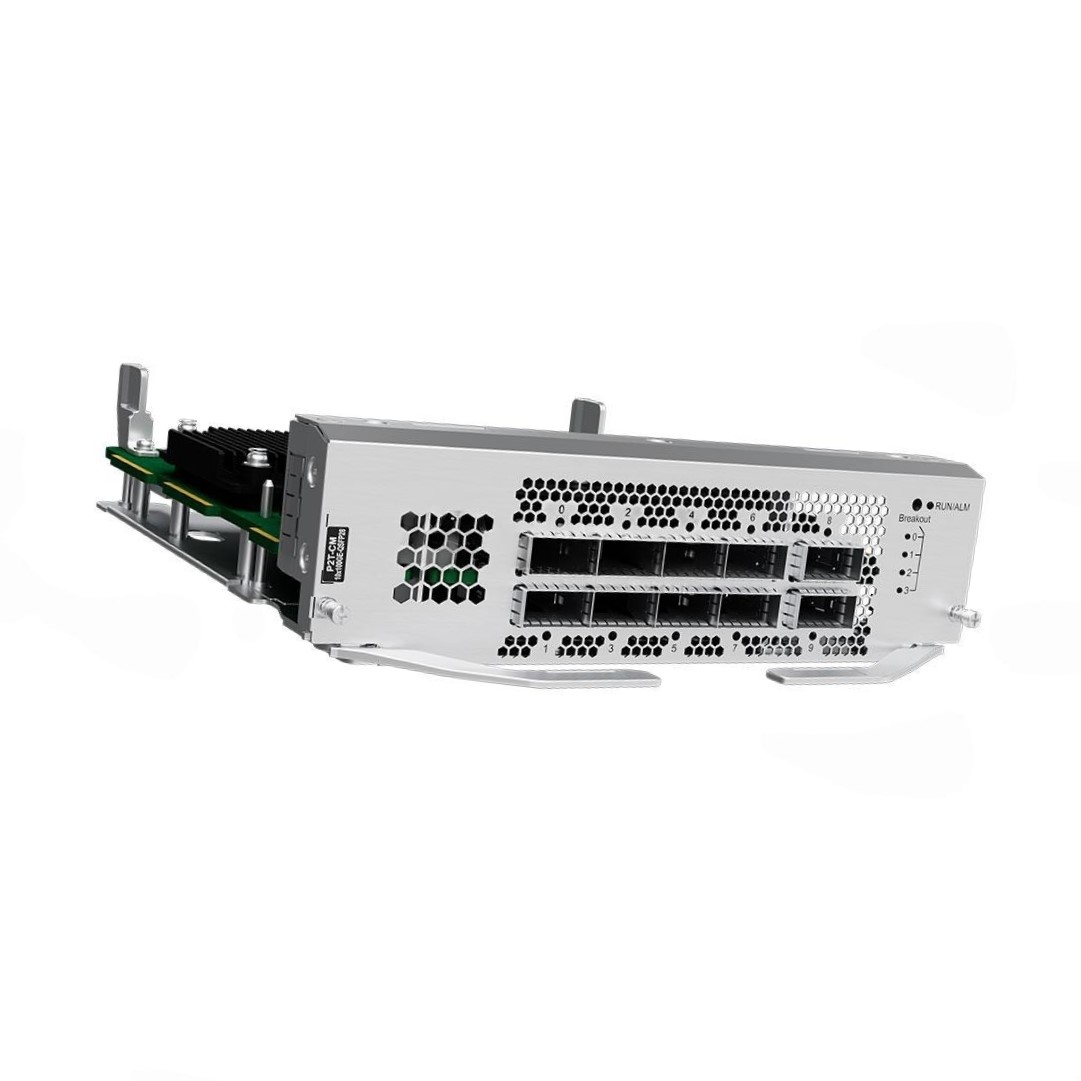

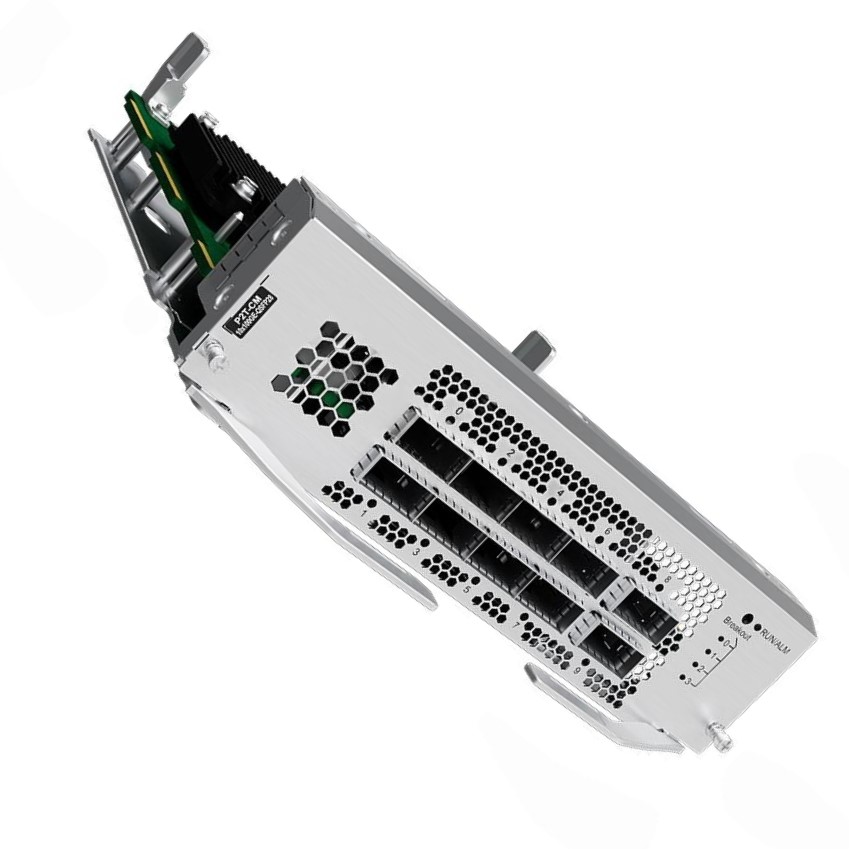

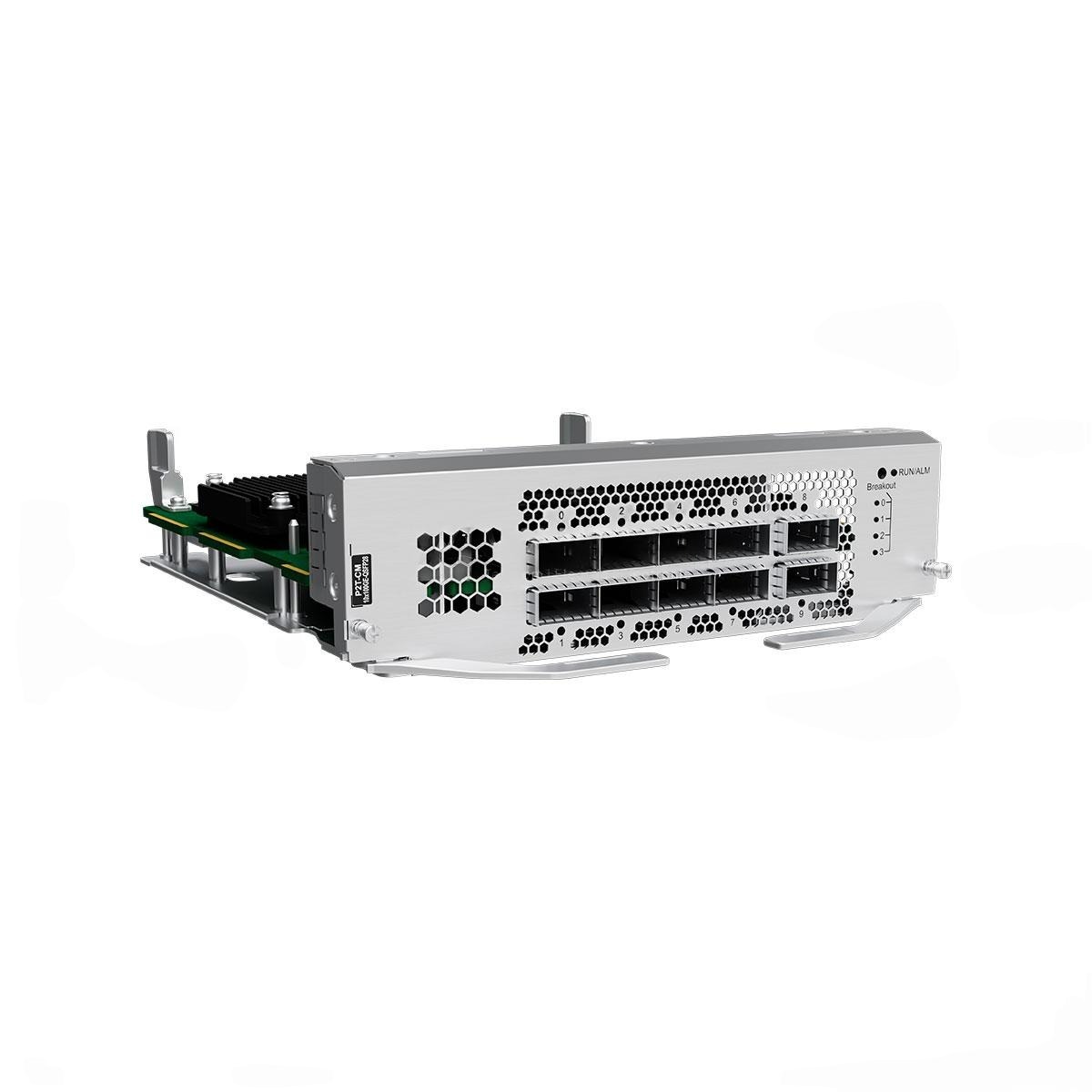

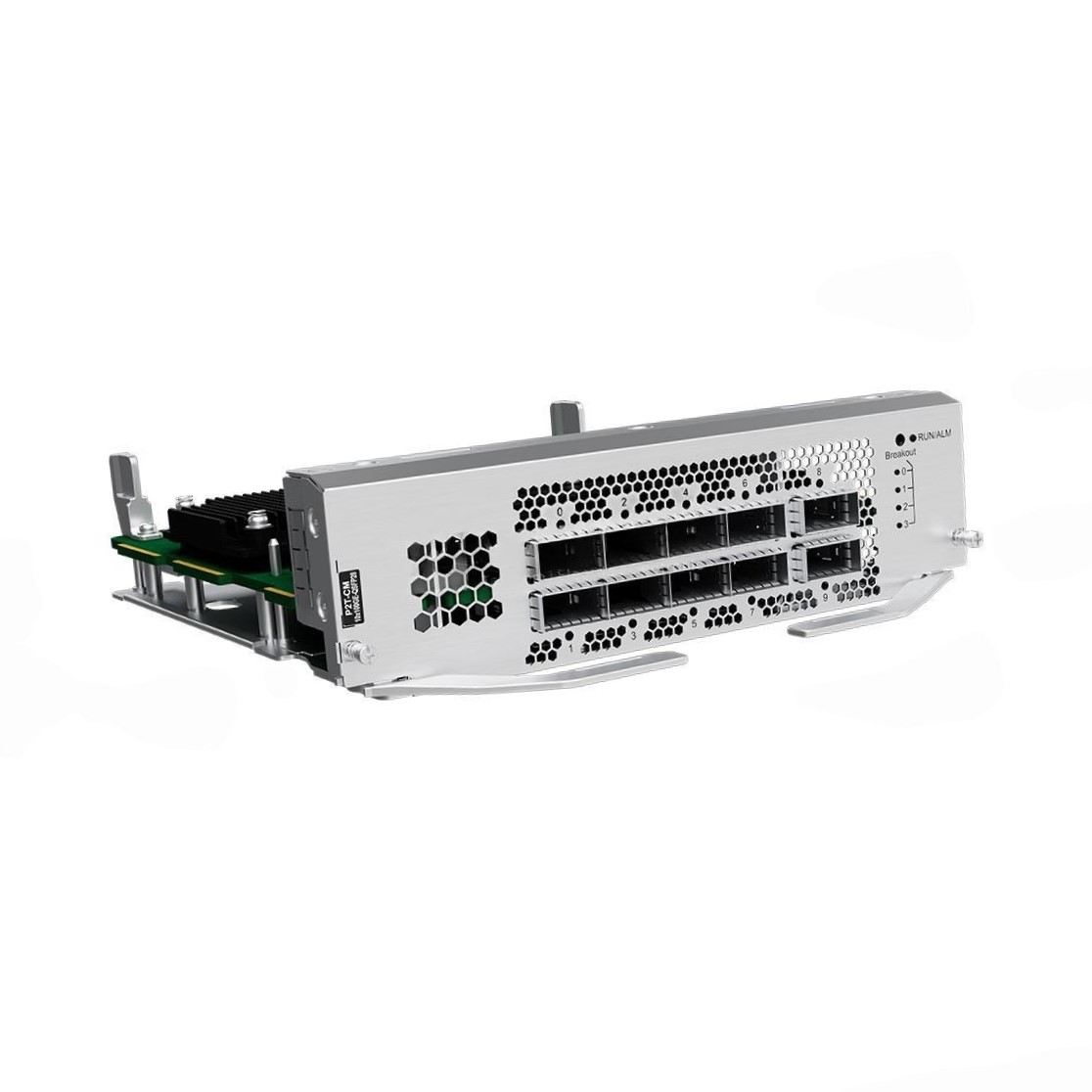

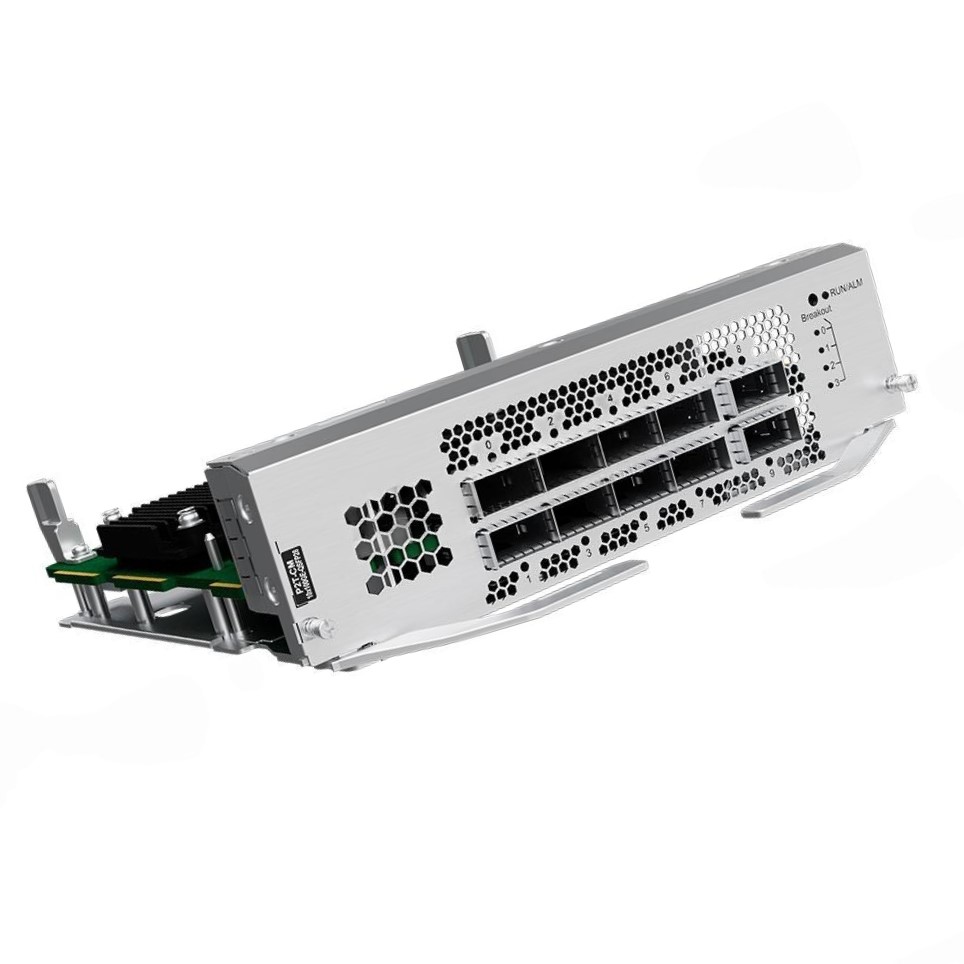

CR8DEANBFECP Huawei Original New FlexE MACsec Flexible Card
The CR8DEANBFECP Huawei FlexE MACsec Flexible Card is an original, next-generation module designed to deliver flexible Ethernet (FlexE) and MACsec security capabilities on Huawei’s advanced networking platforms. This high-performance card enables flexible bandwidth slicing and hardware-based encryption, helping carriers, cloud providers, and large enterprises build secure, scalable transport networks that support high-capacity services and stringent data protection requirements.
Combining FlexE technology with Media Access Control Security (MACsec) in one card, the CR8DEANBFECP empowers network operators to deliver high-speed, secure, and isolated transport slices with precise service-level guarantees — essential for modern cloud interconnects, 5G transport, and mission-critical data flows.
Key Features
-
Model: CR8DEANBFECP
-
Condition: 100% Original, Brand New Huawei
-
Type: FlexE MACsec Flexible Card
-
Technology: Supports FlexE, enabling flexible Ethernet slicing and bandwidth adjustment
-
Security: Integrated MACsec for hardware-based, low-latency encryption
-
Performance: Carrier-grade throughput with robust traffic isolation and security
-
Compatibility: Fully compatible with supported Huawei routers and switch chassis
-
Hot Swappable: Easy installation or replacement with no impact on live services
-
Reliability: Built for 24/7 mission-critical network environments
Tech Specs
Functions and Features
| Category | Description |
|---|---|
| Basic Function | Supports 1T line-rate forwarding. |
| Reliability & Availability | Hot swappable |
| Restrictions & Remarks | 1. Before inserting/removing the board with an ejector lever, remove optical modules (1 and 9) near the lever. 2. Default interface rate: 100 Gbit/s. Each interface supports: 100GE/50GE/40GE/4×25GE/4×10GE/2×50GE. Use port split command to switch rates if needed.3. Interface bonding: Every two 100G interfaces ({0,1}, {2,3}, {4,5}, {6,7}) can be bonded into 200G via FlexE. Bonding four or eight interfaces into 400G/800G is not supported. |
| Breakout Supported | ✅ Yes — enable using the port split command. |
| Interface Rate Auto-sensing | ❌ No |
| FlexE Supported | ✅ Yes — supported for specific physical port pairs: – {0,1}, {2,3}, {4,5}, {6,7} can each be grouped with port IDs 1000–3000, max 10 FlexE clients per group. – Physical port 8 and 9 can each be grouped similarly. |
Physical Specifications
| Item | Specification |
|---|---|
| Dimensions (without packaging) | 55.4 mm × 197.5 mm × 230.6 mm (2.18 in. × 7.78 in. × 9.08 in.) |
| Dimensions (with packaging) | 150 mm × 313 mm × 385 mm (5.91 in. × 12.32 in. × 15.16 in.) |
| Weight (without packaging) | 1.5 kg (3.31 lb) |
| Weight (with packaging) | 2.3 kg (5.07 lb) |
| Typical Power Consumption | 134 W |
| Typical Heat Dissipation | 434.8 BTU/hour |
| Long-term Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Short-term Operating Temperature | –5°C to +50°C (23°F to 122°F) |
CR8DEANBFECP Huawei Applications
The CR8DEANBFECP Huawei FlexE MACsec Flexible Card is ideal for:
• 5G transport networks needing secure, flexible bandwidth slicing
• Carrier backbone and metro networks with multi-tenant service isolation
• Data center interconnects (DCI) requiring high-speed encrypted links
• Cloud service providers implementing virtualized, isolated network slices
• Government, financial, or regulated sectors with stringent encryption and compliance needs
Customization & OEM Services
We offer customization and OEM solutions to fit your project’s requirements:
• Pre-configuration of FlexE groups, service slices, and MACsec keys for rapid deployment
• Private labeling and custom branding for resellers and system integrators
• Custom packaging for large rollouts or distributed sites
• Extended testing and burn-in for high-assurance security use cases
• Tailored documentation and firmware for your operational standards
CR8DEANBFECP Huawei Wholesale & Bulk Orders
Source the CR8DEANBFECP FlexE MACsec Card directly from us for your wholesale and bulk procurement needs:
• Factory-direct pricing with competitive volume discounts
• Consistent stock availability for fast rollouts and upgrades
• Secure, export-compliant packaging for damage-free delivery
• Global shipping through trusted logistics partners
• Dedicated account managers for seamless project coordination
• Full technical support & warranty service for complete peace of mind
CR8DEANBFECP Huawei Why Choose Us
100% Original Huawei Hardware — Fully certified, tested, and ready to deploy
Tailored Customization — Built to match your network’s unique slicing and security needs
Competitive Wholesale Pricing — Ideal for carriers, data centers, and cloud providers
Safe, Professional Logistics — Secure packaging and reliable global delivery
Expert Technical Support — From design and configuration to installation and operation
Contact Us for a Quote
Future-proof your transport network with the CR8DEANBFECP Huawei Original New FlexE MACsec Flexible Card — the intelligent solution for flexible Ethernet slicing and hardware-based encryption at scale.
