SKU 1600703161746 Categories ,
  • Private Mold:Yes
  • Products Status:Stock
  • Ports:10
  • Transmission Rate:10/100Mbps
  • Function:LACP, POE, QoS, VLAN Support
  • Communication Mode:Full-Duplex
  • Switch Capacity:14.8Gbps
  • Place of Origin:Guangdong, China
  • Device Type:Switch
  • Input voltage:AC(100-240)V
  • Product status:Stock
  • IP Garde:IP40
  • PoE Ports:8*10/100Mbps PoE Ports
  • Weight:1kg
  • Dimensions (W x D x H):195*130*40mm
  • MOQ:1
  • Color:Balck
  • Packaging Details50pcs: 515*505*337mm
  • Lead time:Quantity(pieces)1 – 5051 – 100>100Lead time (days)1216To be negotiated

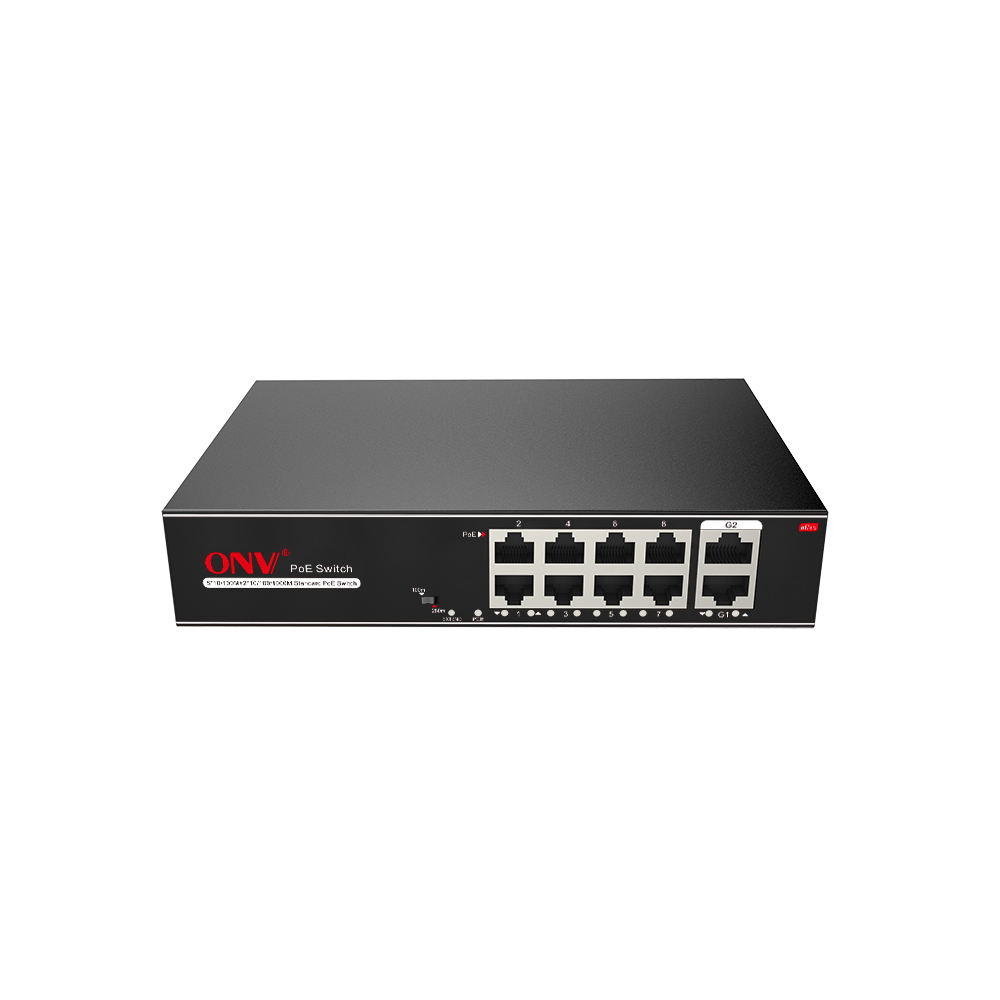

ONV-H1108PL
The ONV-H1108PL series is an unmanaged PoE switch independently developed by ONV.It has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports . Port 1-8 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 110W.



10/100Mbps Access ,Dual RJ45 Ports Uplink



     10*10/100Base-TXRJ45 ports ,which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

  —   Support non-blocking wire-speed forwarding.

  —   Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.



Intelligent PoE Power Supply

 —    8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

 —    IEEE 802.3af/at PoE standard, without damaging non-PoE devices.



Innovative Function

—  Long distance file: switch to “E”, port 1-8 speed is reduced to 10M, using existing twisted pair cable,  you can break the limit of transmission of twisted pair 100 meters, the transmission distance can reach 250 meters; On the other hand, it is possible to solve the problem of poor transmission due to lineaging.

 Video surveillance mode: Opens with long-distance switches. Port 1-8 are isolated but communicate with port 9-10 to prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.



Stable and Reliable

—   Low power consumption, IP30 galvanized steel casing,No fan mute design design.

—   Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

   CCC,CE, FCC, RoHS.

   Plug and play, no configuration, simple and convenient.

—   The user-friendly panel, it can show the device status through the LED indicator of PWR,Link,PoE.

Fixed Port
8*10/100Base-TX PoE ports (Data/Power)

2*10/100Base-TX Uplink RJ45 ports (Data)
Ethernet Port
Port 1-10 can support 10/100Base-TX automatic detection, full/half Duplex MDI/MDI-X adaptive
Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meter)


100BASE-TX: Cat5 or later UTP(≤100 meter)
Functional Switch
1*(Extender+CCTV)

After opening, port 17-24 support


10M/250 meters long distance

transmission.

Note: When the switch status changes, the PoE switch must be restarted for the


switch function to take effect.
Chip Parameter
Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX; IEEE802.3x

Forwarding Mode
Store and Forward(Full Wire Speed)
Switching Capacity
2Gbps
Forwarding
Rate@64byte
1.49Mpps
6.55Mpps
Mac
2K
Buffer Memory
1.25M
LED Indicator
Power: PWR (green); Network: Link(yellow); POE :PoE (green)
PoE & Power
PoE Port
Port 1 to 8 IEEE802.3af/at @ POE
Port 1 to Port 24 IEEE802.3af/at @ POE
Power Supply Pin
Default: 1/2 (+), 3/6 (-) ; Optional 4/5(+), 7/8(-)
Max Power Per Port
30W; IEEE802.3af/at
Total PWR / Input Voltage
110W (DC 52V)
250W (DC 52V)



Power Supply

External power adaptor

AC100~240V 50-60Hz 2A

External power adaptor

AC100~240V 50-60Hz 5A
Power Consumption
Standby:<6W;Full load:<110W
Standby:<8W;Full load:<240W
Physical Parameter
Operation TEMP / Humidity
-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity
-40~+75°C;5%~95% RH Non condensing
Dimension (L*W*H)
191*105*29mm
330*204*44mm
Net /Gross Weight
<0.6kg / <1.0kg
<0.6kg / <1.2kg
Installation
Desktop, Wall-mounted
Certification & Warranty
Lightning protection
Lightning protection: 4KV 8/20us; Protection level: IP30
Certification
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Warranty
3 years , lifelong maintenance.
Color

Color 0
