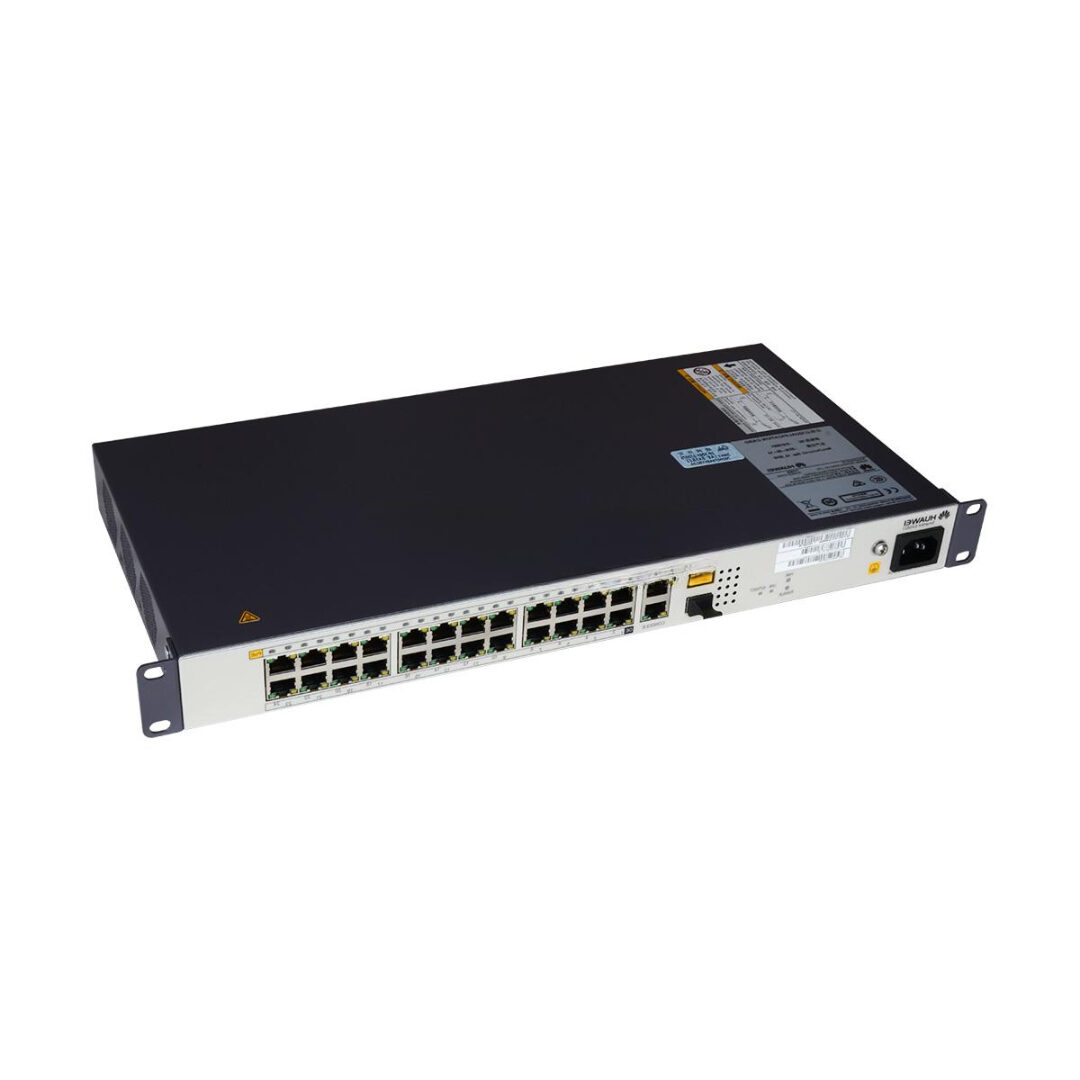

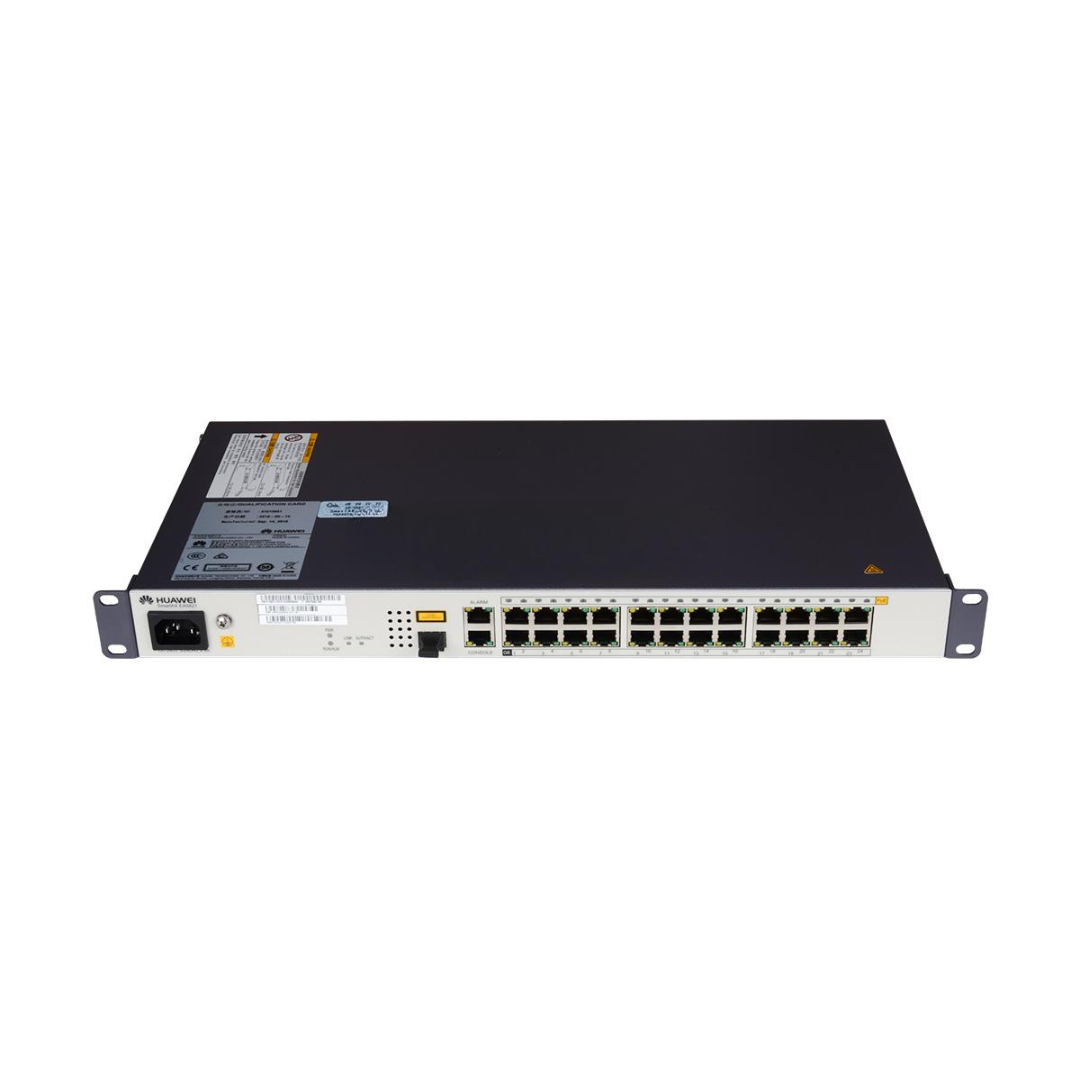

EA5821 24GE PoE Huawei High Quality 1x10G GPON Power Fixed Access Device
The EA5821 24GE PoE Huawei is a high-performance, compact Fixed Access ONU designed for enterprise access, small ISP aggregation, and FTTx deployments. It features 24 Gigabit Ethernet PoE ports and 1x 10G GPON uplink port, delivering powerful switching, PoE capabilities, and high-speed uplink—all in one carrier-class platform.
Engineered for flexibility, security, and high availability, the EA5821 supports Layer 2 and Layer 3 functions, making it suitable for both access aggregation and multi-service applications such as IP surveillance, enterprise networking, and smart city solutions.
Key Features
- Model: EA5821-24GE-PoE
- Condition: 100% Brand New, Original Huawei OEM
- Port Configuration: 24 × GE (PoE) + 4 × GE SFP + 1 × 10G GPON uplink
- PoE Support: IEEE 802.3af/at (PoE/PoE+)
- Switching Capacity: 128 Gbps
- Forwarding Rate: 96 Mpps
- Built-in AC Power Supply with redundant option
- Full-Service Capability: Supports enterprise broadband, voice, and video
- Compact Design: Easy installation for indoor or cabinet deployments
- Fanless or Low-Noise Cooling: Ideal for office and indoor use
Technical Specifications
| Specification | Details |
|---|---|
| Model | EA5821 24GE PoE |
| GE Access Ports | 24 × 10/100/1000BASE-T (PoE) |
| Uplink Ports | 4 × GE SFP, 1 × 10G GPON SFP+ |
| PoE Standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Max PoE Output | 370W (total power budget) |
| Switching Capacity | 128 Gbps |
| Forwarding Performance | 96 Mpps |
| MAC Address Table | 32K |
| Routing Protocols | Static, RIP, OSPF (optional), IGMP Proxy |
| Power Supply | Built-in AC (100V–240V), optional backup |
| Dimensions (W×D×H) | 442 × 310 × 44.5 mm |
| Weight | ≤6 kg |
| Operating Temperature | -40°C to +65°C |
| Humidity | 5%–95% RH, non-condensing |
| Installation | Rack-mountable (1U) |
| Warranty | 1–3 Years Manufacturer Warranty |
EA5821 24GE PoE Huawei Applications
- FTTx Access Networks — 10G GPON uplink ensures high-speed fiber connectivity
- Enterprise Access Layer — Power and connect IP phones, cameras, and APs
- Smart City & IoT — Supports intelligent PoE devices in urban deployments
- Campus & Hospitality — Centralized management of Wi-Fi and access control
- Service Provider Edge — Reliable access platform for triple-play services
Customization & OEM Options
- Private Label Branding — Custom logo, product ID, and packaging
- Firmware Configuration — Pre-installed service profiles and VLANs
- PoE Policy Setup — Port-based or device-priority PoE configurations
- Bundle Supply Kits — With matched SFP modules and power cords
- Environment-Specific Builds — Hardened version for harsh conditions
- Localized Compliance — With CE, RoHS, FCC, and other certifications
Wholesale & Global Procurement
- Direct Huawei OEM Supply — 100% brand new with verified serials
- Bulk Order Ready — Ideal for national rollout or smart grid projects
- Secure Logistics — Shock-proof packaging for air and sea shipping
- Fast Turnaround — Short lead times for urgent project deployments
- Global Distribution — Supports shipping to over 150 countries
- Technical Team Support — Remote help for setup and integration
Why Choose EA5821 24GE PoE Huawei
High Port Density + 10G Uplink — Combine PoE and fiber speed in one box
Carrier-Grade Performance — Built for continuous, critical operations
Flexible Applications — Adaptable for both enterprise and ISP networks
Energy-Efficient & Scalable — Ready for future IoT and high-bandwidth use
Huawei Reliability — Trusted by telcos and integrators globally
Contact Us for Pricing, Stock & Custom Orders
Ready to deploy Huawei EA5821 24GE PoE for your network project?
Request a quote now for wholesale pricing, OEM options, and fast delivery.
Unlock the power of 10G GPON + PoE Access — Optimize your network with Huawei’s trusted EA5821 series today.
