EH1D2F48TEA0 Huawei
Click to enlarge
EH1D2F48TEA0 Huawei
Home GPON Card HUAWEI GPON Card EH1D2F48TEA0 Huawei Brand New 48-Port-T Interface Card
ES5D21G16S00 Huawei
ES5D21G16S00 Huawei Brand New 16-Port Optical Interface Card
Back to products
EH1D2PS00P00 Huawei
EH1D2PS00P00 Huawei Brand New Open Service Platform Unit

EH1D2F48TEA0 Huawei Brand New 48-Port-T Interface Card

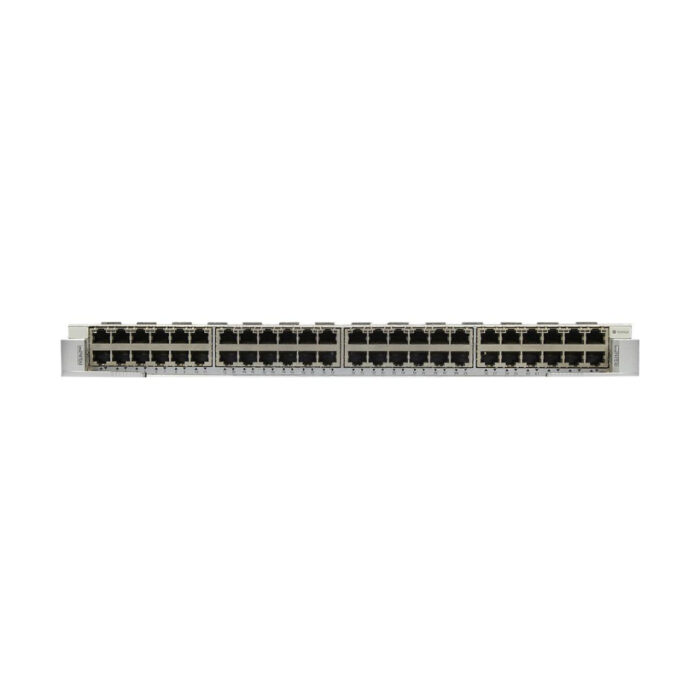

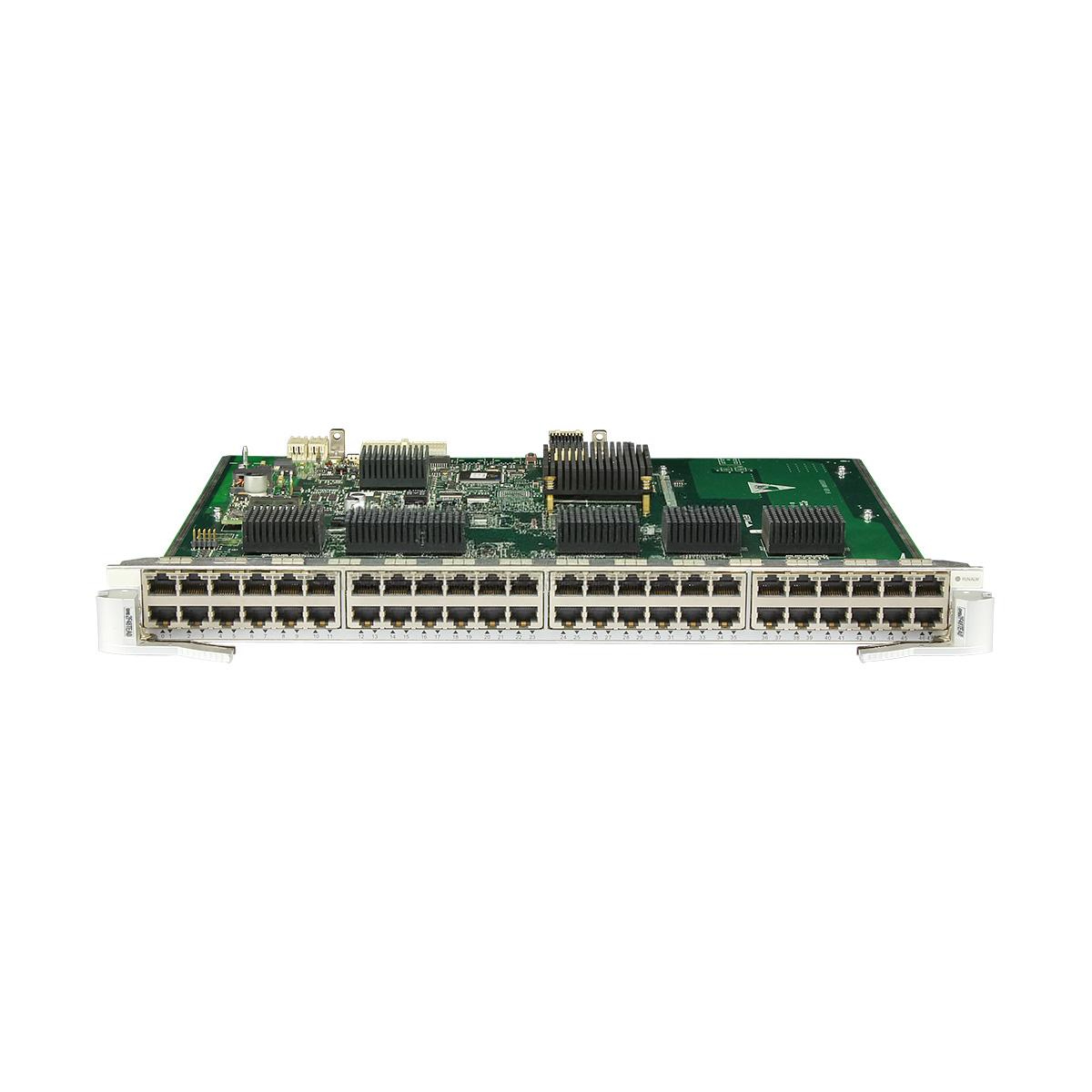

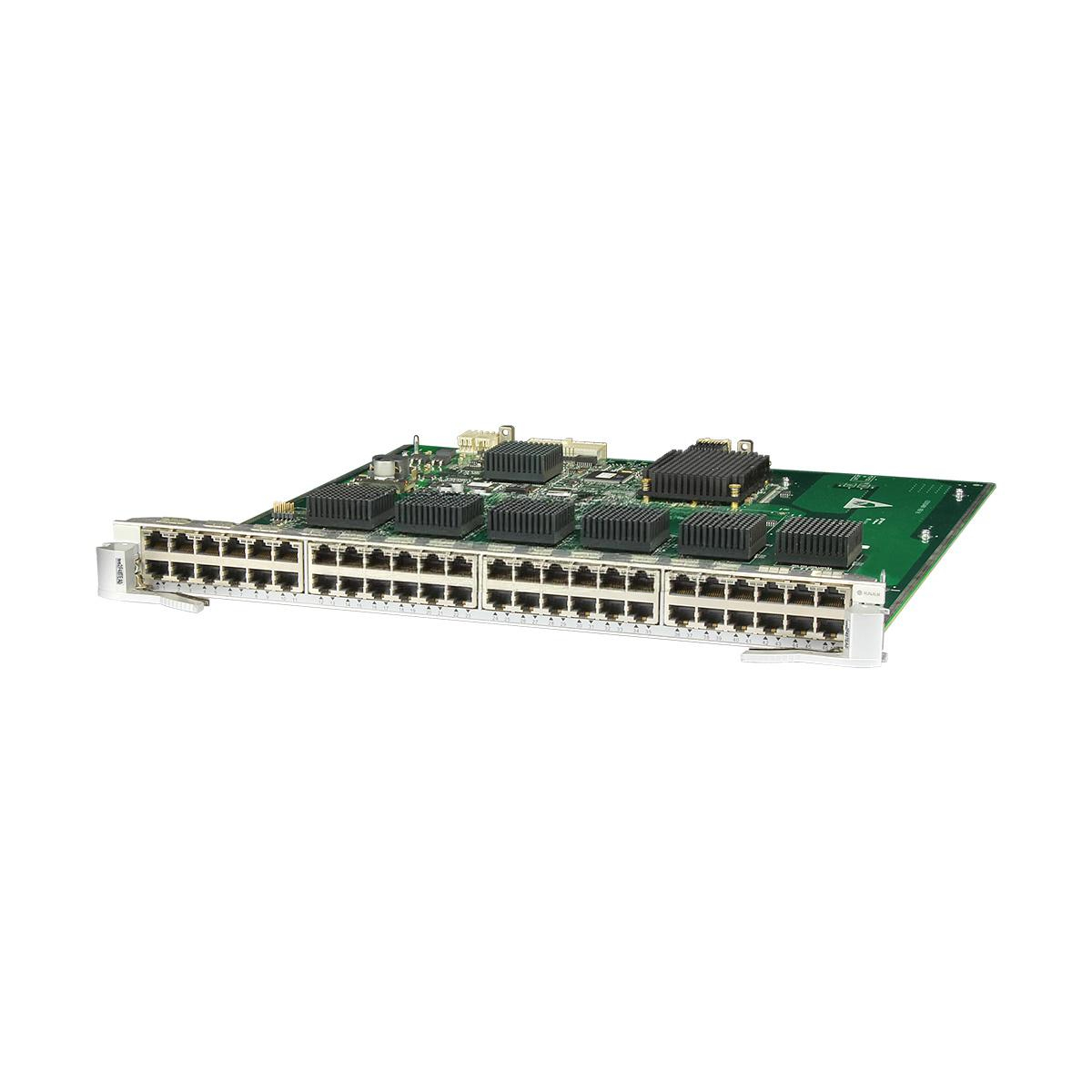

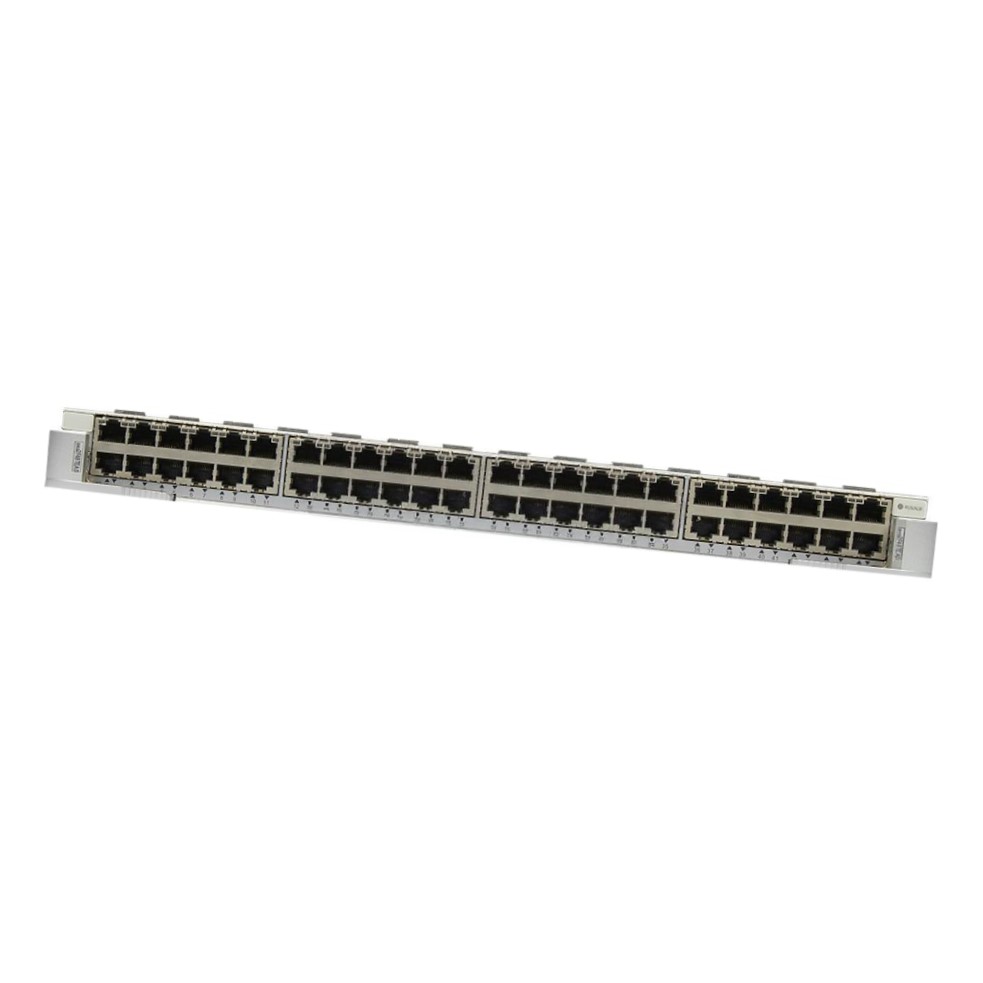

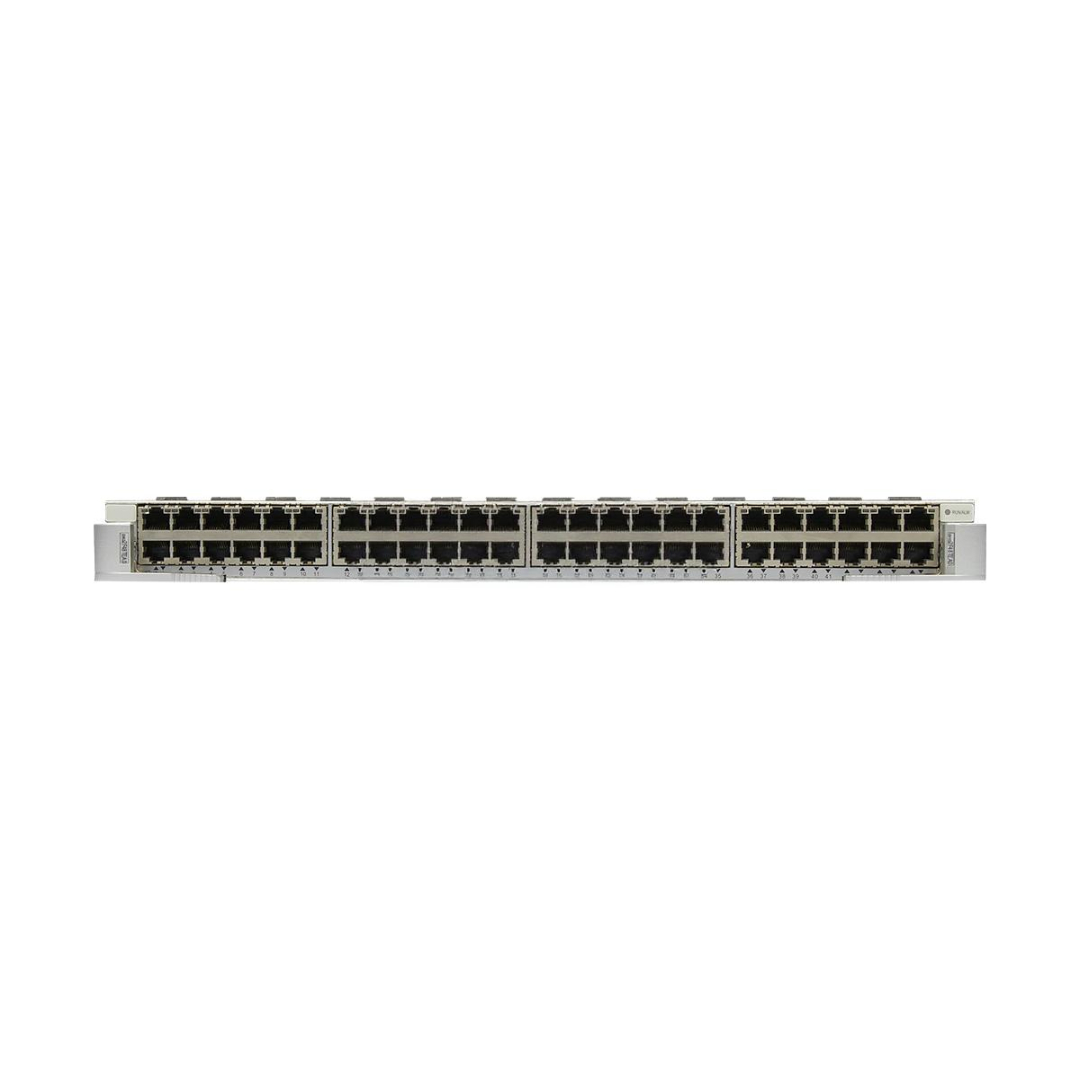

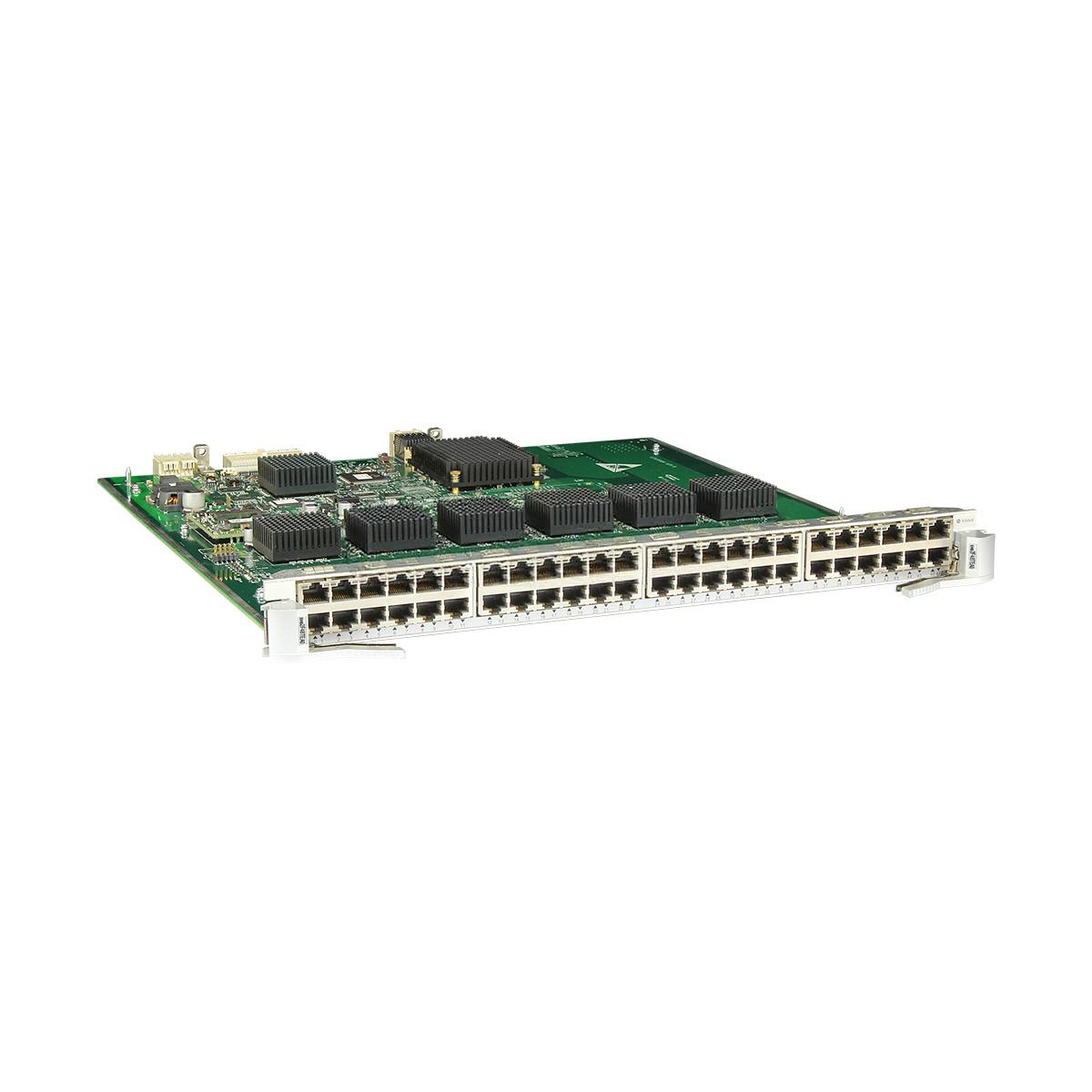

The EH1D2F48TEA0 Huawei is an original Huawei 48-Port-T Interface Card, engineered to deliver high-density, reliable connectivity for enterprise and data center networks. With 48 high-performance T interfaces, this module expands your network capacity efficiently, providing stable, high-speed data transmission and robust performance under continuous operation.

Compare
Add to wishlist
Categories: All Products, Fiber optic Accessories, GPON Card, HUAWEI GPON Card Tags: 48‑port T interface card Huawei, 48‑port UTP card Huawei, EH1D2F48TEA0 Huawei, EH1D2F48TEA0 module, EH1D2F48TEA0 spare part, Huawei 48‑port RJ45 card, Huawei backplane interface module, Huawei blade server T interface, Huawei blade switch module, Huawei chassis I/O card, Huawei copper interface module, Huawei data center interface, Huawei EH1D2F48TEA0, Huawei enterprise copper card, Huawei Ethernet RJ45 interface, Huawei high-density RJ45 card, Huawei network expansion card, Huawei network hardware card, Huawei rack server RJ45 card, Huawei switch 48‑port T card, Huawei switch uplink interface
Share:
  • Description
Description

EH1D2F48TEA0 Huawei Product Description:

The EH1D2F48TEA0 Huawei is an original Huawei 48-Port-T Interface Card, engineered to deliver high-density, reliable connectivity for enterprise and data center networks. With 48 high-performance T interfaces, this module expands your network capacity efficiently, providing stable, high-speed data transmission and robust performance under continuous operation.

Built to Huawei’s strict quality and reliability standards, the EH1D2F48TEA0 ensures low latency, minimal packet loss, and seamless integration with your existing Huawei switches and routers. It is ideal for organizations that require scalable port density and dependable network operations.


Key Features:

  • Model: EH1D2F48TEA0

  • Condition: 100% Brand New, Original Huawei

  • Type: 48-Port-T High-Density Interface Card

  • Ports: 48 x T Interfaces for high-capacity network expansion

  • Performance: Stable, high-speed data transfer with reliable throughput

  • Integration: Fully compatible with Huawei switches and routers; plug-and-play installation minimizes network downtime

  • Reliability: Built with high-quality, industrial-grade components; factory tested for 24/7 dependable operation

  • Hot Swappable: Supports convenient upgrades and replacements without interrupting network services

Tech Specs:

Front Panel


1. Forty-eight 10M/100M BASE-T electrical ports

Attribute of 10M/100M BASE-T electrical port
Connector type RJ45
Standards compliance IEEE802.3
Working mode Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Version Mapping
Supported in V200R001C00 and later versions
Physical specification
Dimensions (mm) 394.7 mm x 426.8 mm x 35.1 mm (5.7 in. x 7.3 in. x 0.8 in.)
Weight (kg) 2.5 kg (7.28 lb)
Maximum power consumption 59 W
Environment parameters
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 5% RH to 95% RH (noncondensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Storage relative humidity 5% RH to 95% RH (noncondensing)

EH1D2F48TEA0 Huawei Applications:

The EH1D2F48TEA0 is widely used in various network environments, including:

  • Enterprise campus networks

  • High-capacity data center cores and distribution layers

  • Internet service provider and telecom backbone networks

  • Large-scale LAN/WAN infrastructure projects

  • System upgrades and expansions for growing businesses


Customization & OEM Services:

Every network project is unique, which is why we offer flexible customization and OEM solutions, such as:

  • Pre-configuration to match your exact network specifications

  • OEM branding and private labeling for resellers and system integrators

  • Custom packaging options for bulk projects and optimized logistics

  • Additional burn-in testing for mission-critical or long-term deployments


EH1D2F48TEA0 Huawei Wholesale & Bulk Orders:

We provide competitive wholesale and bulk order options for resellers, telecom operators, and system integrators:

  • Factory-direct pricing with attractive discounts for large quantities

  • Consistent inventory and reliable supply chain for repeat orders

  • Fast, secure global shipping with export-compliant packaging

  • Dedicated account managers to ensure smooth ordering and delivery

  • Comprehensive after-sales support, warranty services, and technical assistance


Why Choose Us:

  • 100% genuine Huawei hardware, factory sealed and certified

  • Flexible solutions to match your specific network needs

  • Competitive pricing and discounts for resellers and project contractors

  • Professional global logistics with secure, reliable delivery

  • Expert technical support from planning through post-deployment


Contact Us for a Quote:

Ready to expand your network with the EH1D2F48TEA0 Huawei 48-Port-T Interface Card? Get in touch with our sales team today for detailed technical specifications, customization options, and competitive wholesale pricing.
