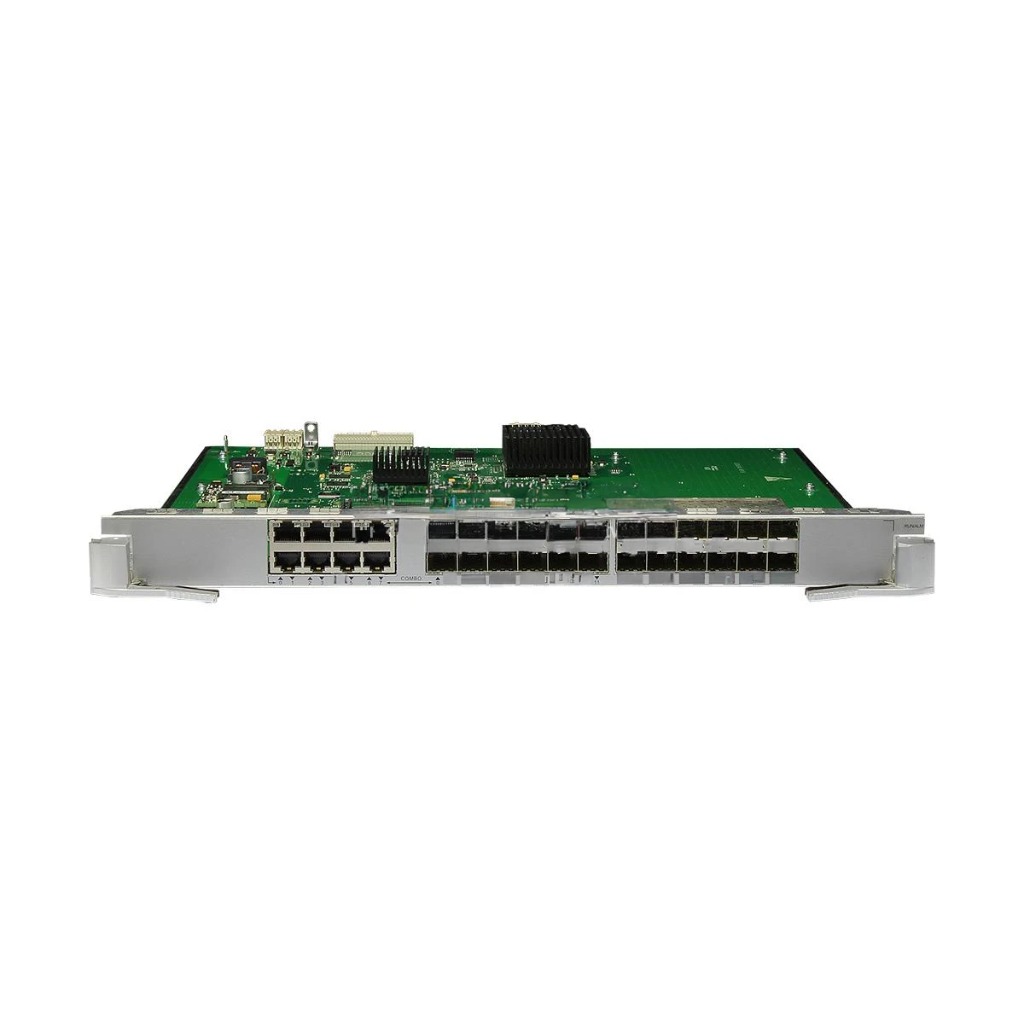

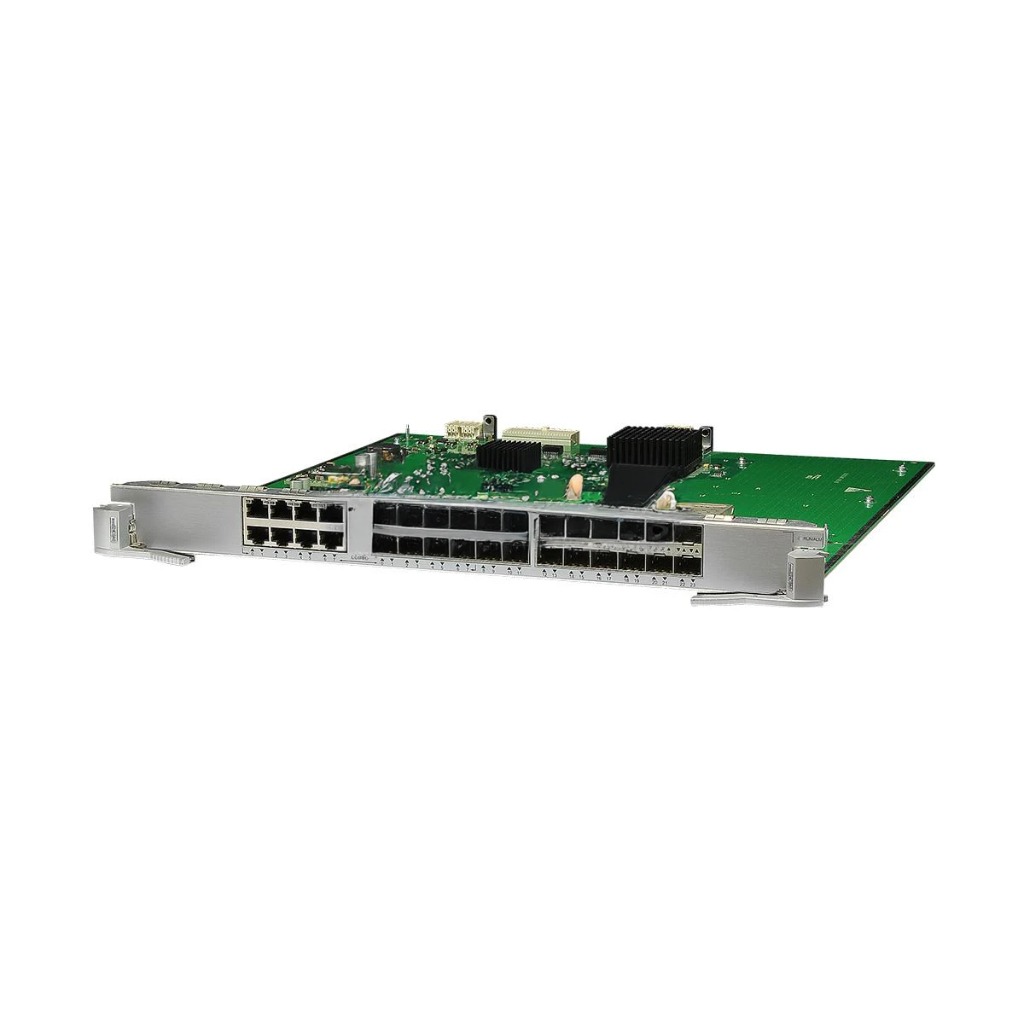

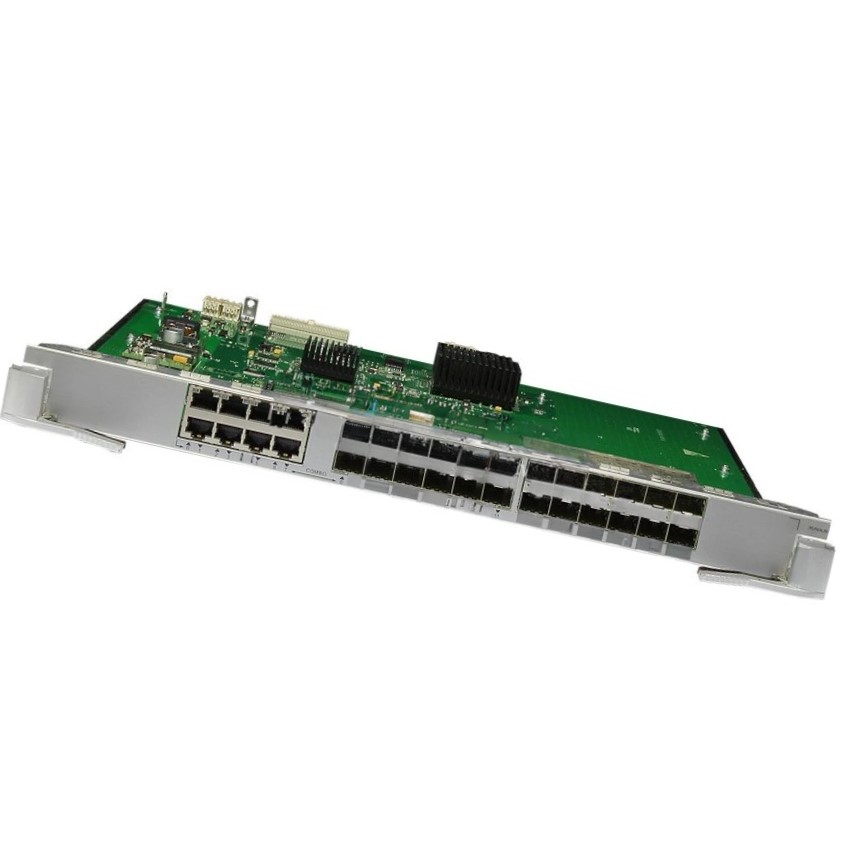

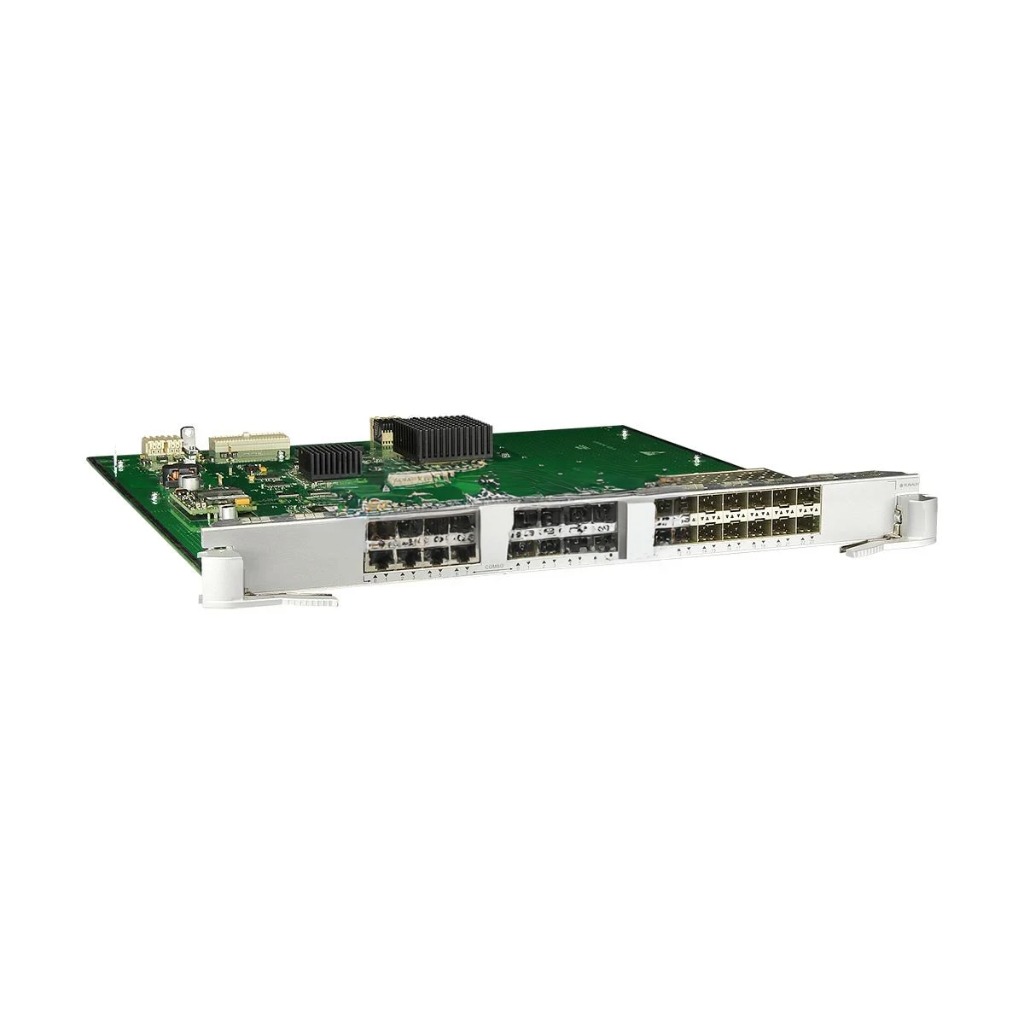

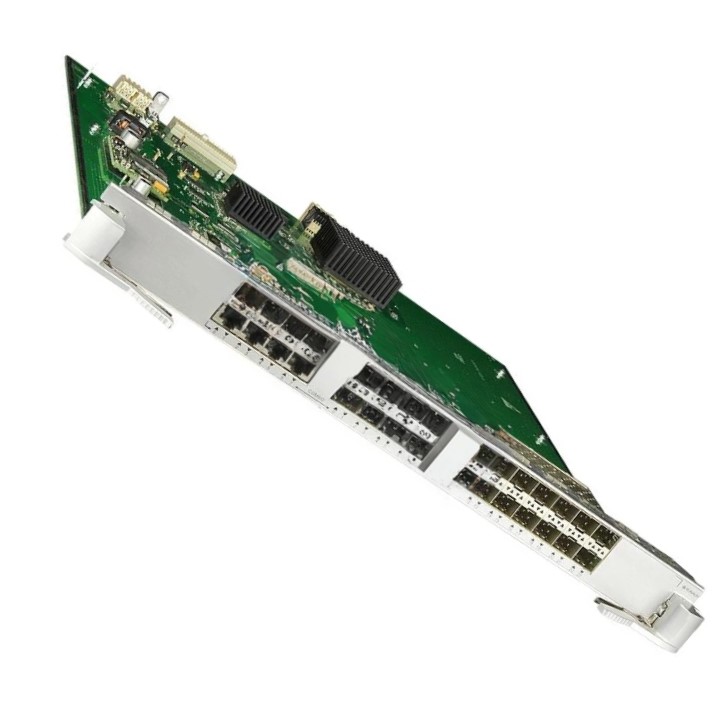

EH1D2S24CSA0 Huawei Description:
The EH1D2S24CSA0 Huawei is a brand new, original Huawei 100BASE-X Combo Interface Card designed to provide flexible, high-density Fast Ethernet connectivity for Huawei modular switches and enterprise networking devices.
This versatile module offers 24 combo ports, allowing each port to be configured as either an optical (SFP) or electrical (RJ45) interface based on your network requirements. This makes it ideal for diverse deployment scenarios where mixed copper and fiber connections are needed.
Engineered to Huawei’s rigorous quality standards, the EH1D2S24CSA0 ensures stable performance, reliable data transmission, and excellent compatibility within your existing Huawei network environment.
Key Features:
-
Model: EH1D2S24CSA0
-
Condition: 100% Brand New, Original Huawei
-
Type: 24-Port 100BASE-X Combo Interface Card
-
Ports: 24 × combo ports (each can function as either an optical SFP or RJ45 port)
-
Speed: Supports 100Mbps data rate per port
-
Performance: Flexible port configuration for mixed copper and fiber connections
-
Compatibility: Fully compatible with supported Huawei modular switch series
-
Hot Swappable: Allows for easy installation or replacement without disrupting network operations
-
Reliability: Carrier-grade design, rigorously tested for 24/7 operation
-
Efficiency: Space-saving, cost-effective solution for access and aggregation layers
Tech Specs:
Front Panel
-
8 Combo Ports
-
Each combo port consists of:
-
1 × 10/100/1000BASE-T electrical port
-
1 × 100/1000BASE-X optical port
-
-
-
16 × 100/1000BASE-X Optical Ports
Attributes
10/100/1000BASE-T Electrical Port
| Attribute | Description |
|---|---|
| Connector Type | RJ45 |
| Standards Compliance | IEEE 802.3ab |
| Frame Format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network Protocol | IP |
100/1000BASE-X Optical (Combo)
| Attribute | Description |
|---|---|
| Connector Type | SFP |
| Optical Port Attributes | Depend on the SFP copper module used |
| Standards Compliance | IEEE 802.3z |
| Frame Format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network Protocol | IP |
100/1000BASE-X Optical Port
| Attribute | Description |
|---|---|
| Connector Type | SFP |
| Optical Port Attributes | Depend on the SFP optical module used |
| Standards Compliance | IEEE 802.3z |
| Frame Format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network Protocol | IP |
Version Mapping
-
Supported only in:
-
V200R001C00
-
V200R002C00
-
V200R003C00
-
Physical Specifications
| Attribute | Description |
|---|---|
| Dimensions (W × D × H) | 394.7 mm × 426.8 mm × 35.1 mm |
| Weight | 2.26 kg (5.86 lb) |
| Maximum Power Consumption | 67 W |
Environmental Parameters
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Relative Humidity | 5% RH to 95% RH (non-condensing) |
EH1D2S24CSA0 Huawei Applications:
The EH1D2S24CSA0 100BASE-X Combo Interface Card is ideal for:
-
Enterprise campus networks requiring flexible copper and fiber access
-
Access and distribution layers in large LAN environments
-
FTTx deployments needing mixed media connections
-
Industrial and secure network environments where stable Fast Ethernet connections are required
-
Network upgrades with legacy 100Mbps infrastructure
EH1D2S24CSA0 Huawei Customization & OEM Services:
We offer customization and OEM solutions to suit your specific project needs:
-
Compatibility testing and pre-configuration for your existing network design
-
Private labeling and OEM branding for system integrators and resellers
-
Custom packaging for phased or multi-site rollouts
-
Extended burn-in testing for high-reliability environments
EH1D2S24CSA0 Huawei Wholesale & Bulk Orders:
Take advantage of our wholesale supply and bulk order support, trusted by global telecom operators, ISPs, and enterprise integrators:
-
Factory-direct pricing and competitive discounts for bulk quantities
-
Reliable stock availability for large-scale projects
-
Secure, export-compliant packaging for global shipping
-
Dedicated account managers for smooth procurement and delivery
-
Full after-sales technical support and warranty service
Why Choose Us:
-
100% genuine Huawei hardware, fully tested and certified
-
Flexible supply solutions for diverse networking environments
-
Competitive pricing and attractive discounts for bulk orders
-
Fast, secure, global logistics for on-time delivery
-
Professional support from pre-sales consultation to post-deployment services
Contact Us for a Quote:
Ready to expand your network with the EH1D2S24CSA0 Huawei Brand New 100BASE-X Combo Interface Card? Contact us today for technical details, compatibility support, customization options, and competitive wholesale pricing.
Our experienced team is here to help you build robust, future-ready networks with trusted Huawei solutions.
