  • Product Description

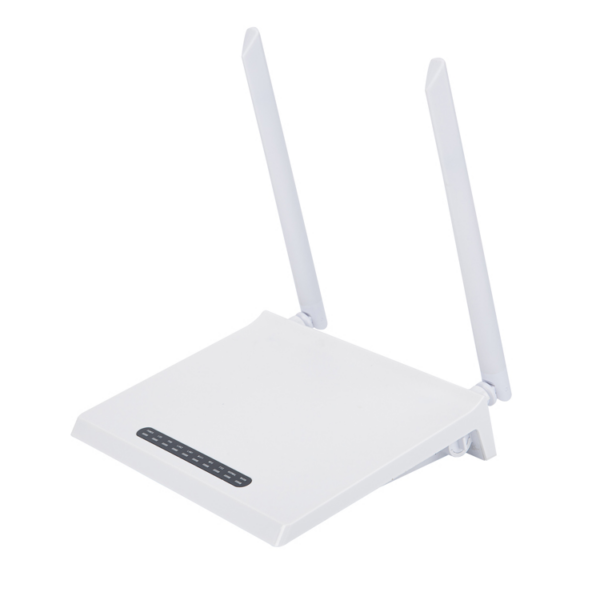

    The EchoLife HG8546M provides one GE port, one POTS port, and three FE ports and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the HG8546M a perfect choice for broadband access.
    Model EG8141A5 /HG8546M
    Dimensions (L x W x H) 30 mm x 152 mm x 105 mm
    (without external antenna and pads)
    Weight < 180 g
    Operating Temperature 0°C to +40°C
    Operating Humidity 5% RH to 95% RH (non-condensing)
    Power Adapter Input 100V to 240V AC, 50/60 Hz
    System Power Supply 11V to 14V DC, 1.5A
    Static Power Consumption 3.1W
    Maximum Power Consumption 7.15W
    NNI GPON
    UNI 1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi
    Optical Connector SC/APC
    Indicators POWER/PON/LOS/LAN/TEL/WLAN/WPS
    • Model Number: HG8546M
    • Type: ONU
    • Place of Origin: Guangdong, China
    • Brand Name: Huawei
    • Use: FTTH
    • Warranty Time:1 YEAR
    • Network: wifi
    • Product name: Huawei HG8546M ONU
    • Supply Ability: 10000 Pieces/Pieces per Month
    • Packaging Details : Retail package for Huawei HG8546M ONU
      Port: Shenzhen/Guangzhou
    • Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated

    HG8546M5 FTTH Product Features

    PON Characteristics:

    • Class B+ Receiving Sensitivity: -27dBm
    • Overload Optical Power: GPON: -8dBm / EPON: -3dBm
    • Wavelength: Upstream 1310nm, Downstream 1490nm
    • Wavelength Blocking Filter (WBF) supporting G.984.5 protocol
    • Authentication Method: SN/Password/LOID (GPON)
    • Two-way FEC (Forward Error Correction)
    • DBA supporting SR and NSR

    Ethernet Access Capability:

    • Ethernet-based VLAN Tag/Tag Stripping
    • 1:1 VLAN/N:1 VLAN/VLAN transparent transmission
    • Q in Q VLAN
    • MAC Address Restriction
    • MAC Address Learning
    • Gigabit Port Supports 10Mbit/s, 100Mbit/s, 1000Mbit/s Adaptive
    • 100 Mega Port Supports 10Mbit/s, 100Mbit/s Adaptive

    Wi-Fi Access Capability:

    • IEEE 802.11 b/g/n
    • 2×2 MIMO Antenna Gain: 2dBi
    • WMM (Wi-Fi Multi-Media)
    • Multi-SSID
    • WPS
    • Air Interface Rate: 300 Mbit/s

    HG8546M5 FTTH Product and Related Models

    EPON/ GPON ONT:

    • GEPON ONT
    • HG8010 EPON ONT, 1*LAN English Firmware
    • HG8310 EPON ONT, 1*LAN English Firmware
    • HG8110 EPON ONT, 1LAN+1Voice English Firmware
    • HG8120 EPON ONT, 2LAN+1Voice English Firmware
    • HG8240 EPON ONT, 4LAN+2Voice English Firmware
    • HG8346R EPON ONT, 4LAN+2Voice+WIFI English Firmware
    • HG8245 EPON ONT, 4LAN+2Voice+WIFI English Firmware

    GPON ONT:

    • HG8310M GPON ONT, 1*LAN English Firmware
    • HG8010/HG8010C GPON ONT, 1*LAN English Firmware
    • HG8311/HG8110/HG8110F GPON ONT, 1LAN+1VOICE English Firmware SIP
    • HG8120C/HG8120F/HG8120/HG8321/HG8321R GPON ONT, 2LAN+VOICE English Firmware SIP
    • HG8340M/HG8540/HG8040 GPON ONT, 4FE English Firmware SIP
    • HG8342/HG8342R/HG8342M/HG8240 GPON ONT, 4FE+2VOICE English Firmware SIP
    • HG8240/HG8240H GPON ONT, 4GE+2VOICE English Firmware SIP
    • HG8345R Internal Antenna GPON ONT, 4FE+WIFI (Internal Antenna) English Firmware SIP
    • HG8345R External Antenna GPON ONT, 4FE+WIFI (External Antenna) English Firmware SIP
    • HG8546M GPON ONT, 1GE+3FE+VOICE+WIFI, English Firmware SIP
    • HG8346M/HG8245A/HG8346R GPON ONT, 4FE+2VOICE+WIFI (Internal Antenna) English Firmware SIP
    • HG8346R External Antenna GPON ONT, 4FE+2VOICE+WIFI (External Antenna) English Firmware SIP
    • HG8245C2 GPON ONT, 2GE+2FE+2VOICE+WIFI English Firmware SIP
    • HG8245 External Antenna GPON ONT, 4GE+2VOICE+WIFI (External Antenna) Black Color English SIP
    • HG8245H GPON ONT, 4GE+2VOICE+WIFI English Firmware SIP ONT
    • HG8247 GPON/EPON ONT, 4GE+2VOICE+WIFI+CATV English Firmware SIP
