- Model Number:Eg8143a5
- Type:ONU
- Place of Origin:Guangdong, China
- Brand Name:OEM ODM
- Use:FTTH
- Warranty Time:2years
- Network:Wireless Lan, Wired LAN, wifi
- interface::1GE, 3FE, 1POTS 1WiFi (2.4G), CATV
- Application::FTTH FTTB FTTX Network
- weight::<500g
- Size (length Xwidth X height)::34mm x 175mm x 115 mm
- Color:White/ Black optional
- Working temperature::0℃~+40℃
- Power adapter input::100V~240V AC,50Hz~60Hz
- Power supply::11V~13V DC,2 A
- Indicator light::POWER/PON/LOS/LAN/TEL/USB/WLAN/ WPS/CATV
- Certification:RoHS
-
- Supply Ability
- 5000000 Piece/Pieces per Week
-
- Packaging Details
20pcs in 1 carton;
-
- Port
shenzhen/guangzhou/hongkong
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)10To be negotiated

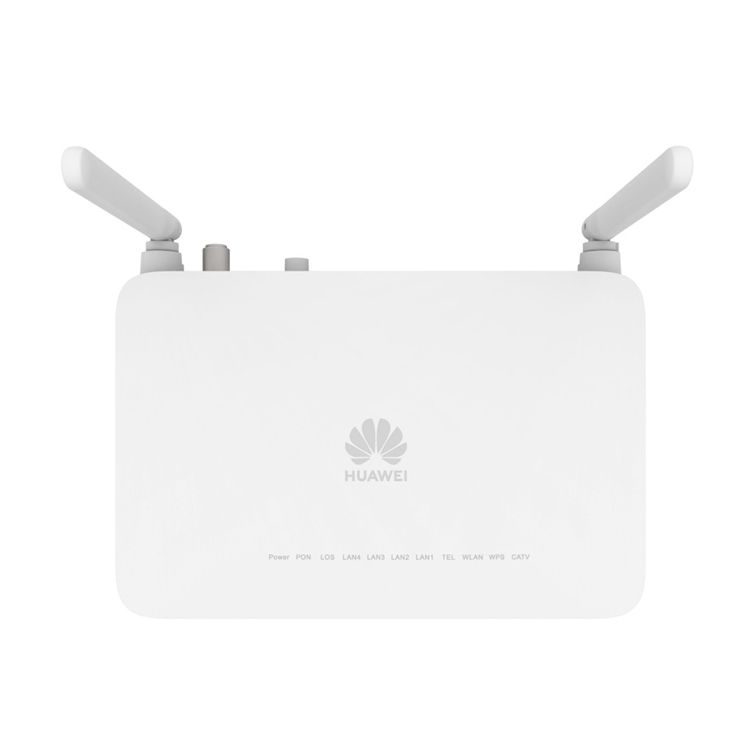

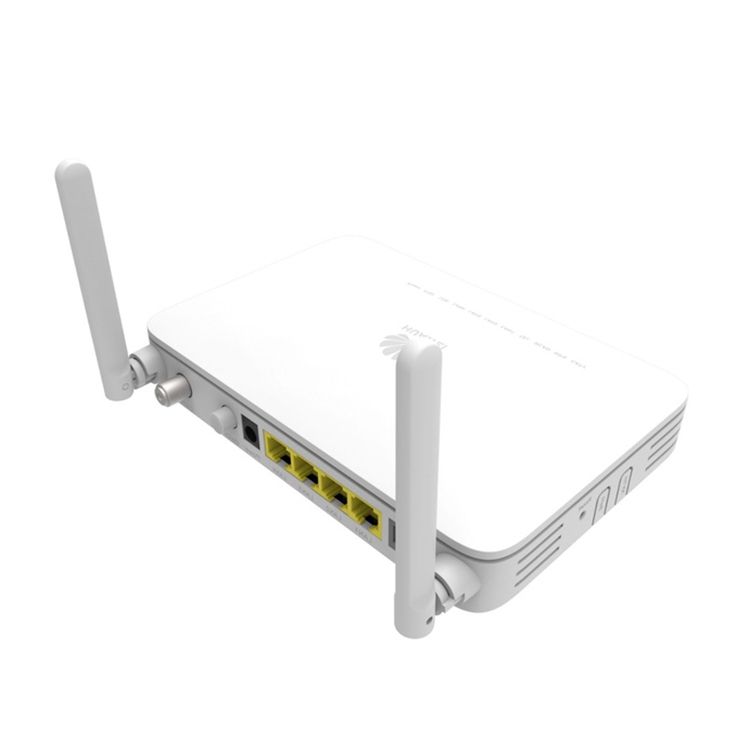

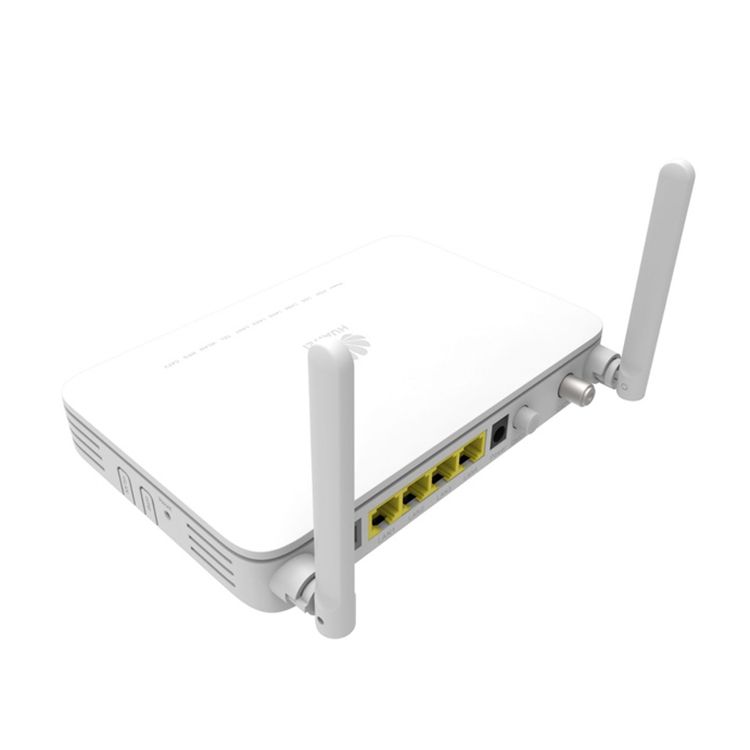

EG8143A5
The Huawei EG8143A5 is a routing-type Optical Network Terminal (ONT) — an integral part of all-optical access solution that uses Gigabit-capable Passive Optical Network (GPON) technology to implement ultra-broadband access for users. With high forwarding performance ensuring a consistent user experience for voice, data, and High Definition (HD) video services, and future-oriented service support capabilities, EG8143A5 helps enterprises construct the all-optical access solutions deployed on
next generation campuses.
next generation campuses.
Product Paramenters
|
Weight (Without power adapter)
|
Approximately 235 g
|
|||
|
Dimensions (length × width × height)
|
34 x 175 x 115 mm
|
|||
|

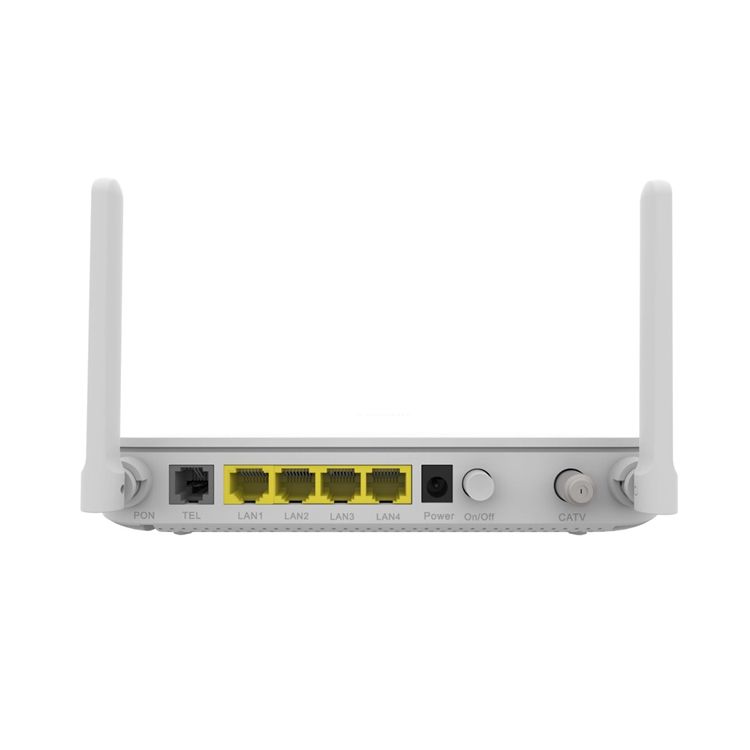

UNI
|
1 x GE, 3 x FE, 1 x POTS, 1 x Wi-Fi (2.4G), and 1 x CATV
|
|||
|
NNI
|
1 x GPON
|
|||
|
Surge Protection
|
GE port: common mode 4 kV; differential mode 0.5 kV
AC power supply: common mode 6 kV; differential mode 6 kV |
|||
|
GPON Port
|
Connector: SC/APC
Class B+ Receiver sensitivity: –27 dBm Overload optical power: –8 dBm Type B single-homing Type B dual-homing (supported in Layer 2 forwarding) |
|||
|
Ethernet Electrical Port
|
Ethernet port-based VLAN tags and tag removal
1:1 VLAN, N:1 VLAN, or VLAN transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning |
|||
|
POTS Port
|
Maximum REN: 4
G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (complies with the SIP protocol) |
|||
|
WLAN
|
IEEE 802.11 b/g/n (2.4G)
2 x 2 MIMO Antenna gain: 2 dBi WMM Multiple SSIDs WPS Air interface rate: 300 Mbit/s |
Application
Typical Solution：FTTH(Fiber To The Home)Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
