ES0D00SRUA00 Huawei Description

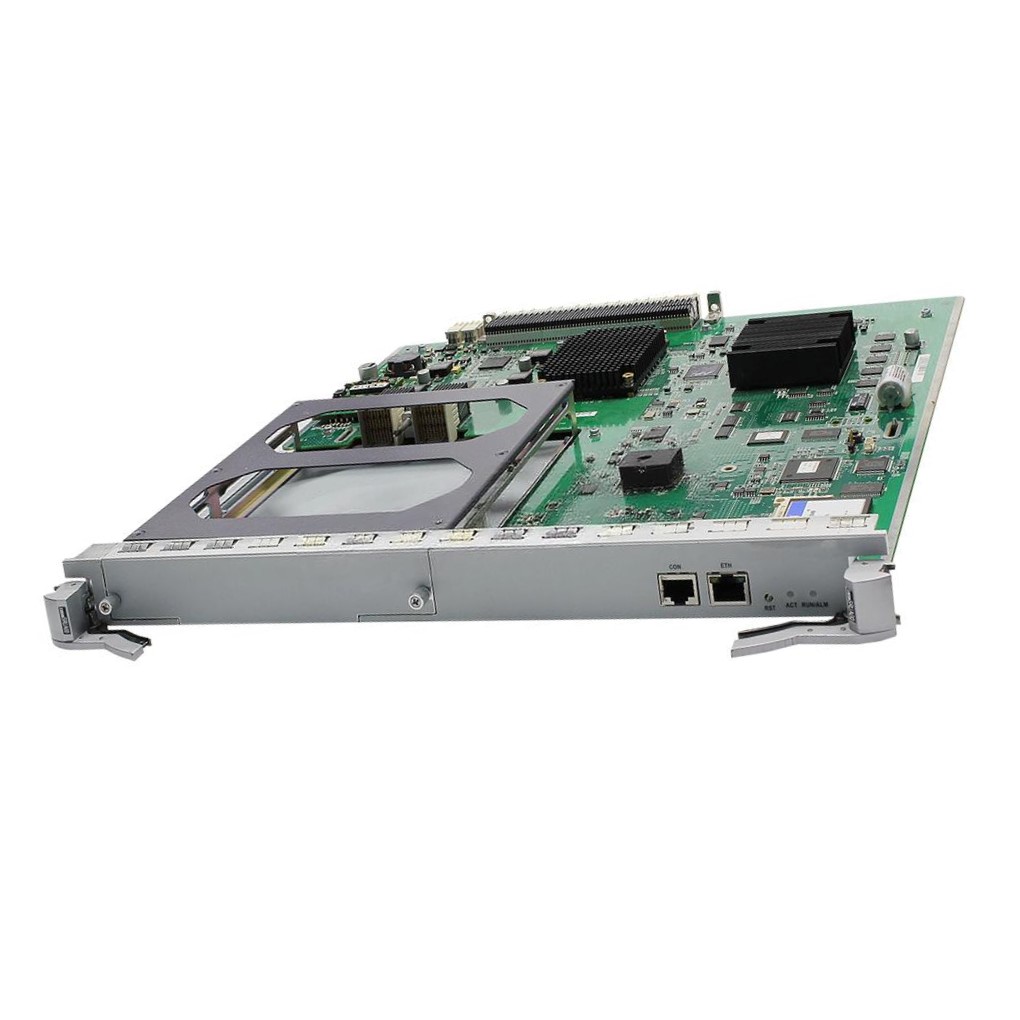

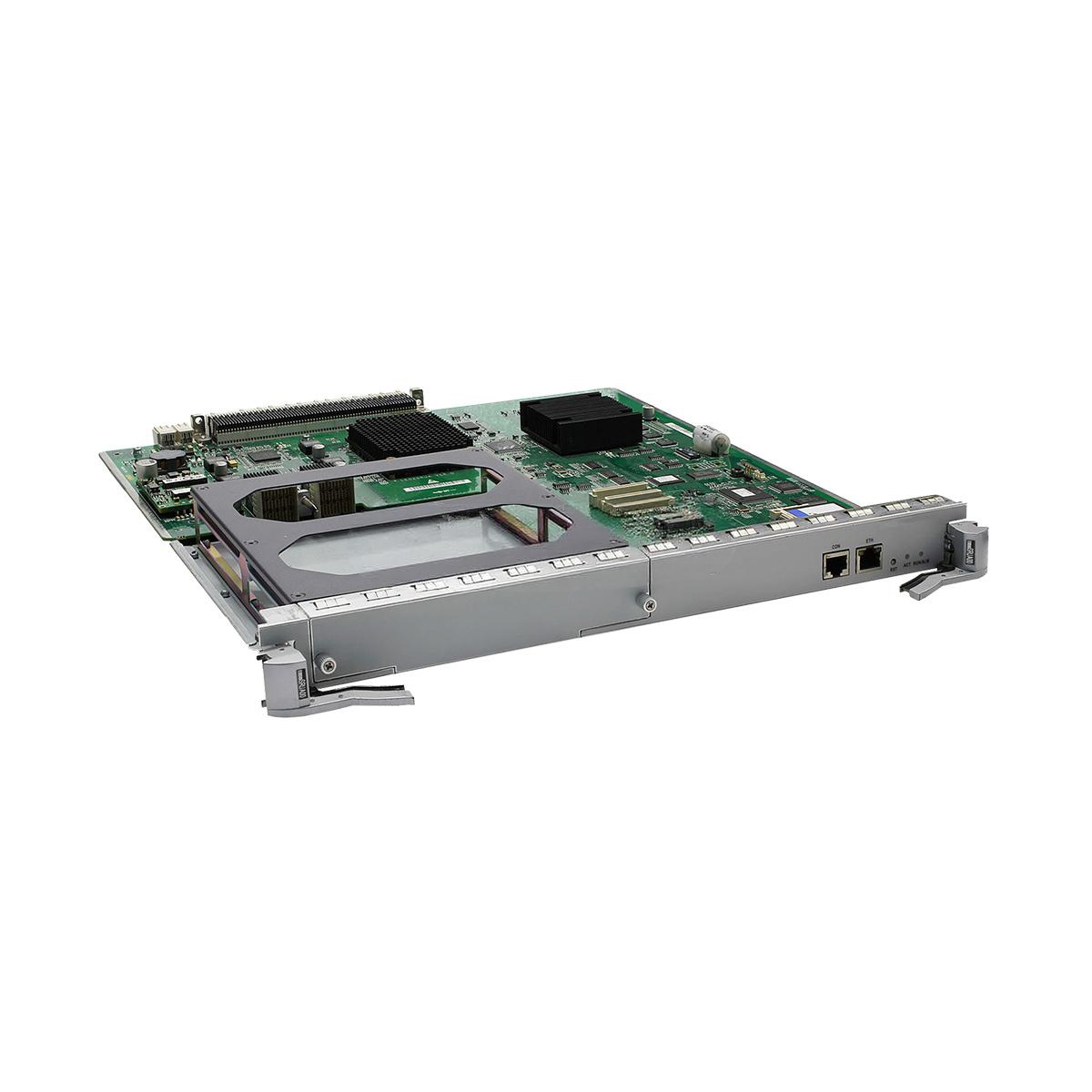

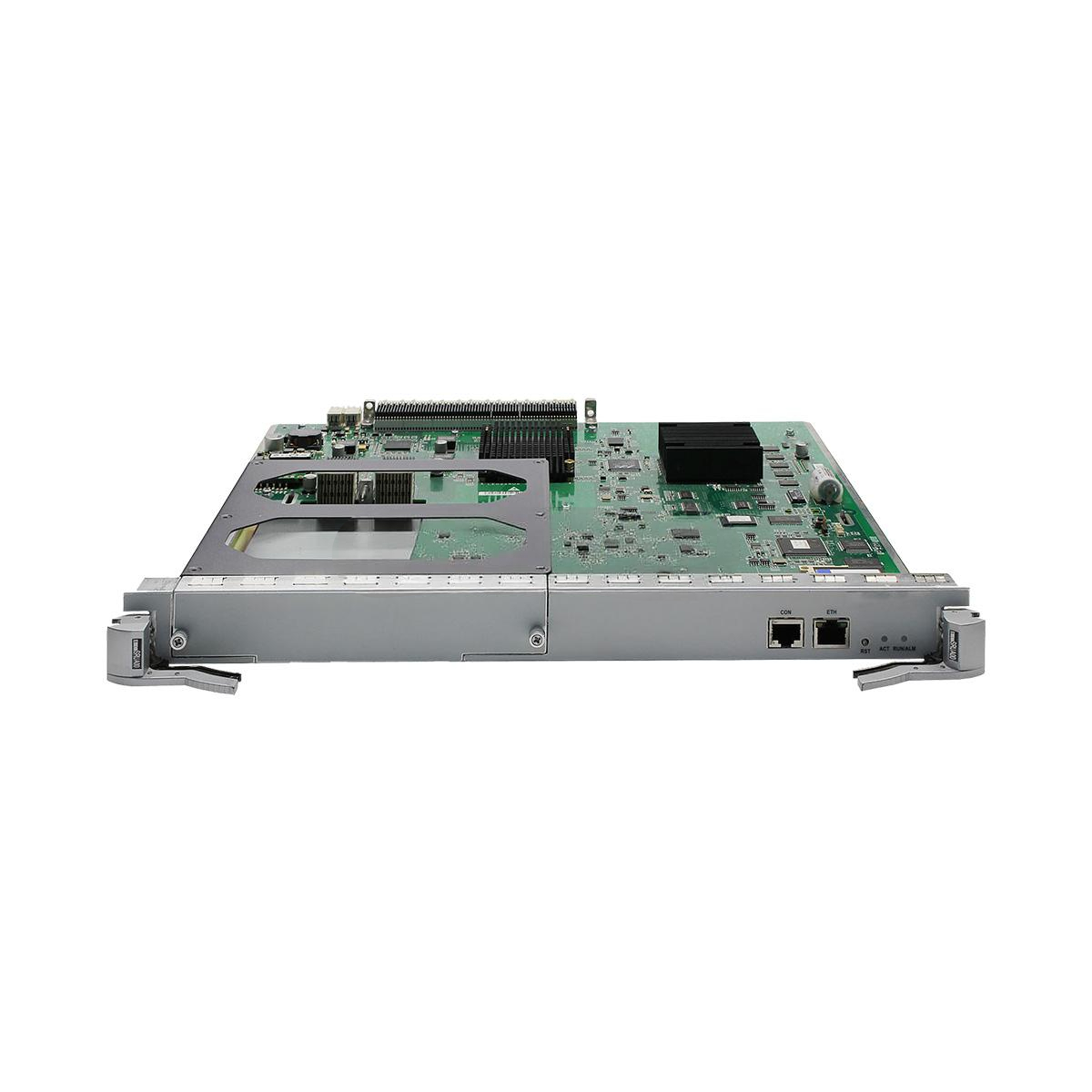

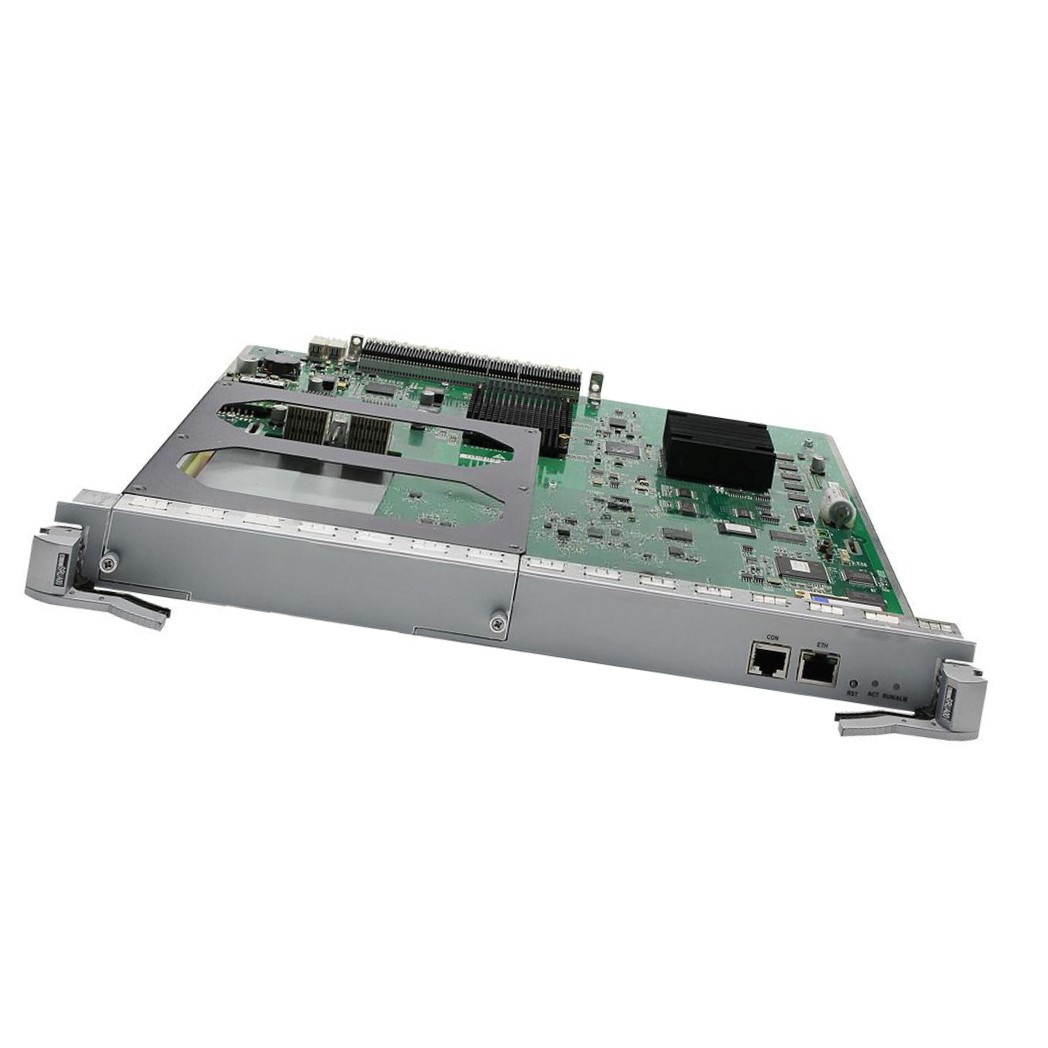

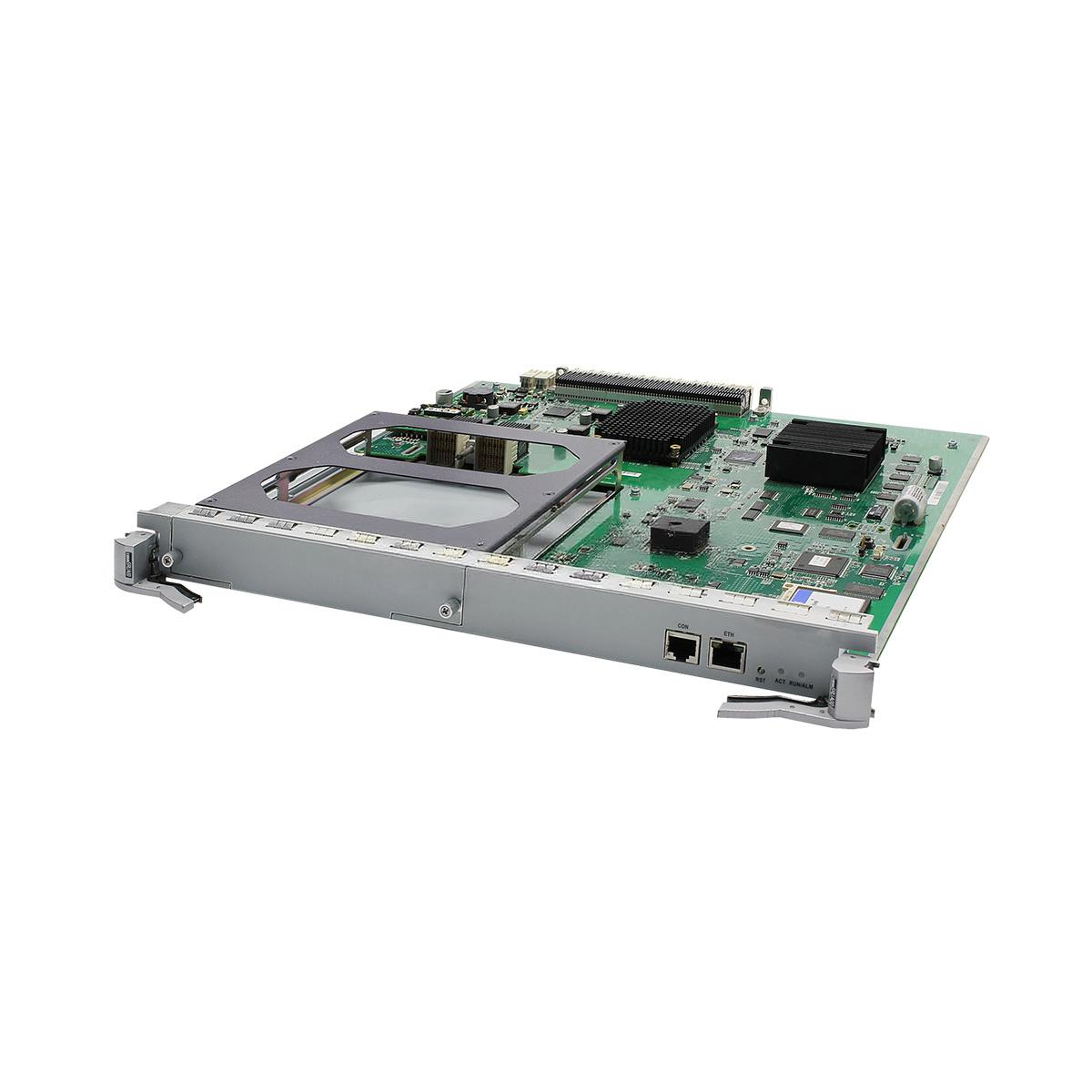

The ES0D00SRUA00 Huawei is an original, high-quality SRUA Main Control Unit, purpose-built for the Huawei S7706 and S7712 modular switches. As the central management and control module, this unit delivers robust routing, switching, and system processing, ensuring your network remains stable, secure, and high-performing even under demanding enterprise and carrier-grade workloads.
Engineered for carrier-grade performance, the ES0D00SRUA00 offers advanced packet forwarding, intelligent traffic management, and comprehensive system control. Its hot-swappable design allows you to perform upgrades, replacements, or maintenance with zero service downtime — maximizing network availability and business continuity.
Key Features
-
Model: ES0D00SRUA00
-
Condition: 100% Brand New, Original Huawei
-
Type: SRUA Main Control Unit
-
Function: Provides centralized control, routing, switching, and management for Huawei S7706 and S7712 switches
-
Performance: High-speed packet forwarding with low latency and stable throughput
-
Reliability: Carrier-grade architecture for 24/7 mission-critical operation
-
Hot Swappable: Supports online replacement and maintenance with no impact on live services
-
Compatibility: Fully compatible with Huawei S7706 and S7712 switch chassis
Tech Specs
| No. | Component | Description |
|---|---|---|
| 1 | Subcard Slot | A subcard for the SRU can be installed in this slot. |
| 2 | (Number skipped) | — |
| 3 | Console Management Port | For local device management. |
| 4 | ETH Management Port | For network management (10/100BASE-TX auto-sensing). |
Port Attributes
| Port | Attribute | Specification |
|---|---|---|
| ETH Management Port | Connector Type | RJ45 |
| Standards Compliance | IEEE802.3 | |
| Working Mode | 10/100 Mbit/s auto-sensing, Full-duplex | |
| Max Transmission Distance | 100 m | |
| Console Management Port | Connector Type | RJ45 |
| Standards Compliance | RS232 | |
| Working Mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) | |
| Baud Rate | 9600 bit/s to 115200 bit/s (Default: 9600 bit/s) |
Version Mapping
| Card | Supported Version |
|---|---|
| ES0D00SRUA00 | V100R003C01 and later |
Physical Specifications
| Attribute | Details |
|---|---|
| Dimensions (W × D × H) | 394.7 mm × 426.8 mm × 35.1 mm (15.54 in. × 16.80 in. × 1.38 in.) |
| Weight | 2.80 kg (6.17 lb) |
| Maximum Power Consumption | 81 W (with ES0D00FSUA00 installed) |
Environmental Parameters
| Attribute | Details |
|---|---|
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Storage Relative Humidity | 5% RH to 95% RH (non-condensing) |
ES0D00SRUA00 Huawei Applications
The ES0D00SRUA00 SRUA Main Control Unit is ideal for:
• Enterprise campus core switching and aggregation networks
• Carrier metro aggregation and backbone deployments
• Cloud data center interconnects (DCI)
• Multi-service WAN or MAN environments
• Network infrastructure expansions that demand high stability and flexibility
Customization & OEM Services
We provide customization and OEM solutions for the ES0D00SRUA00 to match your project’s unique requirements:
• Pre-configuration and testing for easy plug-and-play integration
• Private labeling and branding for partners and resellers
• Custom packaging for bulk shipments or multi-site rollouts
• Enhanced burn-in testing for high-availability or specialized deployments
ES0D00SRUA00 Huawei Wholesale & Bulk Orders
Partner with us for reliable wholesale supply and bulk procurement:
• Factory-direct pricing with competitive volume discounts
• Global shipping with secure, export-compliant packaging
• Dedicated account managers for smooth project coordination
• Consistent stock availability to meet tight schedules
• Full technical support and comprehensive warranty coverage
Why Choose Us
100% Original Huawei Hardware — genuine, tested, and certified
Customizable Solutions — tailored for complex network environments
Attractive Wholesale Pricing — perfect for telecom carriers, ISPs, and enterprise integrators
Safe, Export-Compliant Packaging & Global Delivery — professional, reliable shipping
Expert Technical Assistance — from initial planning to post-deployment support
ES0D00SRUA00 Huawei Contact Us for a Quote
Strengthen your network’s performance and control with the ES0D00SRUA00 Huawei S7706/S7712 SRUA-Main Control Unit — the trusted solution for scalable, carrier-grade switching and routing. Contact our team today for technical details, custom configurations, or bulk pricing. We’re here to help you build a robust, future-ready network with genuine Huawei equipment you can trust.
