ES0D0G24CA00 Huawei Description:

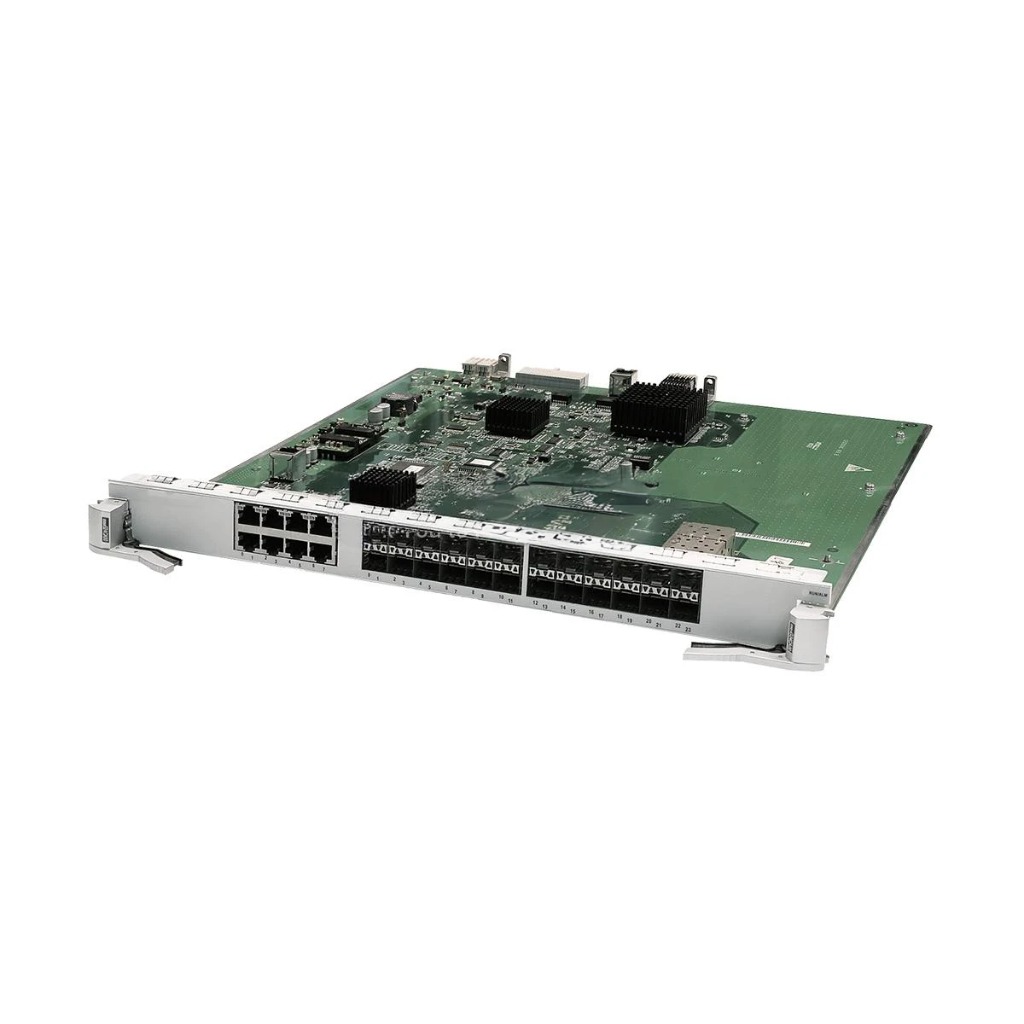

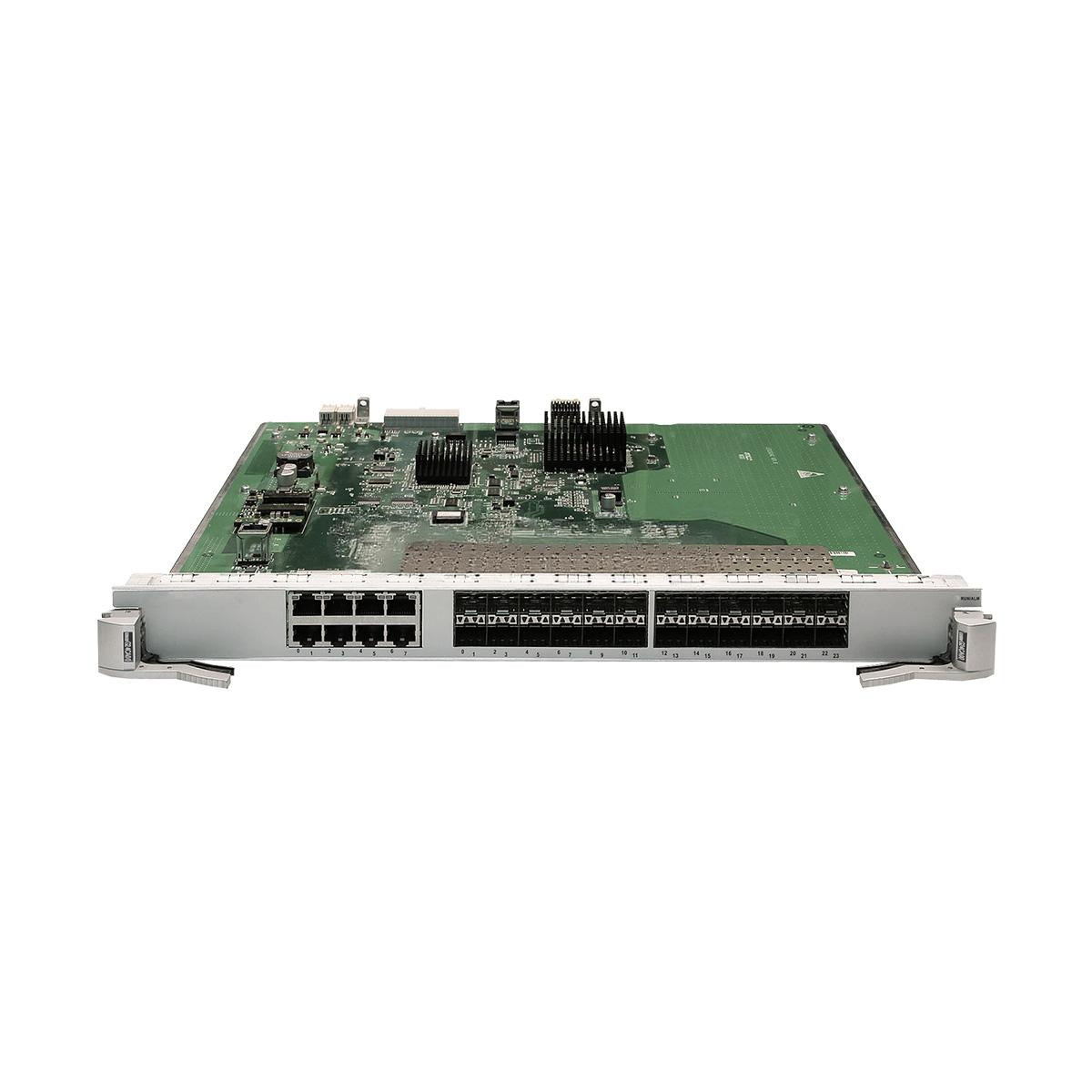

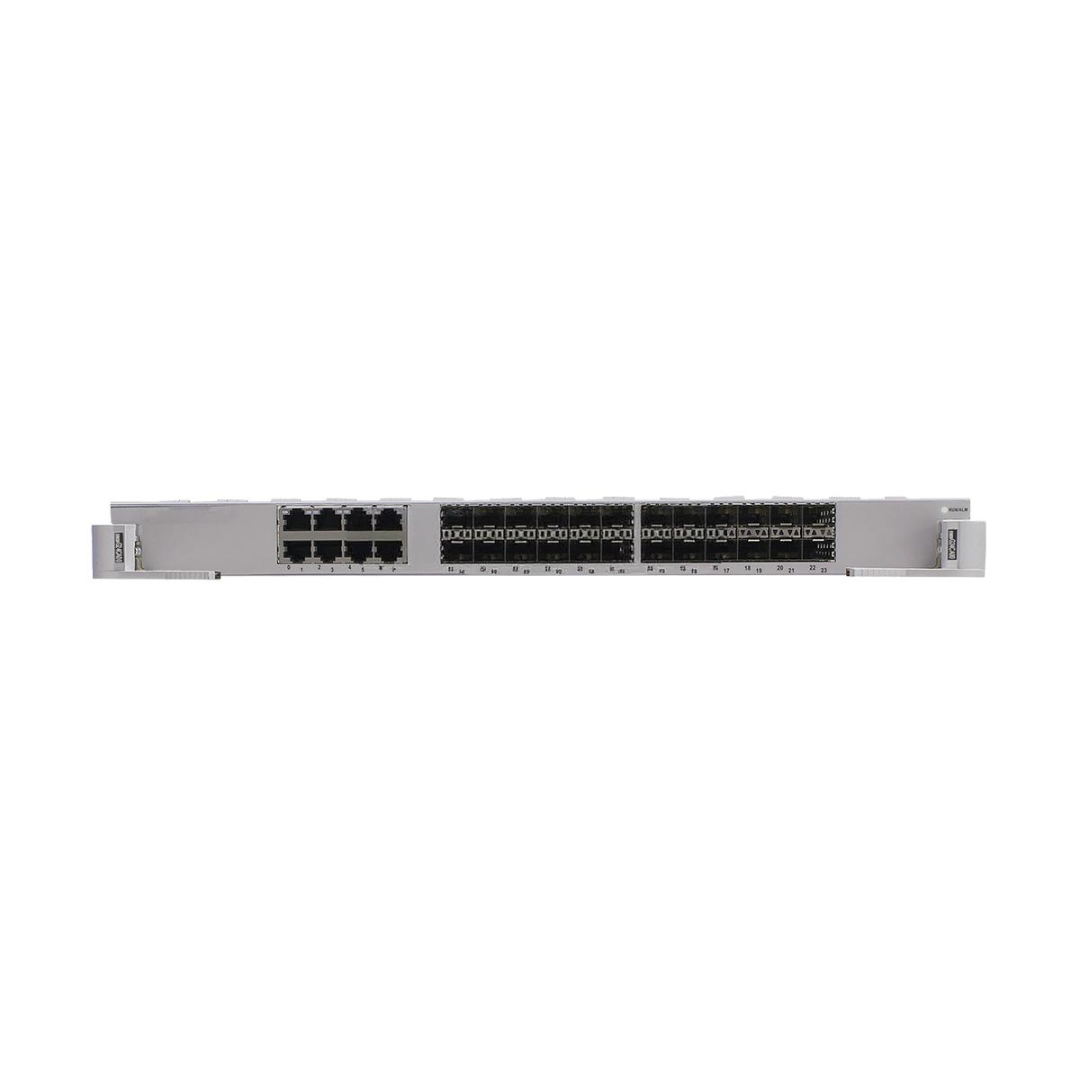

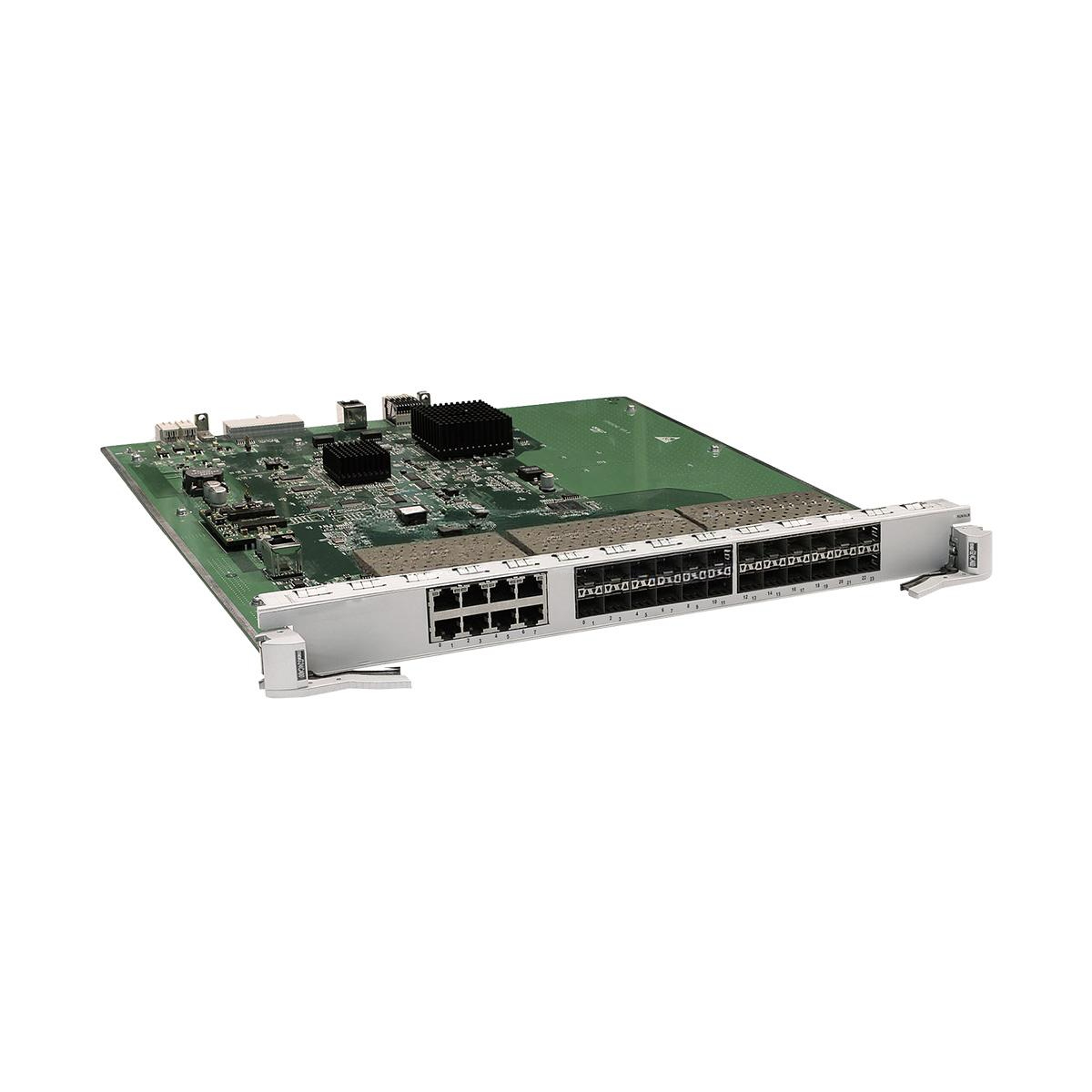

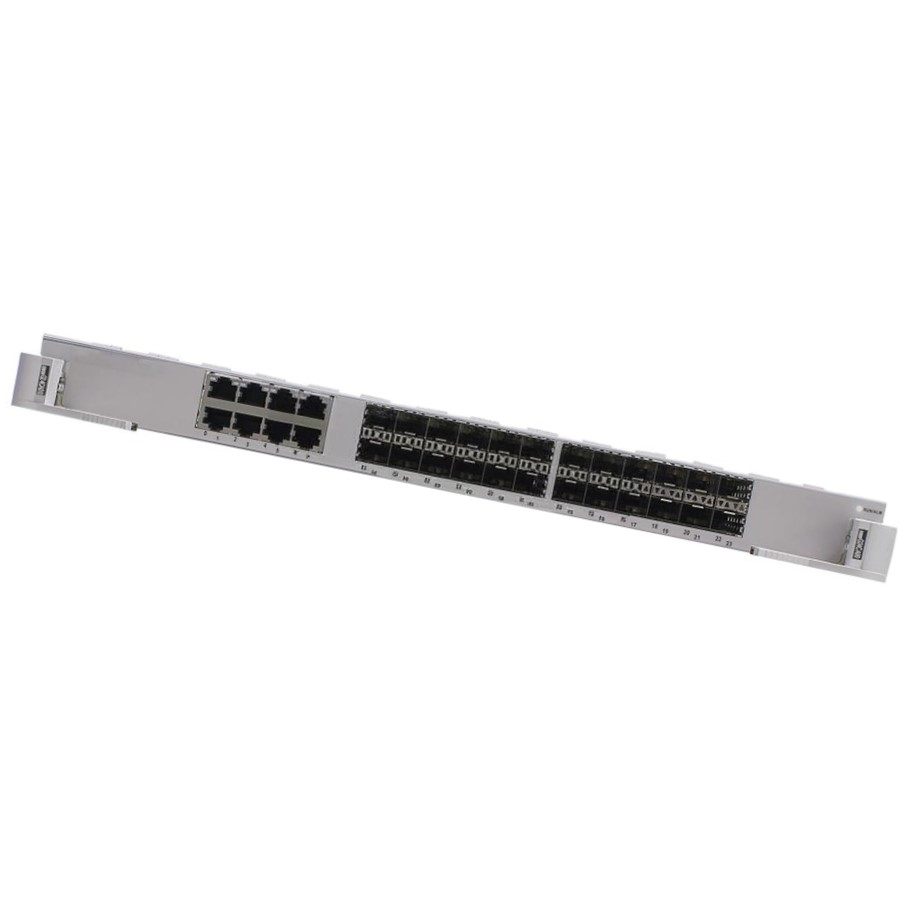

The ES0D0G24CA00 Huawei is a genuine Huawei Combo Interface Card, designed for flexible high-performance connectivity within Huawei switch and router series. This model provides a versatile combination of SA (Service Access) and SFP (Small Form-Factor Pluggable) ports, enabling both copper and fiber connections on a single card.
Engineered to meet Huawei’s strict performance standards, the ES0D0G24CA00 delivers reliable multi-gigabit throughput, low latency, and robust link stability — making it ideal for hybrid network environments where mixed media access is required. Its hot-swappable design allows for easy upgrades or replacements without interrupting network services.
Key Features:
-
Model: ES0D0G24CA00
-
Condition: 100% Brand New, Original Huawei
-
Type: Combo Interface Card (SA, SFP)
-
Ports: Combination of SA ports for copper connections and SFP slots for fiber links
-
Performance: High-speed data forwarding with low latency and stable transmission
-
Flexibility: Supports diverse deployment scenarios with both copper and fiber interfaces
-
Hot Swappable: Easy installation and maintenance with no service downtime
-
Compatibility: Fully compatible with supported Huawei switches and routers
-
Quality: Built to carrier-grade standards and rigorously tested for continuous operation
Tech Specs:
| Front Panel | |||
|
|||
| Version Mapping | |||
| ES0D0G24CA00 is supported in V100R003C01 and later versions | |||
| 10/100/1000BASE-T electrical port attributes | |||
| Connector type | RJ45 | ||
| Standards compliance | IEEE 802.3z | ||
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP | ||
| Network protocol | IP | ||
| Attributes of FE optical modules | |||
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | ||
| Model | Transmission Distance (km) | Standard | Fiber Type |
| SFP-FE-SX-MM1310 (SFP optical module) |
≤ 2 | 100base-FX | Fiber mode: multimode Core diameter: 50 μm or 62.5 μm Connector type: LC |
| eSFP-FE-LX-SM1310 | ≤ 15 | 100base-LX | Fiber mode: single-mode Connector type: LC |
| S-SFP-FE-LH40-SM1310 | ≤ 40 | ||
| S-SFP-FE-LH80-SM1550 | ≤ 80 | ||
| SFP-FE-LX-SM1310-BIDI (Single-fiber bidirectional) |
≤ 15 | 100base-BX | |
| SFP-FE-LX-SM1550-BIDI (Single-fiber bidirectional) |
|||
| Attributes of GE optical modules | |||
| eSFP-GE-SX-MM850 | ≤ 0.22 | 1000base-SX | Fiber mode: multimode Modal Bandwidth: 160 MHz*km Core diameter: 62.5 μm Connector type: LC |
| ≤ 0.275 | Fiber mode: multimode (OM1) Connector type: LC |
||
| ≤ 0.5 | Fiber mode: multimode Modal Bandwidth: 400 MHz*km Core diameter: 50 μm Connector type: LC |
||
| ≤ 0.55 | Fiber mode: multimode (OM2) Connector type: LC |
||
| ≤ 1 | Fiber mode: multimode (OM3) Connector type: LC |
||
| SFP-GE-LX-SM1310 | ≤ 10 | 1000base-LX/LH | Fiber mode: single-mode Connector type: LC |
| S-SFP-GE-LH40-SM1310 | ≤ 40 | ||
| S-SFP-GE-LH40-SM1550 | |||
| S-SFP-GE-LH80-SM1550 | ≤ 80 | 1000base-ZX | |
| eSFP-GE-ZX100-SM1550 | ≤ 100 | ||
| SFP-GE-LX-SM1310-BIDI (Single-fiber bidirectional) |
≤ 10 | 1000base-BX | |
| SFP-GE-LX-SM1490-BIDI (Single-fiber bidirectional) |
|||
| LE2MGSC40DE0 (Single-fiber bidirectional) |
≤ 40 | ||
| LE2MGSC40ED0 (Single-fiber bidirectional) |
|||
| SFP-GE-ZBXD1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. |
≤ 80 | 1000base-BX | |
| SFP-GE-ZBXU1 (Single-fiber bidirectional)can only be used on switch running V200R008C00 or later version. |
|||
| SFP-GE-BXU1-SC (Single-fiber bidirectional) |
≤ 10 | 1000base-BX | Fiber mode: single-mode Connector type: SC |
| Attributes of eSFP CWDM optical modules | |||
| Center Wavelength (nm), Model | |||
| 1471, CWDM-SFPGE-1471 | 1491, CWDM-SFPGE-1491 | 1511, CWDM-SFPGE-1511 | 1531, CWDM-SFPGE-1531 |
| 1551, CWDM-SFPGE-1551 | 1571, CWDM-SFPGE-1571 | 1591, CWDM-SFPGE-1591 | 1611, CWDM-SFPGE-1611 |
| Specifications | Encapsulation type: eSFP | ||
| Transmission distance: ≤ 80 km | |||
| Fiber type: single-mode, LC | |||
| Standard: CWDM | |||
| Operating temperature: 0°C to 70°C (32°F to 158°F) | |||
| Transmit power: 0 dBm to 5.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -9.0 dBm Extinction ratio: ≥ 8.5 dB |
|||
| Attributes of eSFP DWDM optical modules | |||
| Center Wavelength (nm), Model | |||
| 1529.55, DWDM-SFPGE-1529-55 | 1530.33, DWDM-SFPGE-1530-33 | 1531.12, DWDM-SFPGE-1531-12 | 1531.90, DWDM-SFPGE-1531-90 |
| 1532.68, DWDM-SFPGE-1532-68 | 1533.47, DWDM-SFPGE-1533-47 | 1534.25, DWDM-SFPGE-1534-25 | 1535.04, DWDM-SFPGE-1535-04 |
| 1535.82, DWDM-SFPGE-1535-82 | 1536.61, DWDM-SFPGE-1536-61 | 1537.40, DWDM-SFPGE-1537-40 | 1538.19, DWDM-SFPGE-1538-19 |
| 1538.98, DWDM-SFPGE-1538-98 | 1539.77, DWDM-SFPGE-1539-77 | 1540.56, DWDM-SFPGE-1540-56 | 1541.35, DWDM-SFPGE-1541-35 |
| 1542.14, DWDM-SFPGE-1542-14 | 1542.94, DWDM-SFPGE-1542-94 | 1543.73, DWDM-SFPGE-1543-73 | 1544.53, DWDM-SFPGE-1544-53 |
| 1545.32, DWDM-SFPGE-1545-32 | 1546.12, DWDM-SFPGE-1546-12 | 1546.92, DWDM-SFPGE-1546-92 | 1547.72, DWDM-SFPGE-1547-72 |
| 1548.51, DWDM-SFPGE-1548-51 | 1549.32, DWDM-SFPGE-1549-32 | 1550.12, DWDM-SFPGE-1550-12 | 1550.92, DWDM-SFPGE-1550-92 |
| 1551.72, DWDM-SFPGE-1551-72 | 1552.52, DWDM-SFPGE-1552-52 | 1553.33, DWDM-SFPGE-1553-33 | 1554.13, DWDM-SFPGE-1554-13 |
| 1554.94, DWDM-SFPGE-1554-94 | 1555.75, DWDM-SFPGE-1555-75 | 1556.55, DWDM-SFPGE-1556-55 | 1557.36, DWDM-SFPGE-1557-36 |
| 1558.17, DWDM-SFPGE-1558-17 | 1558.98, DWDM-SFPGE-1558-98 | 1559.79, DWDM-SFPGE-1559-79 | 1560.61, DWDM-SFPGE-1560-61 |
| Specifications | Encapsulation type: eSFP | ||
| Transmission distance: ≤ 120 km | |||
| Fiber type: single-mode, LC | |||
| Standard: DWDM | |||
| Operating temperature: 0°C to 45°C (32°F to 113°F) | |||
| Transmit power: 0 dBm to 4.0 dBm Receiver sensitivity: ≤ -28.0 dBm Overload optical power: -8.0 dBm Extinction ratio: ≥ 8.2 dB |
|||
| Physical specifications | |||
| Dimensions(W x D x H): | 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) | ||
| Weight: | 2.66 kg (5.86 lb) | ||
| Maximum power consumption: | 67 W | ||
| Environment parameters | |||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | ||
| Operating relative humidity | 5% RH to 95% RH (noncondensing) | ||
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | ||
| Storage relative humidity | 5% RH to 95% RH (noncondensing) | ||
ES0D0G24CA00 Huawei Applications:
The ES0D0G24CA00 Combo Interface Card is ideal for:
-
Enterprise campus and branch office networks
-
Service provider aggregation or access layers
-
Hybrid network environments requiring both copper and fiber links
-
System integrators upgrading or expanding Huawei-based infrastructures
-
Scalable, flexible network design with future-proof connectivity options
Customization & OEM Services:
We offer flexible customization and OEM services to meet your project needs:
-
Pre-configuration of ports to match your deployment plans
-
OEM branding and private labeling for resellers and integrators
-
Custom packaging for phased rollouts or multi-site projects
-
Extended burn-in testing for mission-critical or long-term deployments
ES0D0G24CA00 Huawei Wholesale & Bulk Orders:
Leverage our wholesale and bulk supply support for system integrators, ISPs, and enterprise customers:
-
Factory-direct pricing with attractive discounts for large orders
-
Reliable stock levels and flexible logistics for phased network expansions
-
Fast global shipping with secure export-compliant packaging
-
Dedicated account managers for smooth, efficient order handling
-
Comprehensive warranty and responsive technical support
Why Choose Us:
-
100% genuine Huawei hardware, fully tested and certified
-
Flexible, scalable solutions for your unique network needs
-
Competitive pricing for wholesale partners and resellers
-
Professional global logistics for secure, on-time delivery
-
Expert technical support throughout your project lifecycle
Contact Us for a Quote:
Ready to upgrade your network with the ES0D0G24CA00 Huawei Combo Interface Card (SA, SFP)? Reach out today for complete technical details, customization options, and competitive bulk pricing.
Our team is here to help you deploy reliable, future-ready Huawei network solutions with trusted expertise and dependable support.
