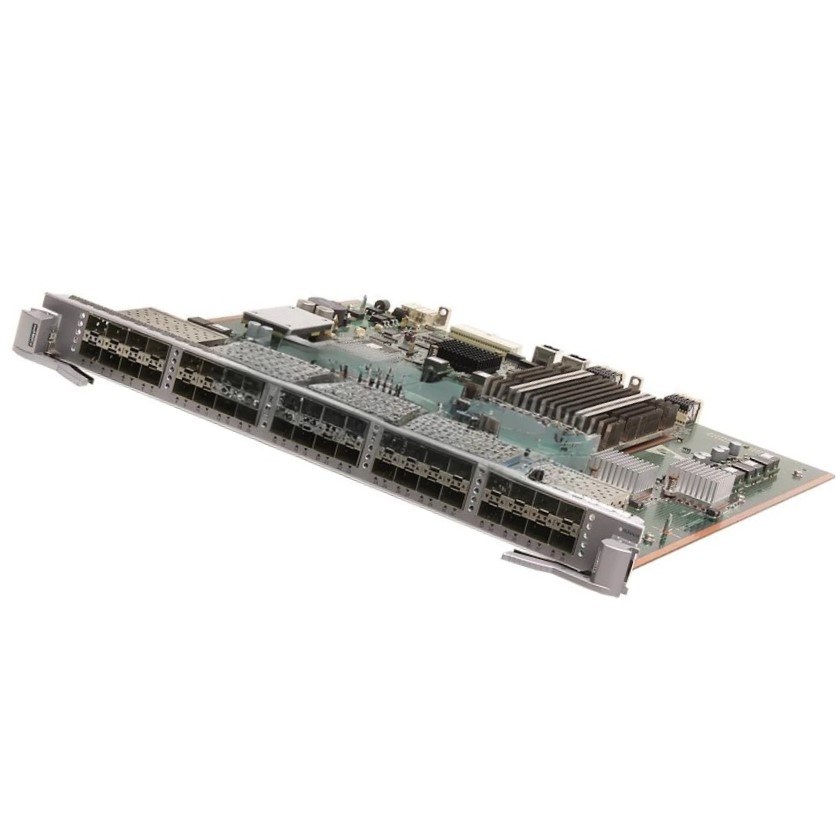

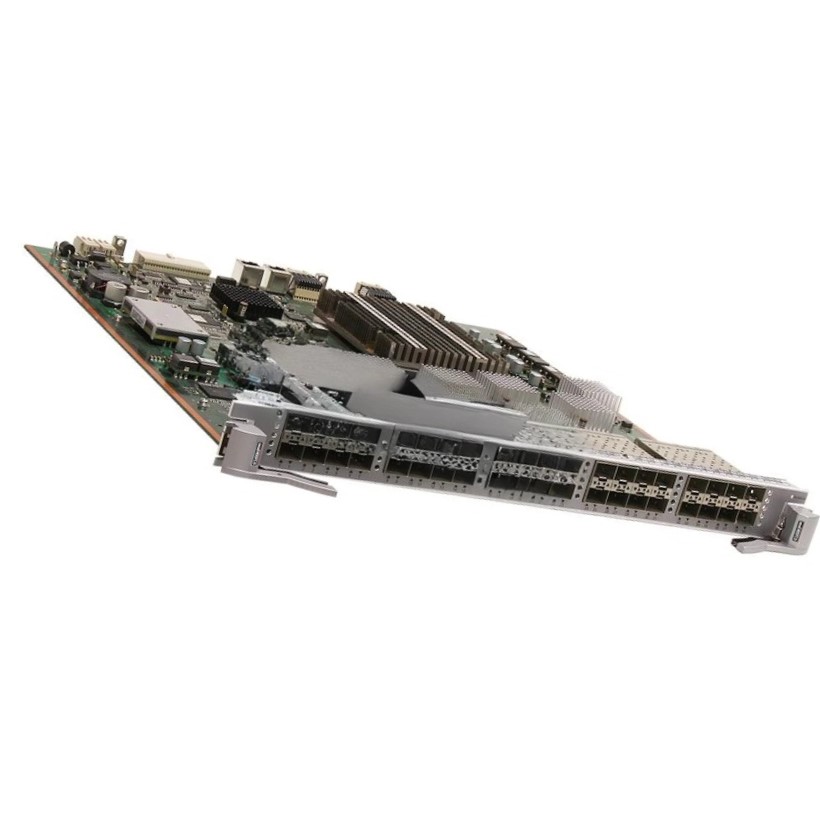

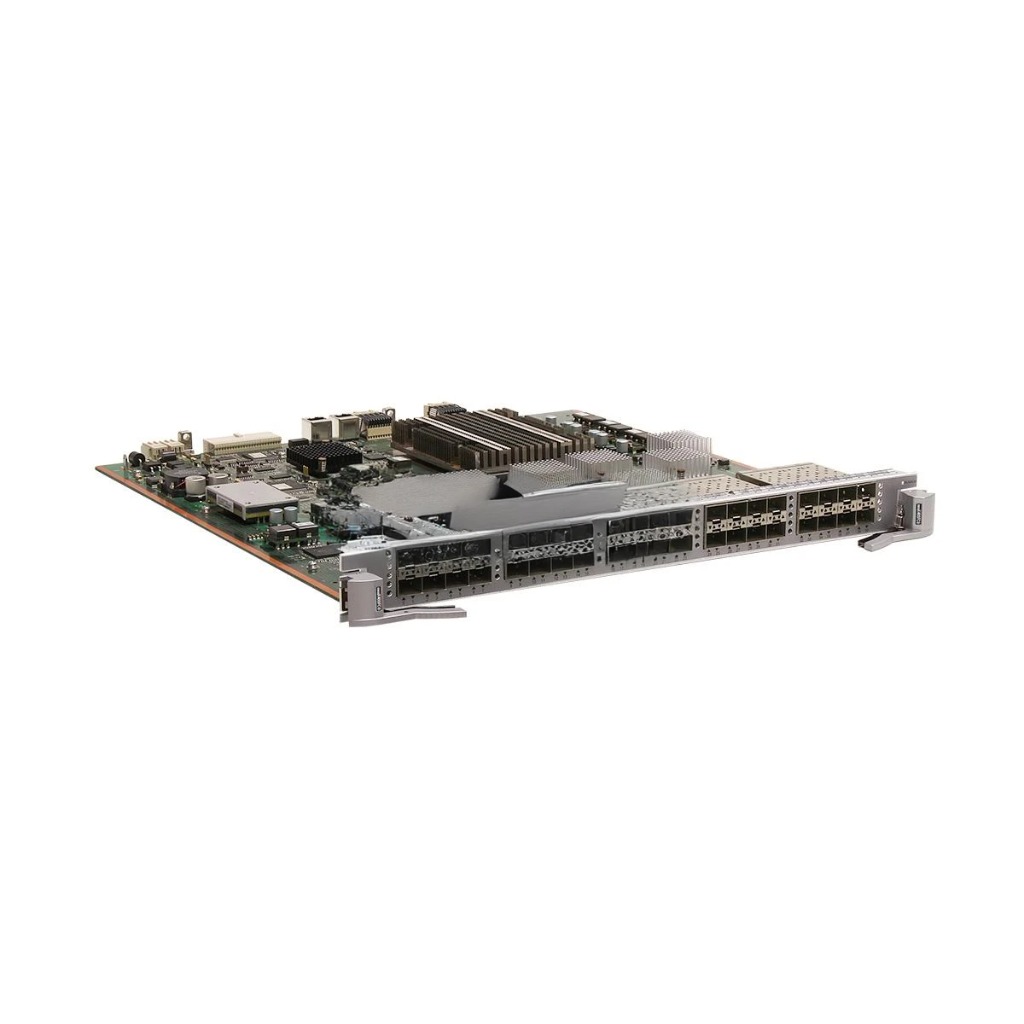

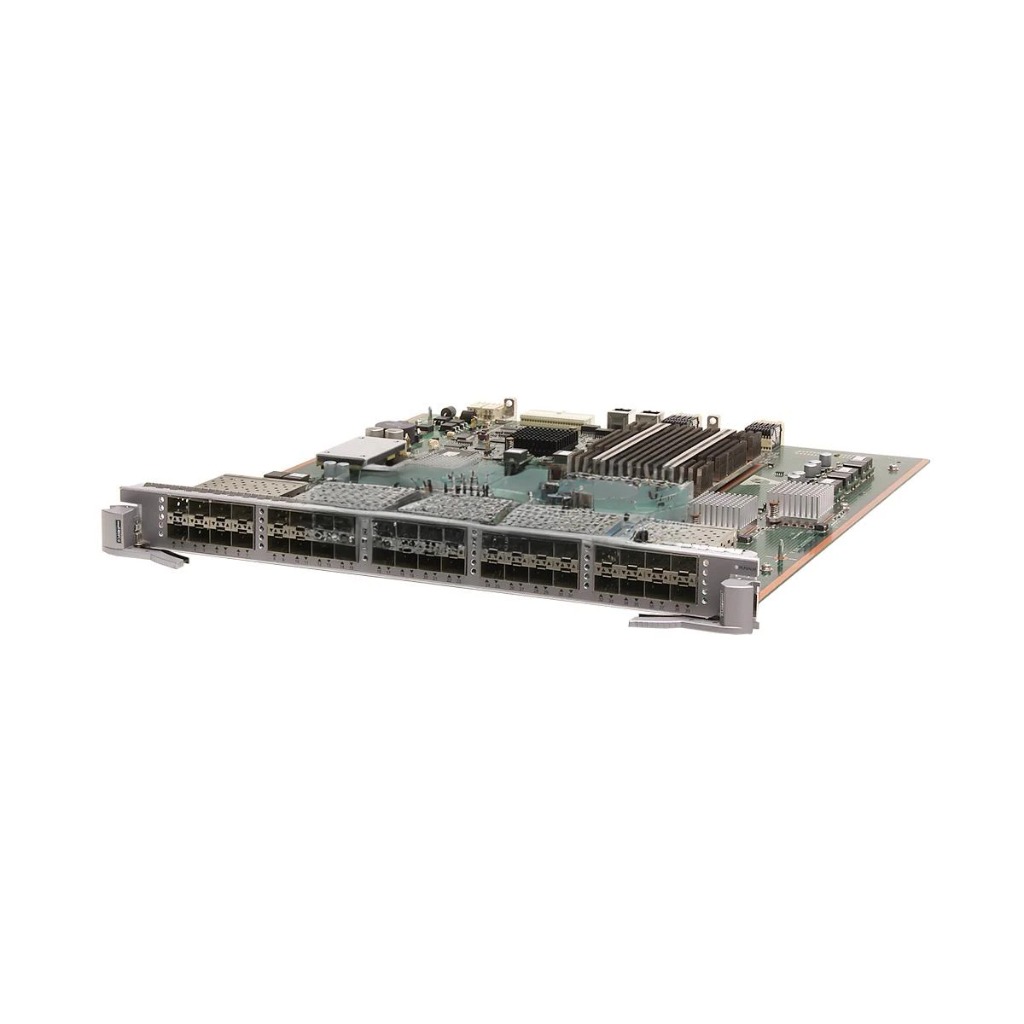

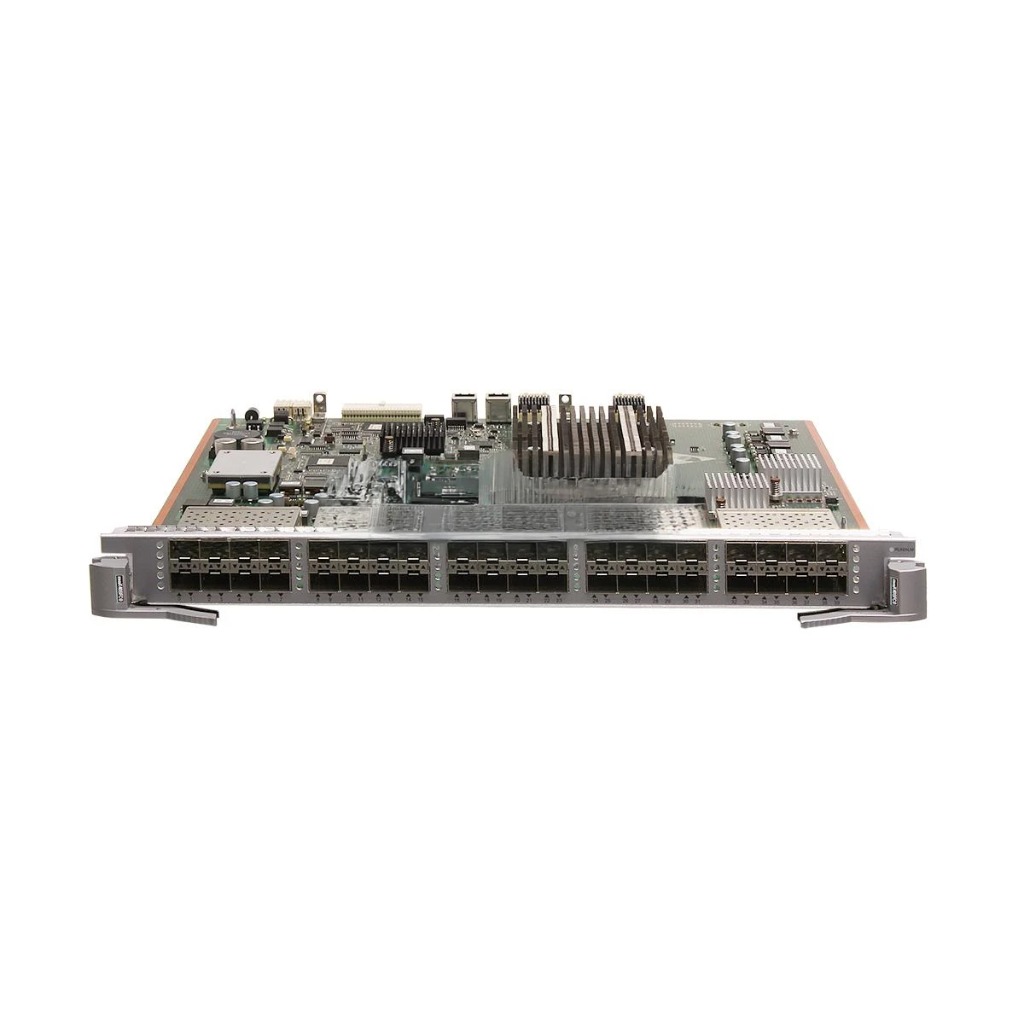

ES1D2X40SFC0 Huawei Description:
The ES1D2X40SFC0 Huawei is a brand new, original Huawei 40-Port 10GBASE interface card, specifically designed to deliver high-density, high-speed connectivity for Huawei modular switches in data centers and enterprise core networks.
This powerful module provides 40 × 10GE SFP+ ports, supporting massive bandwidth demands and ensuring seamless, low-latency communication across core, aggregation, and spine-leaf network layers. Engineered to Huawei’s stringent carrier-grade standards, it guarantees reliable 24/7 performance, robust signal integrity, and exceptional scalability for your growing network infrastructure.
With its hot-swappable design and energy-efficient architecture, the ES1D2X40SFC0 helps optimize operational costs while supporting the high throughput required by modern cloud computing, virtualization, and big data applications.
Key Features:
-
Model: ES1D2X40SFC0
-
Condition: 100% Brand New, Original Huawei
-
Type: 40-Port 10GBASE Interface Card
-
Ports: 40 × 10GE SFP+ slots
-
Data Rate: Up to 10Gbps per port, ideal for high-density environments
-
Performance: Ultra-low latency, high forwarding capacity, and carrier-grade reliability
-
Compatibility: Fully compatible with supported Huawei modular switch series
-
Hot Swappable: Enables easy upgrades or replacement with zero network downtime
-
Power Efficiency: Optimized for energy savings in large-scale data centers
-
Reliability: Rigorously tested for mission-critical applications and continuous operation
Tech Specs:
| Parameter | ES1D2L02QFC0 (2 × 40GE) | ES1D2X40SFC0 (40 × 10GE/1GE) |
|---|---|---|
| Front Panel Ports | 2 × 40GE BASE-X optical ports | 40 × 10GBASE SFP+ / 1000BASE-X optical ports |
| Connector Type | QSFP+ | SFP+ (10G) / SFP (1G) |
| Standards Compliance | IEEE 802.3ba | IEEE 802.3ae (10G), IEEE 802.3ab (1G) |
| Frame Format | Ethernet II, Ethernet SAP, Ethernet SNAP | Ethernet II, Ethernet SAP, Ethernet SNAP |
| Network Protocol | IP | IP |
| Supported Optical Modules | QSFP+: SR4, iSR4, eSR4, LR4, ER4, iSM4 | SFP+: USR, SR, LR, ER, ZR, ZDWT, CWDM, DWDM, BiDi |
| SFP (1G): SX, LX/LH, LH40, LH80, ZX, CWDM, DWDM, BiDi, Copper RJ45 | ||
| Max Transmission Distance | Up to 40 km (ER4) | Up to 120 km (DWDM) |
| Fiber Types Supported | Single-mode and multimode | Single-mode, multimode, copper (RJ45 for 1GE) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | 0°C to 45°C (32°F to 113°F) |
| Module Operating Temp | 0°C to 70°C | 0°C to 70°C |
| Physical Dimensions (WxDxH) | 394.7 mm × 426.8 mm × 35.1 mm | 394.7 mm × 426.8 mm × 35.1 mm |
| Weight | 2.50 kg (5.51 lb) | 2.90 kg (6.39 lb) |
| Maximum Power Consumption | 88 W | 183 W |
| Storage Temp & Humidity | -40°C to +70°C; 5% RH to 95% RH (non-condensing) | -40°C to +70°C; 5% RH to 95% RH (non-condensing) |
Key Highlights
40GE Card (ES1D2L02QFC0)
-
Designed for high-bandwidth core or aggregation scenarios
-
Up to 40 km reach with ER4 modules
-
QSFP+ module support
40 x 10GE/1GE Card (ES1D2X40SFC0)
-
High port density for flexible aggregation or distribution
-
Supports extensive module options: 10GE, 1GE copper, BiDi, CWDM, DWDM
-
Maximum optical reach up to 120 km with DWDM modules
ES1D2X40SFC0 Huawei Applications:
The ES1D2X40SFC0 40-Port 10GBASE Interface Card is ideal for:
-
Large-scale enterprise data centers and campus cores
-
Spine-leaf architectures for cloud and virtualization networks
-
High-performance computing (HPC) clusters
-
ISP and telecom backbone expansions
-
Network upgrades demanding ultra-high port density and throughput
Customization & OEM Services:
We offer customization and OEM solutions to match your unique project requirements:
-
Compatibility checks and pre-configuration with your existing network environment
-
OEM branding and private labeling for system integrators and resellers
-
Special packaging for phased deployments or multi-location rollouts
-
Additional burn-in testing for mission-critical or high-availability networks
ES1D2X40SFC0 Huawei Wholesale & Bulk Orders:
Gain a competitive advantage with our wholesale and bulk supply services, trusted by global telecom operators, ISPs, and enterprise integrators:
-
Factory-direct pricing with attractive discounts for large volumes
-
Reliable stock availability for large-scale rollouts
-
Fast, secure global shipping with export-compliant packaging
-
Dedicated account managers for streamlined procurement and logistics
-
Full technical support and warranty service for peace of mind
Why Choose Us:
-
100% genuine Huawei hardware, tested and certified
-
Flexible supply solutions for diverse high-speed network applications
-
Competitive pricing for bulk orders and reseller programs
-
Professional logistics for on-time, secure global delivery
-
End-to-end technical support — from planning to deployment and beyond
Contact Us for a Quote:
Ready to scale up your network with the ES1D2X40SFC0 Huawei Brand New 40-Port 10GBASE Interface Card? Reach out to us today for detailed specifications, compatibility checks, customization options, and competitive wholesale pricing.
Our expert team is here to help you build reliable, high-capacity, future-ready networks backed by trusted Huawei solutions.
