ES5D000X2S00 Huawei Product Description:

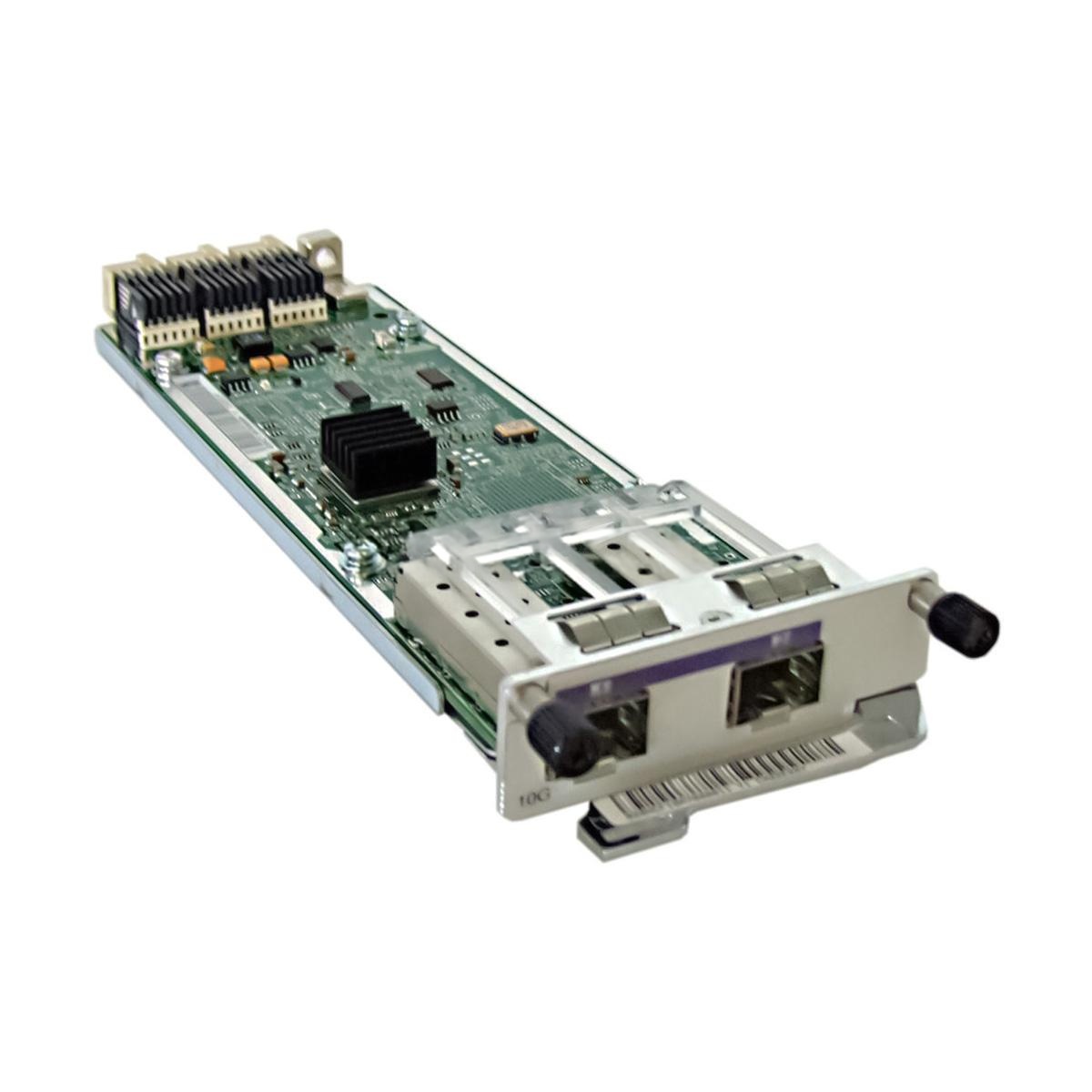

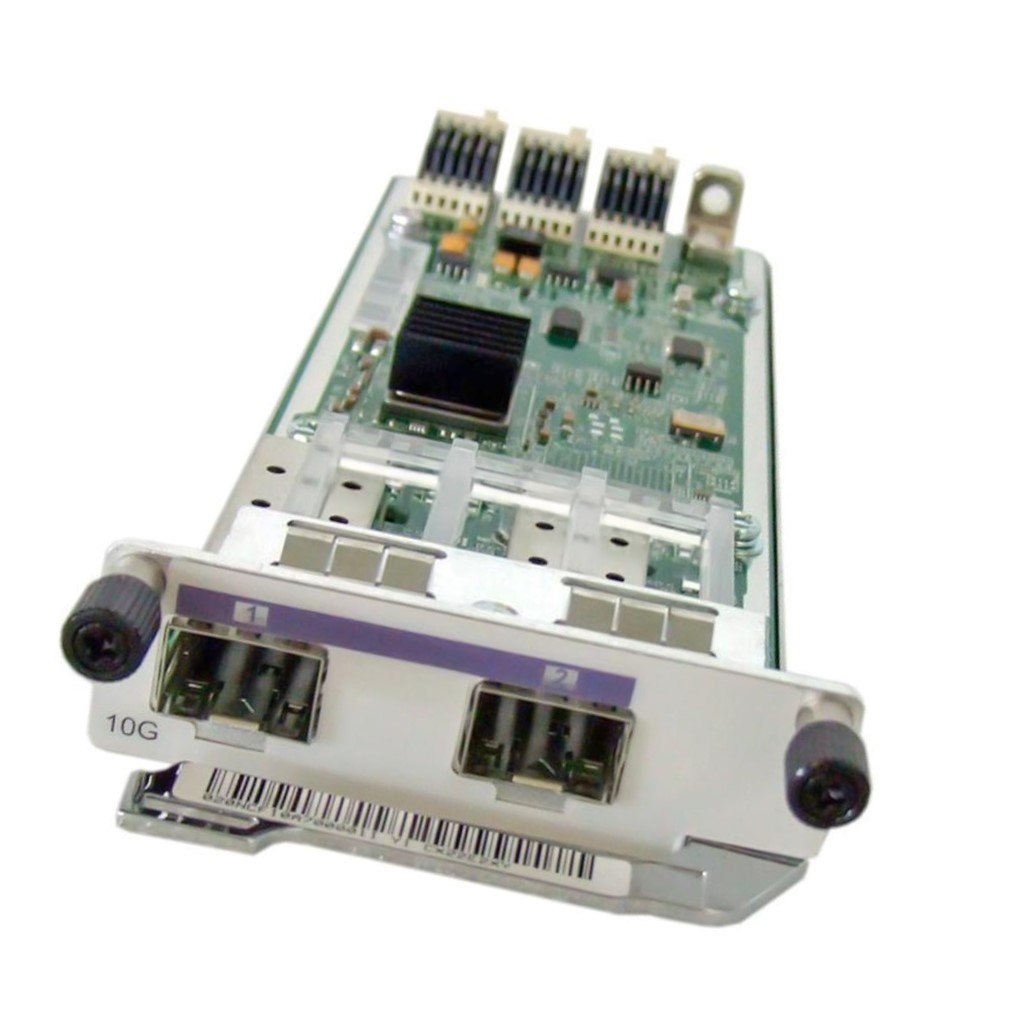

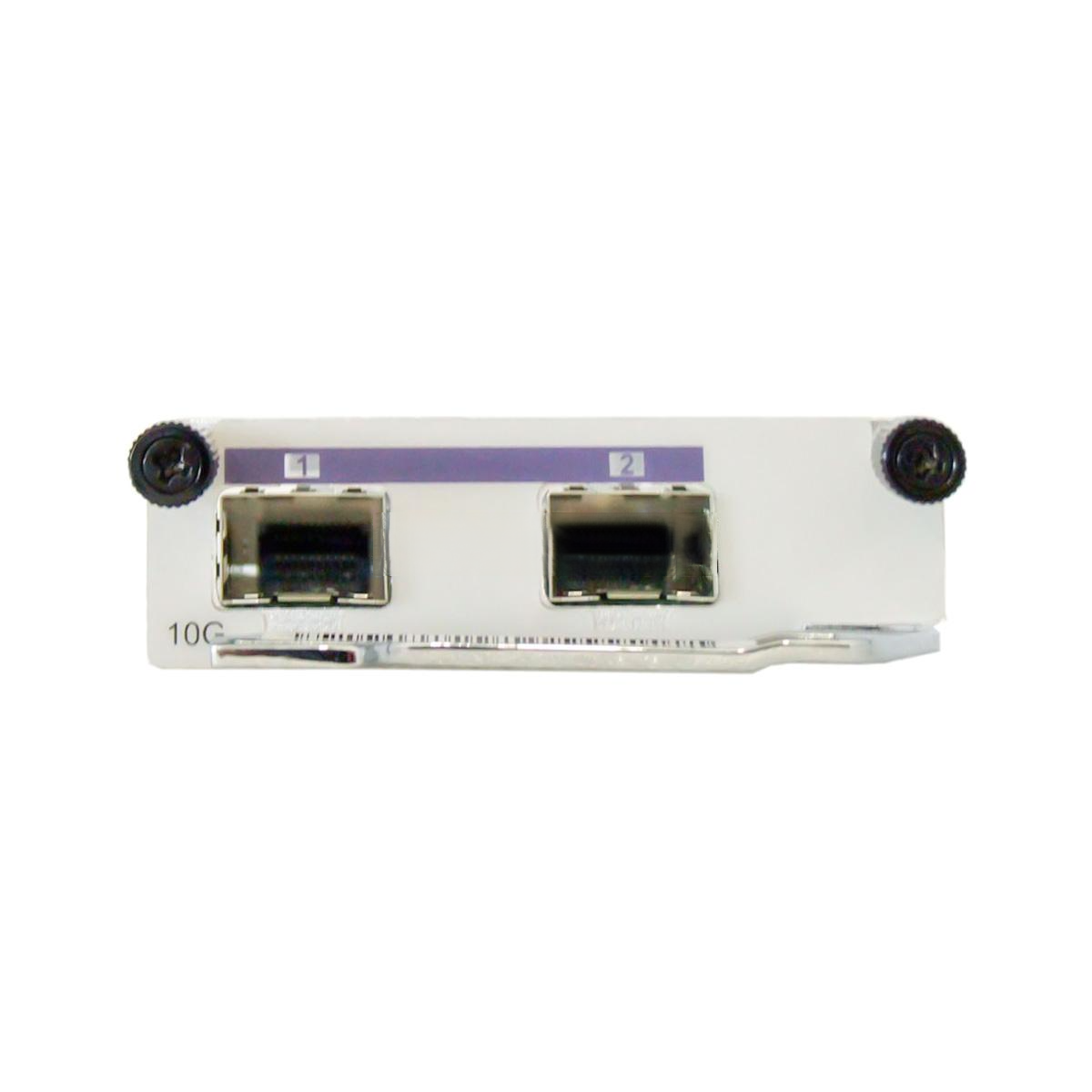

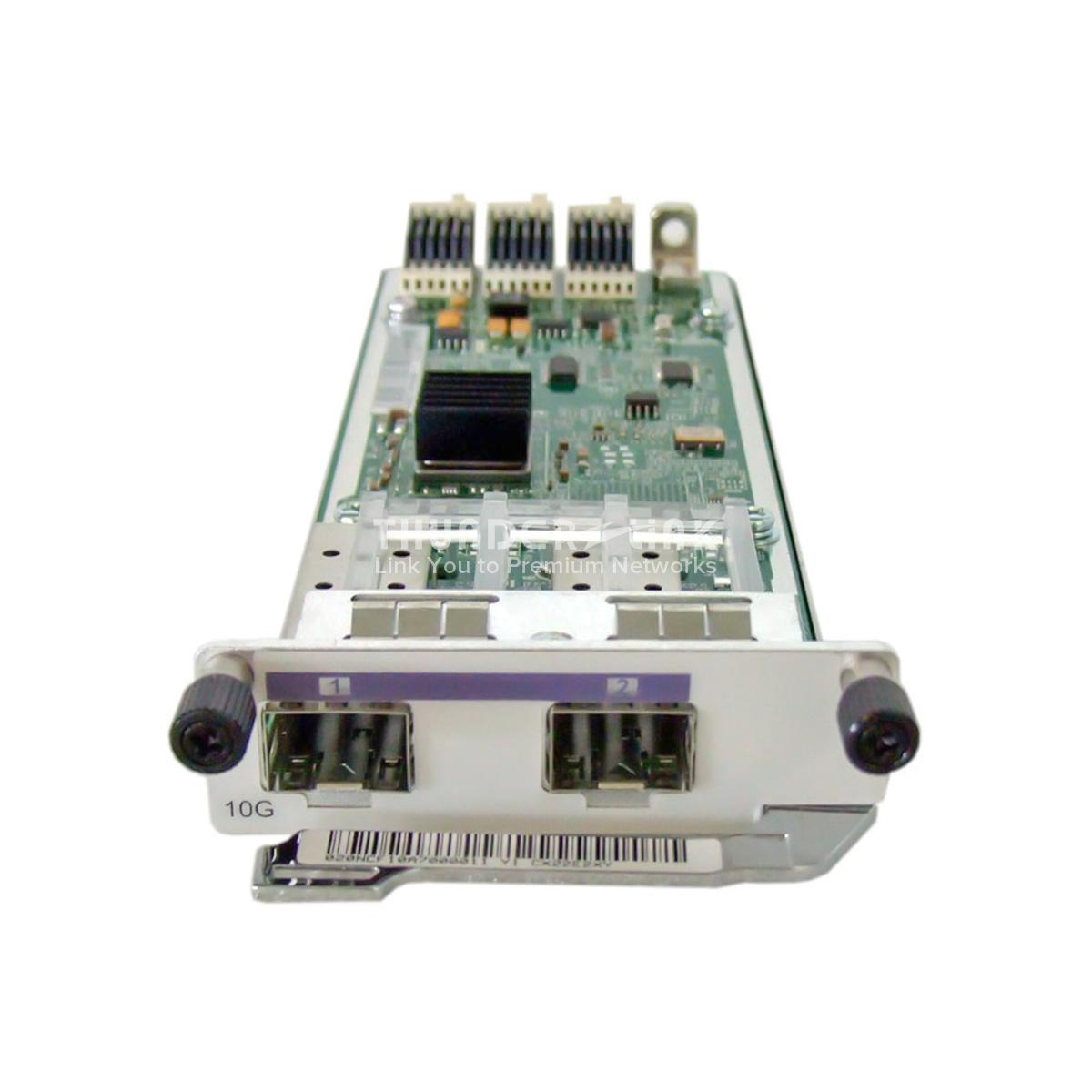

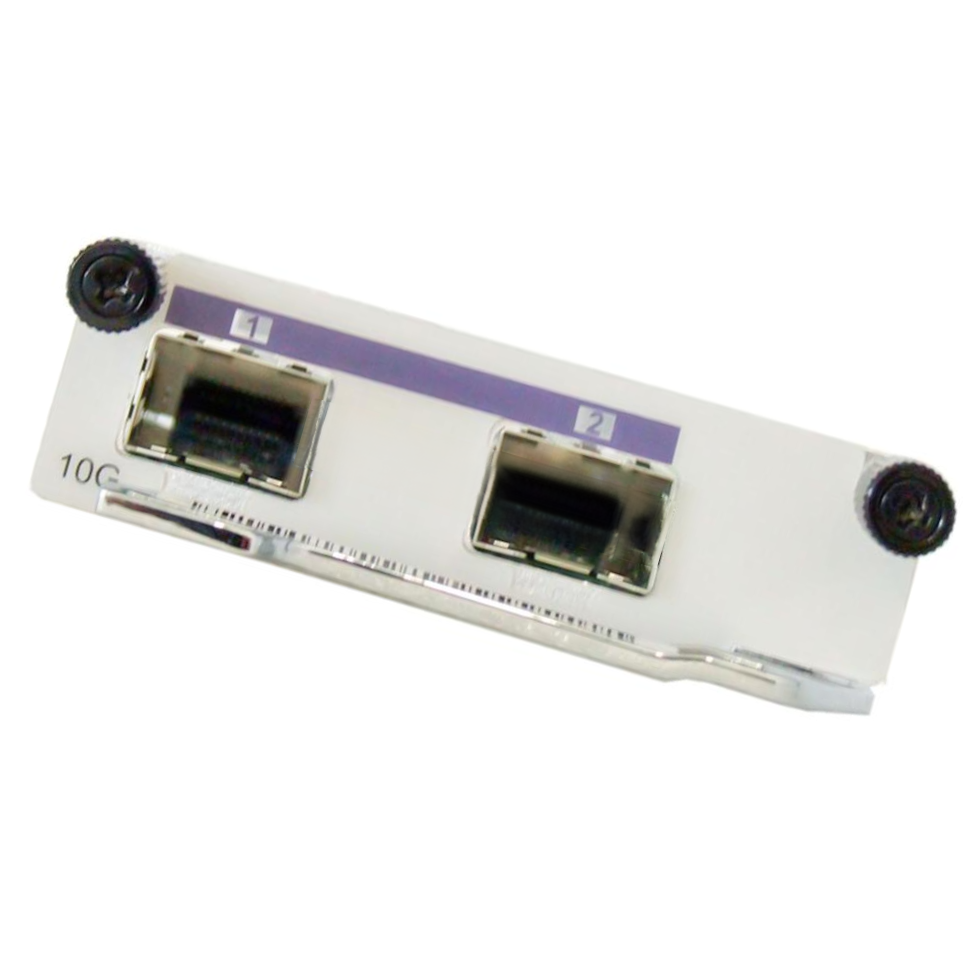

The ES5D000X2S00 Huawei is a genuine Huawei 2-Port 10GE SFP Interface Card, designed to deliver high-speed 10 Gigabit Ethernet connectivity for Huawei modular switch series. Equipped with two 10GE SFP ports, this interface card provides reliable, high-bandwidth links for core network connections, uplinks, and server interconnects in enterprise, data center, and telecom environments.
Built to Huawei’s strict quality standards, the ES5D000X2S00 ensures stable, low-latency transmission and seamless integration with supported Huawei switch chassis — making it an excellent choice for networks that demand high performance, flexibility, and future-ready scalability.
Key Features:
-
Model: ES5D000X2S00
-
Condition: 100% Brand New, Original Huawei
-
Type: 2-Port 10GE SFP Interface Card
-
Ports: 2 × 10 Gigabit Ethernet SFP interfaces for flexible fiber module selection
-
Performance: Supports high-throughput, low-latency data transmission with minimal packet loss
-
Installation: Front insertion design for easy installation, removal, and maintenance
-
Hot Swappable: Supports online insertion and removal without impacting live network services
-
Reliability: Carrier-grade design, fully tested for 24/7 operation in mission-critical networks
-
Compatibility: Fully compatible with supported Huawei modular switches and chassis
Tech Specs:
| Front Panel | |||||
|
|||||
| Attributes of an SFP+ optical port | |||||
| Connector type | LC/PC | ||||
| Standards compliance | IEEE 802.3ae | ||||
| Version Mapping | |||||
| ES5D000X2S00( 2-Port 10 Gig SFP+ Front Interface Card) is supported in V100R005C01 to V200R005C03 | |||||
| Attributes of 10GE SFP+ optical modules | |||||
| Model | Transmission Distance (km) | Standard | Fiber Type | ||
| SFP-10G-USR | ≤ 0.1 | 10Gbase-USR |
|
||
| OSXD22N00 | ≤ 0.1 | 10Gbase-LRM |
|
||
| ≤ 0.22 | 10Gbase-LRM |
|
|||
| ≤ 0.22 | 10Gbase-LRM |
|
|||
| OMXD30000 | ≤ 0.026 | 10Gbase-SR |
|
||
| ≤ 0.033 | 10Gbase-SR |
|
|||
| ≤ 0.066 | 10Gbase-SR |
|
|||
| ≤ 0.082 | 10Gbase-SR |
|
|||
| ≤ 0.3 | 10Gbase-SR |
|
|||
| ≤ 0.4 | 10Gbase-SR |
|
|||
| OSX010000 | ≤ 10 | 10Gbase-LR |
|
||
| OSX040N01 | ≤ 40 | 10Gbase-ER | |||
| SFP-10G-BXU1 (bidirectional single-mode fiber) | ≤ 10 | 10GBase-BX | |||
| SFP-10G-BXD1 (bidirectional single-mode fiber) | ≤ 10 | 10GBase-BX | |||
| SFP-10G-ZR
Limiting |
≤ 80 | 10Gbase-ZR | |||
| SFP-10G-iLR | ≤ 1.4 | 10GBASE-iLR | |||
| SFP-10G-ER-SM1330-BIDI
(Single-fiber bidirectional optical module) |
≤ 40 | 10GBase-BX | |||
| SFP-10G-ER-SM1270-BIDI
(Single-fiber bidirectional optical module) |
|||||
| SFP-10G-ZDWT | ≤ 80 | DWDM | |||
| Optical parameters of 10GE SFP+ optical modules | |||||
| Model | Center Wavelength (nm) | Transmit Power (dBm) | Receiver Sensitivity (dBm) | Overload Optical Power (dBm) | Extinction Ratio (dB) |
| SFP-10G-USR | 850 | -7.3 to -1.0 | ≤ -10.7 | 0.5 | ≥ 3.0 |
| OSXD22N00 | 1310 | -6.5 to 0.5 | ≤ -6.5 | 1.5 | ≥ 3.5 |
| OMXD30000 | 850 | -7.3 to -1.0 | ≤ -11.1 | -1.0 | ≥ 3.0 |
| OSX010000 | 1310 | -8.2 to 0.5 | ≤ -12.6 | 0.5 | ≥ 3.5 |
| OSX040N01 | 1550 | -4.7 to 4.0 | ≤ -14.1 | -1.0 | ≥ 3 |
| SFP-10G-BXU1 (bidirectional single-mode fiber) | RX1330/TX1270 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-BXD1 (bidirectional single-mode fiber) | RX1270/TX1330 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-ZR
Limiting |
1550 | 0 to 4.0 | ≤ -24.0 | -7.0 | ≥ 9 |
| SFP-10G-iLR | 1310 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-ER-SM1330-BIDI
(Single-fiber bidirectional optical module) |
Tx1330/Rx1270 | 0 to 5 | ≤ -18 | -9 | ≥ 3.5 |
| SFP-10G-ER-SM1270-BIDI
(Single-fiber bidirectional optical module) |
Tx1270/Rx1330 | 0 to 5 | ≤ -18 | -9 | ≥ 3.5 |
| SFP-10G-ZDWT | 1529.16 to 1560.61 | -1 to 3 | ≤ -24 | -1 | ≥ 8.2 |
| Physical specifications | |||||
| Dimensions (mm) | 70 (W)x 197 (D) x 22 (H) | ||||
| Weight (kg) | 0.2 | ||||
| Maximum power consumption (W) | 6.5 | ||||
| Environment parameters | |||||
| Operating temperature | 0°C to 50°C | ||||
| Relative humidity | 5% RH to 95% RH | ||||
| Storage temperature | -40°C to +70°C | ||||
ES5D000X2S00 Huawei Applications:
The ES5D000X2S00 2-Port 10GE SFP Interface Card is ideal for:
-
High-speed uplinks in enterprise and campus networks
-
Data center server and storage connections
-
Core and distribution layers in modern LAN environments
-
ISP and telecom backbone networks requiring reliable 10GE links
-
System integrators building scalable, high-performance network infrastructure
Customization & OEM Services:
We provide flexible customization and OEM solutions to match your unique project requirements:
-
Pre-configuration to align with your network design and hardware requirements
-
OEM branding and private labeling for resellers and system integrators
-
Custom packaging and handling for large-scale rollouts
-
Additional burn-in and stress testing for mission-critical deployments
ES5D000X2S00 Huawei Wholesale & Bulk Orders:
Take advantage of our wholesale and bulk purchasing support for service providers, ISPs, and system integrators:
-
Factory-direct pricing with competitive discounts for large volumes
-
Reliable inventory levels to support ongoing or phased projects
-
Fast, secure worldwide shipping with export-compliant packaging
-
Dedicated account managers to handle procurement, logistics, and technical support
-
Comprehensive after-sales warranty and technical assistance
Why Choose Us:
-
100% genuine Huawei hardware, factory sealed and thoroughly tested
-
Flexible solutions to meet your technical, operational, and branding needs
-
Competitive pricing and favorable terms for resellers and integrators
-
Professional global logistics with secure, on-time delivery
-
Expert technical support from planning to post-deployment
Contact Us for a Quote:
Ready to boost your network with the ES5D000X2S00 Huawei 2-Port 10GE SFP Interface Card? Contact us today for detailed technical specifications, customization options, and competitive wholesale pricing.
Our experienced team is here to help you build a resilient, high-performance network with trusted Huawei solutions and dedicated support.
