ES5D000X4S01 Huawei Product Description:

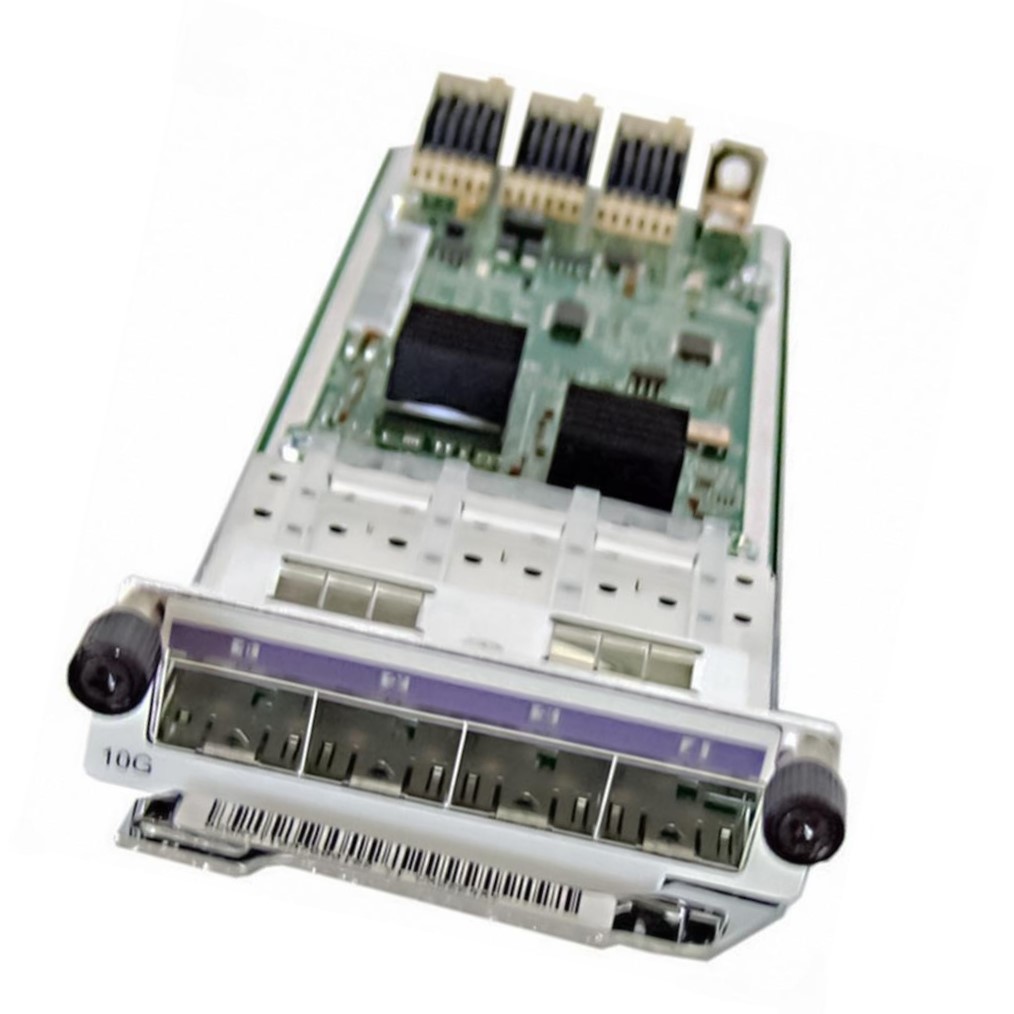

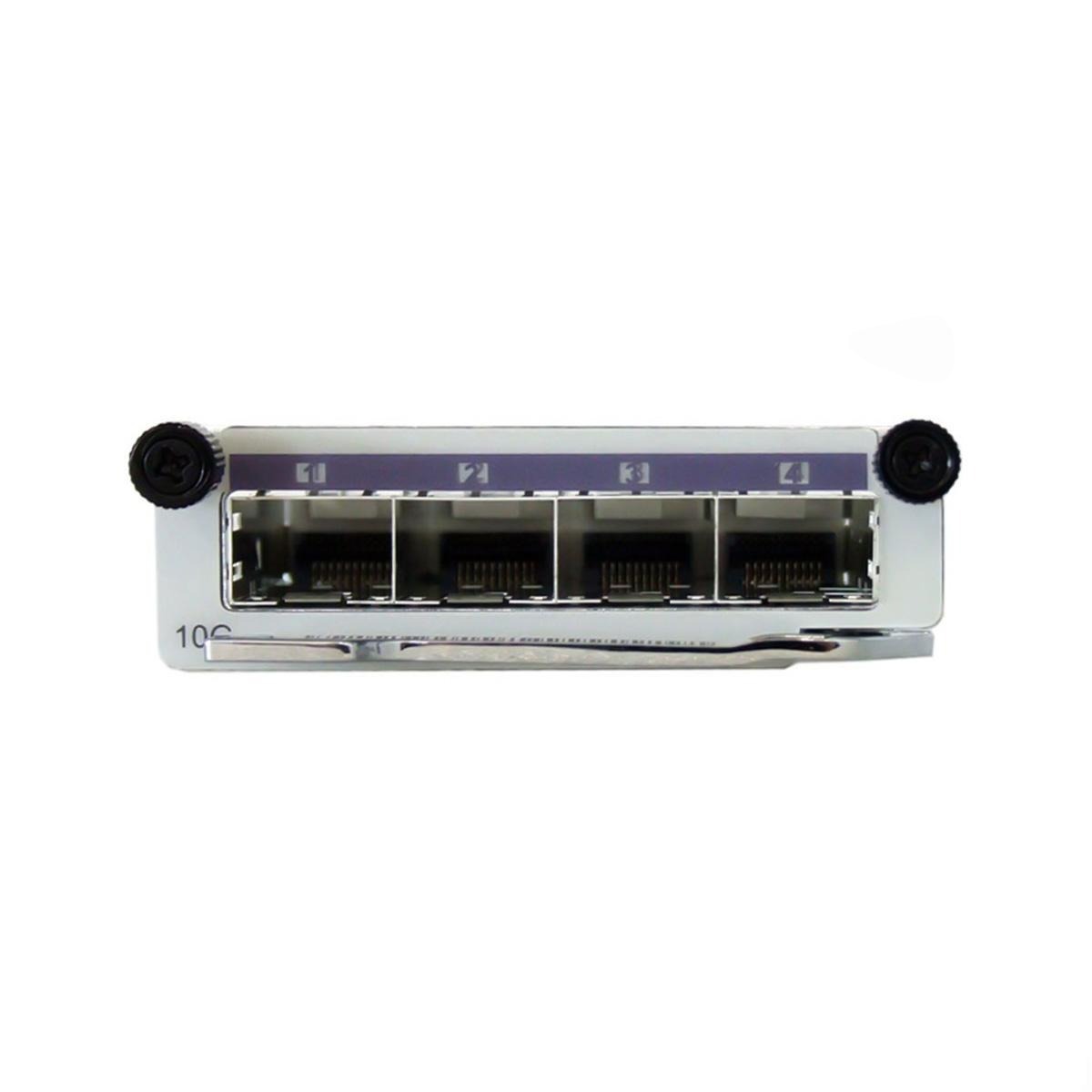

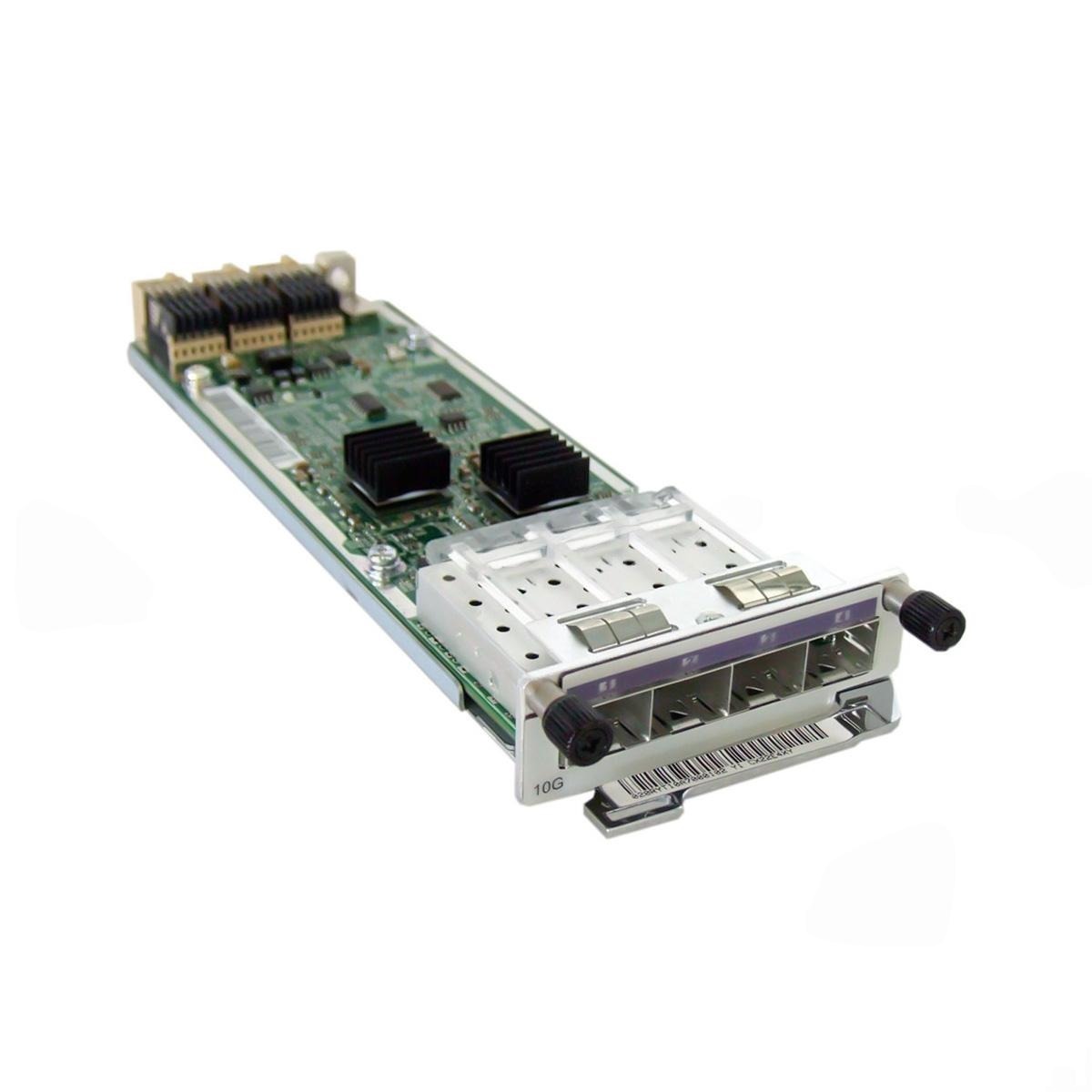

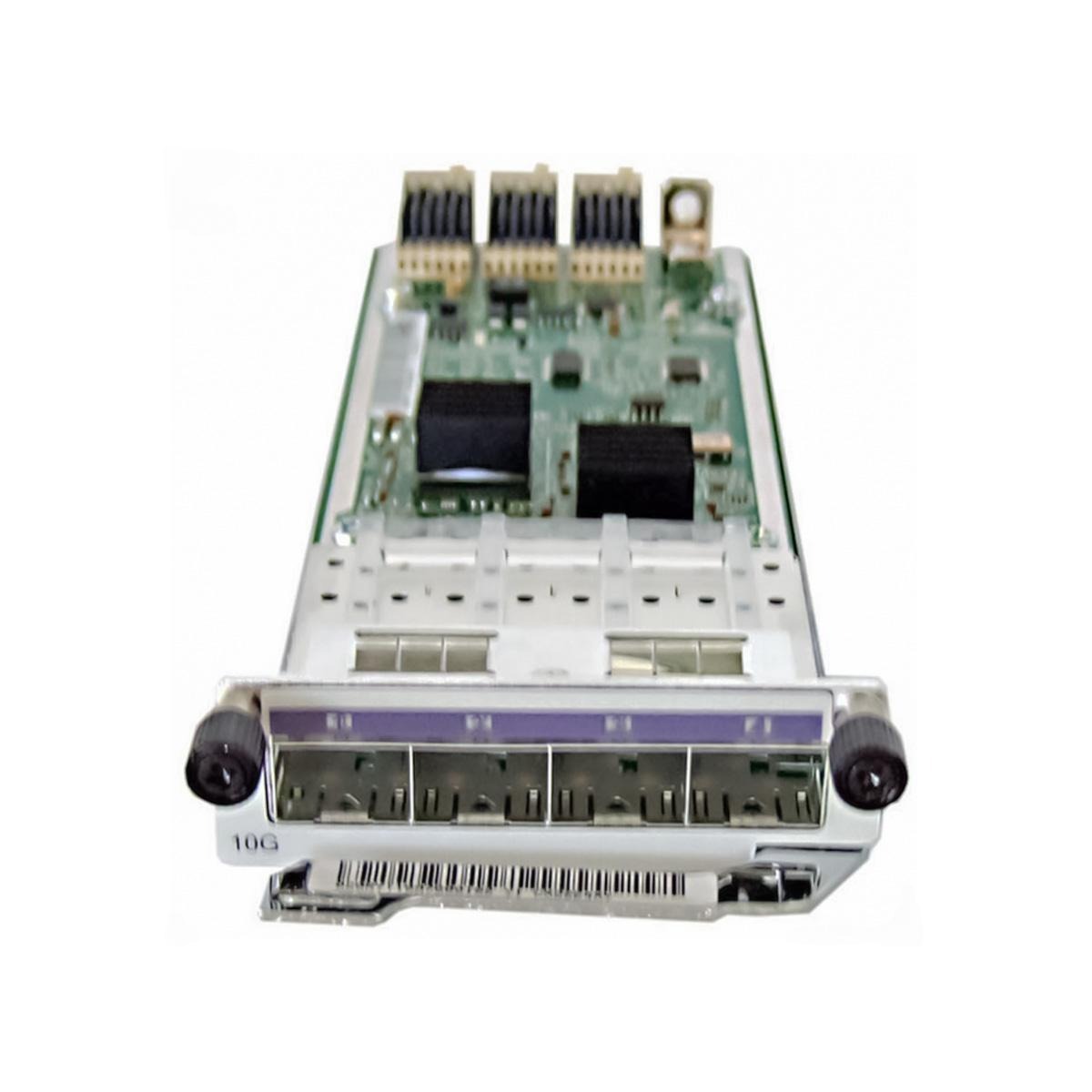

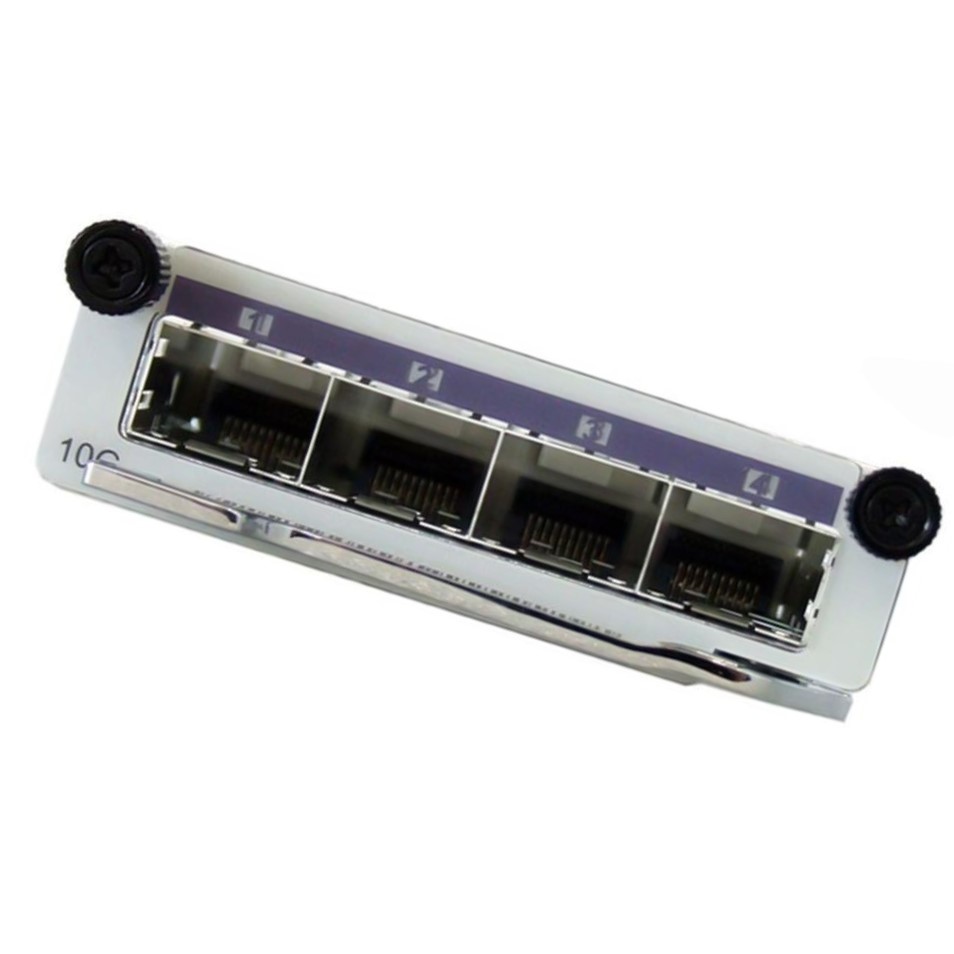

The ES5D000X4S01 Huawei is an original Huawei 4-Port Front Interface Card, designed to deliver flexible, high-performance connectivity for Huawei switches and routing platforms. This module adds four high-speed ports to your network infrastructure, allowing you to easily scale bandwidth, optimize traffic distribution, and enhance your overall network performance.
Manufactured to Huawei’s strict quality standards, the ES5D000X4S01 ensures stable, low-latency operation and seamless integration into enterprise, campus, or data center networks — supporting mission-critical services with maximum reliability.
Key Features:
-
Model: ES5D000X4S01
-
Condition: 100% Brand New, Original Huawei
-
Type: 4-Port Front Interface Card
-
Ports: 4 high-speed Ethernet interfaces for flexible network expansion
-
Performance: Provides robust throughput and stable data transmission with minimal packet loss
-
Hot Swappable: Supports online insertion and removal for easy maintenance and upgrades without downtime
-
Compatibility: Fully compatible with supported Huawei switch or router chassis
-
Reliability: Built with carrier-grade components and tested to ensure 24/7 dependable operation
Tech Specs:
| Front Panel | |||||
|
|||||
| Attributes of an SFP+ optical port | |||||
| Connector type | LC/PC | ||||
| Standards compliance | IEEE 802.3ae | ||||
| Version Mapping | |||||
| ES5D000X4S01( 4-Port 10 Gig SFP+ Front Interface Card) is supported in V100R005C01 to V200R005C03 | |||||
| Attributes of 10GE SFP+ optical modules | |||||
| Model | Transmission Distance (km) | Standard | Fiber Type | ||
| SFP-10G-USR | ≤ 0.1 | 10Gbase-USR |
|
||
| OSXD22N00 | ≤ 0.1 | 10Gbase-LRM |
|
||
| ≤ 0.22 | 10Gbase-LRM |
|
|||
| ≤ 0.22 | 10Gbase-LRM |
|
|||
| OMXD30000 | ≤ 0.026 | 10Gbase-SR |
|
||
| ≤ 0.033 | 10Gbase-SR |
|
|||
| ≤ 0.066 | 10Gbase-SR |
|
|||
| ≤ 0.082 | 10Gbase-SR |
|
|||
| ≤ 0.3 | 10Gbase-SR |
|
|||
| ≤ 0.4 | 10Gbase-SR |
|
|||
| OSX010000 | ≤ 10 | 10Gbase-LR |
|
||
| OSX040N01 | ≤ 40 | 10Gbase-ER | |||
| SFP-10G-BXU1 (bidirectional single-mode fiber) | ≤ 10 | 10GBase-BX | |||
| SFP-10G-BXD1 (bidirectional single-mode fiber) | ≤ 10 | 10GBase-BX | |||
| SFP-10G-ZR
Limiting |
≤ 80 | 10Gbase-ZR | |||
| SFP-10G-iLR | ≤ 1.4 | 10GBASE-iLR | |||
| SFP-10G-ER-SM1330-BIDI
(Single-fiber bidirectional optical module) |
≤ 40 | 10GBase-BX | |||
| SFP-10G-ER-SM1270-BIDI
(Single-fiber bidirectional optical module) |
|||||
| SFP-10G-ZDWT | ≤ 80 | DWDM | |||
| Optical parameters of 10GE SFP+ optical modules | |||||
| Model | Center Wavelength (nm) | Transmit Power (dBm) | Receiver Sensitivity (dBm) | Overload Optical Power (dBm) | Extinction Ratio (dB) |
| SFP-10G-USR | 850 | -7.3 to -1.0 | ≤ -10.7 | 0.5 | ≥ 3.0 |
| OSXD22N00 | 1310 | -6.5 to 0.5 | ≤ -6.5 | 1.5 | ≥ 3.5 |
| OMXD30000 | 850 | -7.3 to -1.0 | ≤ -11.1 | -1.0 | ≥ 3.0 |
| OSX010000 | 1310 | -8.2 to 0.5 | ≤ -12.6 | 0.5 | ≥ 3.5 |
| OSX040N01 | 1550 | -4.7 to 4.0 | ≤ -14.1 | -1.0 | ≥ 3 |
| SFP-10G-BXU1 (bidirectional single-mode fiber) | RX1330/TX1270 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-BXD1 (bidirectional single-mode fiber) | RX1270/TX1330 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-ZR
Limiting |
1550 | 0 to 4.0 | ≤ -24.0 | -7.0 | ≥ 9 |
| SFP-10G-iLR | 1310 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-ER-SM1330-BIDI
(Single-fiber bidirectional optical module) |
Tx1330/Rx1270 | 0 to 5 | ≤ -18 | -9 | ≥ 3.5 |
| SFP-10G-ER-SM1270-BIDI
(Single-fiber bidirectional optical module) |
Tx1270/Rx1330 | 0 to 5 | ≤ -18 | -9 | ≥ 3.5 |
| SFP-10G-ZDWT | 1529.16 to 1560.61 | -1 to 3 | ≤ -24 | -1 | ≥ 8.2 |
| Physical specifications | |||||
| Dimensions (mm) | 70 (W)x 197 (D) x 22 (H) | ||||
| Weight (kg) | 0.3 | ||||
| Maximum power consumption (W) | 13 | ||||
| Environment parameters | |||||
| Operating temperature | 0°C to 50°C | ||||
| Relative humidity | 5% RH to 95% RH | ||||
| Storage temperature | -40°C to +70°C | ||||
ES5D000X4S01 Huawei Applications:
The ES5D000X4S01 4-Port Front Interface Card is ideal for:
-
Enterprise network expansions and bandwidth upgrades
-
Campus LANs and high-density networking environments
-
Data center aggregation and core layers
-
Telecom and ISP backbone network applications
-
System integration and phased network deployments
Customization & OEM Services:
We understand that every project is unique — which is why we offer customization and OEM services, including:
-
Pre-configuration to match your network topology
-
OEM branding and private labeling for resellers and system integrators
-
Custom packaging and logistics support for bulk deployments
-
Optional extended testing and burn-in for mission-critical use cases
ES5D000X4S01 Huawei Wholesale & Bulk Orders:
We provide attractive wholesale pricing and bulk purchasing options for system integrators, ISPs, and telecom operators:
-
Factory-direct pricing with discounts for larger quantities
-
Reliable inventory to support long-term projects and repeat orders
-
Fast, secure global shipping with export-compliant packaging
-
Dedicated account managers for smooth order handling and communication
-
Full technical support and warranty service after purchase
Why Choose Us:
-
100% genuine Huawei hardware, factory sealed and fully tested
-
Flexible solutions tailored to your network and project requirements
-
Competitive pricing for resellers and large-volume buyers
-
Professional global logistics to ensure secure and on-time delivery
-
Experienced technical support from planning to post-deployment
Contact Us for a Quote:
Ready to expand your network with the ES5D000X4S01 Huawei 4-Port Front Interface Card? Get in touch today for detailed specs, customization options, and competitive wholesale pricing.
Our expert team is here to help you build a scalable, high-performance network with genuine Huawei solutions and professional service.
