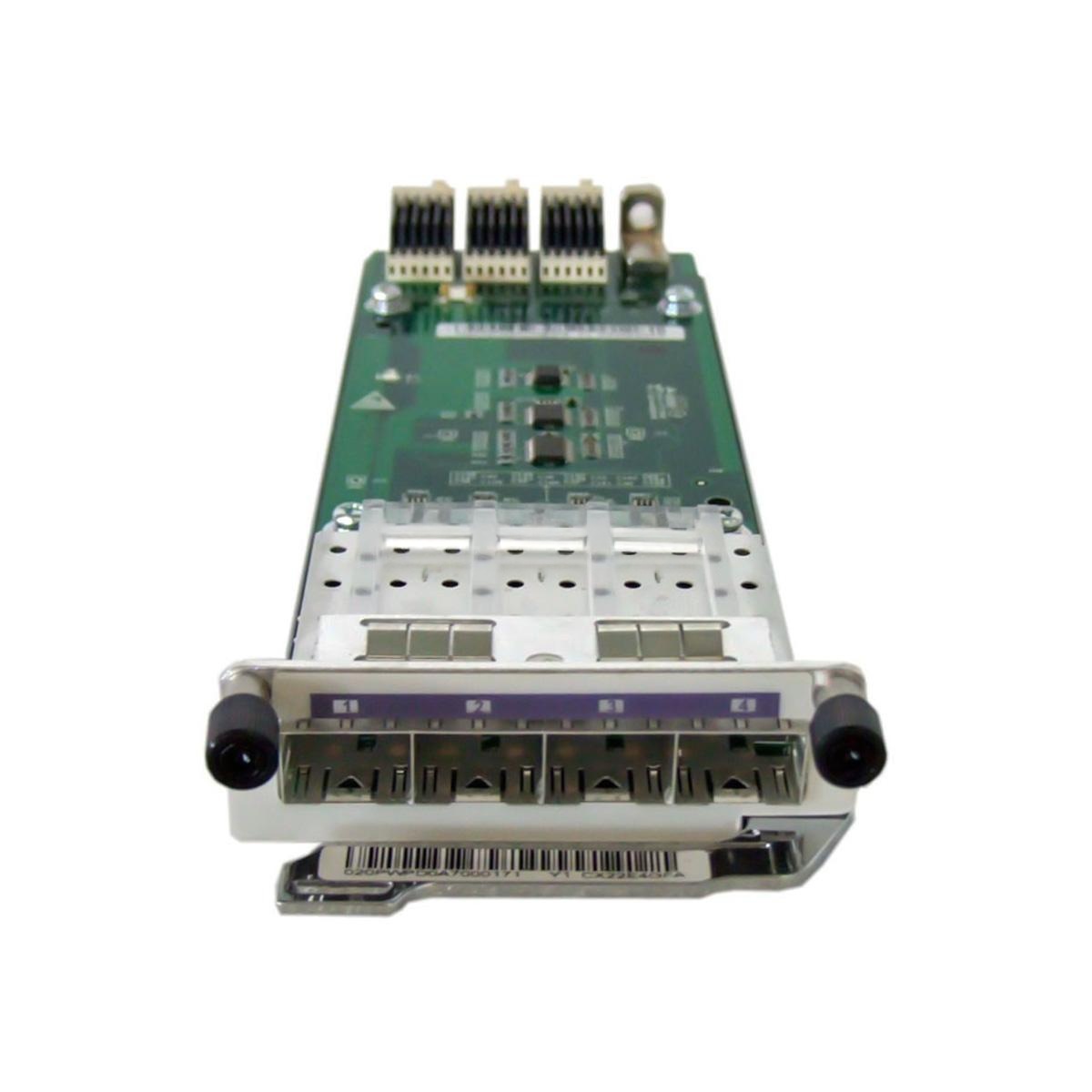

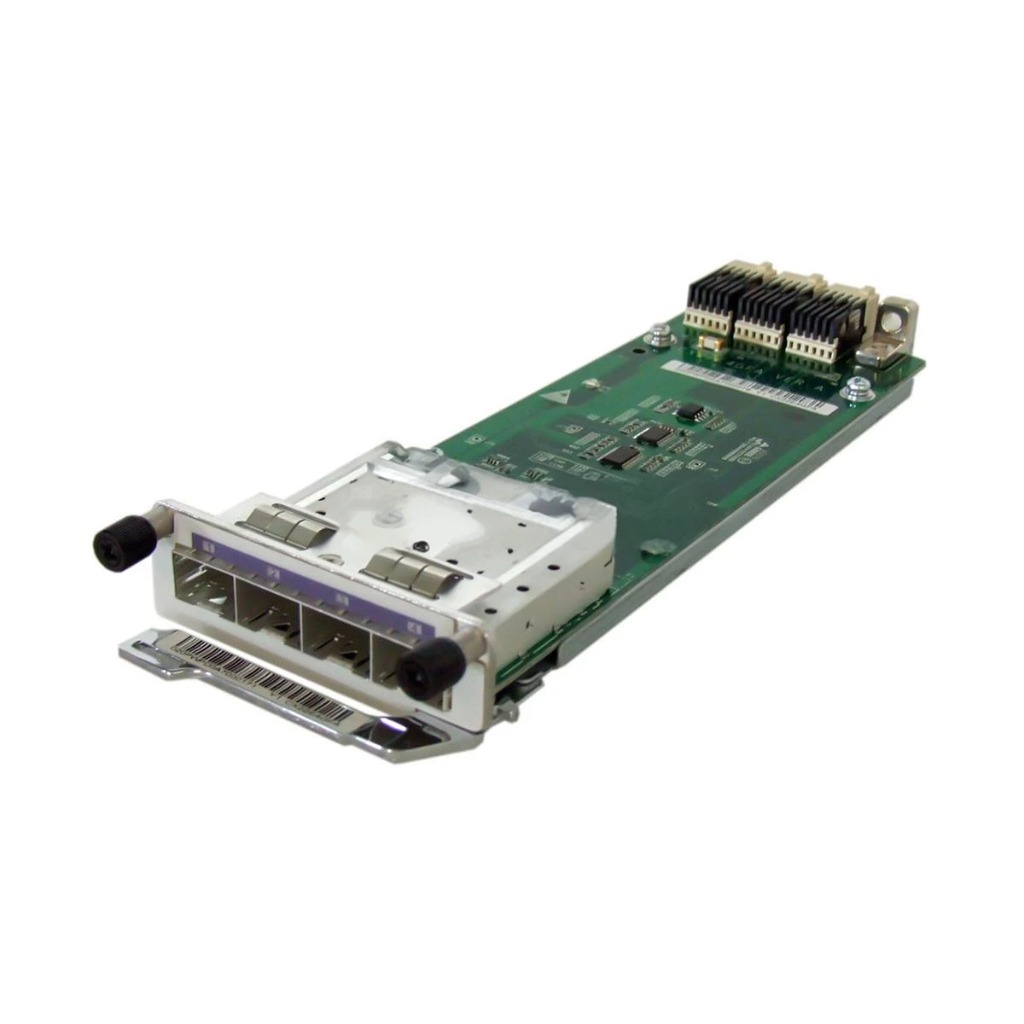

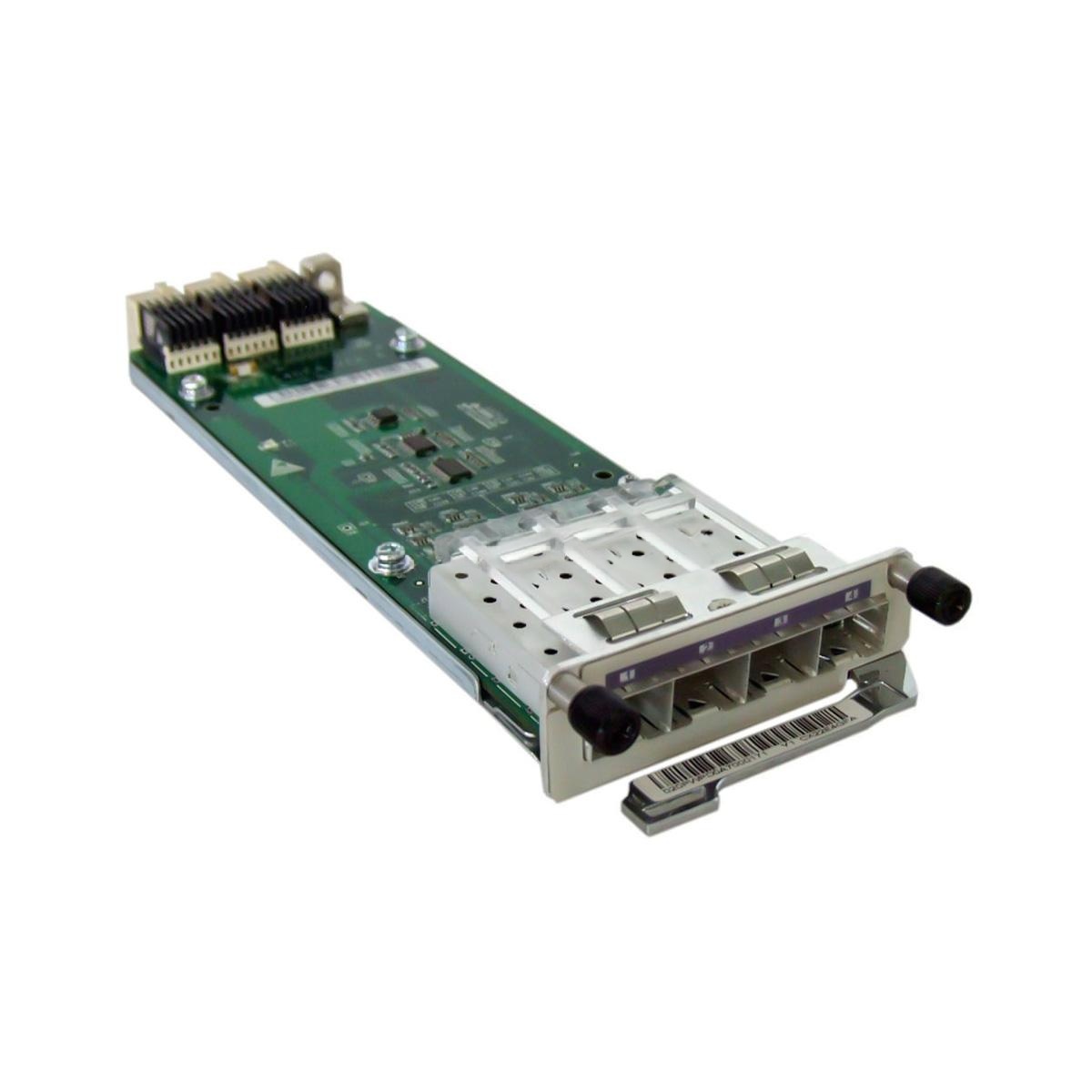

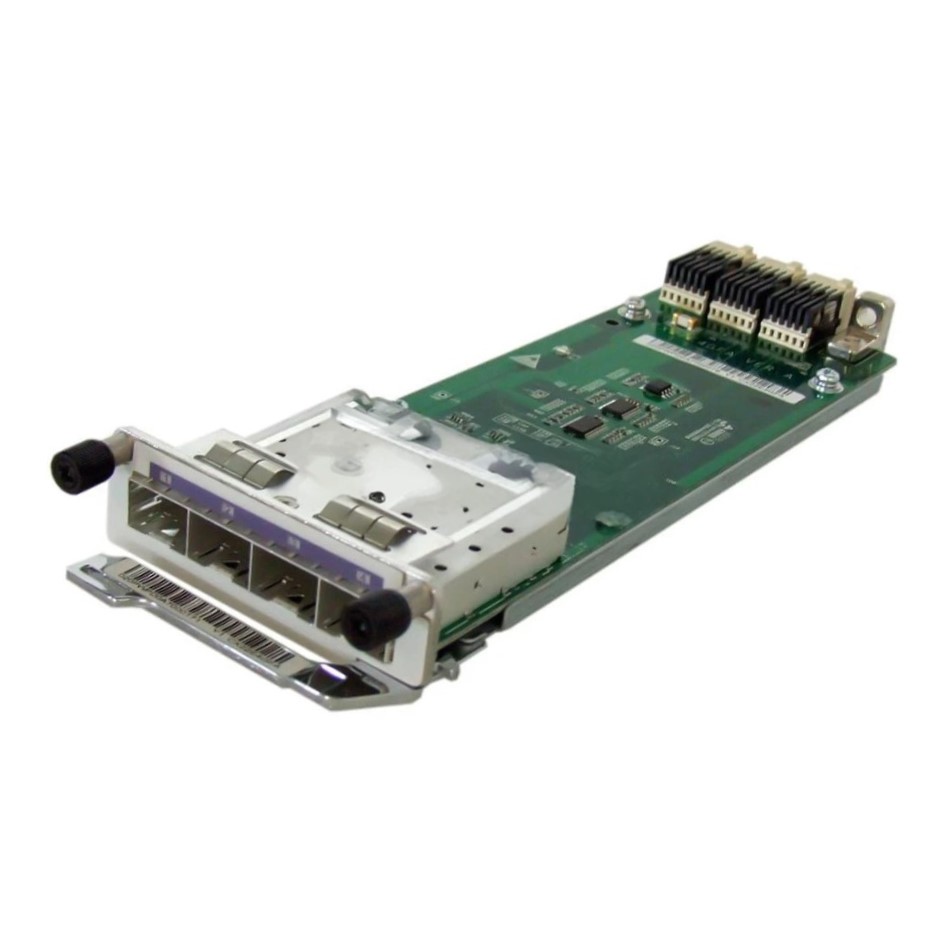

ES5D00G4SA01 Huawei Description
The ES5D00G4SA01 Huawei is an original, high-performance Front Optical Interface Card engineered to expand the optical connectivity of your Huawei network infrastructure. Designed specifically for Huawei’s advanced routing and switching platforms, this module delivers high-speed, high-bandwidth optical interfaces to meet growing data transmission demands in modern networks.
Built with carrier-grade reliability, the ES5D00G4SA01 ensures stable, low-latency optical data forwarding, making it ideal for ISP backbones, data centers, metro aggregation, and large enterprise core networks. Its front-mounted optical ports simplify cabling, maintenance, and scalability, helping you achieve a clean and efficient network design.
Key Features
-
Model: ES5D00G4SA01
-
Condition: 100% Brand New, Original Huawei
-
Type: Front Optical Interface Card
-
Function: Provides high-speed optical interfaces for robust, high-capacity data transmission
-
Performance: Supports stable, efficient forwarding with minimal latency
-
Port Design: Front-mounted optical ports for easy access and simplified management
-
Reliability: Tested and certified for continuous 24/7 carrier-grade operation
-
Hot Swappable: Enables installation or replacement without disrupting live services
-
Compatibility: Fully compatible with supported Huawei routers and switches
ES5D00G4SA01 Huawei Tech Specs

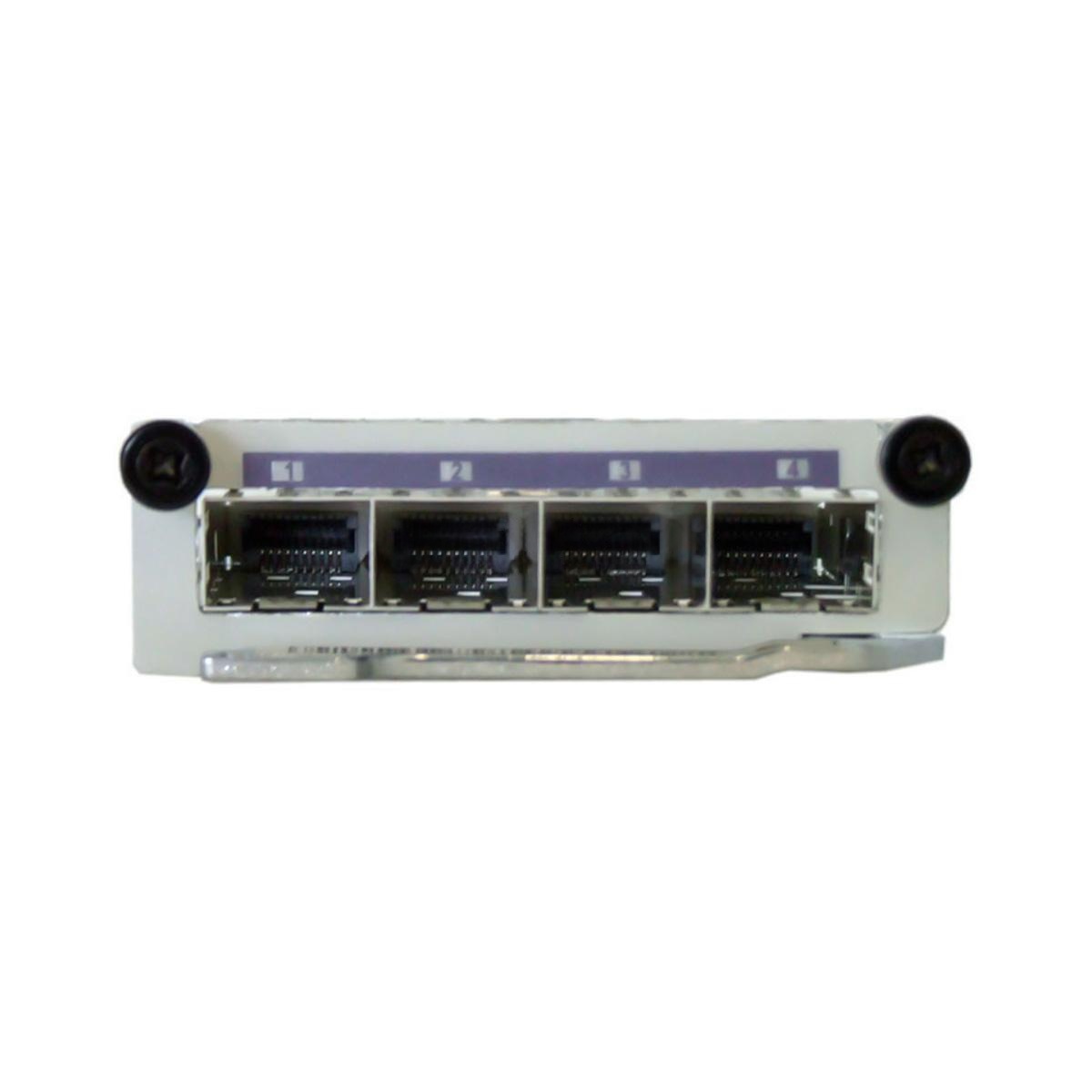

Front Panel
| Ports | Description |
|---|---|
| 4 x GE SFP optical ports |
Attributes of an SFP Optical Port
| Attribute | Details |
|---|---|
| Connector type | LC/PC |
| Standards compliance | IEEE 802.3 |
Version Mapping
| Card | Supported Version |
|---|---|
| ES5D00G4SA01 (4-Port GE SFP Front Optical Interface Card) | V100R005C01 to V200R005C02 |
Attributes of GE Optical Modules
| Model | Transmission Distance (km) | Standard | Fiber Type |
|---|---|---|---|
| eSFP-GE-SX-MM850 | ≤ 0.22 | 1000base-SX | MM, 62.5 μm, LC |
| ≤ 0.275 | 1000base-SX | MM (OM1), LC | |
| ≤ 0.5 | 1000base-SX | MM, 50 μm, LC | |
| ≤ 0.55 | 1000base-SX | MM (OM2), LC | |
| ≤ 1 | 1000base-SX | MM (OM3), LC | |
| SFP-GE-LX-SM1310 | ≤ 10 | 1000base-LX/LH | SM, LC |
| S-SFP-GE-LH40-SM1310 | ≤ 40 | 1000base-LX/LH | SM, LC |
| S-SFP-GE-LH40-SM1550 | ≤ 40 | 1000base-LX/LH | SM, LC |
| S-SFP-GE-LH80-SM1550 | ≤ 80 | 1000base-ZX | SM, LC |
| eSFP-GE-ZX100-SM1550 | ≤ 100 | 1000base-ZX | SM, LC |
| SFP-GE-LX-SM1310-BIDI | ≤ 10 | 1000base-BX | SM, LC |
| SFP-GE-LX-SM1490-BIDI | ≤ 10 | 1000base-BX | SM, LC |
| LE2MGSC40DE0 | ≤ 40 | 1000base-BX | SM, LC |
| LE2MGSC40ED0 | ≤ 40 | 1000base-BX | SM, LC |
| SFP-GE-ZBXD1 | ≤ 80 | 1000base-BX | SM, LC |
| SFP-GE-ZBXU1 | ≤ 80 | 1000base-BX | SM, LC |
| SFP-GE-BXU1-SC | ≤ 10 | 1000base-BX | SM, SC |
Optical Parameters of GE Optical Modules
| Model | Center Wavelength (nm) | Transmit Power (dBm) | Receiver Sensitivity (dBm) | Overload Optical Power (dBm) | Extinction Ratio (dB) |
|---|---|---|---|---|---|
| eSFP-GE-SX-MM850 | 850 | -9.5 to -2.5 | ≤ -17 | 0 | ≥ 9 |
| SFP-GE-LX-SM1310 | 1310 | -9.0 to -3.0 | ≤ -20 | -3.0 | ≥ 9 |
| S-SFP-GE-LH40-SM1310 | 1310 | -5.0 to 0 | ≤ -23 | -3.0 | ≥ 9 |
| S-SFP-GE-LH40-SM1550 | 1550 | -5.0 to 0 | ≤ -22 | -3.0 | ≥ 8.5 |
| S-SFP-GE-LH80-SM1550 | 1550 | -2.0 to +5.0 | ≤ -23 | -3.0 | ≥ 9 |
| eSFP-GE-ZX100-SM1550 | 1550 | 0 to +5.0 | ≤ -30 | -9.0 | ≥ 9 |
| SFP-GE-LX-SM1310-BIDI | RX1490/TX1310 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 6 |
| SFP-GE-LX-SM1490-BIDI | RX1310/TX1490 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 6 |
| LE2MGSC40DE0 | RX1490/TX1310 | -2.0 to +3.0 | ≤ -23 | -3.0 | ≥ 9 |
| LE2MGSC40ED0 | RX1310/TX1490 | -2.0 to +3.0 | ≤ -23 | -3.0 | ≥ 9 |
| SFP-GE-ZBXD1 | RX1490/TX1570 | -2.0 to +4.0 | ≤ -26 | -3.0 | ≥ 9 |
| SFP-GE-ZBXU1 | RX1570/TX1490 | -2.0 to +4.0 | ≤ -26 | -3.0 | ≥ 9 |
| SFP-GE-BXU1-SC | RX1310/TX1490 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 9 |
Physical Specifications
| Attribute | Details |
|---|---|
| Dimensions (mm) | 70 (W) x 197 (D) x 22 (H) |
| Weight (kg) | 0.2 |
| Maximum power consumption (W) | 4.5 |
Environmental Parameters
| Attribute | Details |
|---|---|
| Operating temperature | 0°C to 50°C |
| Relative humidity | 5% RH to 95% RH |
| Storage temperature | –40°C to +70°C |
ES5D00G4SA01 Huawei Applications
The ES5D00G4SA01 Front Optical Interface Card is ideal for:
• Carrier backbone and metro network expansion
• Data center interconnect (DCI) solutions
• Large enterprise campus or WAN core networks
• ISP edge and aggregation layers
• High-bandwidth infrastructure upgrades requiring scalable optical connectivity
ES5D00G4SA01 Huawei Customization & OEM Services
We offer flexible customization and OEM services for the ES5D00G4SA01 to meet your deployment needs:
• Pre-configuration and optical testing for seamless, plug-and-play integration
• Private labeling and OEM branding for partners and distributors
• Custom packaging solutions for bulk orders and multi-site rollouts
• Enhanced burn-in testing for specialized or mission-critical applications
ES5D00G4SA01 Huawei Wholesale & Bulk Orders
Partner with us for reliable wholesale supply and bulk procurement of the ES5D00G4SA01:
• Factory-direct pricing with competitive volume discounts
• Global shipping with export-compliant, secure packaging
• Dedicated account managers for streamlined large project coordination
• Consistent stock availability to meet tight project timelines
• Comprehensive after-sales technical support and warranty service
Why Choose Us
100% Original Huawei Hardware — rigorously tested and certified
Flexible Customization — tailored solutions to match unique network requirements
Competitive Wholesale Pricing — ideal for ISPs, carriers, and system integrators
Secure, Professional Logistics — ensures safe delivery worldwide
Expert Technical Support — available from planning through deployment and beyond
Contact Us for a Quote
Scale your optical network performance with the ES5D00G4SA01 Huawei Front Optical Interface Card — the perfect solution for high-speed, reliable connectivity at scale. Contact our team today for technical specifications, custom configurations, or wholesale pricing. We’re ready to help you build a robust, future-ready network with genuine Huawei hardware you can trust.
