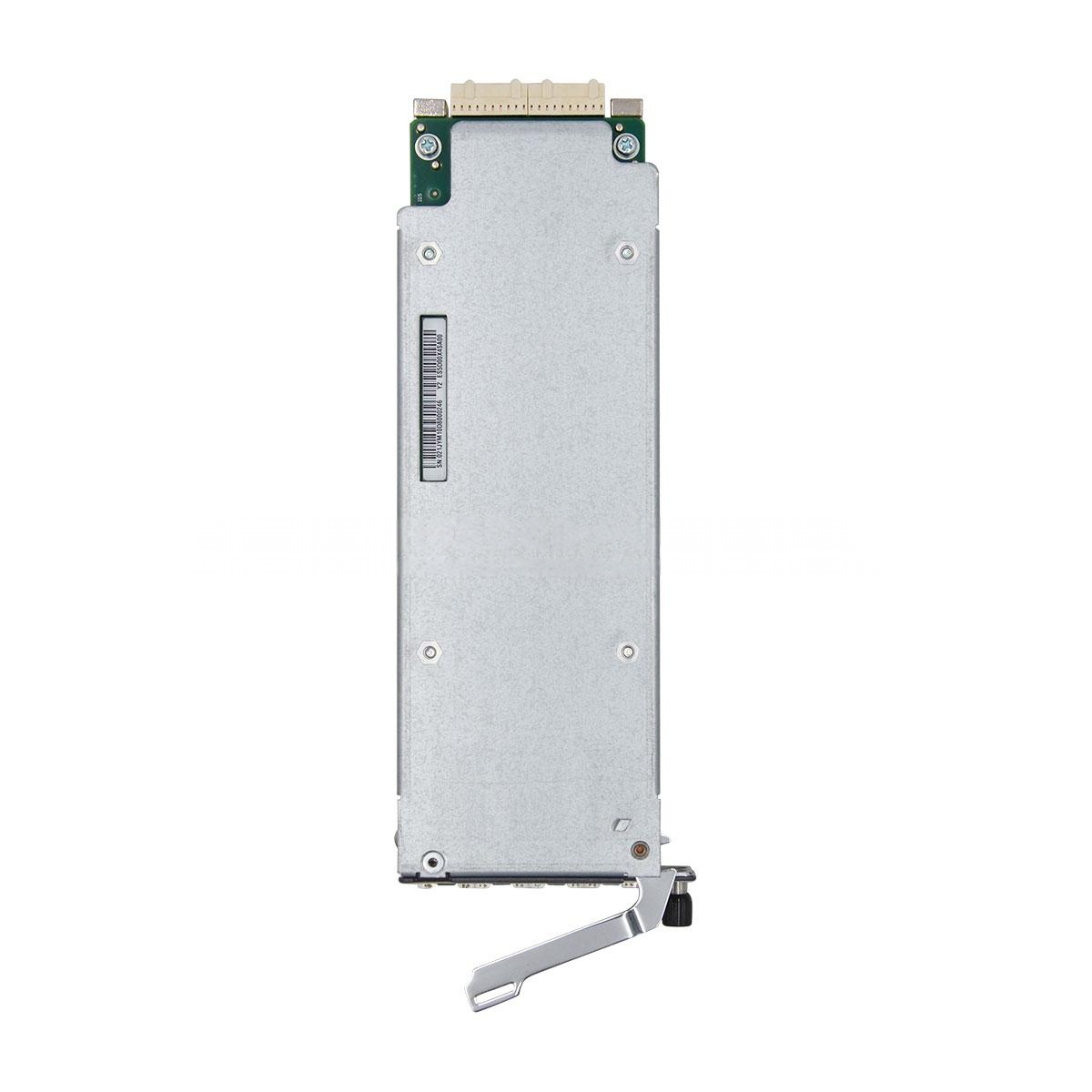

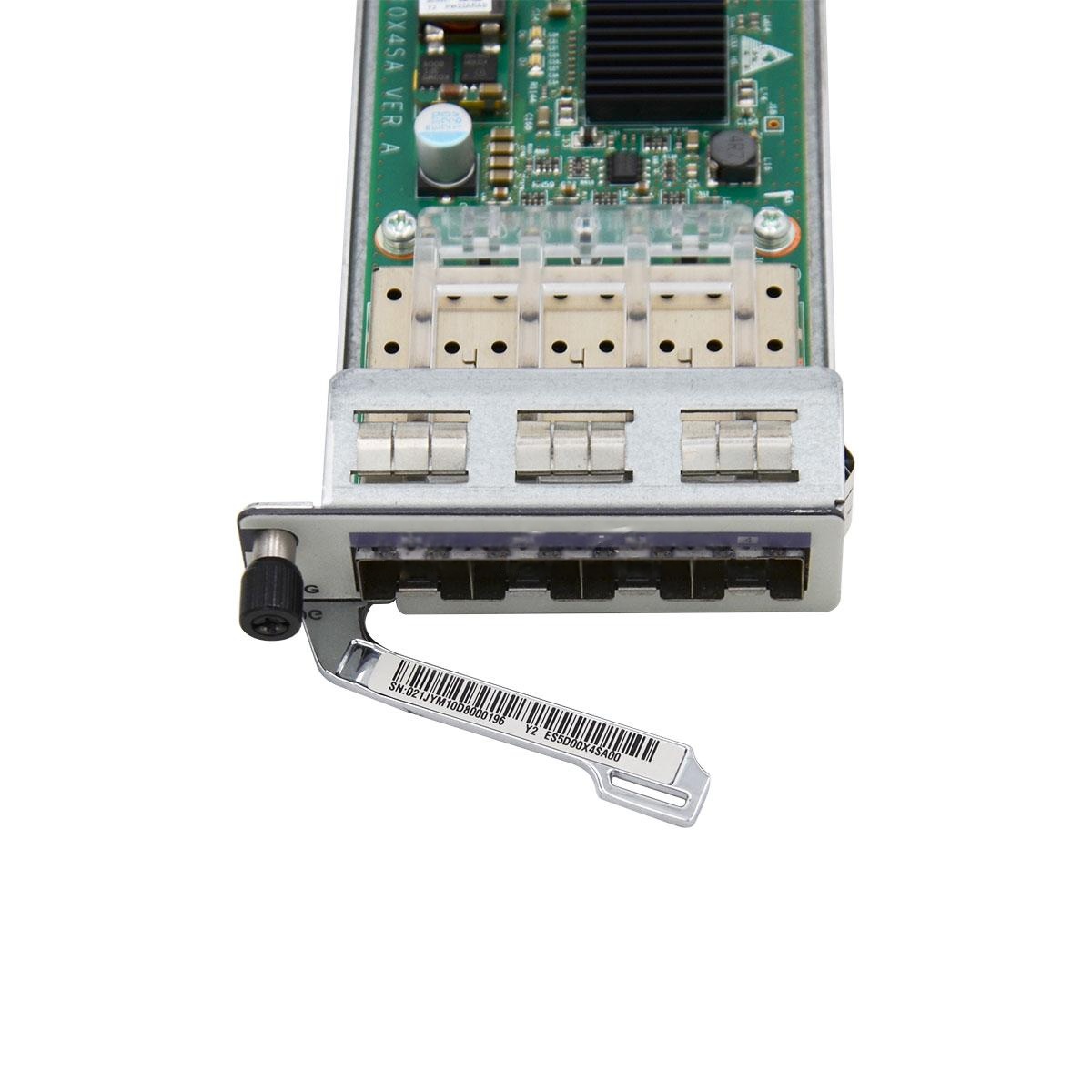

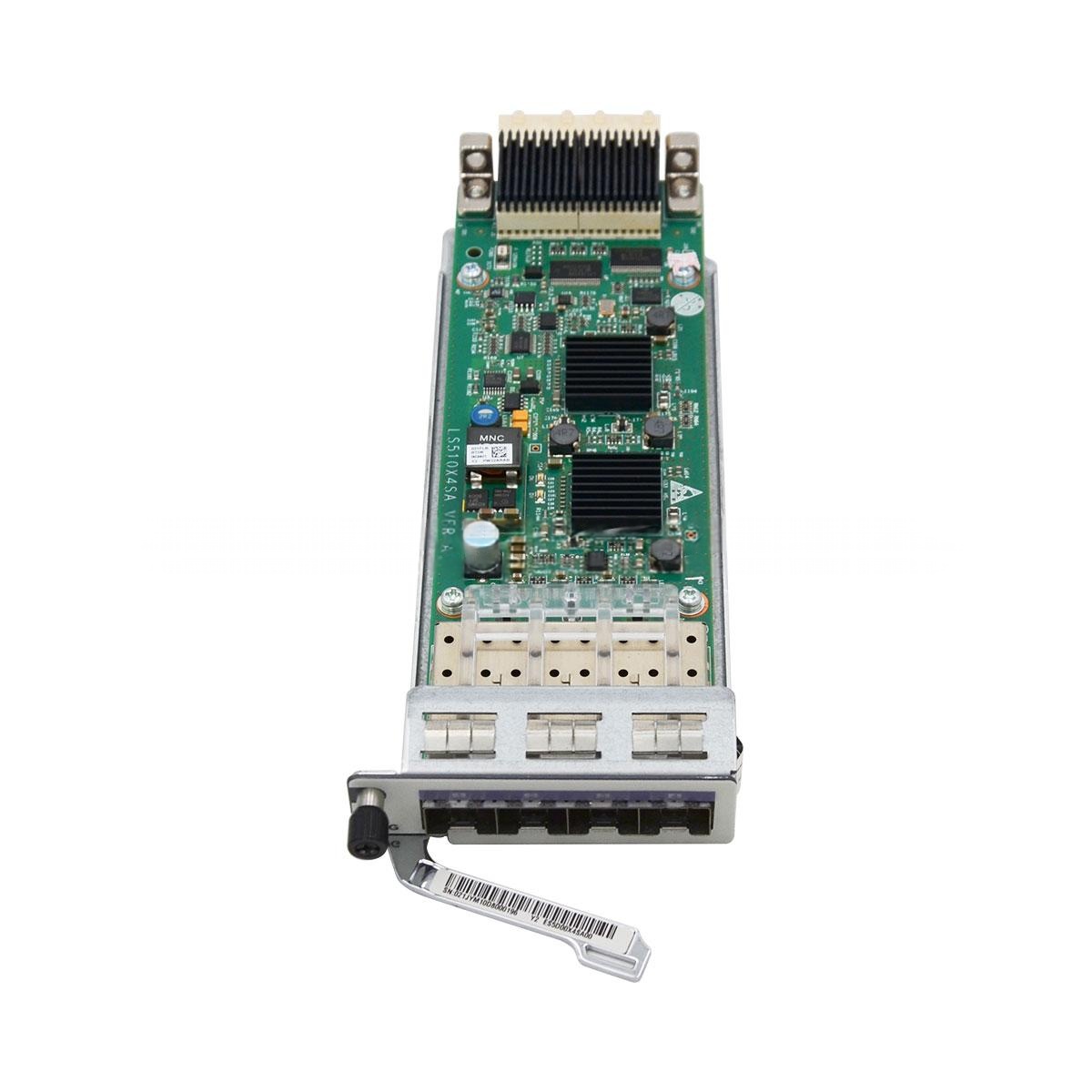

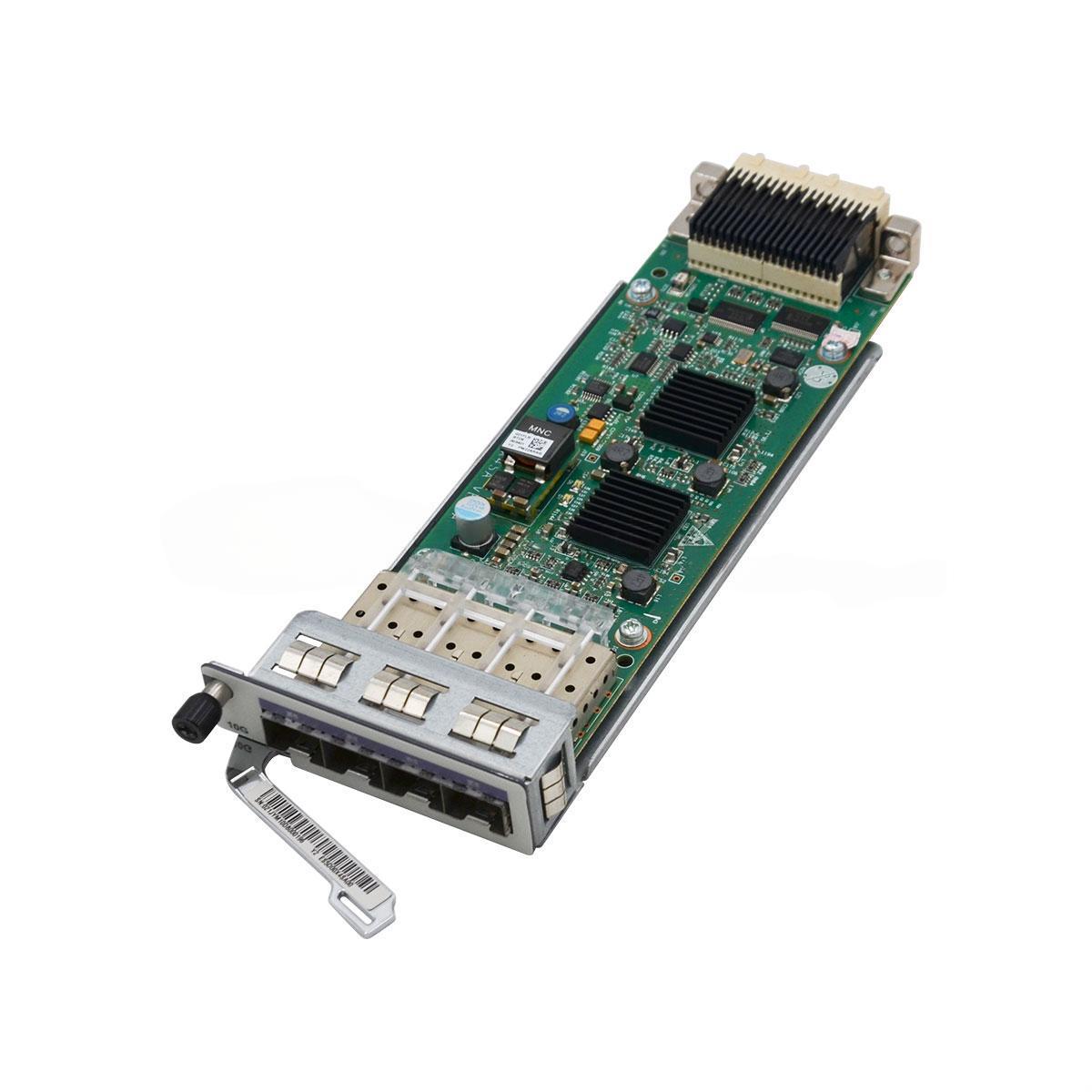

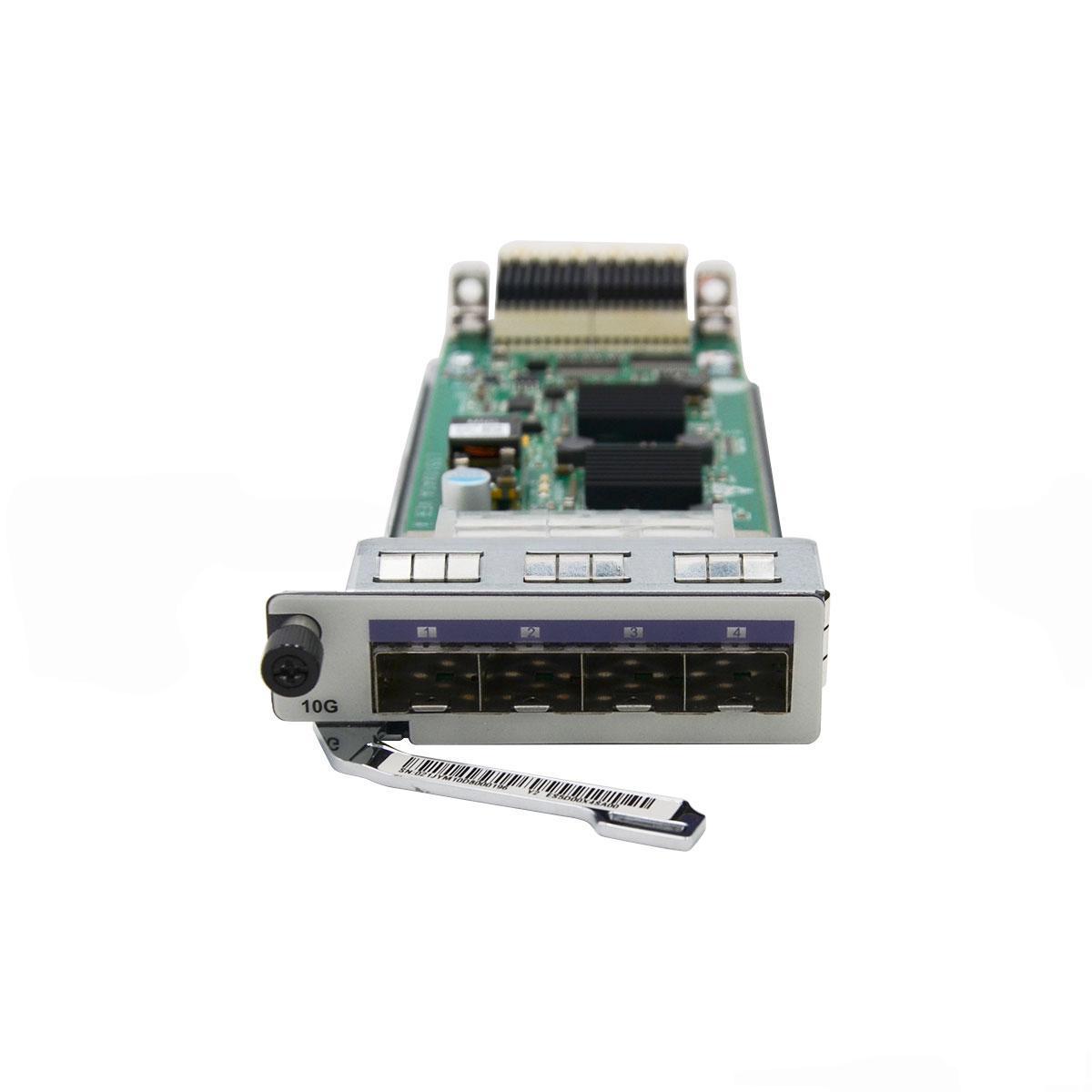

ES5D00X4SA00 Huawei Product Description:
The ES5D00X4SA00 Huawei is a genuine Huawei 4-Port Front Interface Card, purpose-built to deliver stable, high-speed connectivity for Huawei modular switch series. This interface card provides four 10GE ports, offering flexible, high-bandwidth connections for core, distribution, or aggregation network layers.
Designed to meet Huawei’s rigorous performance and quality standards, the ES5D00X4SA00 ensures reliable, low-latency data transmission, making it ideal for high-density enterprise networks, data centers, telecom backbones, and service provider infrastructures that demand consistent uptime and superior throughput.
Key Features:
-
Model: ES5D00X4SA00
-
Condition: 100% Brand New, Original Huawei
-
Type: 4-Port Front Interface Card
-
Ports: 4 × 10 Gigabit Ethernet ports (SFP+) for flexible fiber module options
-
Performance: Supports high-speed, stable data transmission with minimal packet loss
-
Installation: Front insertion design for easy installation and replacement
-
Hot Swappable: Supports online insertion and removal without service interruption
-
Reliability: Carrier-grade design, fully tested for 24/7 continuous operation
-
Compatibility: Fully compatible with supported Huawei modular switches and chassis
Tech Specs:
| Front Panel | |||||
|
|||||
| Attributes of an SFP+ optical port | |||||
| Connector type | LC/PC | ||||
| Standards compliance | IEEE 802.3ae | ||||
| Version Mapping | |||||
| ES5D00X4SA00(4-Port GE SFP/10GE SFP+ Front Optical Interface Card) is supported in V100R006C01 to V200R005C02 | |||||
| Attributes of GE optical modules | |||||
| Model | Transmission Distance (km) | Standard | Fiber Type | ||
| eSFP-GE-SX-MM850 | ≤ 0.22 | 1000base-SX |
|
||
| ≤ 0.275 | 1000base-SX |
|
|||
| ≤ 0.5 | 1000base-SX |
|
|||
| ≤ 0.55 | 1000base-SX |
|
|||
| ≤ 1 | 1000base-SX |
|
|||
| SFP-GE-LX-SM1310 | ≤ 10 | 1000base-LX/LH |
|
||
| S-SFP-GE-LH40-SM1310 | ≤ 40 | 1000base-LX/LH | |||
| S-SFP-GE-LH40-SM1550 | ≤ 40 | 1000base-LX/LH | |||
| S-SFP-GE-LH80-SM1550 | ≤ 80 | 1000base-ZX | |||
| eSFP-GE-ZX100-SM1550 | ≤ 100 | 1000base-ZX | |||
| SFP-GE-LX-SM1310-BIDI
(Single-fiber single-fiber bidirectional optical module) |
≤ 10 | 1000base-BX | |||
| SFP-GE-LX-SM1490-BIDI
(Single-fiber single-fiber bidirectional optical module) |
≤ 10 | 1000base-BX | |||
| LE2MGSC40DE0
(Single-fiber single-fiber bidirectional optical module) |
≤ 40 | 1000base-BX | |||
| LE2MGSC40ED0
(Single-fiber single-fiber bidirectional optical module) |
≤ 40 | 1000base-BX | |||
| SFP-GE-ZBXD1
(Single-fiber single-fiber bidirectional optical module) |
≤ 80 | 1000base-BX | |||
| SFP-GE-ZBXU1
(Single-fiber single-fiber bidirectional optical module) |
≤ 80 | 1000base-BX | |||
| SFP-GE-BXU1-SC
(Single-fiber single-fiber bidirectional optical module) |
≤ 10 | 1000base-BX |
|
||
| Optical parameters of GE optical modules | |||||
| Model | Center Wavelength (nm) | Transmit Power (dBm) | Receiver Sensitivity (dBm) | Overload Optical Power (dBm) | Extinction Ratio (dB) |
| eSFP-GE-SX-MM850 | 850 | -9.5 to -2.5 | ≤ -17 | 0 | ≥ 9 |
| SFP-GE-LX-SM1310 | 1310 | -9.0 to -3.0 | ≤ -20 | -3.0 | ≥ 9 |
| S-SFP-GE-LH40-SM1310 | 1310 | -5.0 to 0 | ≤ -23 | -3.0 | ≥ 9 |
| S-SFP-GE-LH40-SM1550 | 1550 | -5.0 to 0 | ≤ -22 | -3.0 | ≥ 8.5 |
| S-SFP-GE-LH80-SM1550 | 1550 | -2.0 to +5.0 | ≤ -23 | -3.0 | ≥ 9 |
| eSFP-GE-ZX100-SM1550 | 1550 | 0 to 5 | ≤ -30 | -9.0 | ≥ 9 |
| SFP-GE-LX-SM1310-BIDI
(Single-fiber single-fiber bidirectional optical module) |
RX1490/TX1310 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 6 |
| SFP-GE-LX-SM1490-BIDI
(Single-fiber single-fiber bidirectional optical module) |
RX1310/TX1490 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 6 |
| LE2MGSC40DE0
(Single-fiber single-fiber bidirectional optical module) |
RX1490/TX1310 | -2.0 to +3.0 | ≤ -23 | -3.0 | ≥ 9 |
| LE2MGSC40ED0
(Single-fiber single-fiber bidirectional optical module) |
RX1310/TX1490 | -2.0 to +3.0 | ≤ -23 | -3.0 | ≥ 9 |
| SFP-GE-BXU1-SC
(Single-fiber single-fiber bidirectional optical module) |
RX1310/TX1490 | -9.0 to -3.0 | ≤ -19.5 | -3.0 | ≥ 9 |
| SFP-GE-ZBXD1
(Single-fiber single-fiber bidirectional optical module) |
RX1490/TX1570 | -2.0 to +4.0 | ≤ -26 | -3.0 | ≥ 9 |
| SFP-GE-ZBXU1
(Single-fiber single-fiber bidirectional optical module) |
RX1570/TX1490 | -2.0 to +4.0 | ≤ -26 | -3.0 | ≥ 9 |
| Attributes of 10GE SFP+ optical modules | |||||
| Model | Transmission Distance (km) | Standard | Fiber Type | ||
| SFP-10G-USR | ≤ 0.1 | 10Gbase-USR |
|
||
| OSXD22N00 | ≤ 0.1 | 10Gbase-LRM |
|
||
| ≤ 0.22 | 10Gbase-LRM |
|
|||
| ≤ 0.22 | 10Gbase-LRM |
|
|||
| OMXD30000 | ≤ 0.026 | 10Gbase-SR |
|
||
| ≤ 0.033 | 10Gbase-SR |
|
|||
| ≤ 0.066 | 10Gbase-SR |
|
|||
| ≤ 0.082 | 10Gbase-SR |
|
|||
| ≤ 0.3 | 10Gbase-SR |
|
|||
| ≤ 0.4 | 10Gbase-SR |
|
|||
| OSX010000 | ≤ 10 | 10Gbase-LR |
|
||
| OSX040N01 | ≤ 40 | 10Gbase-ER | |||
| SFP-10G-BXU1 (bidirectional single-mode fiber) | ≤ 10 | 10GBase-BX | |||
| SFP-10G-BXD1 (bidirectional single-mode fiber) | ≤ 10 | 10GBase-BX | |||
| SFP-10G-ZR
Limiting |
≤ 80 | 10Gbase-ZR | |||
| SFP-10G-iLR | ≤ 1.4 | 10GBASE-iLR | |||
| SFP-10G-ER-SM1330-BIDI
(Single-fiber bidirectional optical module) |
≤ 40 | 10GBase-BX | |||
| SFP-10G-ER-SM1270-BIDI
(Single-fiber bidirectional optical module) |
|||||
| SFP-10G-ZDWT | ≤ 80 | DWDM | |||
| Optical parameters of 10GE SFP+ optical modules | |||||
| Model | Center Wavelength (nm) | Transmit Power (dBm) | Receiver Sensitivity (dBm) | Overload Optical Power (dBm) | Extinction Ratio (dB) |
| SFP-10G-USR | 850 | -7.3 to -1.0 | ≤ -10.7 | 0.5 | ≥ 3.0 |
| OSXD22N00 | 1310 | -6.5 to 0.5 | ≤ -6.5 | 1.5 | ≥ 3.5 |
| OMXD30000 | 850 | -7.3 to -1.0 | ≤ -11.1 | -1.0 | ≥ 3.0 |
| OSX010000 | 1310 | -8.2 to 0.5 | ≤ -12.6 | 0.5 | ≥ 3.5 |
| OSX040N01 | 1550 | -4.7 to 4.0 | ≤ -14.1 | -1.0 | ≥ 3 |
| SFP-10G-BXU1 (bidirectional single-mode fiber) | RX1330/TX1270 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-BXD1 (bidirectional single-mode fiber) | RX1270/TX1330 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-ZR
Limiting |
1550 | 0 to 4.0 | ≤ -24.0 | -7.0 | ≥ 9 |
| SFP-10G-iLR | 1310 | -8.2 to 0.5 | ≤ -14.4 | 0.5 | ≥ 3.5 |
| SFP-10G-ER-SM1330-BIDI
(Single-fiber bidirectional optical module) |
Tx1330/Rx1270 | 0 to 5 | ≤ -18 | -9 | ≥ 3.5 |
| SFP-10G-ER-SM1270-BIDI
(Single-fiber bidirectional optical module) |
Tx1270/Rx1330 | 0 to 5 | ≤ -18 | -9 | ≥ 3.5 |
| SFP-10G-ZDWT | 1529.16 to 1560.61 | -1 to 3 | ≤ -24 | -1 | ≥ 8.2 |
| Physical specifications | |||||
| Dimensions (mm) | 77 (W)x 207 (D) x 23 (H) | ||||
| Weight (kg) | 0.5 | ||||
| Maximum power consumption (W) | 10 | ||||
| Environment parameters | |||||
| Operating temperature | -5°C to 55°C | ||||
| Relative humidity | 5% RH to 95% RH | ||||
| Storage temperature | -40°C to +70°C | ||||
ES5D00X4SA00 Huawei Applications:
The ES5D00X4SA00 4-Port Front Interface Card is ideal for:
-
High-speed uplinks and downlinks in enterprise and campus networks
-
Data center core and aggregation layers
-
Telecom and ISP backbone networks
-
Large-scale network expansions or upgrades
-
System integrators building flexible, scalable network infrastructures
Customization & OEM Services:
We offer flexible customization and OEM services to meet unique network or project requirements:
-
Pre-configuration to align with your existing network design
-
OEM branding and private labeling for resellers and integrators
-
Custom packaging for bulk or multi-site deployments
-
Extended burn-in and testing for mission-critical use cases
ES5D00X4SA00 Huawei Wholesale & Bulk Orders:
Benefit from our wholesale and bulk purchasing support for service providers, system integrators, and large enterprises:
-
Factory-direct pricing with competitive discounts for volume orders
-
Reliable stock availability for ongoing and phased projects
-
Fast, secure worldwide shipping with export-compliant packaging
-
Dedicated account managers for smooth order processing and logistics
-
Full warranty coverage and professional after-sales technical support
Why Choose Us:
-
100% genuine Huawei hardware, factory sealed and fully tested
-
Flexible solutions tailored to your technical and business needs
-
Competitive pricing and terms for resellers, integrators, and large buyers
-
Professional global logistics for secure, on-time delivery
-
Dedicated technical support from pre-sales planning to post-deployment assistance
Contact Us for a Quote:
Ready to upgrade your network with the ES5D00X4SA00 Huawei 4-Port Front Interface Card? Reach out to us today for detailed technical specifications, customization options, and competitive wholesale pricing.
Our experienced team is here to help you build a reliable, high-performance network with trusted Huawei solutions and dependable support.
