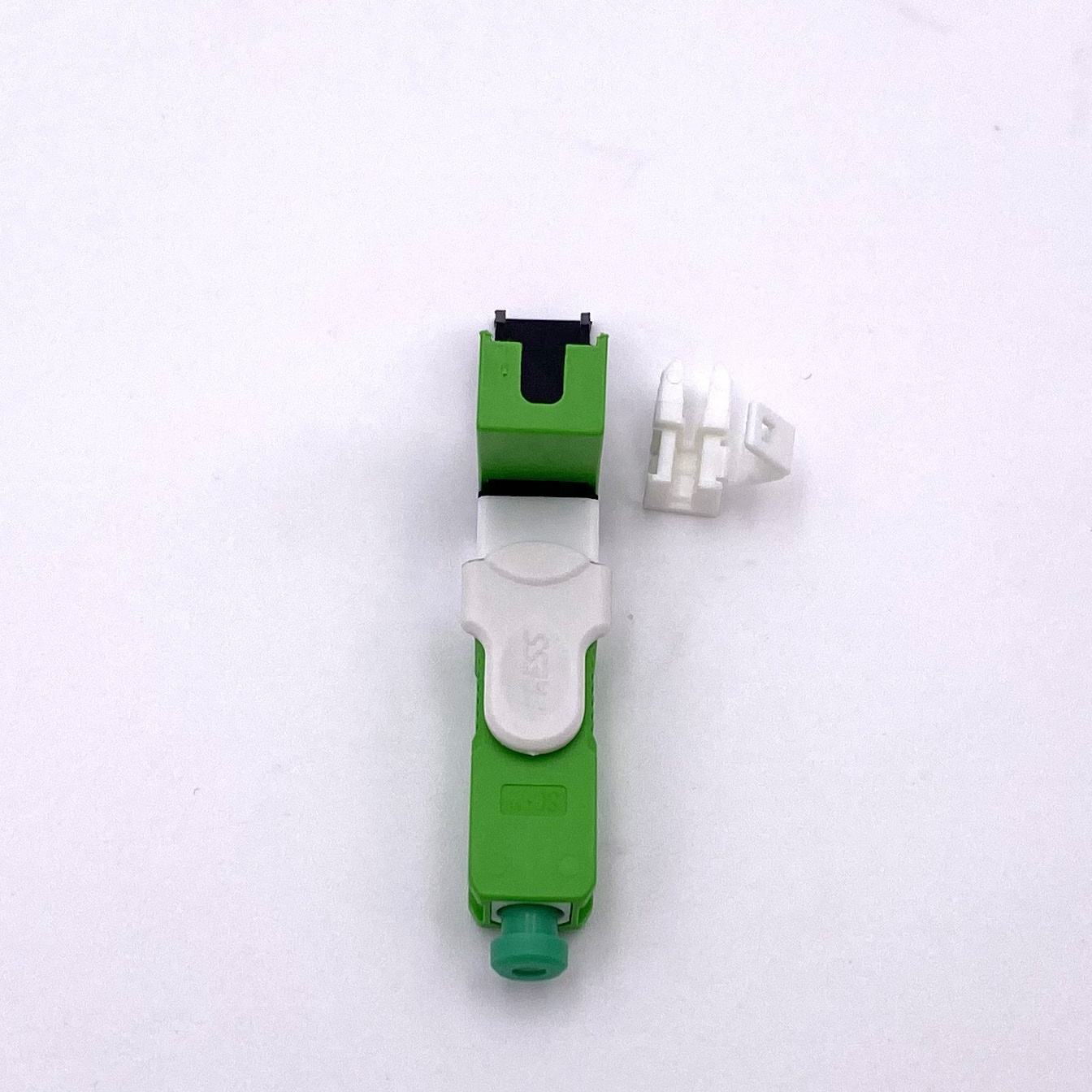

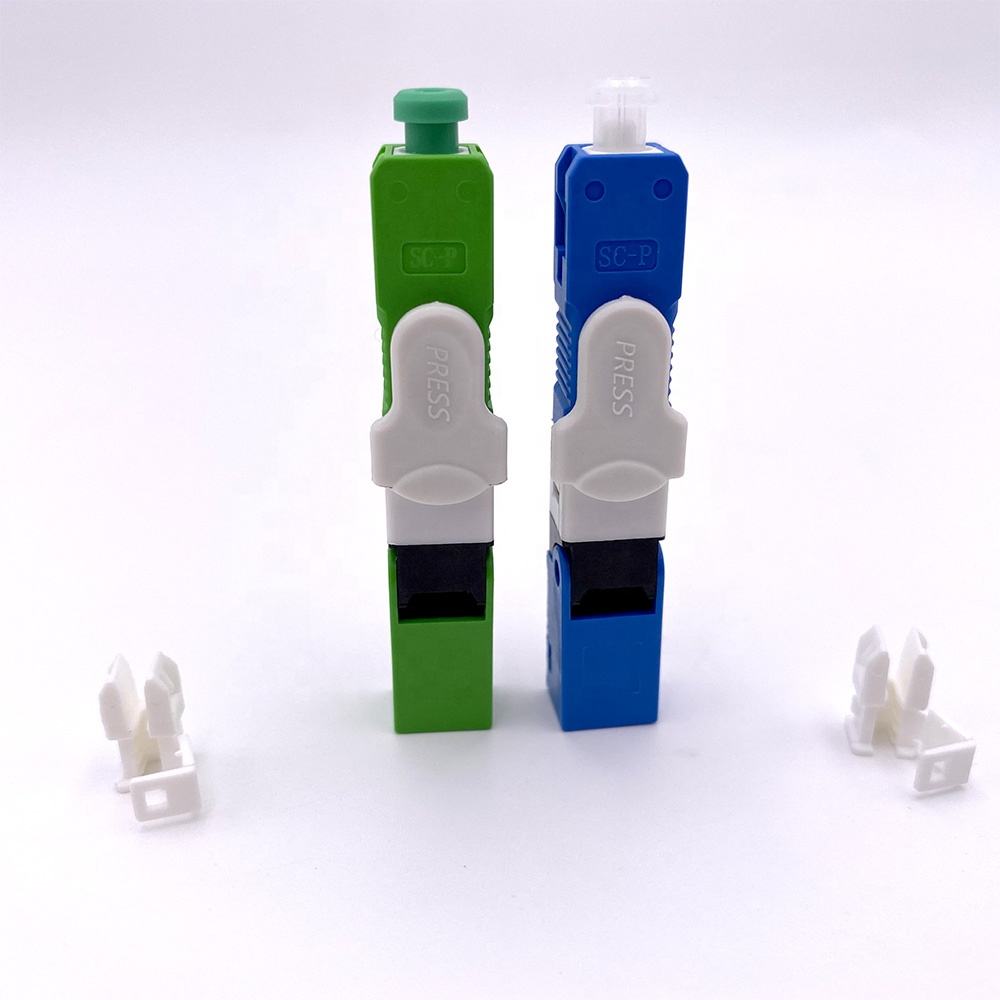

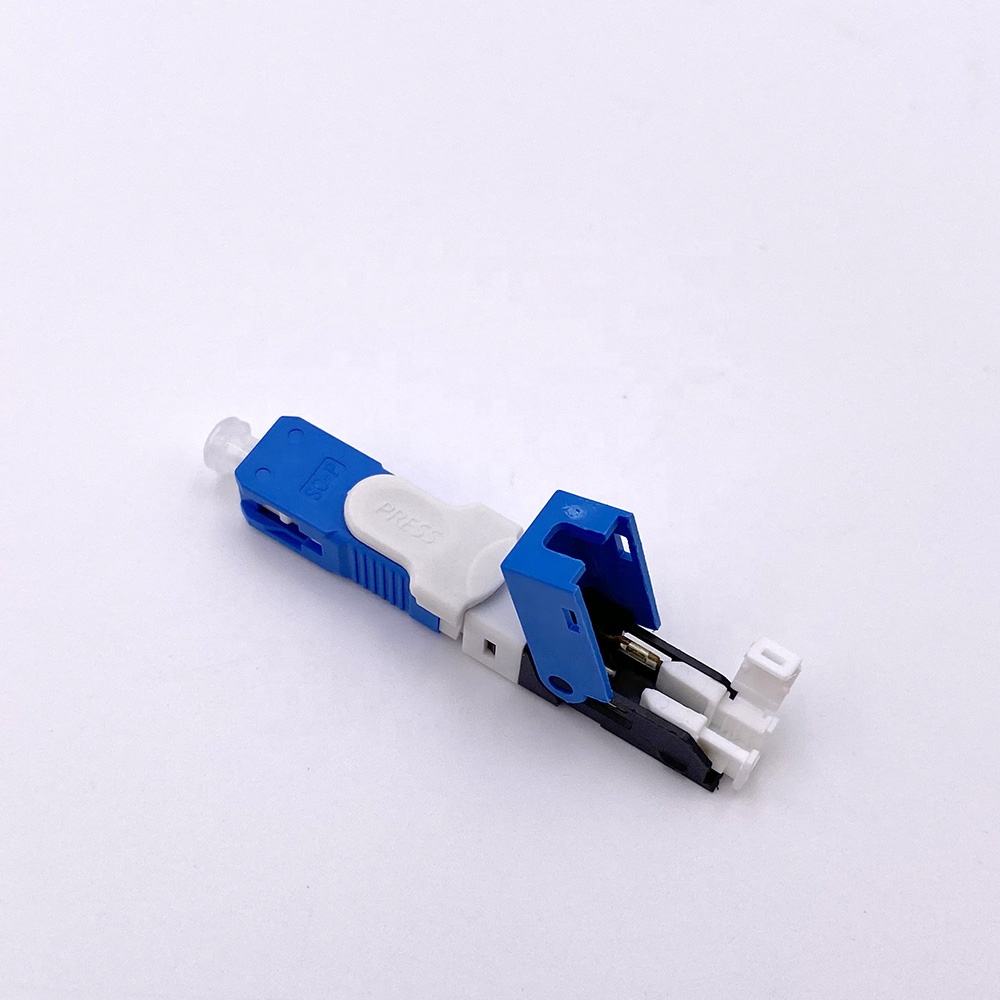

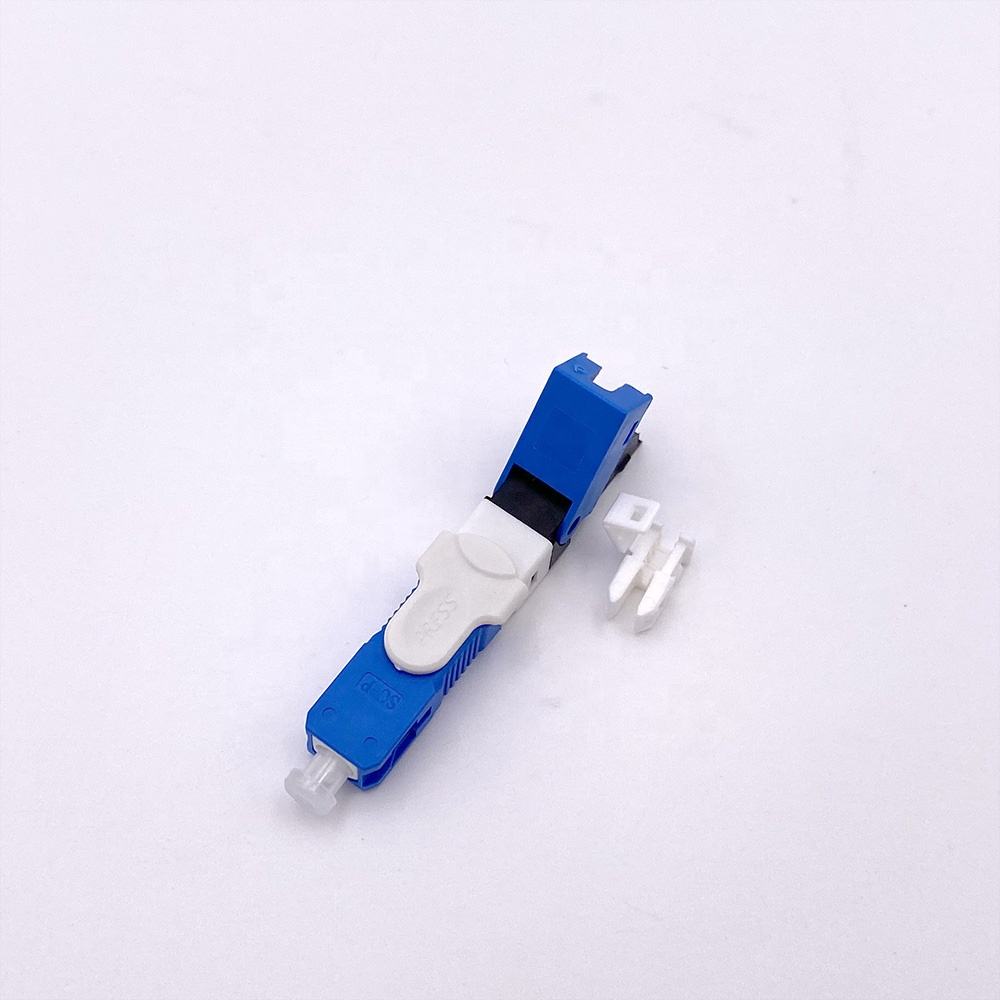

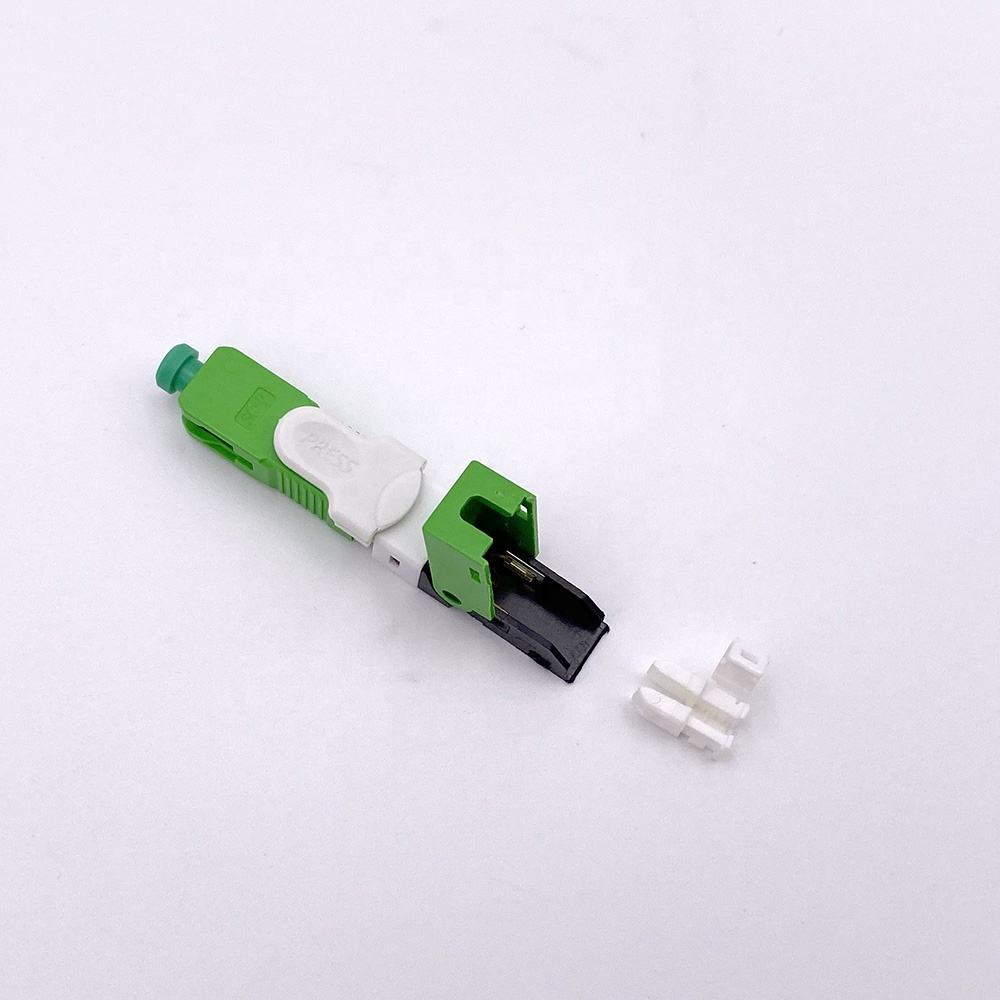

SC APC fiber optic fast installation connector mechanical splicer SOC
Features:
1.Price-Competitive60mm 55mm 53mm 50mm Singlemode SC UPC fiber optic fast installation connector
2.Low Insertion Loss
3.Factory-terminated and Tested
4.Fiber Options: G.652
5.Connector Options: FC/SC/LC/ST
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules
Applications:
1.Access Network
2.Telecom/CATV Systems
3.FTTx
Specifications:
|
Connector Type |
FC, SC, ST, LC, MPO, MTRJ etc. |
|
Operating Wavelength |
1260nm-1650nm |
|
Insertion Loss |
≤0.20dB, max 0.3dB |
|
Return Loss |
PC≥45.0dB ,UPC≥50.0dB,APC≥60.0dB |
|
Exchangeability |
≤0.20dB |
|
Vibration |
10-60Hz, 1.5mm ≤0.10dB |
|
Tensile |
≤0.10dB (0-15Hg, except Ø0.9mm) |
|
Plug times |
>1000 (Times), ≤0.20dB |
|
Storage Temperature |
-40°C ~ +85°C |
|
Operating Temperature |
-40°C ~ +85°C |
|
Relative humidity |
95%, (+25°C~ +65°C, after 100h) |
