Name: F660 V8 GPON UU SC UPC Router Modem with 4FE+2TEL+USB+Wifi English Version
SKU: 1600622992609
Price: 22.00 USD
Availability: InStock

Overview

Essential details

Model Number:: ONU

Type:: ONU

Place of Origin:

Brand Name:: ZTE

Use:: FTTH

Model Type:: ONT, FTTH Solutions

Configuration:: 1GE+3FE+1TEL+USB+wifi

Product name:: F660 8.0 GPON ONU

Application:: FTTH FTTB FTTX Network

Function:: VLAN Support

Wavelength:: Tx1310nm/Rx1490nm

Power adapter:: EU,US,UK,AU

PON interface:: SC/UPC

Setup interface:: English

Delivery:: Fast delivery

Supply Ability

Supply Ability: 30000 Piece/Pieces per Month

Packaging & delivery

Packaging Details

Standard Packing or Custom Packing Brand New F660 V8 1GE 3FE 1POTS 1USB WiFi ONU F660 F609 GPON ONT F660

Port

shenzhen

Lead time:

Quantity(pieces)	1 – 10	11 – 100	101 – 500	>500
Lead time (days)	5	7	9	To be negotiated

Product Description

Brand New ZTE F660 V8 1GE 3FE 1POTS 1USB WiFi ONU F660 F609 GPON ONT F660

The F660 V8.0 provides 1 POT ports, 1GE and 3FE auto-adapting Ethernet ports, one USB port, and one Wi-Fi port.The F660 gpon onu is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The F660 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.

Specification

PON Feature	Optical port: 1 x GPON interface (SC/PC) Transmission Distance: 0 ~ 20km Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface	4 x10/100 Base-T;Half/full duplex; Auto MDI/MDIX; Auto negotiation 2 x POTS interfaces 1 x Wi-Fi (external antenna) interface: IEEE 802.11b/g/n @2.4G Hz 1 x USB 2.0 host interface
Optical Module	Receiving: 1480~1500 nm Transmitting: 1290~1330 nm Receiving Sensitivity: -28dBm Transmitting Optical Power: 0.5~5dBm
Main Function	Supported service:VoIP, Internet, IPTV GPON: 8 T-CONTs, 32 GEM Ports VLAN: 802.1Q, 802.1P, 802.1ad MAC address table: 1K L3 function: DHCP server/Client, DNS Client, NAT IPv6: Dual Stack, DS-Lite VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38 Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK, WPA2-Enterprise Multicast: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping Multicast group per user port: 256 QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR Management: local web management, OMCI, TR069 Management: local web management, OMCI USB: DLNA DMS, USB backup, 3G/LTE dongle

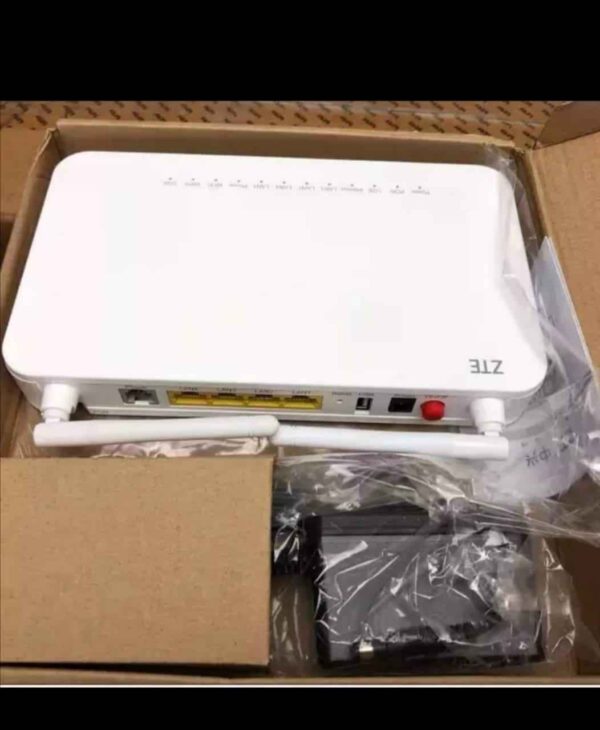

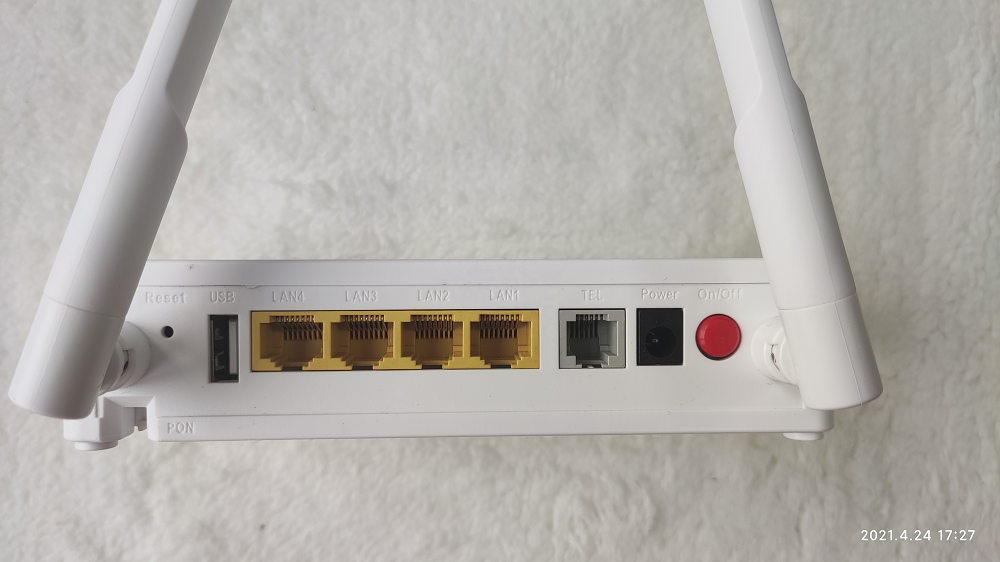

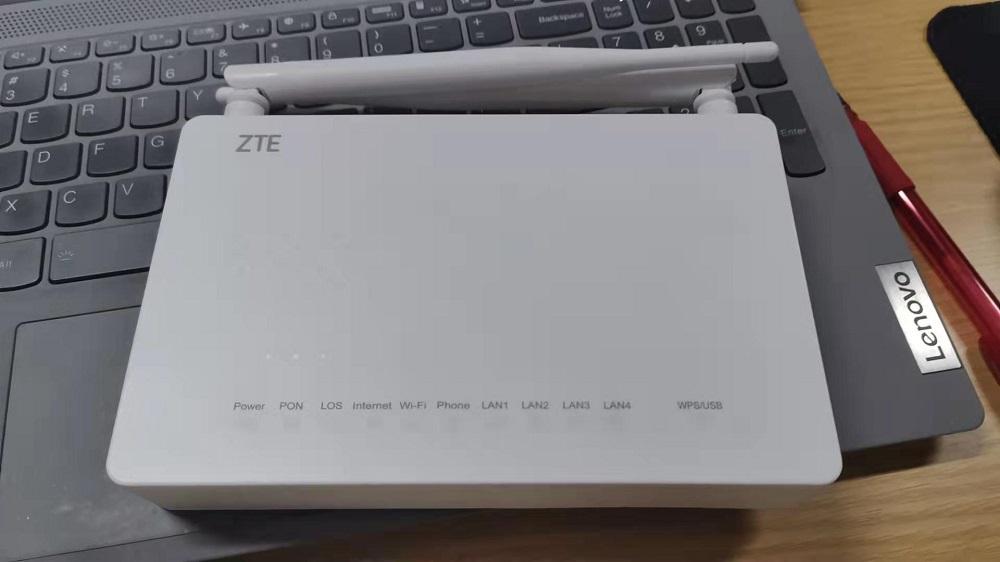

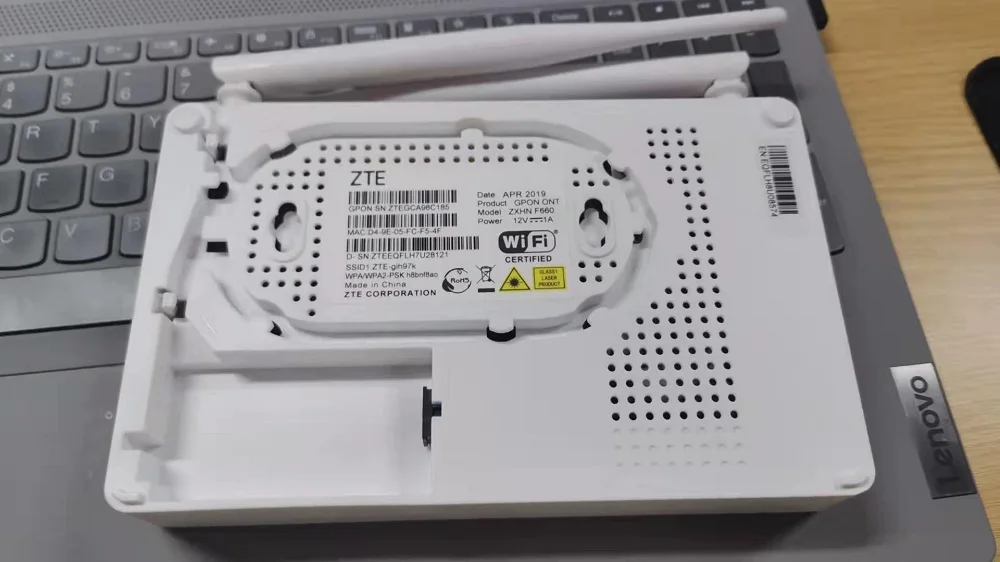

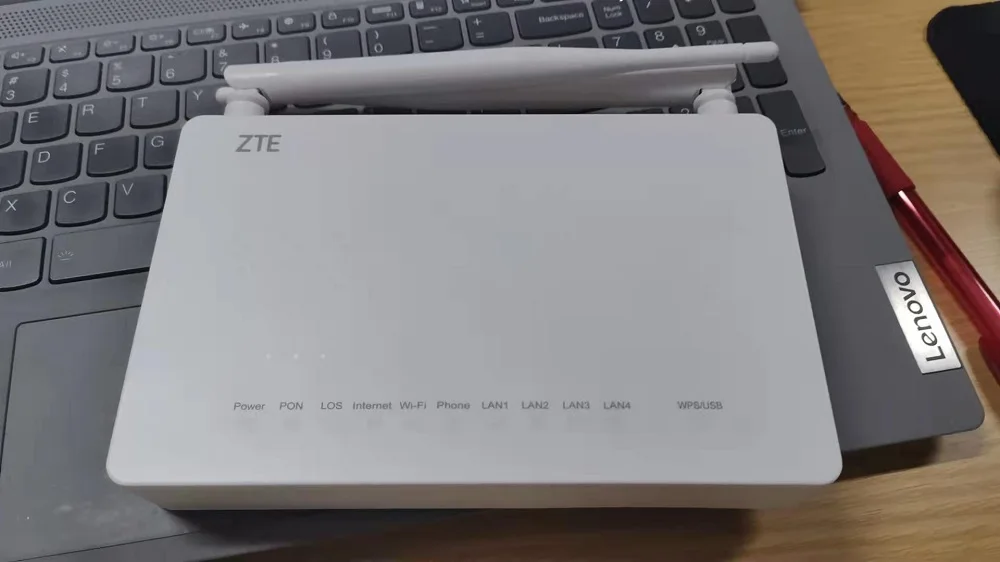

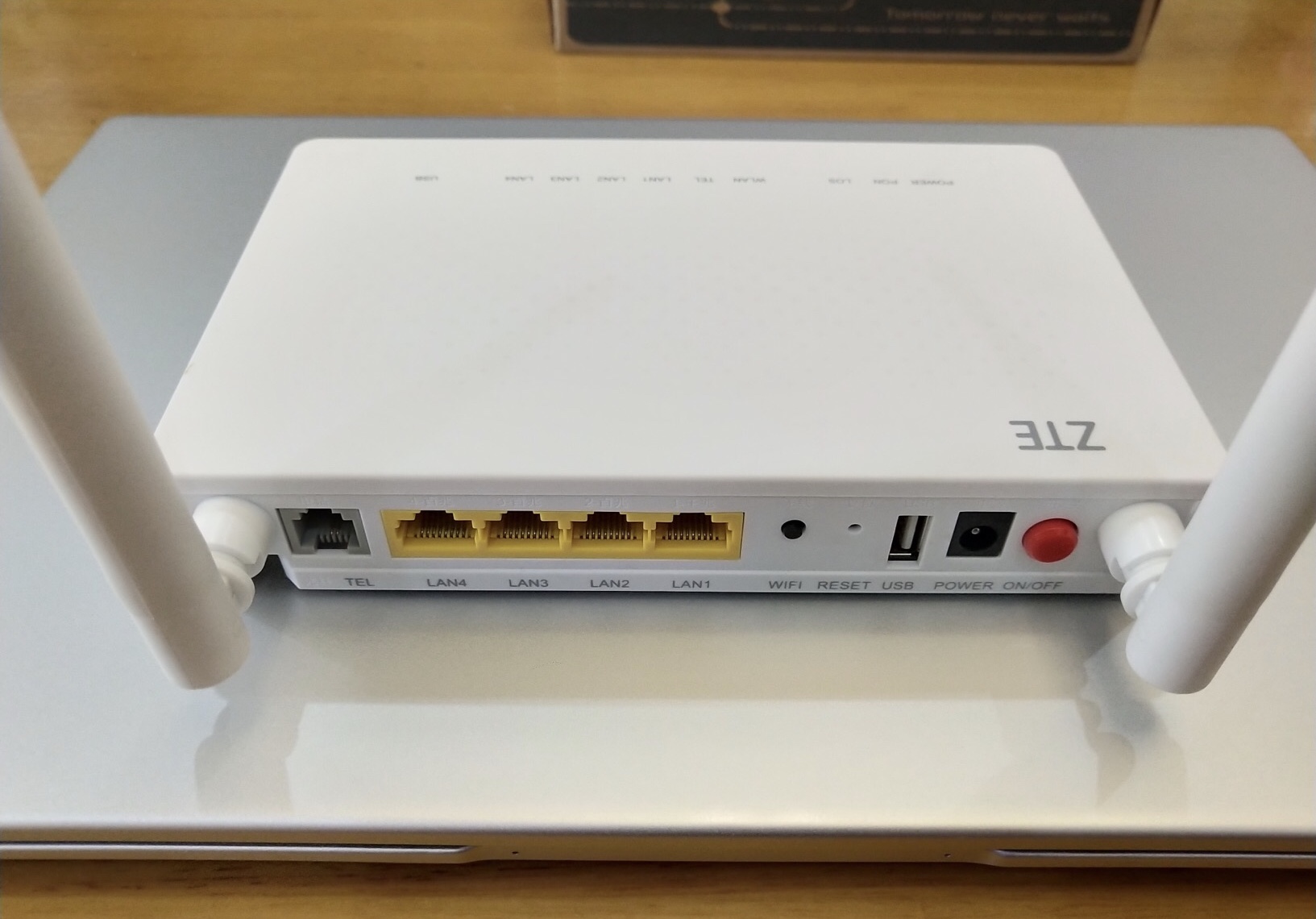

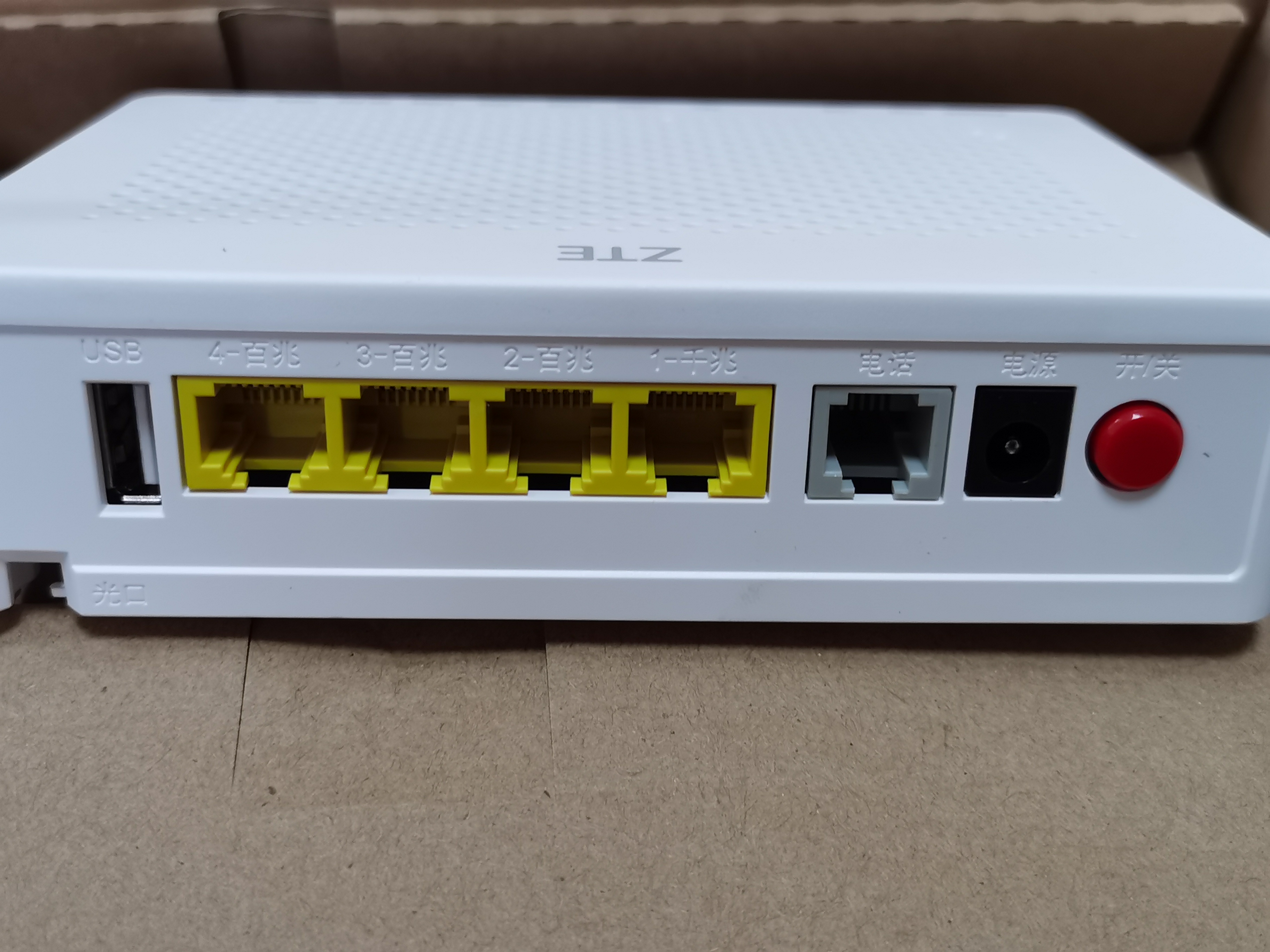

Detail F660 ONU Pictures

Power adapter details

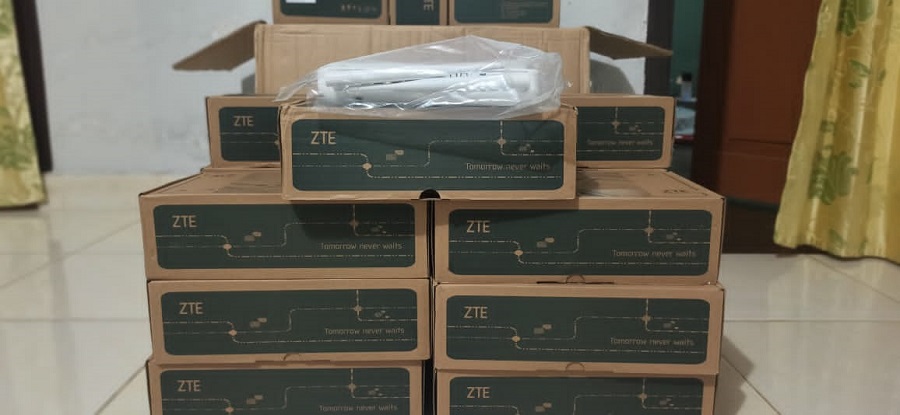

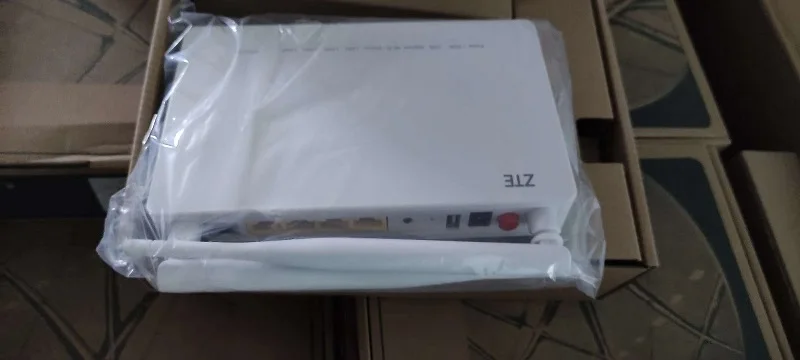

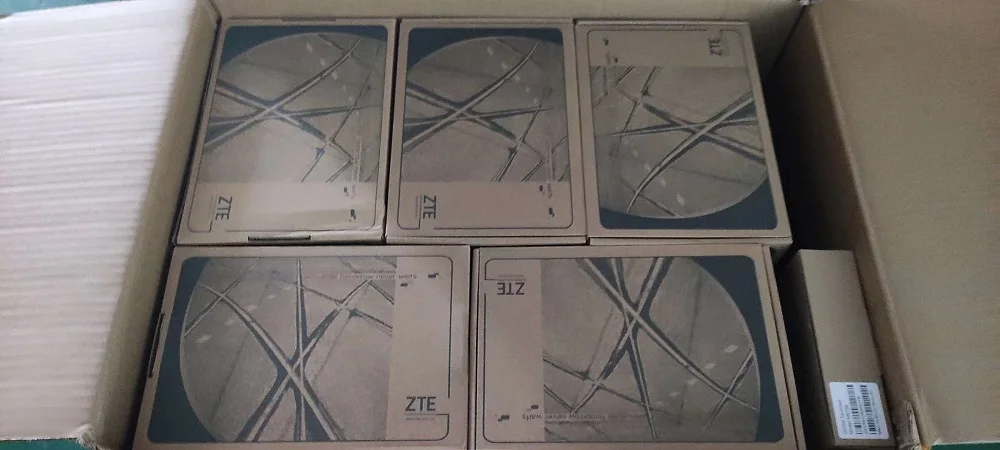

Package

The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo available
Inner packing: individual package 1pcs in a box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
