- Model Number:F668V
- Type:ONU
- Place of Origin:Guangdong, China
- Brand Name:OEM
- Use:FTTX
- Warranty Time:5 YEARS
- Network:Wired LAN, POE, wifi
- item:F668V
-
- Supply Ability
- 5000 Piece/Pieces per Week
-
- Packaging Details
FTTH 4 8 16 32 Output Port 2u 1550nm EDFA Variable Gain Optical Amplifier EDFA Model Wdm Edfa Indoor CATV 1550nm for gpon
-
- Port
shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)5To be negotiated

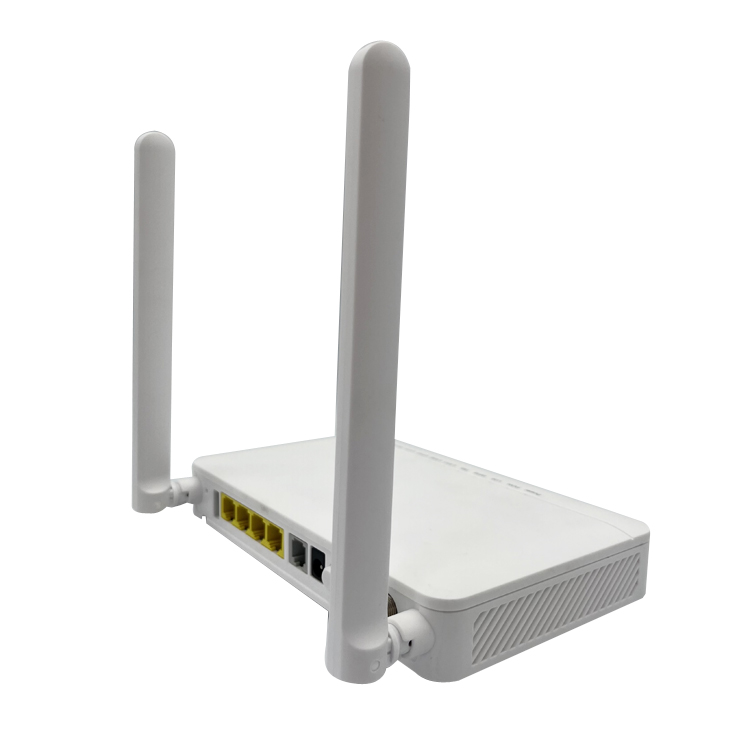

F668V 4GE+CATV 2.4G/5G AC WIFI ZTE CHIP SET ONU ONT FTTH
|
Model
|
Configuration
|
Dimension/pcs
|
||||
|
LAN
|
Telephone
|
Wifi
|
PPPOE
|
Firmware
|
||
|
F668V
|
4GE CATV
|
1POTS
|
2.4G/5 dbi
|
YES
|
English
|
176*138*28
|
|
Remarks
|
Power plug:EU,AU,AM,UK etc
|
|||||
|
Noted: with Chinese manual
|
||||||
|
Optional: 4GE CATV
|
Features:
1 .Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance
|
PON Interface
|
Interface Type
|
SC/PC, CLASS B+
|
|
Rate
|
Uplink: 1.25Gbps; Downlink: 2.5Gbps
|
|
|
User-Side Interface
|
1*10/100/1000BASE-T;1*10/100BASE-T;1*RF interface
|
|
|
Size (Mm)
|
167(L)×118(W)×30(H)
|
|
|
Maximum Power Consumption
|
<8W
|
|
|
Weight
|
120g
|
|
|
Operating Environment
|
Temperature: -10°C ~ 55°C
|
|
|
Humidity: 5% ~ 95% (no condensation)
|
||
|
Power Supply
|
External Power Adapter 12V/1A
|
|
|
Power Adapter Input
|
100-240V AC, 50/60Hz
|
|
|
Power Interface Size
|
metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
|
|
|
WLAN Module
|
External dual antenna, antenna gain 5db, antenna power 16~21dbm
|
|
|
Support 2.4GHz, 300M transmission rate
|
Product Highlights
required.
2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup
emulation initiated by the NMS.
3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
4.High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.
5.Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single
chip integrates with PON, voice, gateway and LSW modules.
