F680 GPON ONU ONT 1GE+3FE+2POTS+USB 2.4G&5G
Functional Feature
GPON features:Secure authentication mode: SN, password or SN+password,Upstream/downstream FEC
Voice features:SIP or H.248 protocols,Media stream and signaling stream separation
Multicast features:
IGMP V2&V3 Snooping,GMP Proxy
Wi-Fi features:
802.11b/g/n certified by the Wi-Fi Alliance ,Routing features,8 WAN interfaces,NAT function,Internet, IPTV and VoIP services are automatically bound to ONT ports,Virtual Server, Port Trigger,DMZ and DDNS
Security features:
SMAC/IP/URL filter,Anti-DOS Attack,IPv6 features(for HSI and IPTV),IPv6/IPv4 dual stack,DS-Lite,MLD snooping
Maintenance features:
Web local management,Remote management through OMCI,Remote management through TR069,Optical power monitoring,Loop-line test of POTS ports,Call emulation,PPPoE dialup emulation,DHCP emulation
Features:
(1)In compliant with IEEE802.3ah Standard and CTC2.1/3.0
(2)Up to 20KM transmission Distance
(3)Support VLAN and IGMP
(4)Support port isolation between different ports
(5)Integrated OAM remote configuration and maintenance function
(6)Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology
(7)EMS network management based on SNMP ,convenient for maintenance
(8)Full speed non-blocking switching.
(9)Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
(10)Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
(11)Support auto polarity detection of Ethernet ports (AUTO MDIX).
(12)Integrated IEEE802.1p QoS with four level priority queues.
(13)Support IPv4 IGMP snooping and IPv6 MLD snooping.
(14)CATV Specification
Product Application
Product Specification
| Products Name | Gpon ONU |
| Pon TYPE | G/EPON ONU or GPON ONT |
| Fuction optional | FE/GE Lan port ,WIFI/ FXS/POTS/,CATV/RF..Ect.. |
| Lan PORT | 10/100/1000base-tx; Interface: RJ45 |
| PORTs | PON: SC/PC |
| ETHERNET
|
•10/100/1000M auto-negotiation
•Full/half duplex mode
•RJ45 connector
•Auto MDI/MDI-X
•100m distance
|
| Business | •Layer 2 wire speed switching
•Support VLAN TAG/UNTAG,VLAN conversion
•Support Port-based speed limitation
•Support Priority classification
•Support storm control of broadcast
•Support RSTP
|
| Network Management |
•Support IEEE802.3 QAM, ONU can be remotely managed by OLT
Physical
Dimension: 130mm X 100mm X 37mm;Weight: 250gTemperature: 0~60°C; Relative Humidity: 10~90%Power AdapterInput: AC 110V~ AC 265V; Output: DC12V/0.5AConsumption<5W

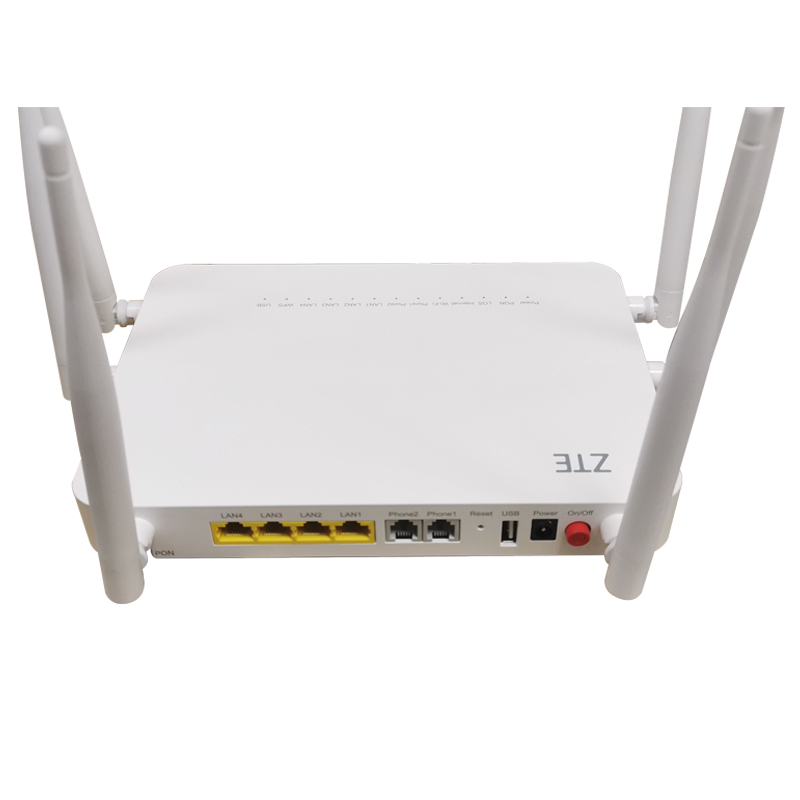

Detail Picture
2).Research Department
With our separate research team,so we are able to have products made according to your requirements.
3).Quality assurance
Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test.
The guarantee period is 10 years.So if there are problems with the goods,replacement will be available.
