SKU 1600647593941 Categories , ,
  • Model Number:HG620D XPON CATV
  • Type:ONU ONT
  • Place of Origin:Guangdong, China
  • Brand Name:HG620D XPON CATV
  • Use:FTTH Solutions
  • Warranty Time:1 Year
  • Network:Wireless Lan
  • Model:HG620D XPON CATV
  • Dimensions:133×223.5×41.7mm
  • Weight:200g
  • Operating Temperature:0°C to +40°C
  • Operating Humidity:5% RH to 95% RH (non-condensing)
  • Power Adapter Input:100 V to 240 V AC, 50 Hz/60 Hz
  • System Power Supply:11 V to 14 V DC, 1.5 A
  • Configuration:XPON ONU XPON 2.4g/5g Dual wifi 1ge 3fe + CATV
  • Packaging Details

    CARTON BOX PACKING

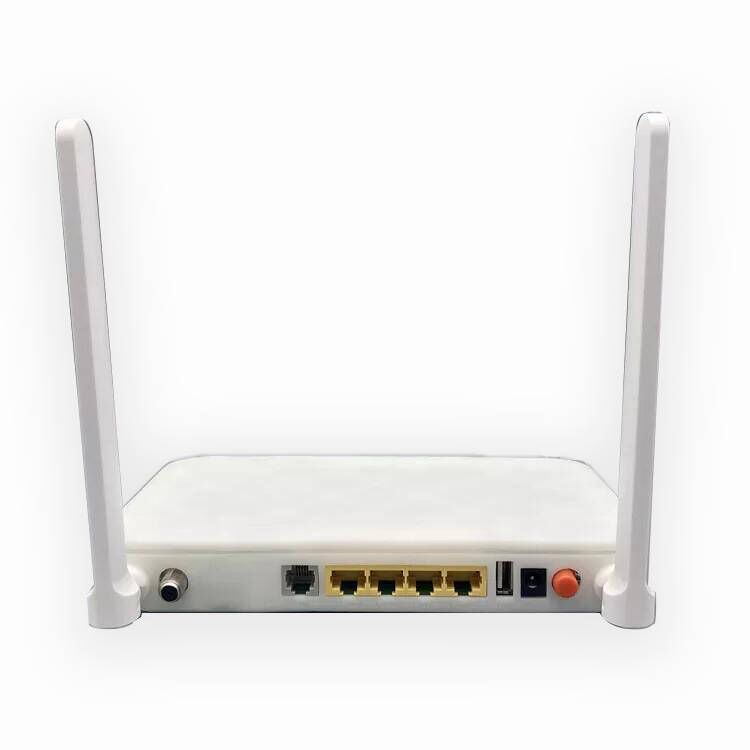

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)11To be negotiated

Factory Direct OEM HG260P Cheap Price ZTE CHIP XPON ONU XPON 2.4g/5g Dual wifi 1ge 3fe + CATV

Type
Optic Fiber
Color
White
Weight
200g
Power Adapter Input
150V ~ 264V AC,50Hz ~ 60Hz
Power plug
EU,AU,AM,UK etc
Power Interface Size
metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
WLAN Module
External dual antenna, antenna gain 5db, antenna power 16~21dbm
Support 2.4GHz, 300M transmission rate
Operating Environment
Temperature: -10°C ~ 55°C
Humidity: 5% ~ 95% (no condensation)
Products Description
Product Paramenters

Product Features:

1.Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.

2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.

3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.

4.High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.

5.Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single
chip integrates with PON, voice, gateway and LSW modules.

Application

Typical Solution:FTTH(Fiber To The Home)

Typical Business:INTERNET、IPTV、WIFI 、VOIP etc

Specification

133×223.5×41.7mm
