Products Description
Extended interface description
1*GE+3*FE+1*Phone+1*USB+1*WiFi(5dibi)
Functional characteristics
Fiber access:Connecting internet throungh GPON access method
Ethernet fuction: It Provids 4 Ethernet ports and Ethernet devices can be directly connected to the ZXHN F660 Ethernet port to achieve Internet and IPTV services.
VoIP function: It Provids 1 VoIP(Phone) ports supporting softswitch SIP, IMS SIP or H.248 voice control protocol and telephone can be connected via this interface.
Internal WLAM fuction: Users can connect to the ZXHNF627 via WLAN, enabling wireless Internet access.
Data sharing, fast backup, data recovery and other functions: It provides USB2.0 port.Pluging a USB memory device,it can achieve all these fuctions.Under the premise of providing the above functions ,achieving security, QoS and network management are also took into the consideration.
Providing multi-level authentication based on device, user, service, and encryption of data channels
For different service requirements of the business,it can complete the local equipment and network matching QoS requirements Holding network management based on multiple management methods

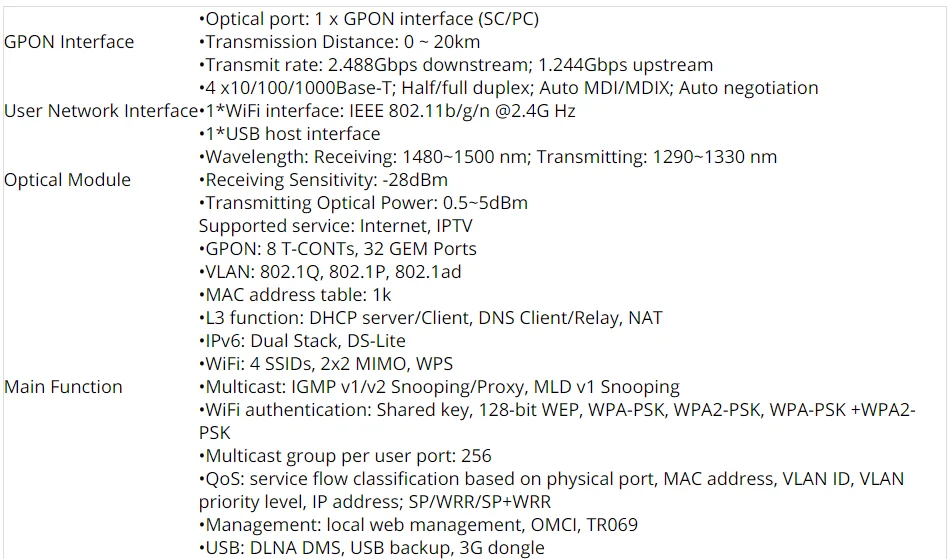

Executive Standard
GPON interface: SC/UPC or SC/APC PON interface,GPON standard
Ethernet interface: 1*10Mbps/100Mbps/1000Mbps adaptive port+3*10Mbps/100Mbps adaptive port,RJ-45 type,IEEE802.3 and IEEE802.3u
standard
Phone interface: RJ-11 type
WLAN interface: IEE802.11b,IEEE802.11g,IEEE802.11n standard,built-in antenna
USB interface:standardized USB2.0
Applications
Catering for different scenarios it provides different interfaces such as FE,GE,VoIP, E1, WiFi,USB and other interfaces to meet the requirements of FTTH,FTTO and FTTB application modes, not only for home user, but also for commercial users.It supports full service operation with high QoS and security, such as HSI, VoIP, IPTV.
Easy for deployment Mounting mode and fiber coiling make installation very easy.
Easy for trouble shooting Support ONT signal tracing and performance monitoring, and quickly locate fault on ONT.
Particular power saving Supports status monitoring when ONT is free, and enter low-power consumption state; Optical module can also enter low-power low-power consumption state.
1*GE+3*FE+1*Phone+1*USB+1*WiFi(5dibi)
Functional characteristics
Fiber access:Connecting internet throungh GPON access method
Ethernet fuction: It Provids 4 Ethernet ports and Ethernet devices can be directly connected to the ZXHN F660 Ethernet port to achieve Internet and IPTV services.
VoIP function: It Provids 1 VoIP(Phone) ports supporting softswitch SIP, IMS SIP or H.248 voice control protocol and telephone can be connected via this interface.
Internal WLAM fuction: Users can connect to the ZXHNF627 via WLAN, enabling wireless Internet access.
Data sharing, fast backup, data recovery and other functions: It provides USB2.0 port.Pluging a USB memory device,it can achieve all these fuctions.Under the premise of providing the above functions ,achieving security, QoS and network management are also took into the consideration.
Providing multi-level authentication based on device, user, service, and encryption of data channels
For different service requirements of the business,it can complete the local equipment and network matching QoS requirements Holding network management based on multiple management methods

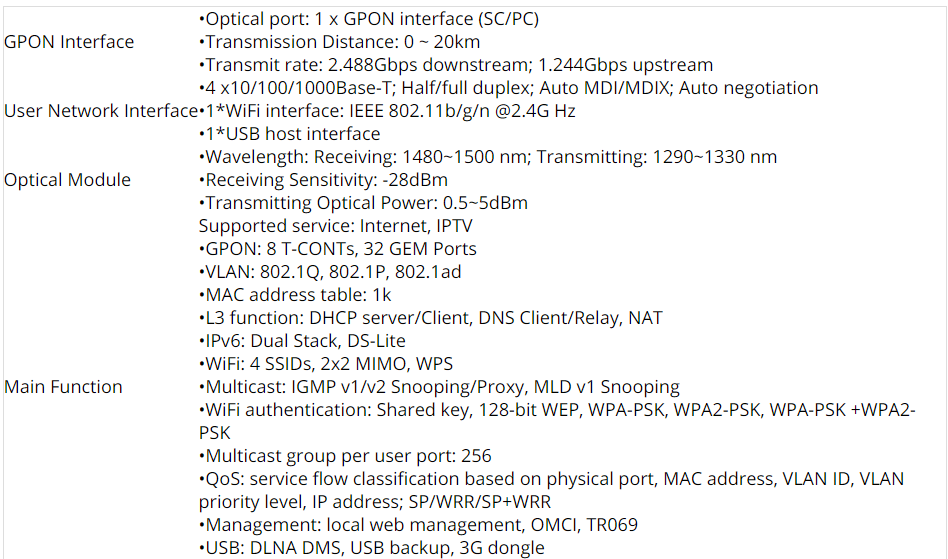

Executive Standard
GPON interface: SC/UPC or SC/APC PON interface,GPON standard
Ethernet interface: 1*10Mbps/100Mbps/1000Mbps adaptive port+3*10Mbps/100Mbps adaptive port,RJ-45 type,IEEE802.3 and IEEE802.3u
standard
Phone interface: RJ-11 type
WLAN interface: IEE802.11b,IEEE802.11g,IEEE802.11n standard,built-in antenna
USB interface:standardized USB2.0
Applications
Catering for different scenarios it provides different interfaces such as FE,GE,VoIP, E1, WiFi,USB and other interfaces to meet the requirements of FTTH,FTTO and FTTB application modes, not only for home user, but also for commercial users.It supports full service operation with high QoS and security, such as HSI, VoIP, IPTV.
Easy for deployment Mounting mode and fiber coiling make installation very easy.
Easy for trouble shooting Support ONT signal tracing and performance monitoring, and quickly locate fault on ONT.
Particular power saving Supports status monitoring when ONT is free, and enter low-power consumption state; Optical module can also enter low-power low-power consumption state.
