Parameter |
Unit |
Value |
|||
|
Connector Type |
FC/UPC,FC/APC,SC/UPC,SC/APC,LC/UPC,LC/APC,ST/PC,MPO |
||||
|
Fiber Type |
Multi-Mode |
Single Mode |
|||
|
Insertion Loss |
dB |
Typ.≤0.1 Max.≤0.2 |
Typ.≤0.1 Max.≤0.3 |
||
|
Return Loss (Typ.) |
dB |
≥36 (no APC connector) |
/PC |
/UPC |
/APC |
|
|
|
|
≥45 |
≥50 |
≥55 |
|
Repeatability |
dB |
≤0.1 |
|||
|
Interchangeability |
dB |
≤0.2 |
|||
|
Connection Durability |
times |
≥1000 |
|||
|
Operating/Storage Temperature |
°C |
-40~+80 |

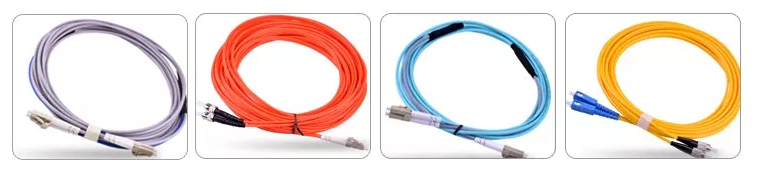

Product Display

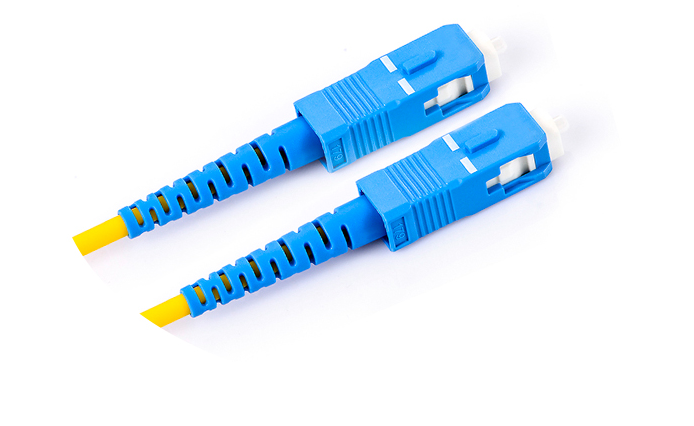

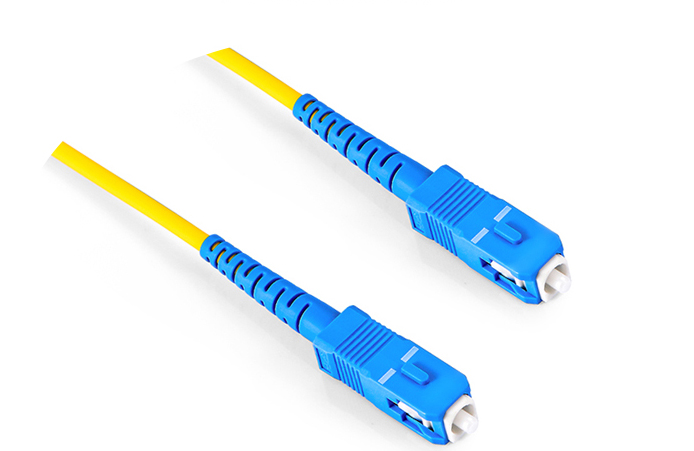

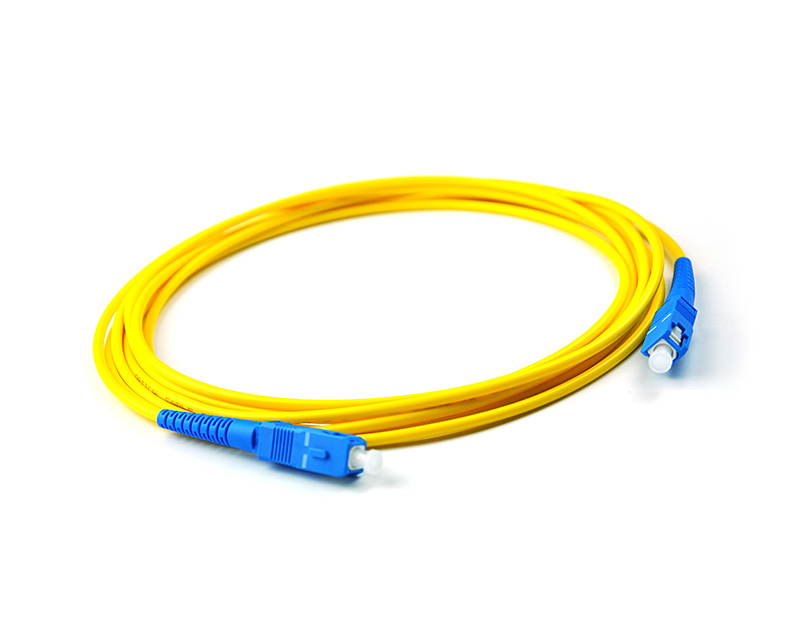

Easy to strip fibre buffering SC UPC to SC UPC Simplex fiber patch cord
Fibre patch Description
The patch cord is made by 2.0mm or 3.0mm PVC sheath simplex or duplex indoor cable and then is completed with SC. ST. FC or LC connectors.
It provides a stable and reliable connection both SM or MM and single or dual fiber. PC, UPC and APC is optional.
Low insertion loss.
High return loss.
High stability and reliability.
