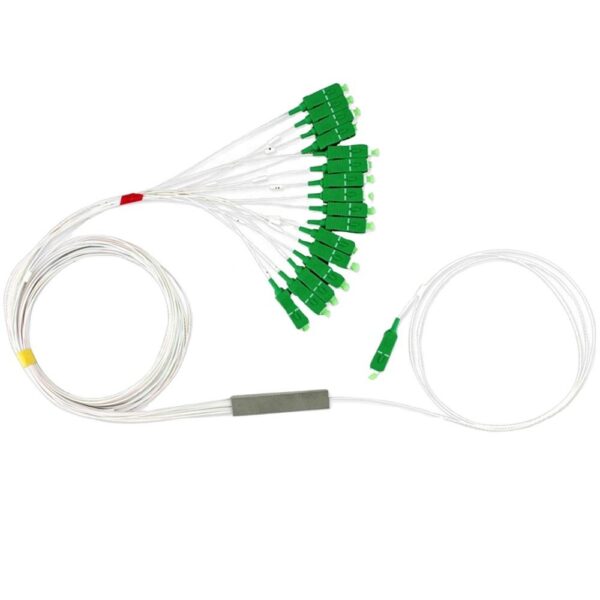

PLC (Planar Lightwave Circuit) splitters is used for fiber optic signal splitting in PON networks: The compact size
makes them suitable for installation in splice trays and placed in joint closures, cabinets or optical termination panels
The PLC splitters are available with one or two input ports and up to 64 output ports.
Key Features
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength: 1260-1650nm
6) Wide Operating Temperature: -40°C – 85°C
7) High Reliability and Stability
Application
1) LAN, WAN and Metro Networks
2)FTTH project & FTTX Deployments
3)CATV System
4)GPON, EPON
5)Fiber Optic Test Equipment
6)Data-base Transmit Broadband Net
|
Fiber optic splitter technical specifications
|
|
|
|
|
|
|
|
|
|
|
Wavelength(nm)
|
1260-1650
|
|
|
|
|
|
|
|
|
|
Parameters
|
1×4
|
1×8
|
1×16
|
1×32
|
1×64
|
2×4
|
2×8
|
2×16
|
2×32
|
|
Insertion Loss(with connector)(dB)
|
≤7.4
|
≤10.7
|
≤13.7
|
≤16.9
|
≤21
|
≤7.8
|
≤11.5
|
≤14.5
|
≤17.7
|
|
Insertion Loss(W/O connector)(dB)
|
≤7.7
|
≤11.2
|
≤14.2
|
≤17.5
|
≤21.5
|
≤8.3
|
≤12
|
≤15
|
≤18.2
|
|
Uniformity (dB)
|
≤0.8
|
≤1.0
|
≤1.4
|
≤1.9
|
≤2.7
|
≤1.7
|
≤1.7
|
≤2.2
|
≤2.7
|
|
PDL(dB)
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.4
|
≤0.2
|
≤0.4
|
≤0.4
|
≤0.4
|
|
Size(bare bype)
(H×W×L)(mm)
|
4×4×50
|
|
|
4×7×50
|
4×12×60
|
4×4×50
|
|
|
4×7×50
|
|
Return Loss(dB)
|
>50
|
|
|
|
|
|
|
|
|
|
Directivity(dB)
|
>55
|
|
|
|
|
|
|
|
|
|
Temperature Range(°C)
|
-40~+75
|
|
|
|
|
|
|
|
|
|
Storage Temperature(°C)
|
-40~+85
|
|
|
|
|
|
|
|
|
