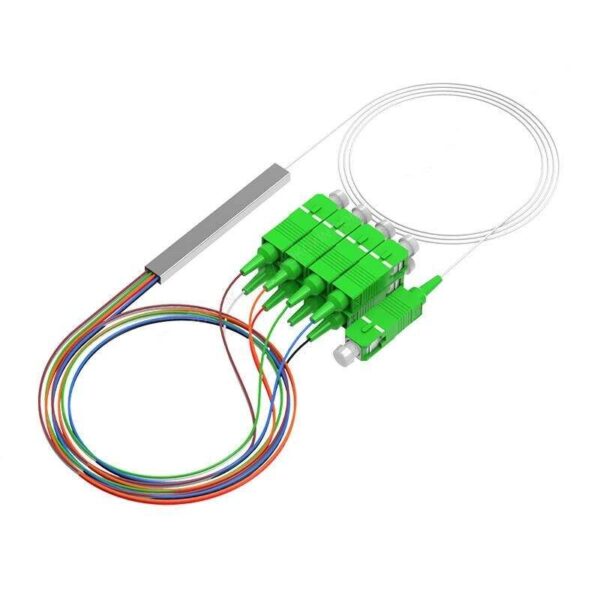

Fiber Optic PLC Splitter 1×2 1×4 1×8 1×16 Optical Steel Tube SC UPC FTTH

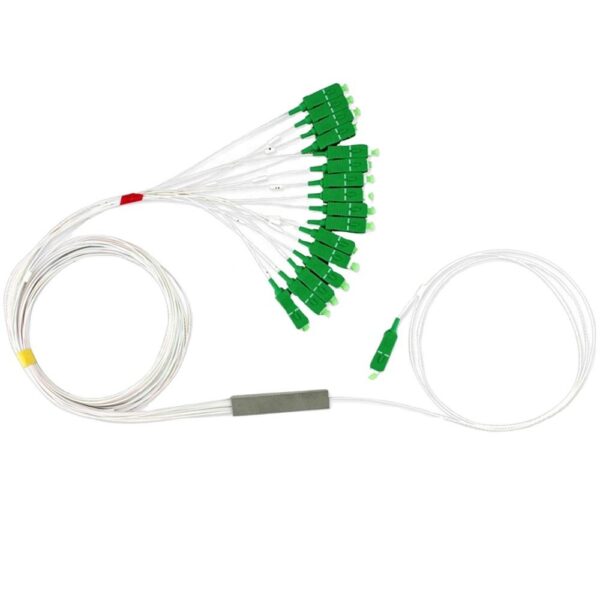

1×2 1×4 1×8 1×16 High Quality Fiber Optic PLC Splitter SM 0.9mm 1m/1.5m FTTH

 Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and this pasiv spliter 1:8 is widely used in FTTX PON to realize optical signal power management.





Key Features:

1) Low Insertion loss

2) Low PDL

3) Compact Design

4) Good channel-to-channel uniformity

5) Wide Operating Wavelength: 1260-1650nm

6) Wide Operating Temperature: -40°C – 85°C

7) High Reliability and Stability



Application :

1) FTTX Systems

2) PON Networks

3) CATV Links

4) Optical Signal Distribution

5) Local Areal Networks (LAN)
6) Fiber Communication Systems



Specification:

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Packaging Dimension (mm)   (L×W×H)	40×4×4	40×4×4	40×4×4	40×4×4	50×7×4	60×12×4

Notes:1.Specified without connectors.

           2.Add an additional 0.2dB loss per connector

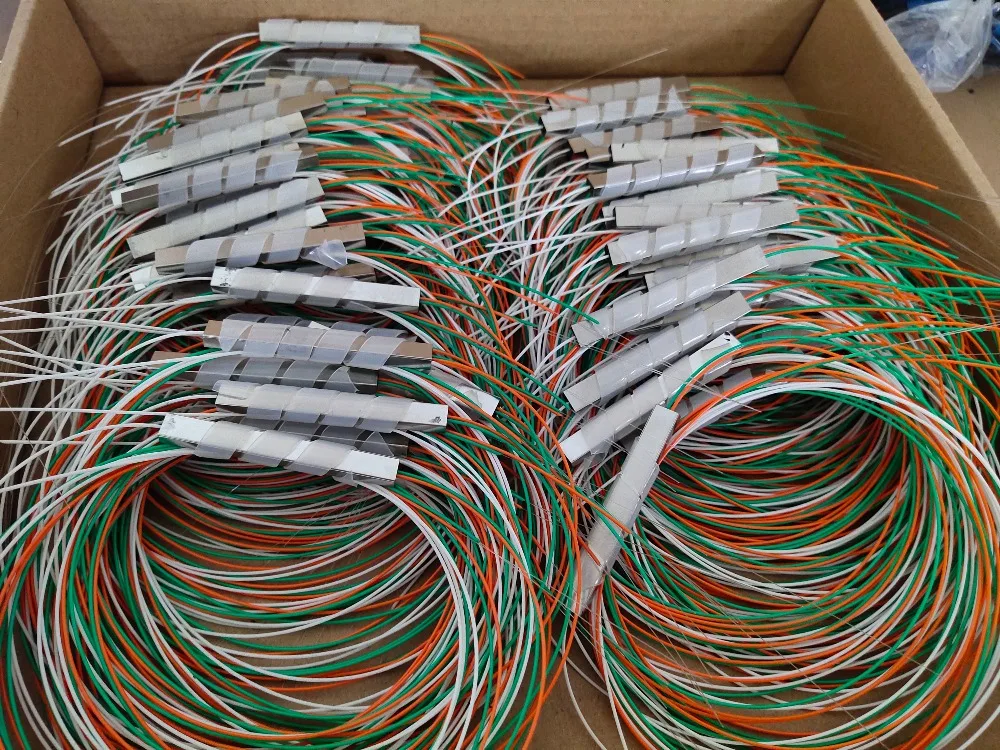

Detail Image Picture

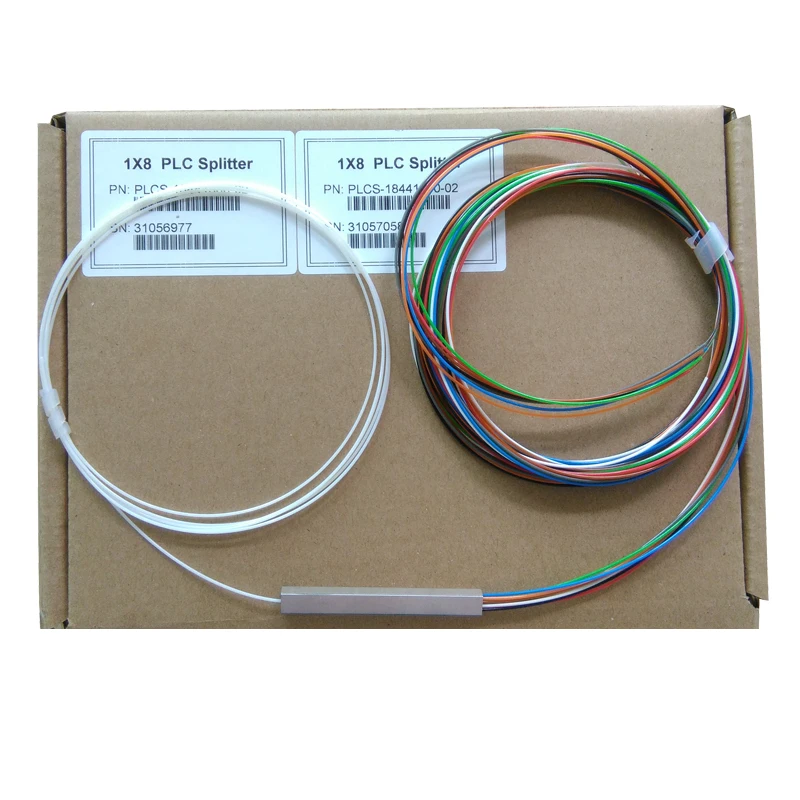

The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or Foclink brand are available
Inner packing: individual package 1pcs in a blister box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.

Transportation:ship it by air ,by sea, by express (DHL ,FEDEX ,UPS ,TNT ….)

1).Lead time

With more than 200 employees in my company,at least 10,000 connectors can be produced.

 2).Research Department

With our separate research team,so we are albe to have products made according to your requirements.

 3).Qulity assurance

Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test.

The guarantee period is 10 years.So if there are problems with the goods,replacement will be available.



1.What is your MOQ?
Foclink: Normally is 1pcs/item,could be coordinated if you have detail requirements.
2.How about your delivery date?
Foclink: Delivery date is about 3-5days, it depends on the order quantity.
3.Can you supply sample for customers?
Foclink: of course, however the delivery cost will be charged on customer’s account
4.How about your price?
Foclink: We are supplying products with very competitive price based on good performance.
5.Do you offer OEM Service ?
Foclink: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description;





Foclink Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments. The main products of Foclink include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry
