- Model Number:DW-SCMD
- Type:Fiber Adapter & Connectors
- Place of Origin:Zhejiang, China
- Use:seal a open micro duct
- Warranty Time:None
- Network:None
- High temperature resistance:-40℃ ~ 65℃
-
- Packaging Details
Normal Package
- Lead time:Quantity(pieces)1 – 200>200Lead time (days)7To be negotiated

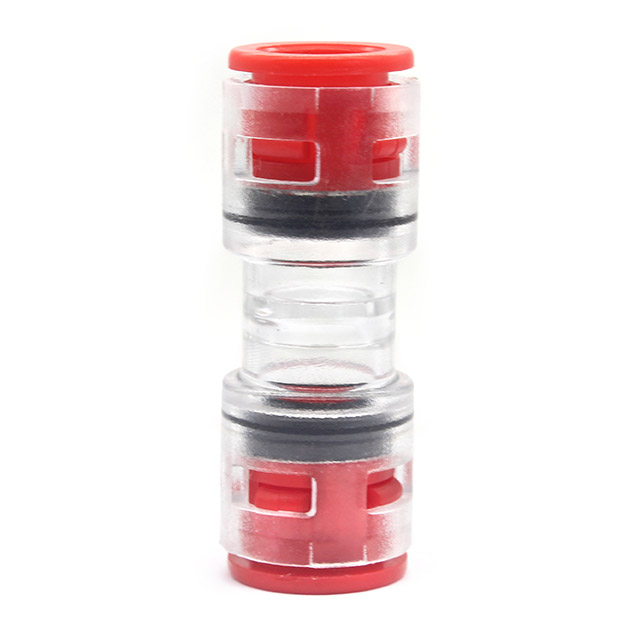

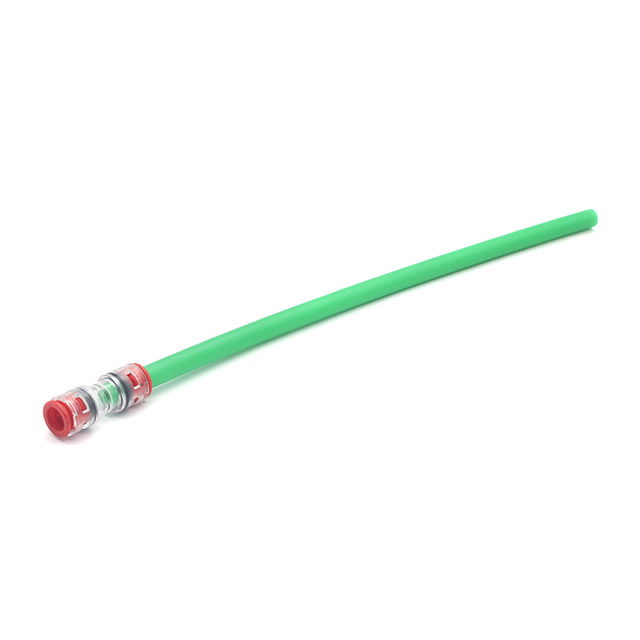

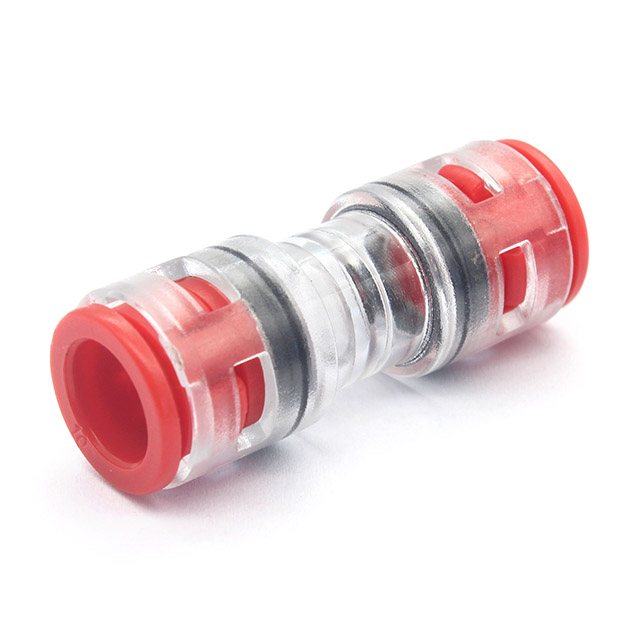

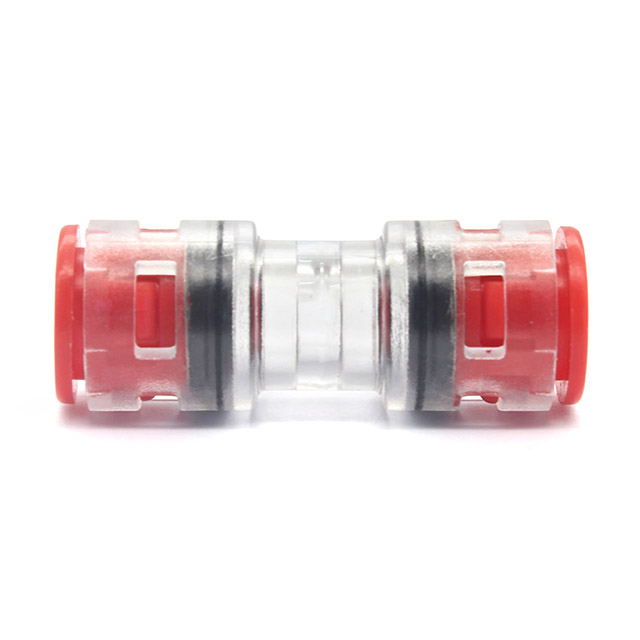

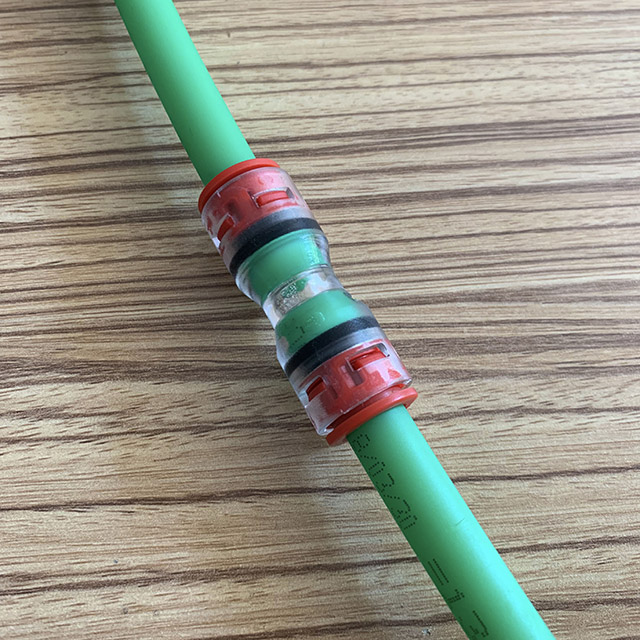

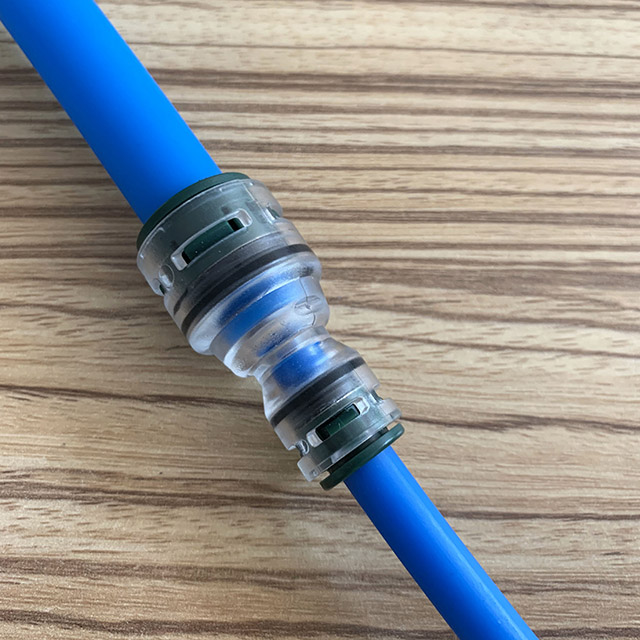

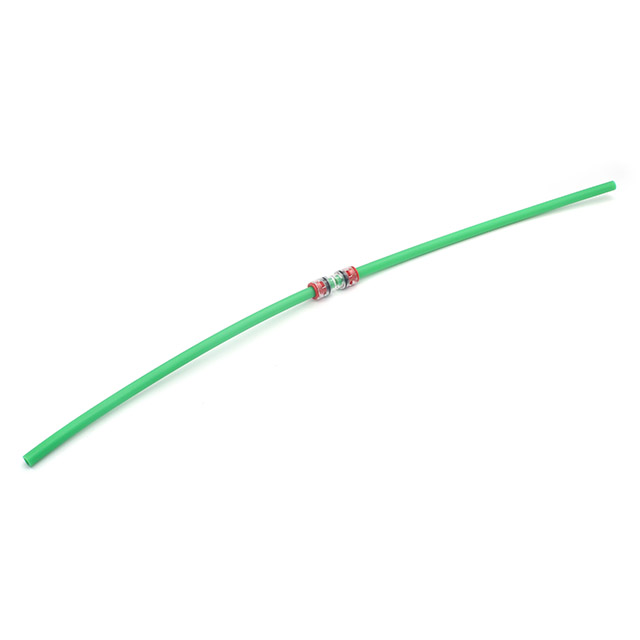

● Connect two microducts which are the same outer diameter
● Easy installation, without any special tools
● Transparent plastics body, easy to observe the situation
● High temperature resistance -40℃ ～ 65℃
● High pressure resistance
● Standard EN50411-2-8
|
Item No.
|
Duct OD/ID
(mm)
|
Pressure Resistance
|
Connectivity
|
|
DW-SCMD3/2.1
|
3/2.1
|
25bar
|
50N
|
|
DW-SCMD5/3.5
|
5/3.5
|
25bar
|
55N
|
|
DW-SCMD7/3.5
|
7/3.5
|
25bar
|
75N
|
|
DW-SCMD7/4
|
7/4
|
25bar
|
75N
|
|
DW-SCMD8/5
|
8/5
|
25bar
|
85N
|
|
DW-SCMD8/6
|
8/6
|
25bar
|
85N
|
|
DW-SCMD10/8
|
10/8
|
25bar
|
125N
|
|
DW-SCMD12/8
|
12/8
|
25bar
|
135N
|
|
DW-SCMD12/10
|
12/10
|
25bar
|
135N
|
|
DW-SCMD14/10
|
14/10
|
25bar
|
155N
|
|
DW-SCMD14/12
|
14/12
|
25bar
|
155N
|
|
DW-SCMD16/12
|
16/12
|
25bar
|
200N
|
|
DW-SCMD18/14
|
18/14
|
25bar
|
220N
|
