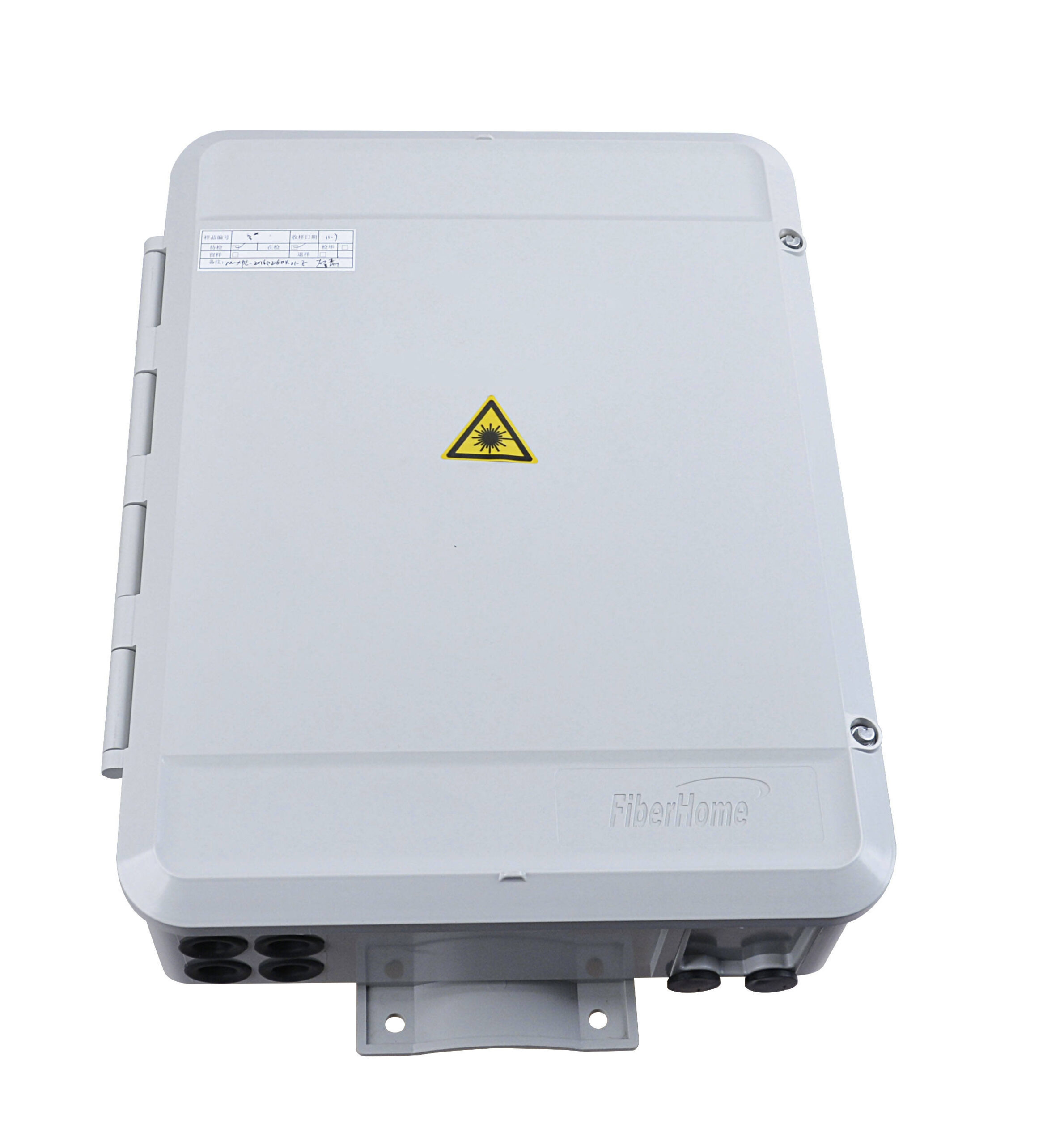

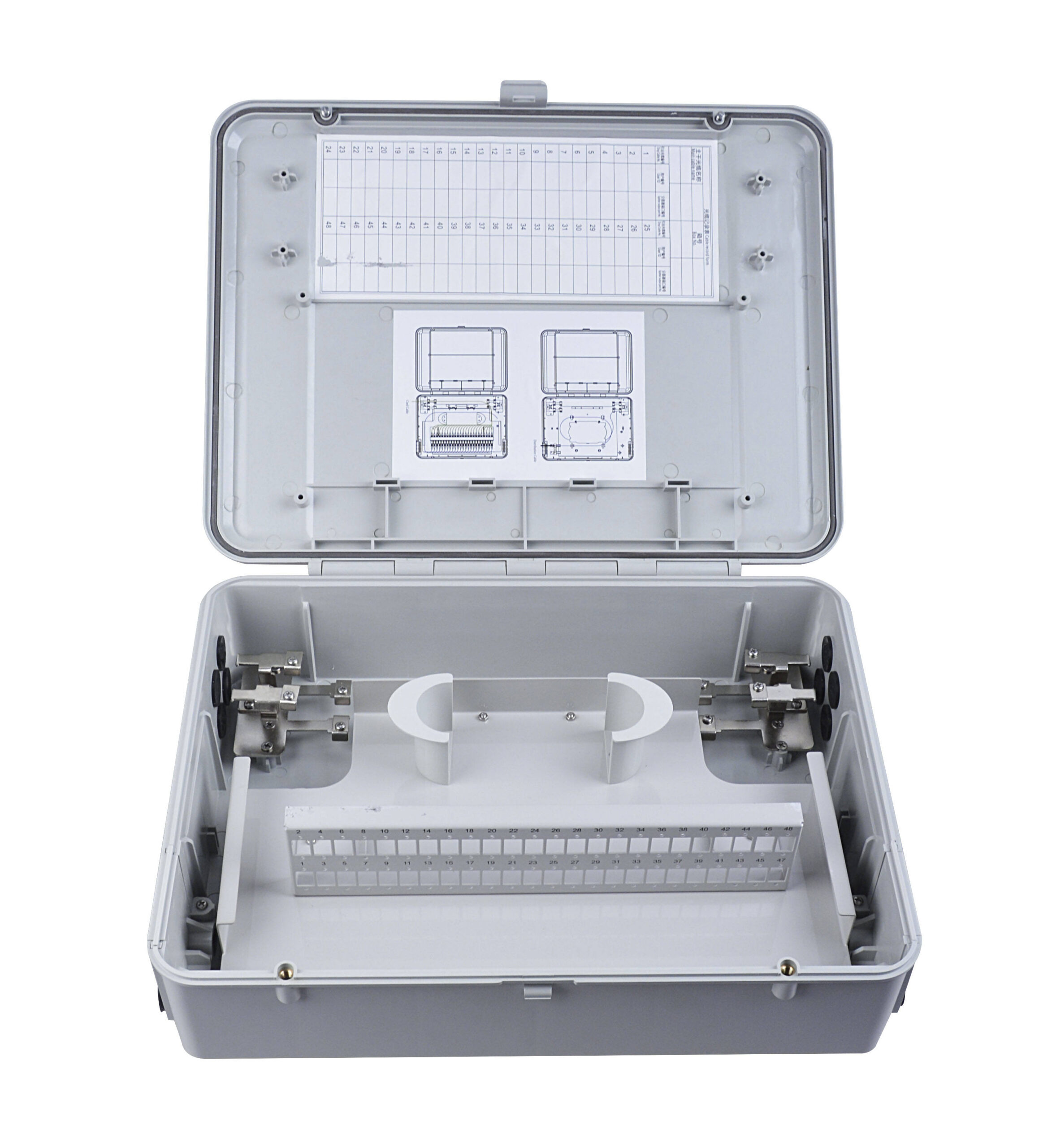

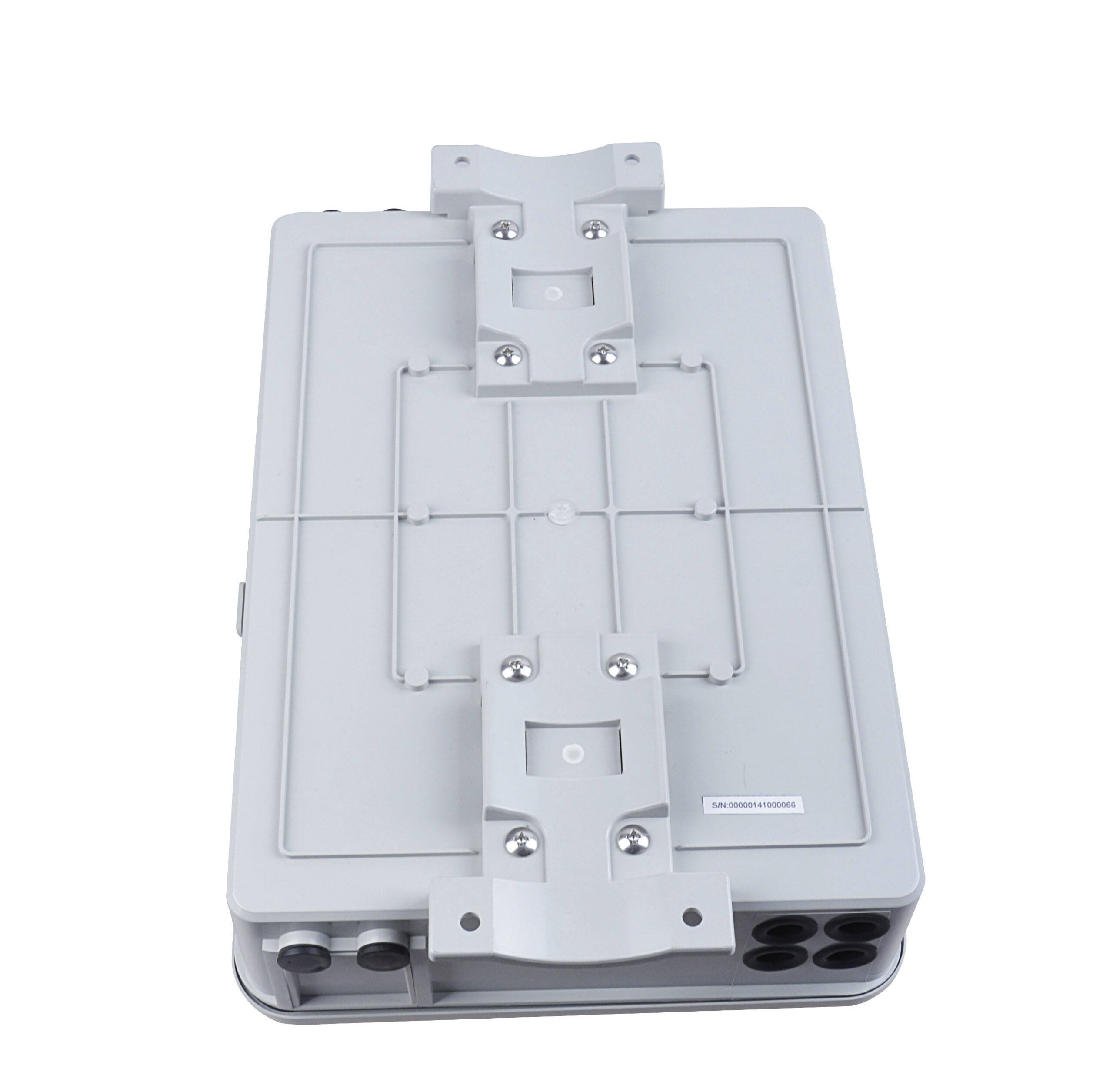

FTTH 16 way fiber optic distribution box
Fiber optic splitter box is suitable for protective connection of fiber cables and pigtails in FTTH. Widely used in the residential buildings; Can be installed on the wall; May adapt variety of optical connection styles
Features
l The high strength plastic, resistant to rain, For indoor and outdoor wall mount or pole mount
l All-optical Structure
l Low Insertion Loss, High Return Loss
l Good stability and reliability
Applications
l Optical LAN & WAN & CATV
l FTTH project & FTTX
l Testing instruments
l Optical fiber communication networks
l PON Networks
l Optical Signal Distribution
Specifications:
|
Operating temperature: |
-40°C – +70°C |
|
Storage temperature: |
-40°C – +70°C |
|
Relative humidity: |
≤90% (when the temperature is below 30°C) |
|
Atmosphere pressure |
62Kpa – 106Kpa |
|
Insulating resistance: |
≥2×104 MΩ / 500V (DC) |
|
Insertion loss: |
IL≤0.30dB(PC),IL≤0.30dB(APC) |
|
Return loss: |
PC≥40.0dB ,UPC≥50.0dB,APC≥60.0dB |
|
Interchangeability |
≤0.20dB |
