- Model Number:HD4103
- Type:Optical Talk Set
- Place of Origin:Zhejiang, China
- Use:engineering
- Warranty Time:1 year
- Network:None
- Product name:HD4103 Optical Talk Set
- model:HD4103
- Dimensions:198*102*50
- Dynamic Range:>32db
- optical connector:FC/PC
- Wavelength:Wavelength
- Transmission Distance:>=100km
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Shanghai/Ningbo
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description
HD4103 Optical Talk Set is an intelligent and efficient instrument that combines in one set the functions of both a digital
optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and
fiber attenuation value testing in data network, CATV and Telecommunication network. The HD4103 Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.
optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and
fiber attenuation value testing in data network, CATV and Telecommunication network. The HD4103 Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.
Products Description
|
Wavelength(nm)
|
1310/1550
|
|
Emitter Type
|
FP-LD
|
|
Transmission Distance(KM)
|
≥100
|
|
Dynamic Range(dB)
|
≥ 33
|
|
Output Power(dB)
|
-5~-7
|
|
Modulation(Hz)
|
CW271K2K
|
|
Output Stability(dB30min20°℃)
|
≤0.1
|
|
Power Supply
|
3 pcs 1.5V Alkaline Batteries/8.4V Power Supply Adaptor
|
|
Battery Operating Time
|
5hours
|
|
Optical Connector
|
FC/PC
|
|
Operating Temperature(°C)
|
-10~+60
|
|
Storage Temperature(°C)
|
-25~+70
|
|
Dimension(mm)
|
198X102X50
|

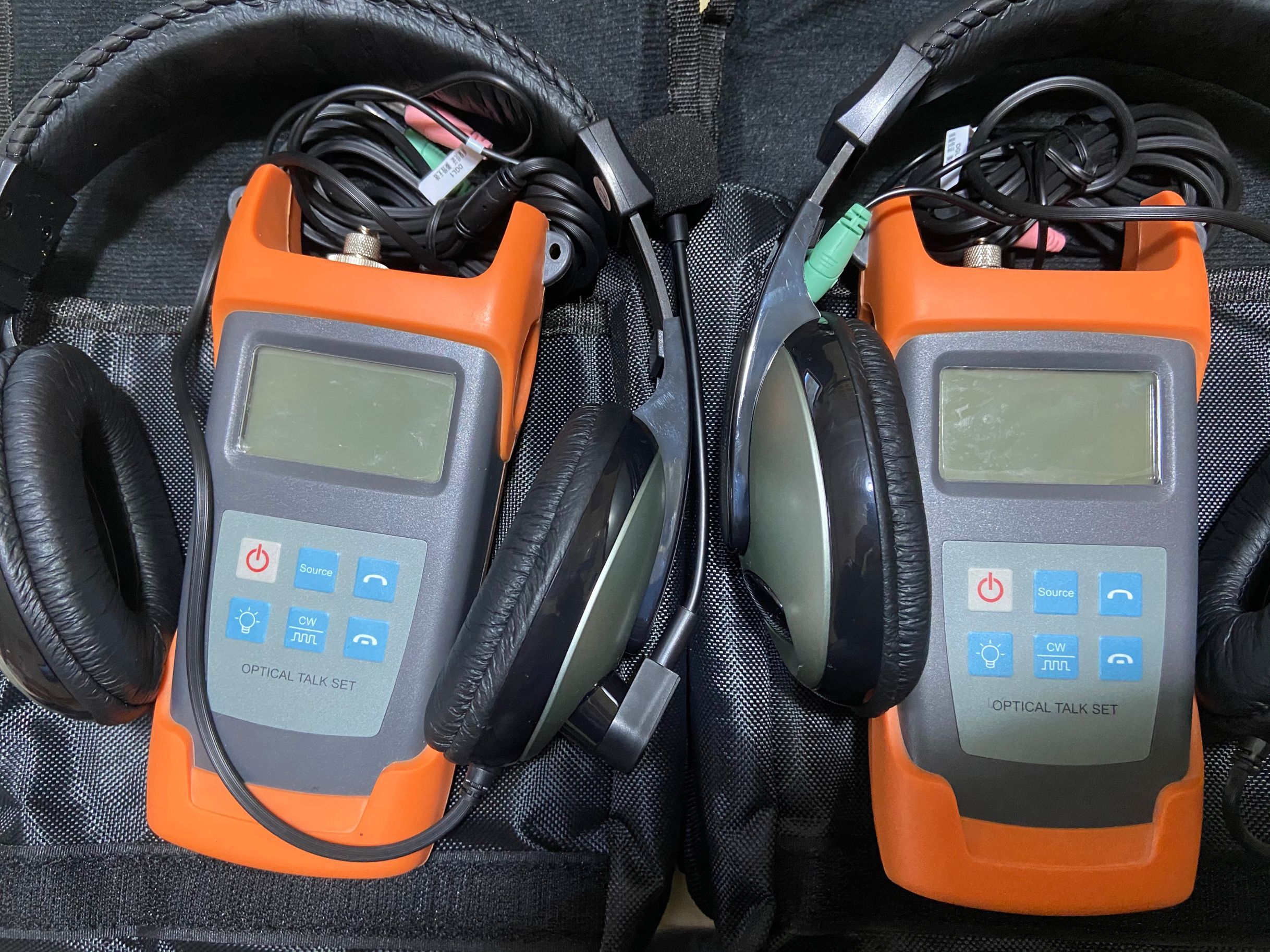

Details Images
Features：
1.Full-duplex digital communication
2.Together with Optical Clip-on Coupler
3.enables on line communications available
4.Large LCD display with backlight
5.Low battery power indication
6.Adigital optical phone call and a stabilized light source.
7.Good conversation connection and low background noise
