Product Description

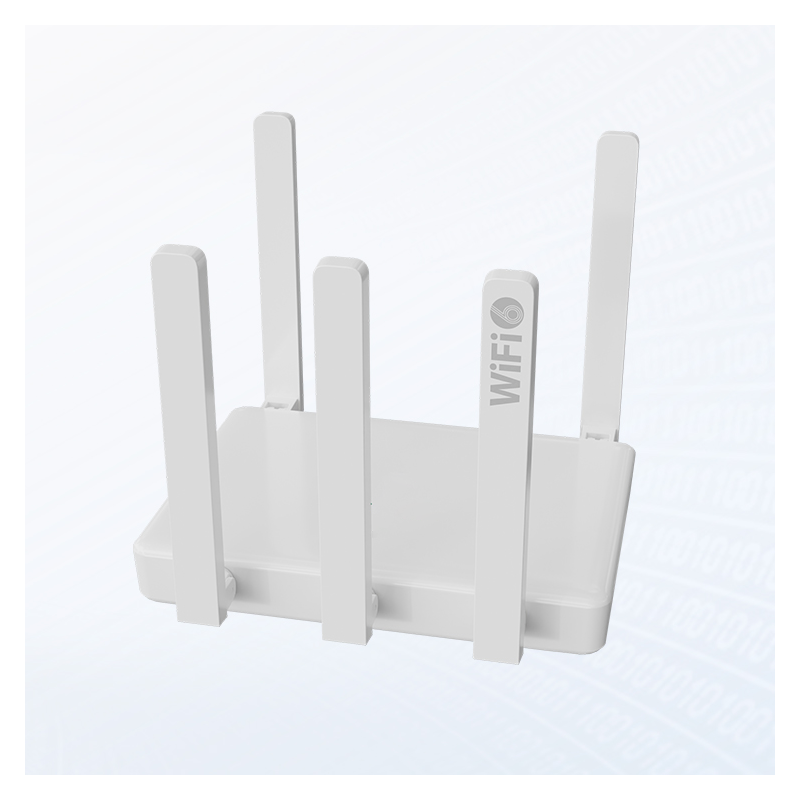

The WiFi6 Mesh Router 1GE WAN + 3GE LAN WiFi6 Mesh Router is a high-performance, wired-only networking device designed to deliver stable and secure internet connectivity in home, SOHO, and enterprise environments. With one dedicated Gigabit WAN port, it connects directly to fiber modems, ONTs, or broadband gateways, while the three Gigabit LAN ports distribute high-speed network access to computers, IP cameras, IPTV boxes, VoIP phones, and smart TVs.
This router supports full-duplex gigabit switching, offering low-latency, high-throughput communication for bandwidth-intensive applications such as HD video streaming, online gaming, and cloud services. It is ideal for use in fiber-to-the-home (FTTH) deployments as a customer-premises router when paired with GPON or EPON ONTs.
Key Features: WiFi6 Mesh Router
-

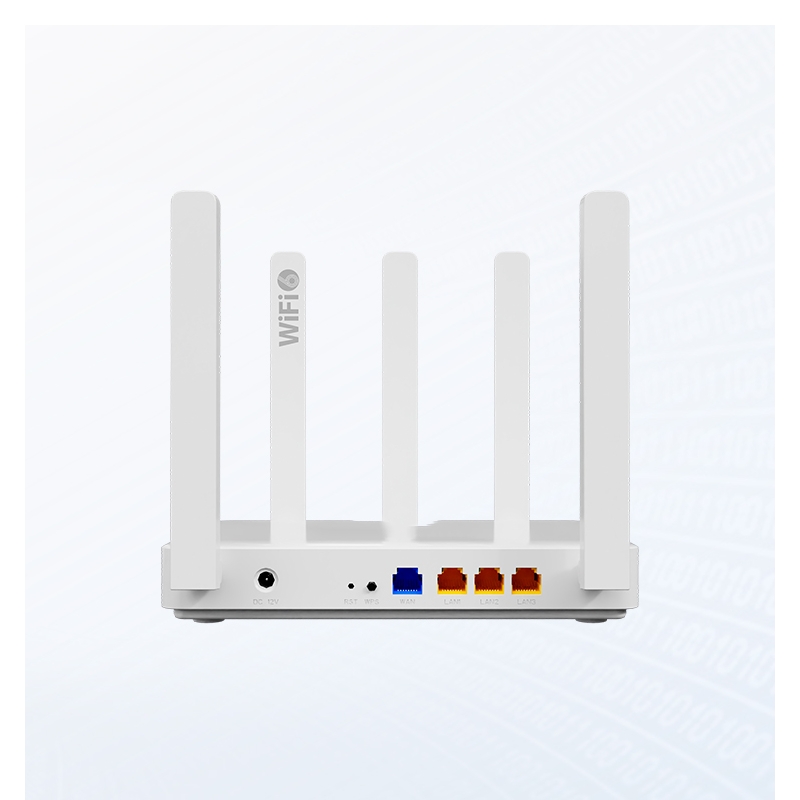

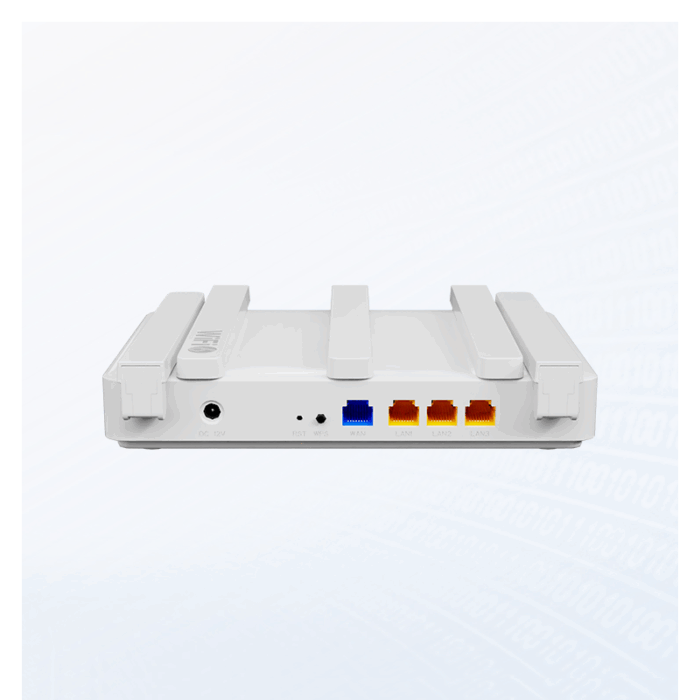

1 × Gigabit WAN port (RJ45 interface)
-
3 × Gigabit LAN ports (RJ45 interface)
-
10/100/1000 Mbps auto-negotiation
-
Supports PPPoE, DHCP, Static IP
-
VLAN tagging and port-based isolation
-
Plug-and-play operation
-
Web UI-based configuration and diagnostics
-
Low power consumption, fanless design
-
Suitable for home broadband, FTTH, and IPTV
General Specifications of WiFi6 Mesh Router
Feature | Description |
---|---|
WAN Port | 1 × 10/100/1000 Mbps RJ45 |
LAN Ports | 3 × 10/100/1000 Mbps RJ45 |
Switching Type | Store-and-forward |
Network Standards | IEEE 802.3, 802.3u, 802.3ab |
Network Protocols | IPv4, IPv6, DHCP, NAT, PPPoE |
VLAN Support | Yes (802.1Q) |
QoS Support | Yes (802.1p/DSCP) |
Management | Web-based GUI |
Status LEDs | Power, WAN, LAN activity indicators |
Technical Specifications
Parameter | Value |
---|---|
Switching Capacity | 8 Gbps |
MAC Address Table | 1K entries |
Packet Forwarding Rate | Up to 5.96 Mpps |
Buffer Memory | 2 Mb to 4 Mb |
Transmission Mode | Full-duplex and half-duplex support |
MTBF | Over 100,000 hours |
Electrical Characteristics: WiFi6 Mesh Router
-
Power Supply: 12V DC / 1A
-
Power Consumption: Less than 5W
-
Surge Protection: 2kV on Ethernet ports
-
Adapter Included: Yes
Environmental Specifications
Parameter | Minimum | Maximum | Unit |
---|---|---|---|
Operating Temperature | 0 | 45 | °C |
Storage Temperature | -20 | 70 | °C |
Operating Humidity | 5 | 90 | % RH |

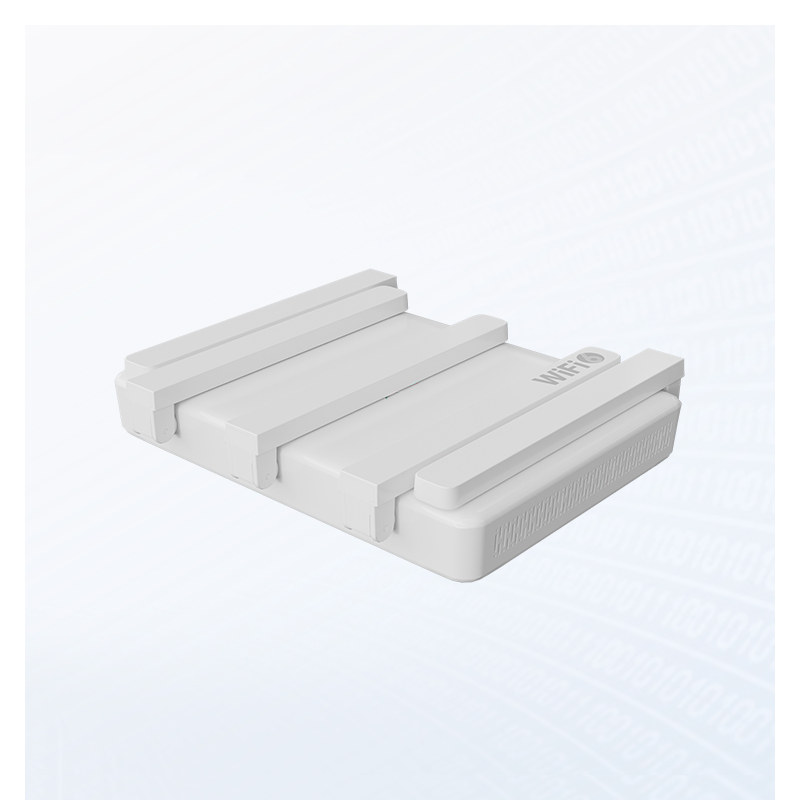

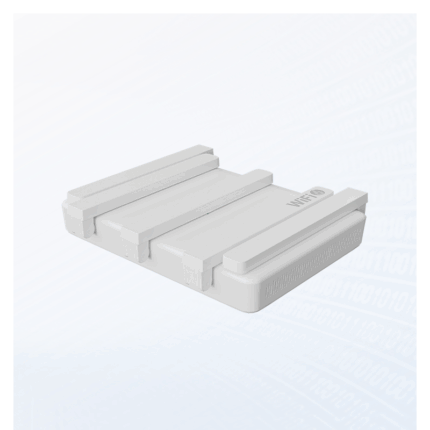

Physical Characteristics: WiFi6 Mesh Router
-
Dimensions: 150 × 95 × 30 mm
-
Weight: Approximately 200 grams
-
Enclosure: ABS plastic, fanless design
-
Color: Available in black or white
-

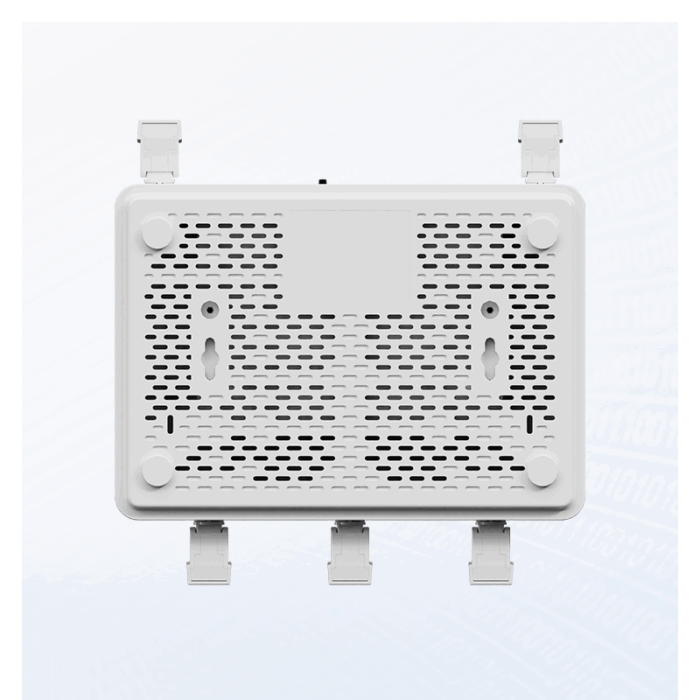

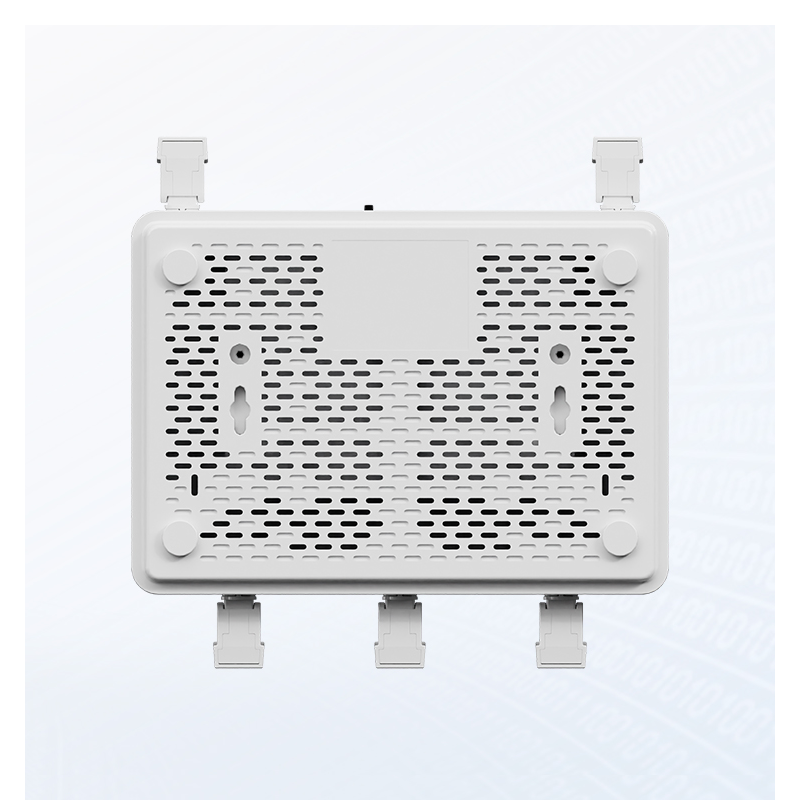

Mounting: Desktop or wall-mountable
Certifications and Safety: Ethernet Router
-
CE: European Conformity
-
FCC: U.S. Electromagnetic Compliance
-
RoHS: Restriction of Hazardous Substances
-
ISO9001: Quality Management System
