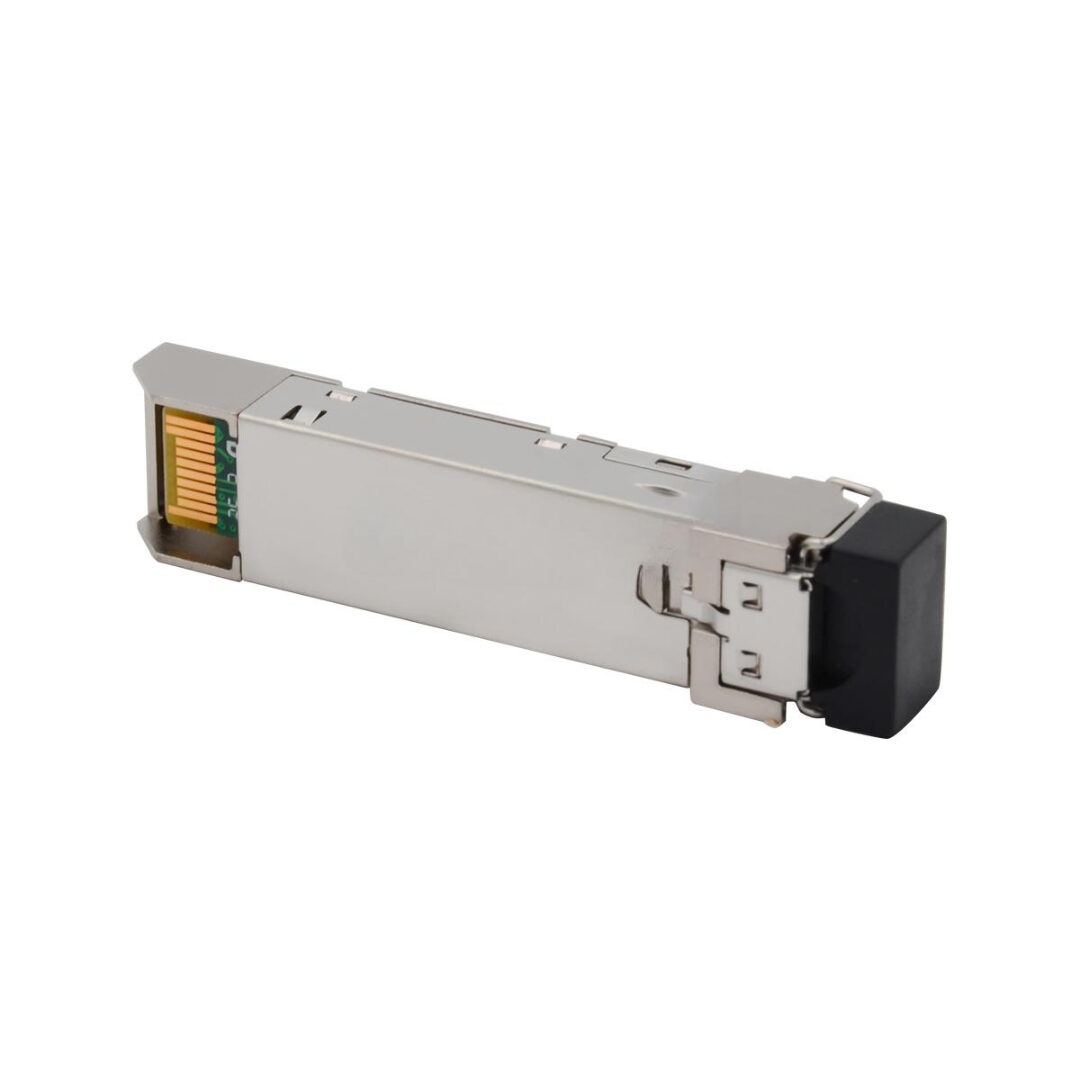

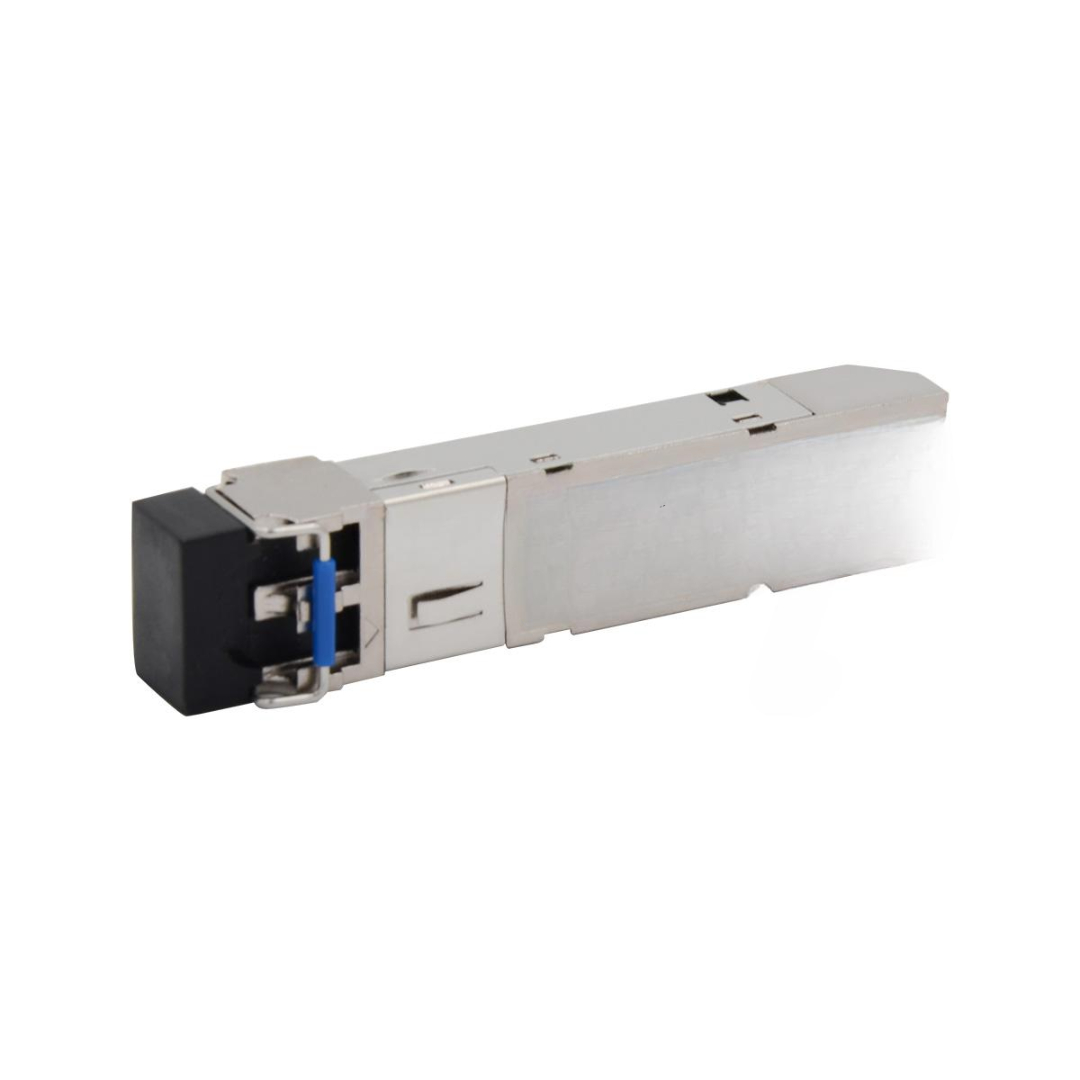

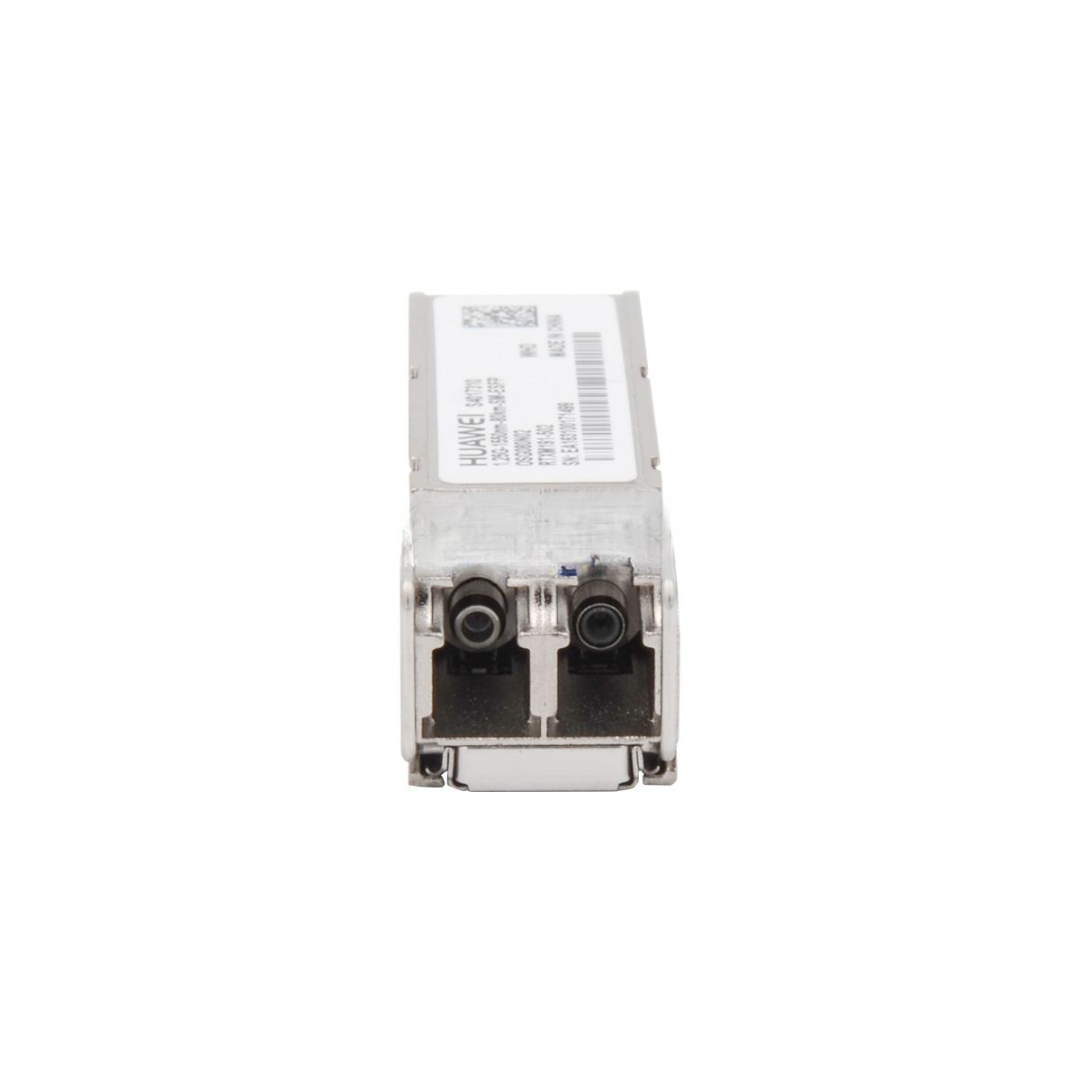

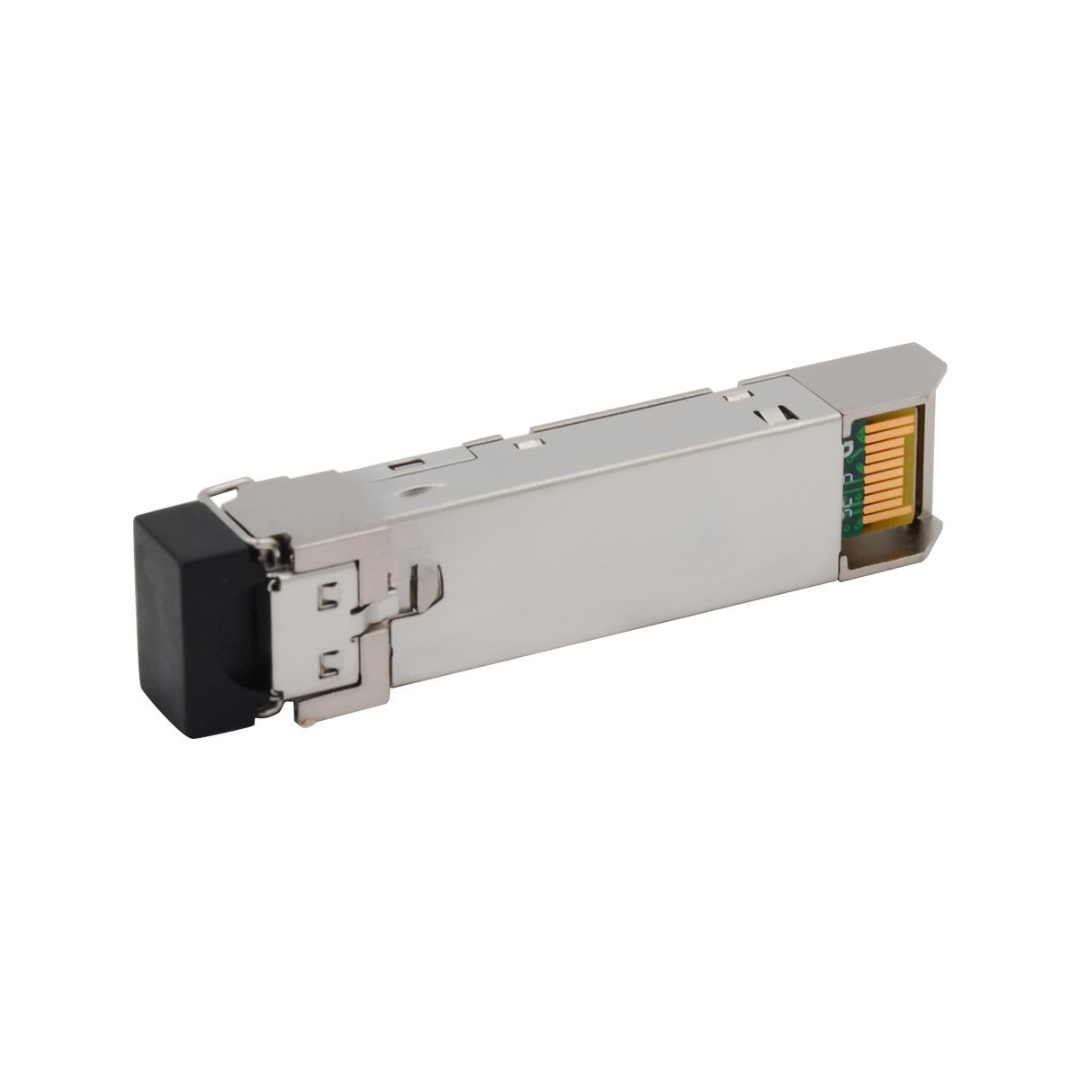

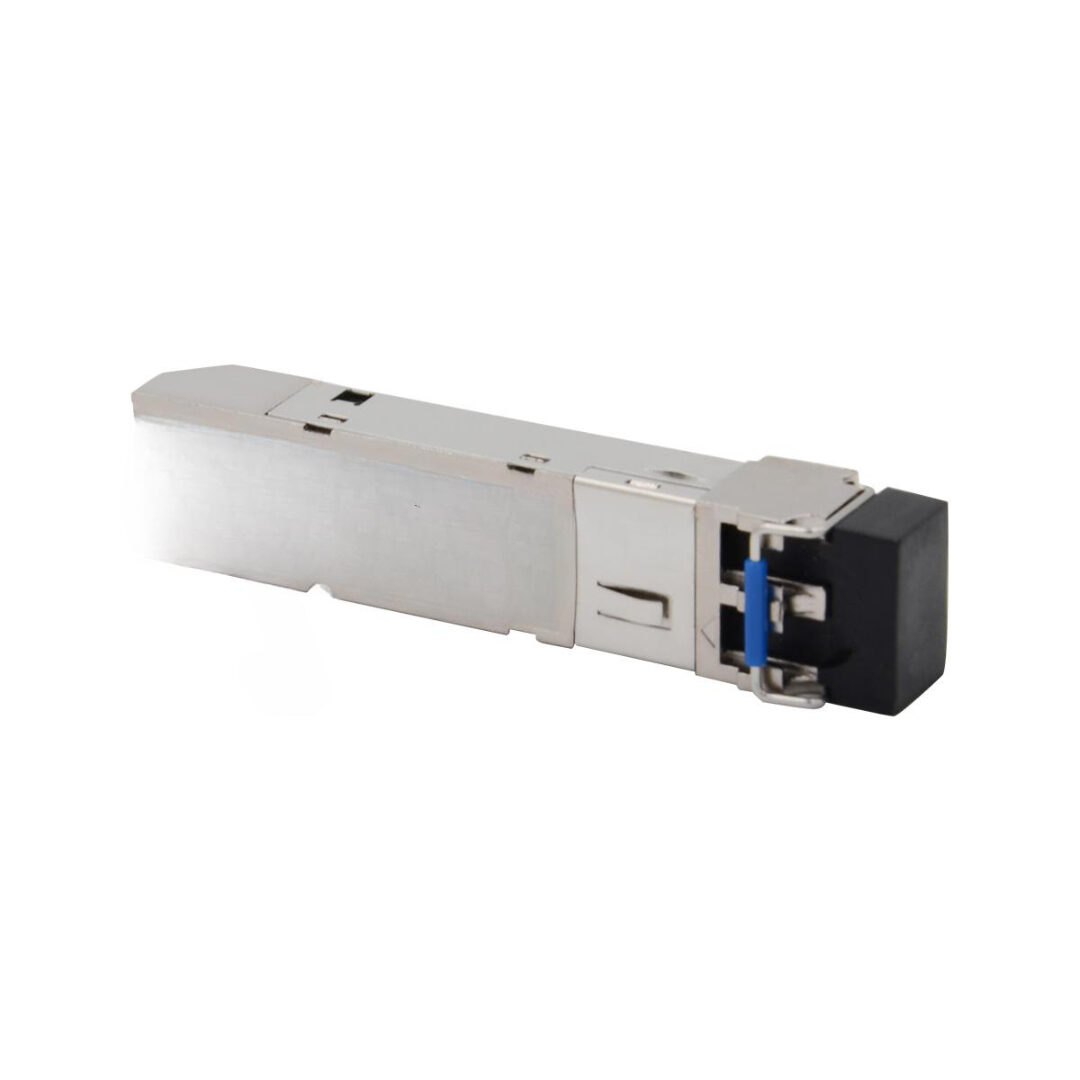

GE 80KM SFP/OSG080N02 WHD Huawei Brand New Transceiver
The GE 80KM SFP/OSG080N02 WHD is a Huawei original Gigabit Ethernet optical transceiver, purpose-built for ultra-long-distance communication over single-mode fiber (SMF). With a reach of up to 80 kilometers, this transceiver operates at a standard 1550nm wavelength, making it ideal for metropolitan area networks (MAN), telecom backhaul, and inter-office long-haul links.
Fully hot-pluggable and compliant with IEEE 802.3z and SFF-8472 standards, the OSG080N02 WHD supports DDM (Digital Diagnostic Monitoring) for real-time tracking of key parameters. Its reliable and durable design makes it a top choice for ISPs, data centers, and enterprise networking.
Key Features
- Model: OSG080N02 WHD
- Condition: 100% Brand New, Original Huawei OEM
- Form Factor: SFP (Small Form-Factor Pluggable)
- Data Rate: 1.25 Gbps (Gigabit Ethernet)
- Wavelength: 1550 nm
- Transmission Distance: Up to 80 kilometers
- Fiber Type: Single-Mode Fiber (SMF)
- Connector Type: LC Duplex
- Digital Diagnostic Monitoring (DDM): Supported
- Hot-Pluggable: Yes
- Compatibility: Huawei and MSA-compliant SFP ports
Technical Specifications
| Specification | Details |
|---|---|
| Model | OSG080N02 WHD |
| Form Factor | SFP |
| Data Rate | 1.25 Gbps |
| Wavelength | 1550 nm |
| Transmission Distance | 80 kilometers |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Interface | LC Duplex |
| Laser Type | DFB |
| TX Power | 0 to +5 dBm |
| Receiver Sensitivity | < -24 dBm |
| DDM/DOM | Supported |
| Power Supply Voltage | 3.3V |
| Power Consumption | < 1.5W |
| Operating Temp. | 0°C to +70°C |
| Storage Temp. | -40°C to +85°C |
| Compliance | IEEE 802.3z, SFF-8472, RoHS |
| Warranty | 1–3 Years Manufacturer Warranty |
GE 80KM SFP/OSG080N02 Applications
- Metro Ethernet Networks — Long-distance carrier-grade fiber connectivity
- Inter-Campus Links — Reliable fiber backbone for university or corporate campuses
- FTTx and Telecom Backhaul — Ideal for ISPs and service provider infrastructure
- Data Center Interconnect (DCI) — Long-reach fiber between facilities
- SCADA & Industrial Networks — Secure long-range transmission in critical systems
Customization & OEM Options
- Private Branding — Custom labels with your logo and part number
- Multi-Vendor Encoding — Cisco, HP, Dell, and others available
- Extended Temperature Models — Industrial-grade versions for -40°C to +85°C
- Custom Testing — Pre-deployment compatibility and link performance tests
- Flexible Packaging — Bulk packs, retail boxes, or custom trays
- Regulatory Certification — CE, FCC, TAA, and others available upon request
Wholesale & Global Supply Information
- Huawei OEM Authenticity — Direct from authorized sources
- Stock Availability — Ready-to-ship for bulk procurement
- Worldwide Shipping — Fast and secure logistics worldwide
- Volume Discounting — Competitive rates for system integrators and ISPs
- Support Services — Tech consultation and installation guidance included
Why Choose theGE 80KM SFP/OSG080N02
Ultra Long Reach — Reliable 1G Ethernet over 80km without repeaters
Low Power & High Stability — Ideal for mission-critical fiber networks
Huawei OEM Quality — Backed by strict manufacturing standards
Versatile Compatibility — Works across Huawei and third-party switches
DDM Support — Monitors temperature, voltage, and link health in real time
Request Your Bulk Quote or Technical Datasheet Today
Optimize your long-distance optical links with the Huawei OSG080N02 WHD GE 80KM SFP Transceiver.
Contact us now for pricing, OEM options, or to place a high-volume order with rapid global delivery.
