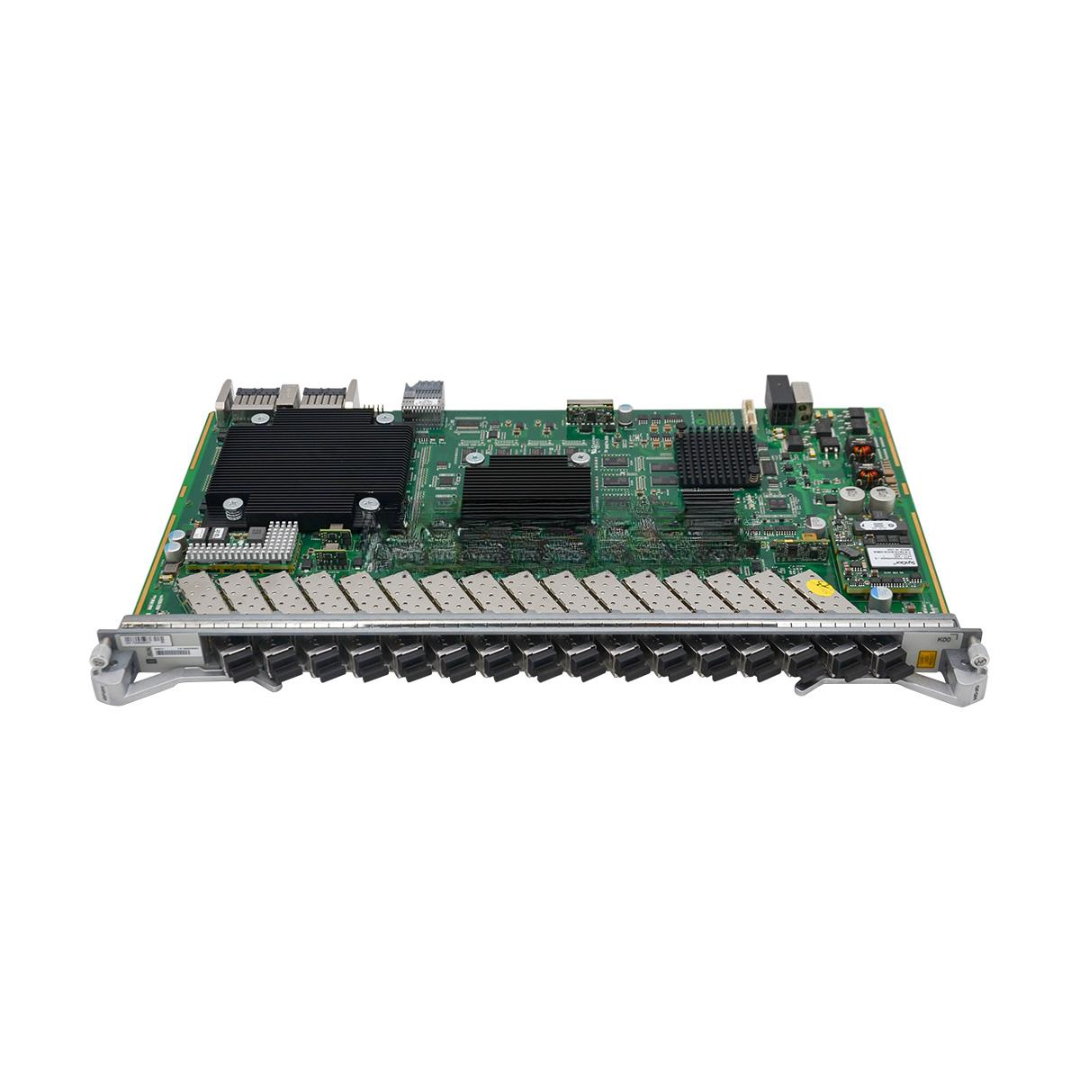

GFGH C++ GPON OLT Original New 16-Port Interface Board
The GFGH C++ GPON is a Huawei-compatible 16-port GPON OLT interface board, engineered for high-capacity fiber access networks. Designed to support up to 16 GPON interfaces per board, the GFGH module utilizes Class C++ optical transmitters to deliver extended reach and higher split ratios, making it ideal for dense residential, commercial, and enterprise fiber deployments.
This original new board is optimized for Huawei OLT platforms, such as the MA5800 and MA5600T series, offering seamless integration, carrier-grade reliability, and flexible service provisioning.
Key Features
-
Model: GFGH C++
-
Ports: 16 GPON ports (SC/PC connectors)
-
Optical Module Type: Class C++ (high-power optical budget)
-
Transmission Distance: Up to 40 km
-
Split Ratio: Up to 1:128 per port
-
Hot-Swappable: Yes
-
Compatibility: Huawei MA5800, MA5600T, and compatible chassis
-
Service Types: Internet, IPTV, VoIP, VPN, Enterprise Ethernet
-
GPON Standards: ITU-T G.984 series
-
QoS Support: Enhanced multi-service traffic scheduling and shaping
Technical Specifications
| Specification | Details |
|---|---|
| Model | GFGH C++ |
| Port Count | 16 GPON ports |
| Optical Class | C++ |
| Max Transmission Distance | 40 km |
| Max Split Ratio | 1:128 per port |
| Connector Type | SC/PC |
| Line Rate (Down/Up) | 2.488 Gbps / 1.244 Gbps |
| Wavelength (TX/RX) | 1490 nm (TX) / 1310 nm (RX) |
| Optical Budget | ≥ 32 dB |
| Hot Swappable | Yes |
| Power Consumption | ≤ 50W |
| Operating Temperature | -25°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95%, non-condensing |
| Compliance | ITU-T G.984, RoHS, CE, FCC |
| Warranty | 1–3 Years Manufacturer Warranty |
GFGH C++ GPON Applications
-
FTTH/FTTB/FTTC Networks — High-density GPON deployments in urban and suburban areas
-
Residential Broadband — Triple-play services: voice, video, and high-speed internet
-
Enterprise Access — Secure and scalable optical access for large campuses
-
ISPs & Carriers — Optimized for large-scale GPON infrastructure rollouts
-
Rural Connectivity Projects — Long-reach fiber access with minimal active nodes
Customization & OEM Options
-
Private Labeling — Branding with your company’s logo and packaging
-
Optical Class Options — Also available in Class B+, C+ (on request)
-
Custom Firmware — Pre-installed software configurations for specific applications
-
Multi-Platform Compatibility — Validated for various Huawei OLT models
-
Test Reports — Factory optical and electrical testing documentation available
GGFGH C++ GPON Wholesale & Global Supply
-
Huawei Original OEM Board — Guaranteed 100% brand new and authentic
-
Ready Stock — Immediate shipping for large GPON network rollouts
-
Worldwide Logistics — Priority export to over 60 countries with customs support
-
Volume Discounts — Special pricing for ISPs, integrators, and resellers
-
Technical Support — Help with firmware, compatibility, and deployment planning
Why Choose the GGFGH C++ GPON
-
High Optical Power — Class C++ for long-distance and high-split applications
-
High-Density Port Design — 16 GPON interfaces on one board
-
Carrier-Grade Quality — 24/7 reliability in large-scale access networks
-
Huawei OLT Compatible — Seamless integration with MA5800, MA5600T
-
Future-Proof — Supports advanced GPON and triple-play services
Enhance your GPON access network with the GFGH C++ Huawei 16-Port GPON OLT Interface Board — engineered for performance, scalability, and long-term reliability.
Contact us now for a quote, bulk pricing, or a technical datasheet!
