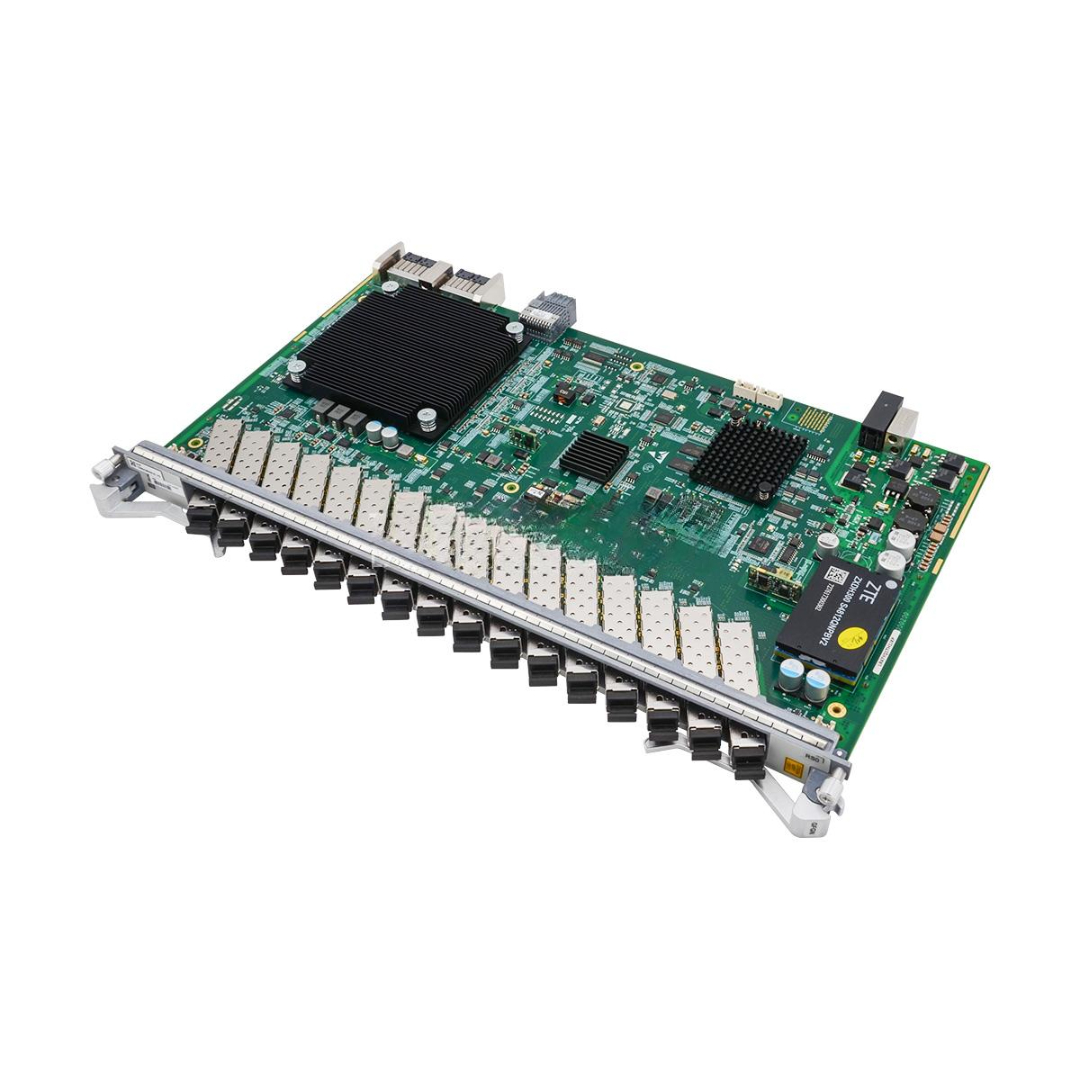

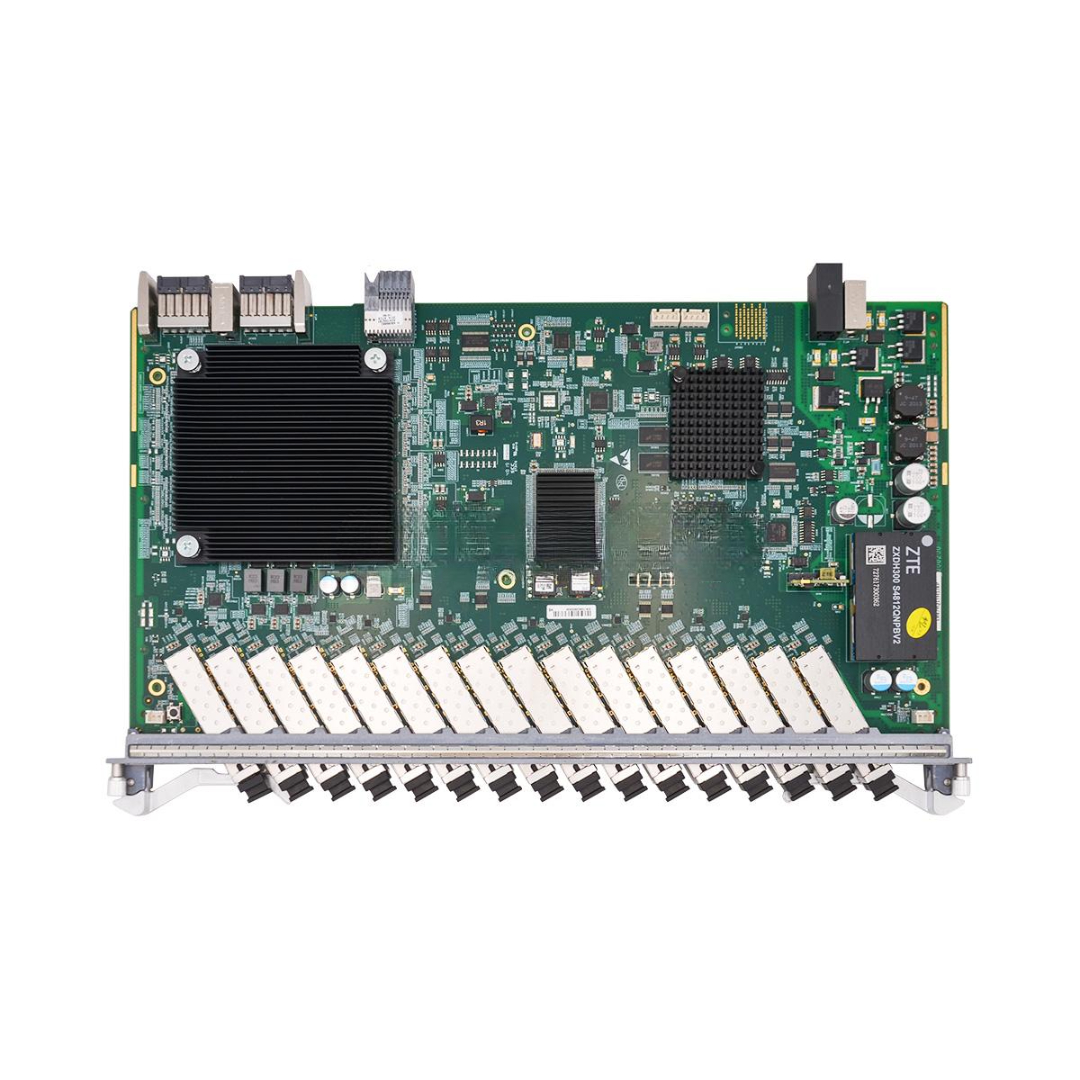

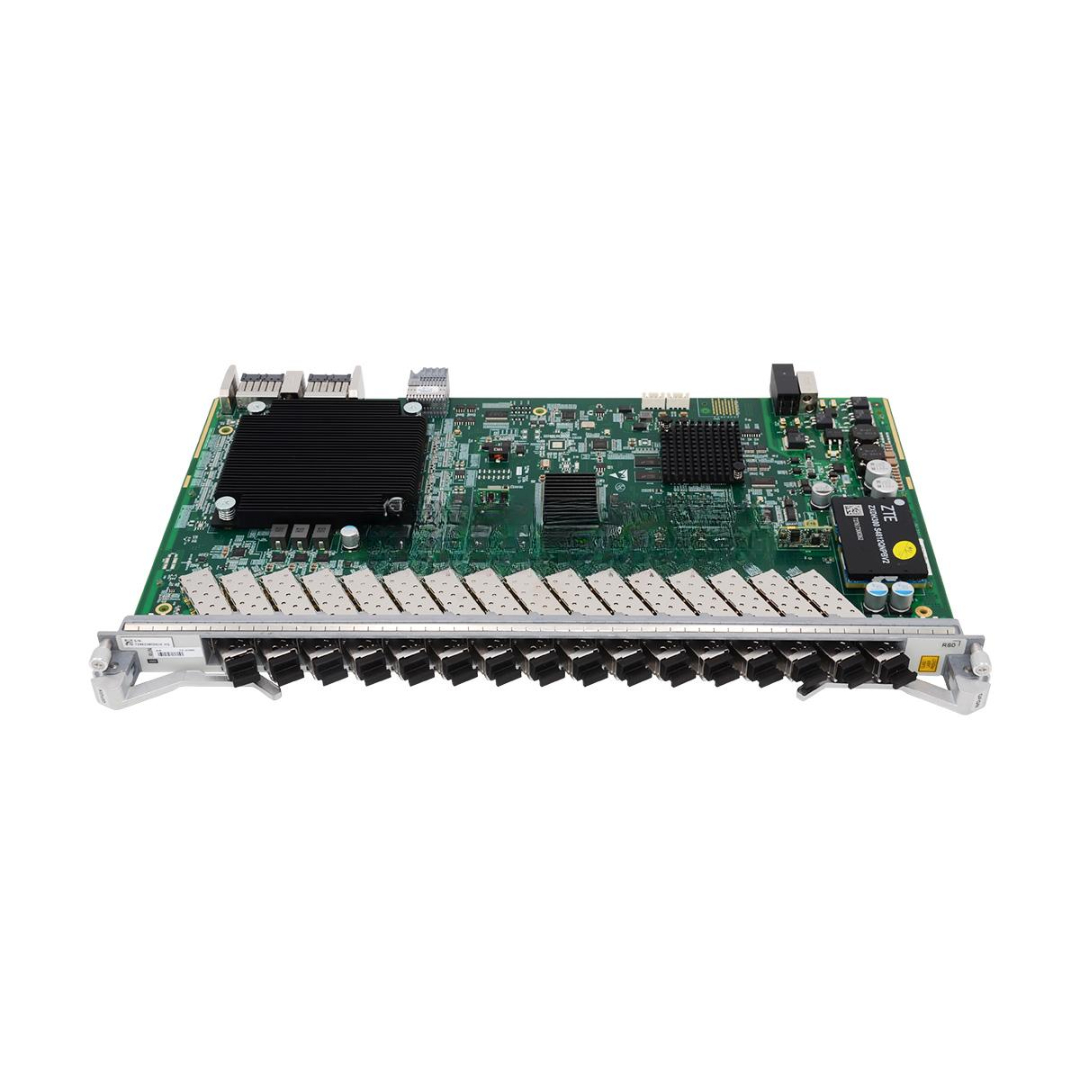

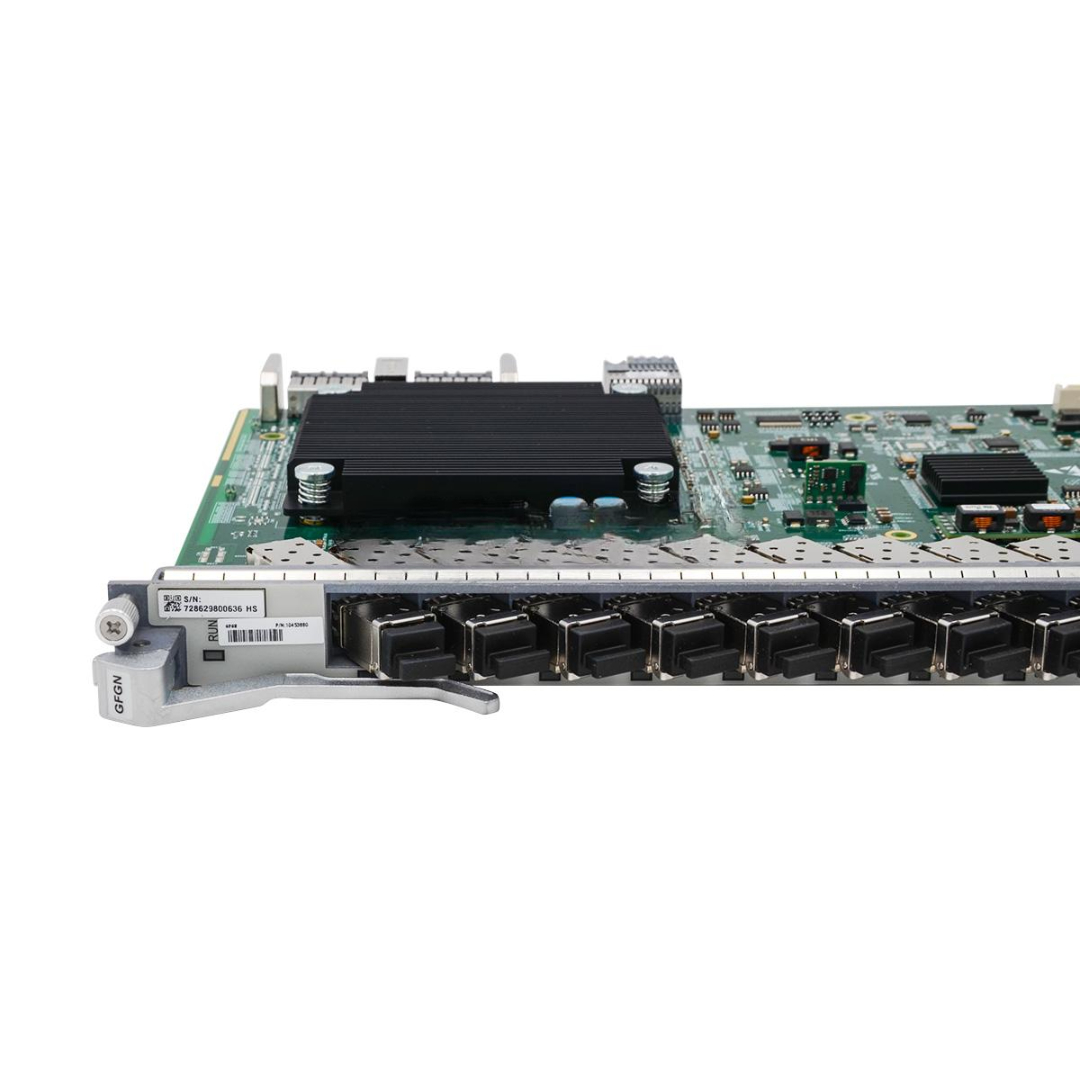

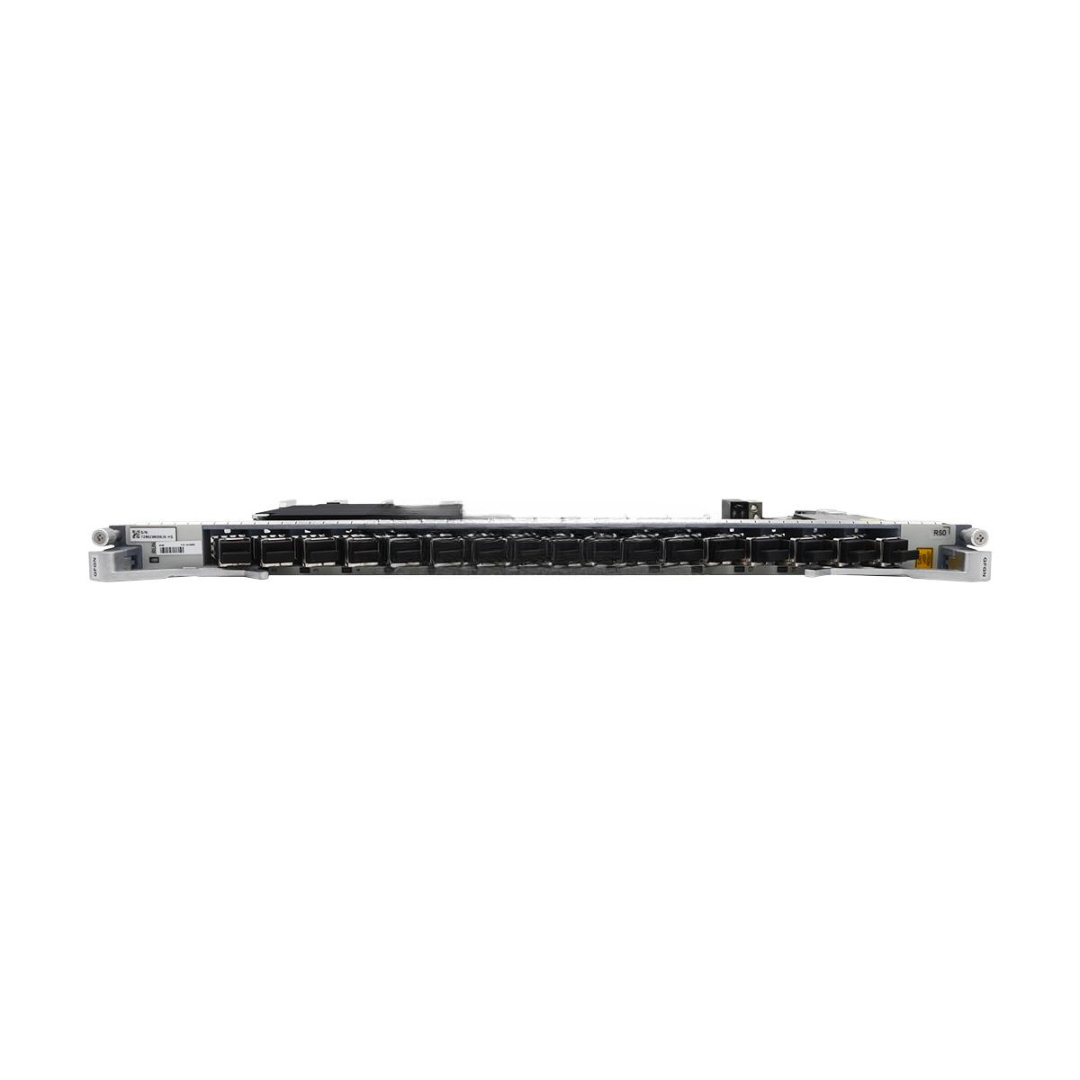

GFGN C++ Brand New 16-port GPON OLT Interface Board Module
The GFGN C++ is a high-performance 16-port GPON OLT interface board module designed for next-generation fiber access networks. Engineered to support Class C++ optics, this board provides extended reach and high split ratio capabilities, making it ideal for large-scale deployments in FTTH (Fiber to the Home) and FTTx networks.
Compatible with mainstream OLT chassis systems from leading vendors, the GFGN board enables high-density fiber distribution, efficient bandwidth allocation, and carrier-grade stability.
Key Features
- Model: GFGN
- Port Count: 16 GPON ports
- Optical Class: C++ (high power, long-distance support)
- Transmission Rate: 2.5Gbps downstream / 1.25Gbps upstream
- Connector Type: SC/UPC or SC/APC (based on request)
- Distance Support: Up to 40 km (with Class C++ optics)
- Split Ratio: Up to 1:128 per port
- Hot-Swappable: Yes
- Management Protocols: OMCI, SNMP, CLI, Telnet, Web
- Standard Compliance: ITU-T G.984 / G.988
- Indicators: Per-port LED for PON activity, alarms, and status
Technical Specifications
| Specification | Details |
|---|---|
| Model | GFGN |
| Ports | 16 × GPON SFP ports |
| Optical Module Type | GPON SFP Class C++ (1310/1490 nm) |
| Transmission Distance | Up to 40 km (standard C++ optics) |
| Split Ratio | Max 1:128 per PON port |
| Line Rate (Down/Up) | 2.5Gbps / 1.25Gbps |
| Connector Interface | SC/UPC or SC/APC |
| Fiber Type | Single-mode fiber (SMF) |
| Compliance Standards | ITU-T G.984.2, G.984.3, G.988 |
| Operating Temperature | –10°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Power Consumption | ≤ 55W |
| Dimensions | Matches standard OLT slot form factor |
| Weight | Approx. 2.8 kg |
GFGN C++ Applications
- FTTH / FTTx Deployments — Efficient last-mile fiber delivery
- Large ISPs and Carriers — Scalable GPON access for urban and rural users
- Campus and Business Parks — Centralized high-speed broadband delivery
- Triple Play Services — Supports IPTV, VoIP, and high-speed internet
- Metro and Edge Networks — Dense access in aggregation layers
Customization & OEM Options
- Branding Services — Custom logo and labeling for ISP or integrators
- Connector Types — SC/UPC or SC/APC based on regional standards
- Custom Firmware — Region-specific OMCI profiles and settings
- Extended Temperature Versions — Available for harsh environment use
- Bulk Packaging — For warehouse and mass deployment projects
Wholesale & Global Supply Information
- Brand New & Sealed — Original OEM quality with full functional testing
- Bulk Availability — Sufficient stock for large rollouts and tenders
- Global Logistics Support — Fast delivery with customs-ready documentation
- Volume Discounts — Tiered pricing for distributors and resellers
- Warranty & Support — 1–3 years warranty with technical assistance
Why Choose the GFGN C++
High Density — 16 ports per board, maximizing chassis efficiency
Extended Range — Class C++ optics for longer PON reach
Carrier-Grade Design — Built for reliability and uptime
Plug-and-Play — Easy integration with standard OLT platforms
Future-Ready — Supports advanced network management and services
Request Pricing, Datasheets, or Bulk Orders Today
Equip your OLT system with the GFGN C++ 16-port GPON OLT Interface Board — trusted by ISPs and network integrators for high-performance fiber deployments.
Contact us now for wholesale rates, customization options, and fast global shipping.
