- Model Number:MPWC
- Type:OLT
- Place of Origin:Guangdong, China
- Brand Name:Huawei
- Use:FTTH FTTB FTTX Network
- Warranty Time:1 year
- Network:POE
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
Retail Carton
-
- Port
Guangzhou
- Picture Example:
- Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated

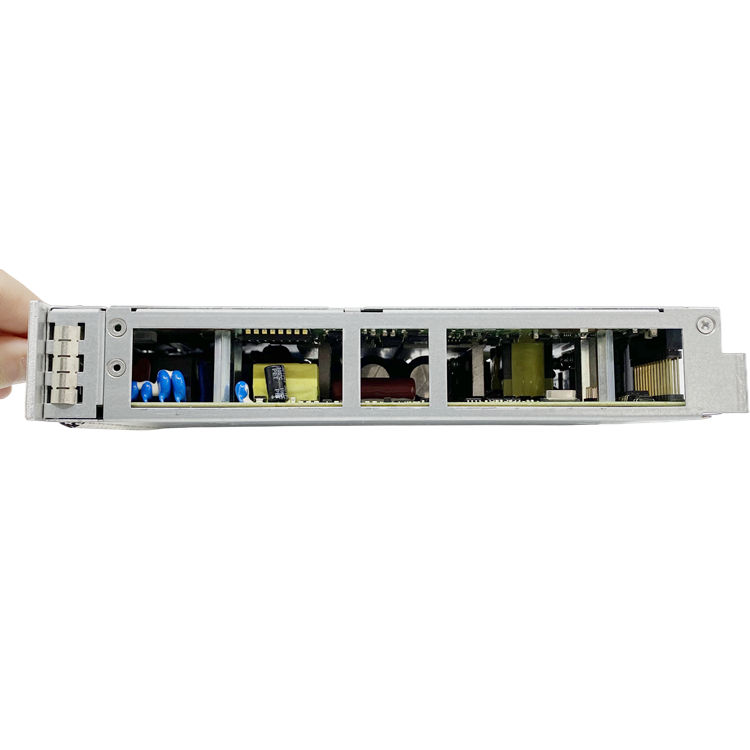

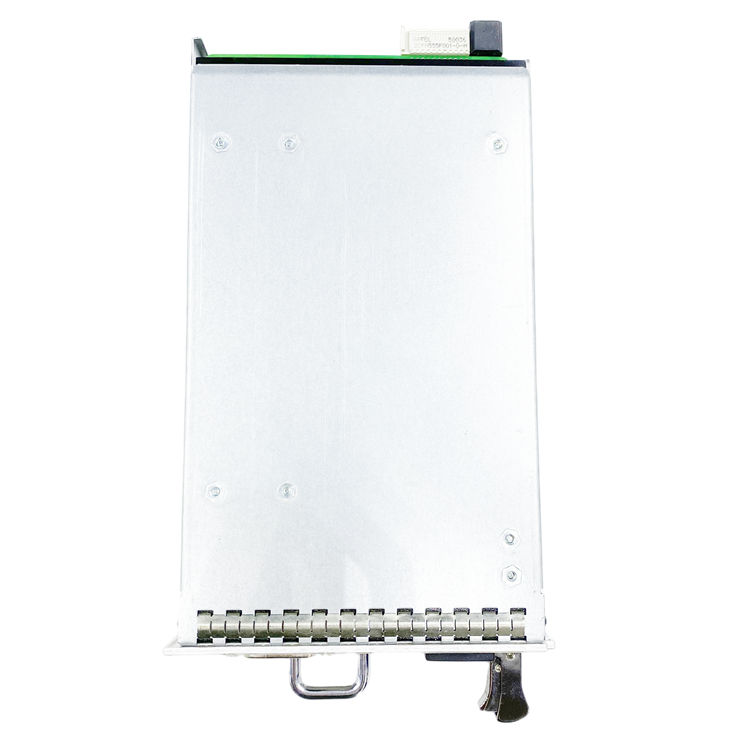

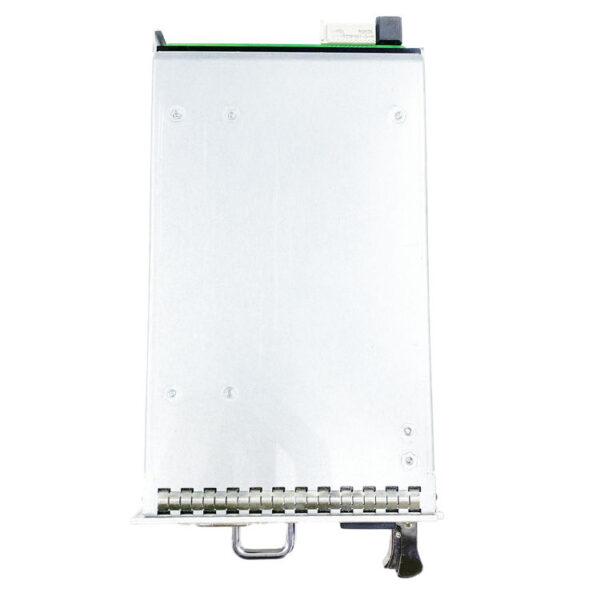

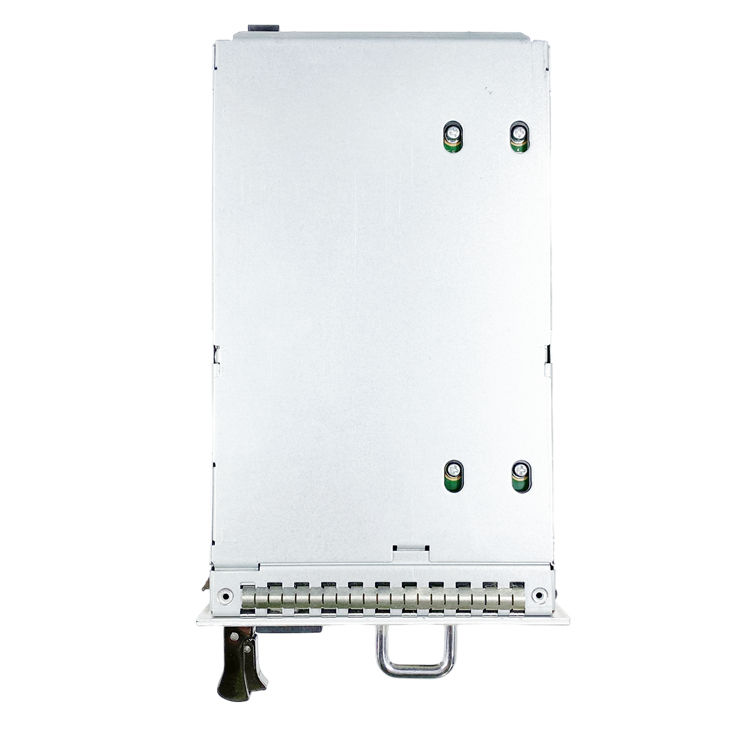

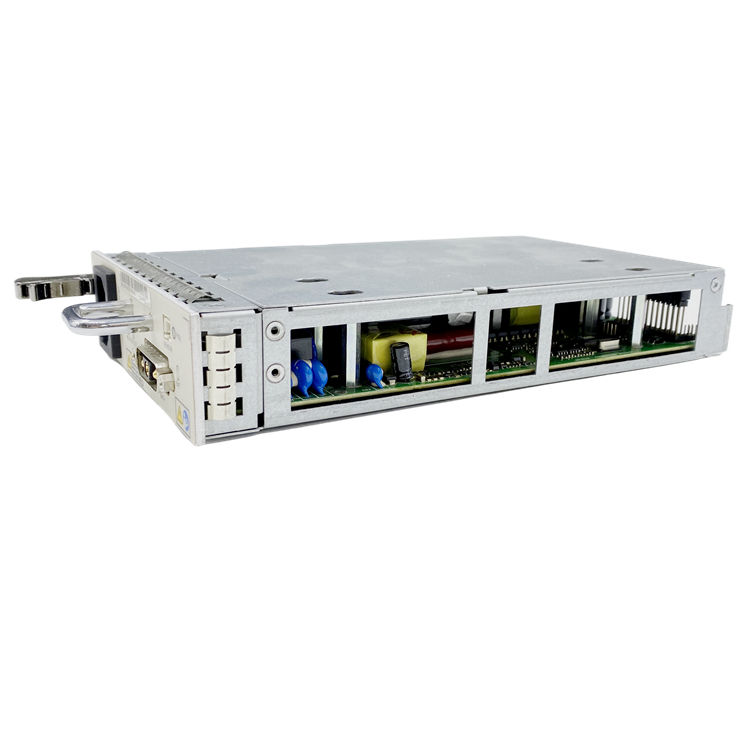

Huawei MPWC Power Module is DC Power Module for Huawei MA5608T.
MPWC Double -48 v dc input Support dual power protection

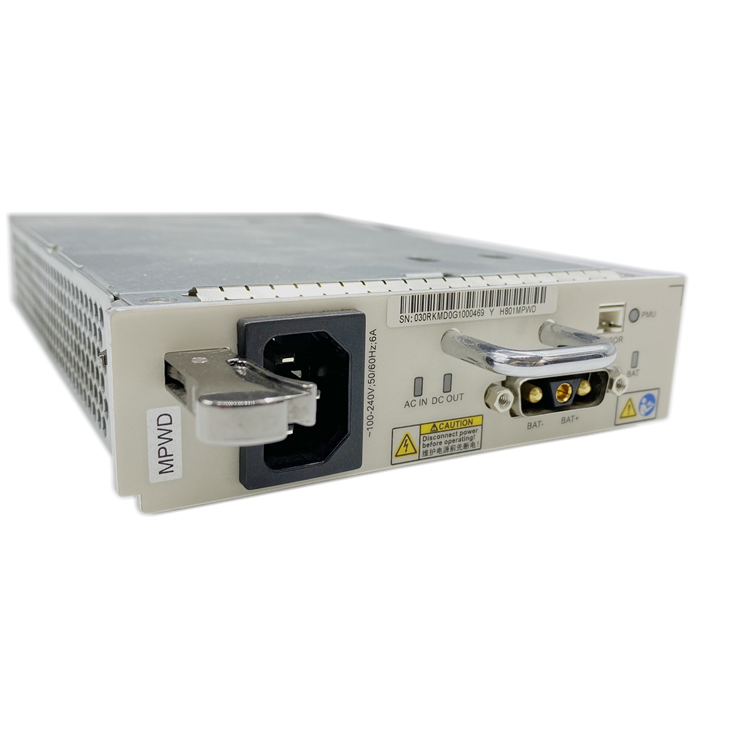

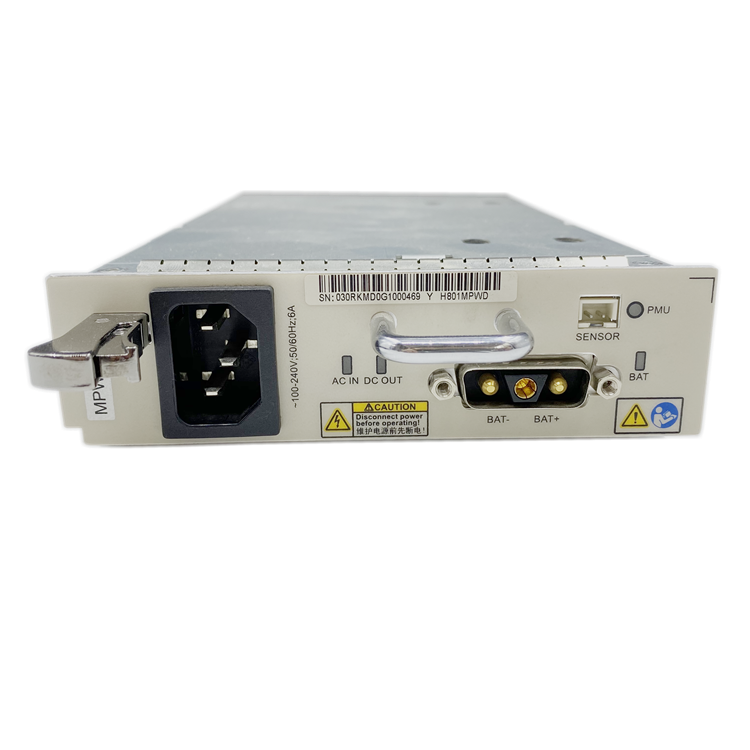

MPWD 220 v / 110 v ac input Support power supply alarm fault, support fuse alarm
Huawei MPWC Power Module Product Overview
MPWC board is a dual DC power supply board that is used to introduce a -48V DC power supply to power the device. Huawei MA5608T is Optical Line Terminal (OLT), supporting up to 2 service slots and can also support max 4096 subscribers (GPON). MA5608T has MCUD/MCUD1 Main Control Board available for choice, and one power slot redundancy for AC or DC power input. Total of 8 bundle line. Additionally, YCICT also offers more bundle line, to meet the different requirements.
Product Specification
| rand | Huawei |
| Model | MPWC |
| Port | 3V3 power port |
| Function | Leads in the -48 V power supply. |
| Connection | Use a -48 V feeder cable to connect this port to the power distribution unit |
| (PDU). | |
| Input voltage: -38.4 V to -72 DC. | |
| Power Consumption | Static: 2.5 W |
| Maximum: 2.5 W | |
| Dimensions (mm) | 35.56 mm x 251.70 mm x 132.10 mm |
Huawei MPWC Power Module Product and other MA5608T Board
| System L2 packet forwarding rate | MCUD/MCUD1: 190Mpps(Active/Standby mode), 380Mpps(Load-sharing mode) |
| Control board switching capacity | MCUD/MCUD1: 128Gbit/s(Active/Standby mode),256Gbit/s(Load-sharing mode) |
| Outband management Ethernet port (RJ-45) | MCUD/MCUD1 |
| Local serial port (Console) | MCUD/MCUD1 |
| GE optical port | MCUD1: 2 Ports Board |
| MCUD:4 Ports Board | |
| ETHB/SPUF: 8 Ports Board | |
| 10GE optical port | MCUD1: 2 Ports Board |
| SPUF: 8 Ports Board | |
| E1 port | TOPA: 16 Ports Board |
| STM-1 upstream optical port | TOPA: 2 Ports Board |
| GPON port | GPBD/GPBH: 8 Ports Board |
| GPFD: 16 Ports Board | |
| 10G GPON port | XGBC: 4 Ports Board |
| XGBD: 8 Ports Board | |
| P2P GE optical port | OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board |
| P2P FE optical port | OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board |
| Ethernet optical port | ETHB: 8 Ports Board |
| E1 port | H802EDTB: 16 Ports Board |
| ADSL2+ | ADPD/ADPM/ADPE : 64 Ports Board |
| VDSL2 | VDRD : 24 Ports Board |
| VDMF/VCMM : 48 Ports Board | |
| VDPM/VDQM/VDPE/VDPD/VCPE : 64 Ports Board | |
| EFM SHDSL | SHLM : 16 Ports Board |
| SHGM : 32 Ports Board | |
| TDM SHDSL | H802EDTB: 16 Ports Board |
| POTS | ASPB : 64 Ports Board |
| ADSL2+&POTS | CAME : 48 Ports Board |
| VDSL2&POTS | CVME : 48 Ports Board |
| CCPE : 64 Ports Board | |
| ISDN BRA | DSRD/DSRE :32 Ports Board |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
