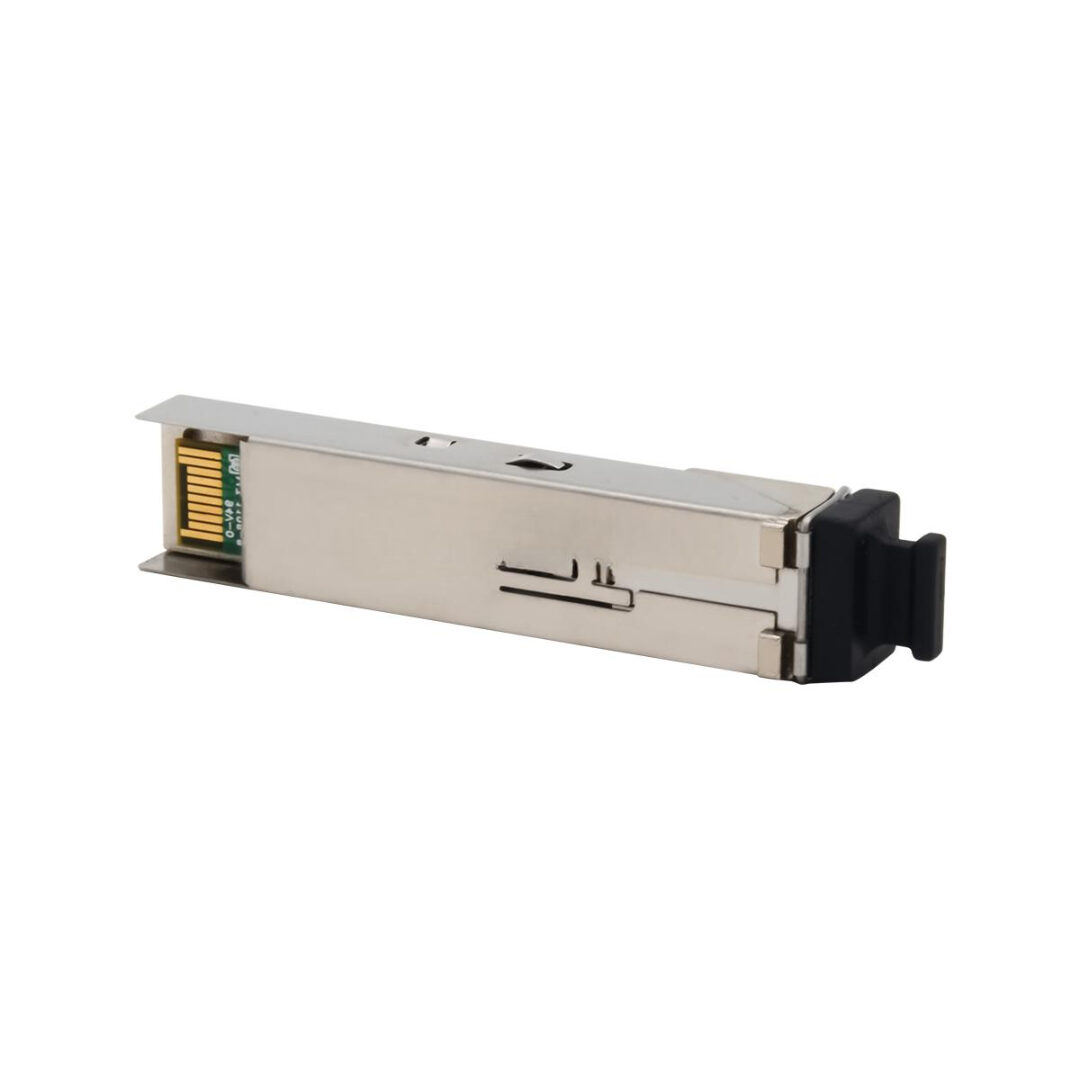

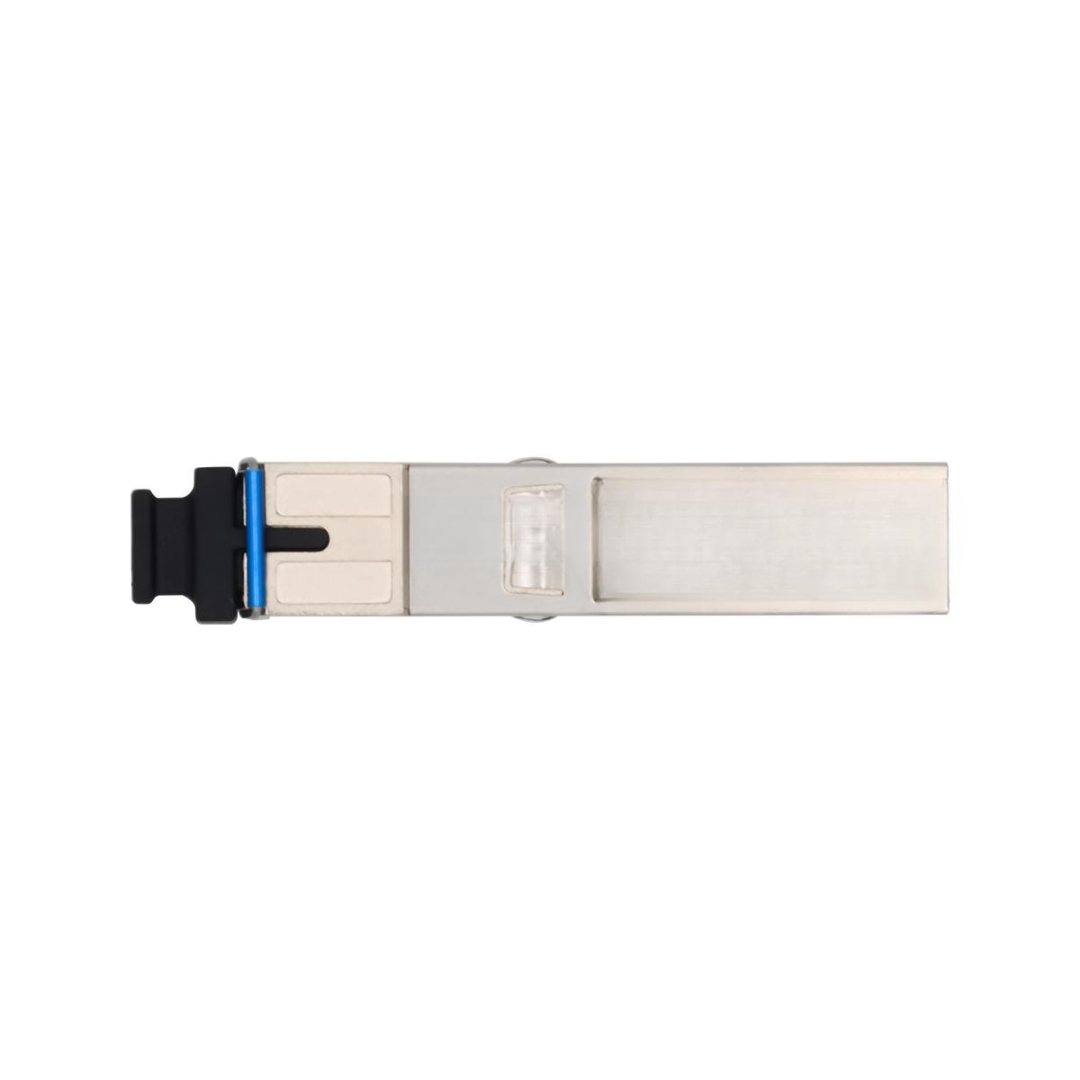

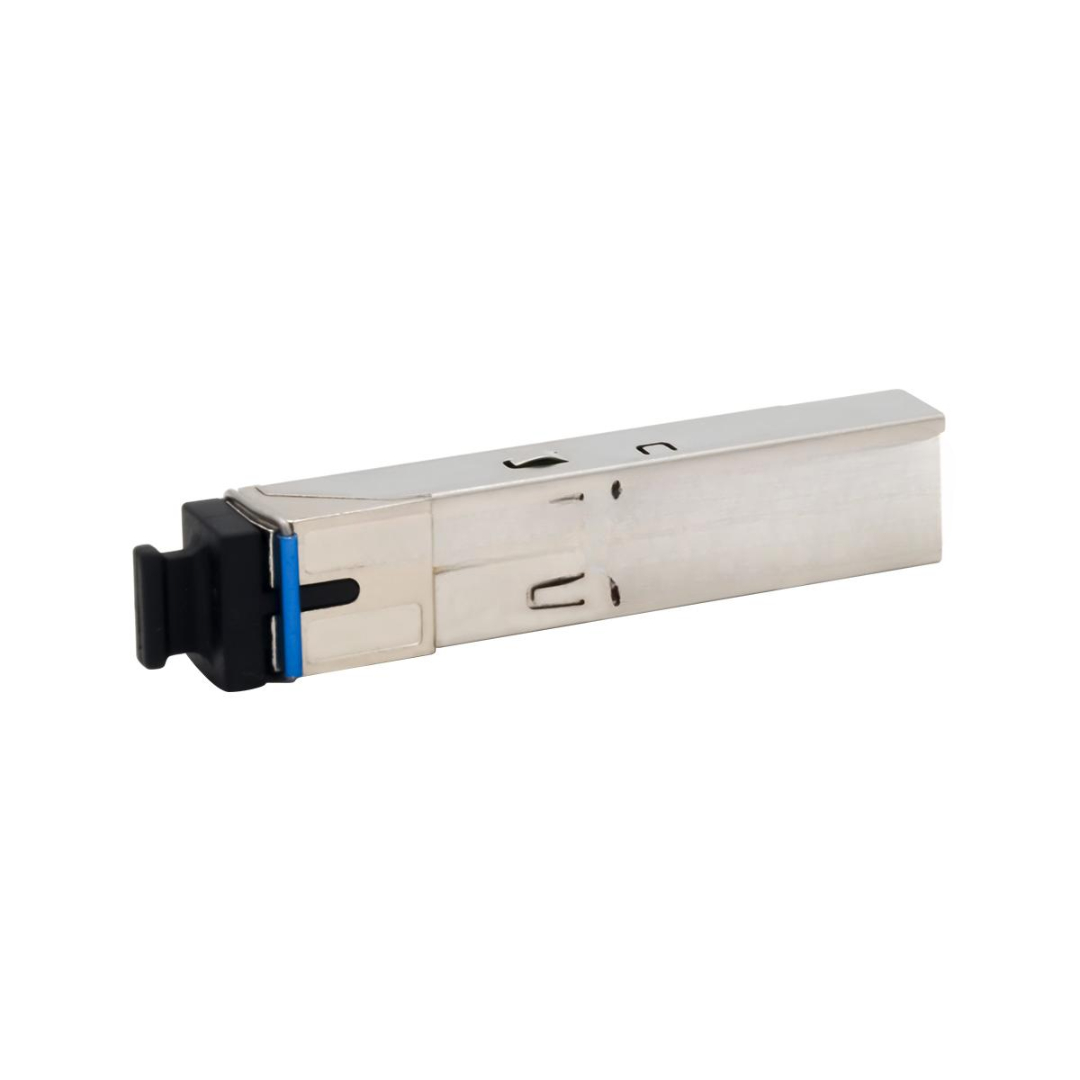

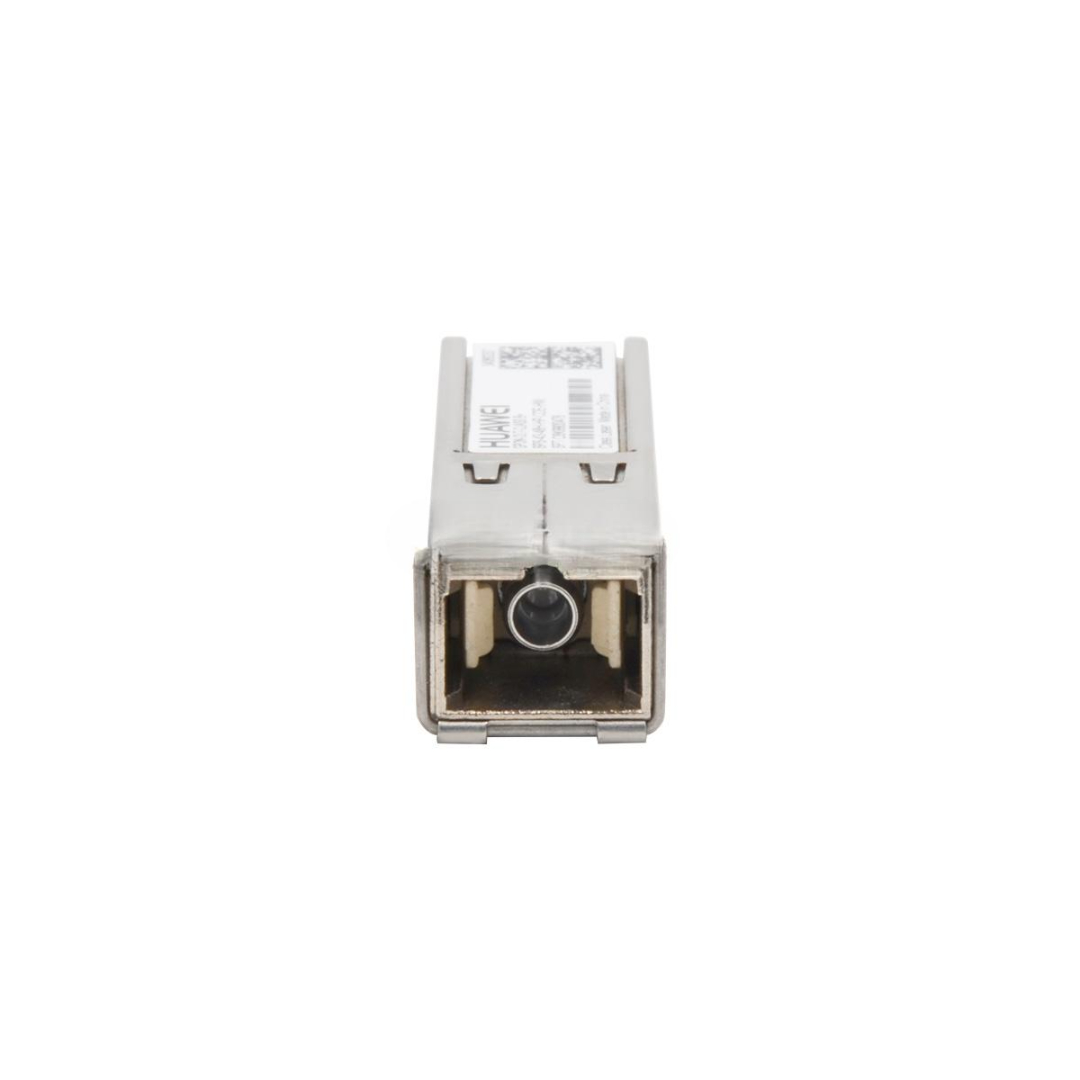

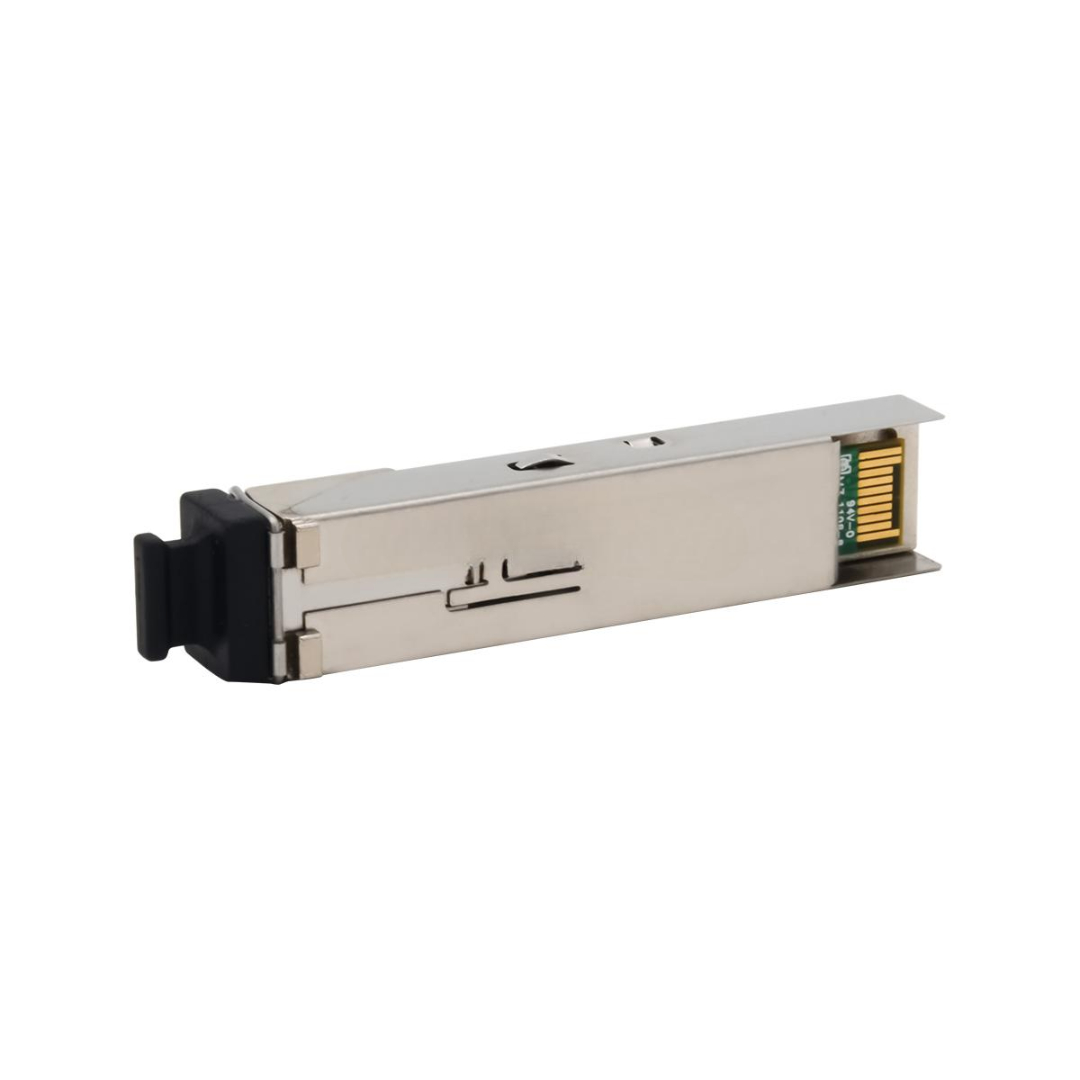

GPON OLT Class B+ SPT Huawei Brand New Optical Transceiver
The GPON OLT Class B+ SPT Huawei Optical Transceiver is a high-quality plug-in SFP module engineered for Huawei OLT platforms, providing robust and efficient performance for Gigabit Passive Optical Networks (GPON). Designed to meet ITU-T G.984.2 Class B+ specifications, this module supports long-distance FTTH/FTTB deployments up to 20km and ensures stable and reliable communication between the Optical Line Terminal (OLT) and Optical Network Units (ONUs).
This Class B+ transceiver is ideal for telecom operators and ISPs looking for a cost-effective and reliable solution for GPON expansion.
Key Features
- Model: GPON OLT Class B+ SPT
- Condition: 100% Brand New, Huawei Original
- Form Factor: SFP Optical Transceiver
- Transmission Distance: Up to 20 km
- Data Rate: 2.5 Gbps downstream / 1.25 Gbps upstream
- Wavelengths: 1490 nm (TX) / 1310 nm (RX)
- Connector: SC/PC (SC/APC available upon request)
- Hot-Pluggable: Supports plug-and-play for Huawei OLT slots
- High Sensitivity Receiver: Ensures signal integrity over long distances
- Standards Compliance: Fully compliant with ITU-T G.984.2 Class B+
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | GPON OLT Optical Transceiver Module |
| Form Factor | SFP |
| Tx Wavelength | 1490 nm |
| Rx Wavelength | 1310 nm |
| Transmit Power | +1.5 to +5 dBm |
| Receiver Sensitivity | -28 dBm |
| Optical Budget | ≥ 28 dB |
| Maximum Distance | 20 km |
| Connector Interface | SC/PC (SC/APC optional) |
| Laser Type | DFB (Tx) / APD (Rx) |
| Operating Temperature | -40°C to +85°C (Industrial Grade) |
| Voltage Supply | 3.3V |
| Compatibility | Huawei MA5600T, MA5680T, MA5800 Series OLTs |
| Protocol Compliance | ITU-T G.984.2 Class B+ |
| Hot Swappable | Yes |
| Warranty | 1–3 Years (OEM Warranty) |
GPON OLT CLASS B+ Applications
- FTTH / FTTB Deployments — High-speed broadband for homes and businesses
- Telecom OLT Infrastructure — Reliable GPON transceiver for Huawei access networks
- Metro Access Networks — Supports stable optical connectivity over long distances
- Enterprise and Government Networks — Secure and efficient optical links
Customization & OEM Services
- Private Labeling — Custom branding, logo, and part number options
- Connector Type Options — SC/PC (standard), SC/APC (optional)
- Extended QA Testing — Custom test reports for insertion loss, return loss, and more
- Bulk Packaging — Trays or foam boxes available for large-scale deployment
- Pre-Configuration — Matching to Huawei OLT slot parameters if required
GPON OLT CLASS B+ Wholesale Supply & Global Distribution
- Original Huawei OEM Stock — Sourced directly for quality assurance
- Bulk Order Discounts — Competitive pricing for 50+ or 100+ units
- Fast Worldwide Shipping — Available for urgent telecom projects
- Secure Packaging — Anti-static and shockproof packaging for transport
- Dedicated Support — Expert advice for integration, compatibility, and setup
Why Choose the GPON OLT CLASS B+
Huawei Original Quality — Reliable optical module for long-term OLT performance
High Optical Budget — Maintains strong signal over up to 20km fiber length
Standards-Based — Compatible with all ITU-T G.984.2-compliant GPON systems
Cost-Effective — Affordable solution for scaling fiber broadband networks
Quick Deployment — Hot-pluggable and easy to install
Get a Quote Today
Contact us now for pricing, technical datasheets, and volume discounts.
Upgrade your Huawei OLT with the GPON OLT Class B+ SPT Transceiver — engineered for performance, trusted by network operators worldwide.
