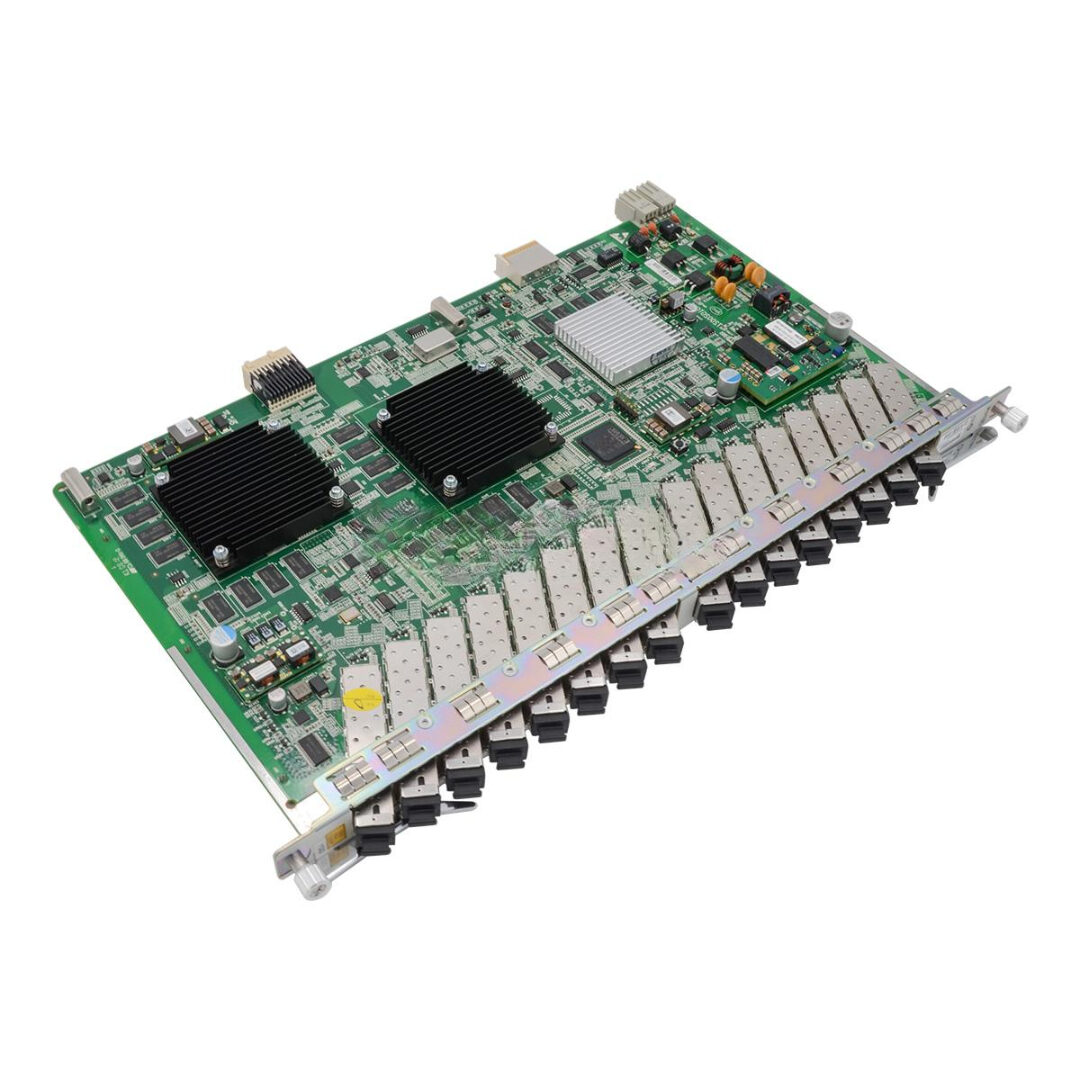

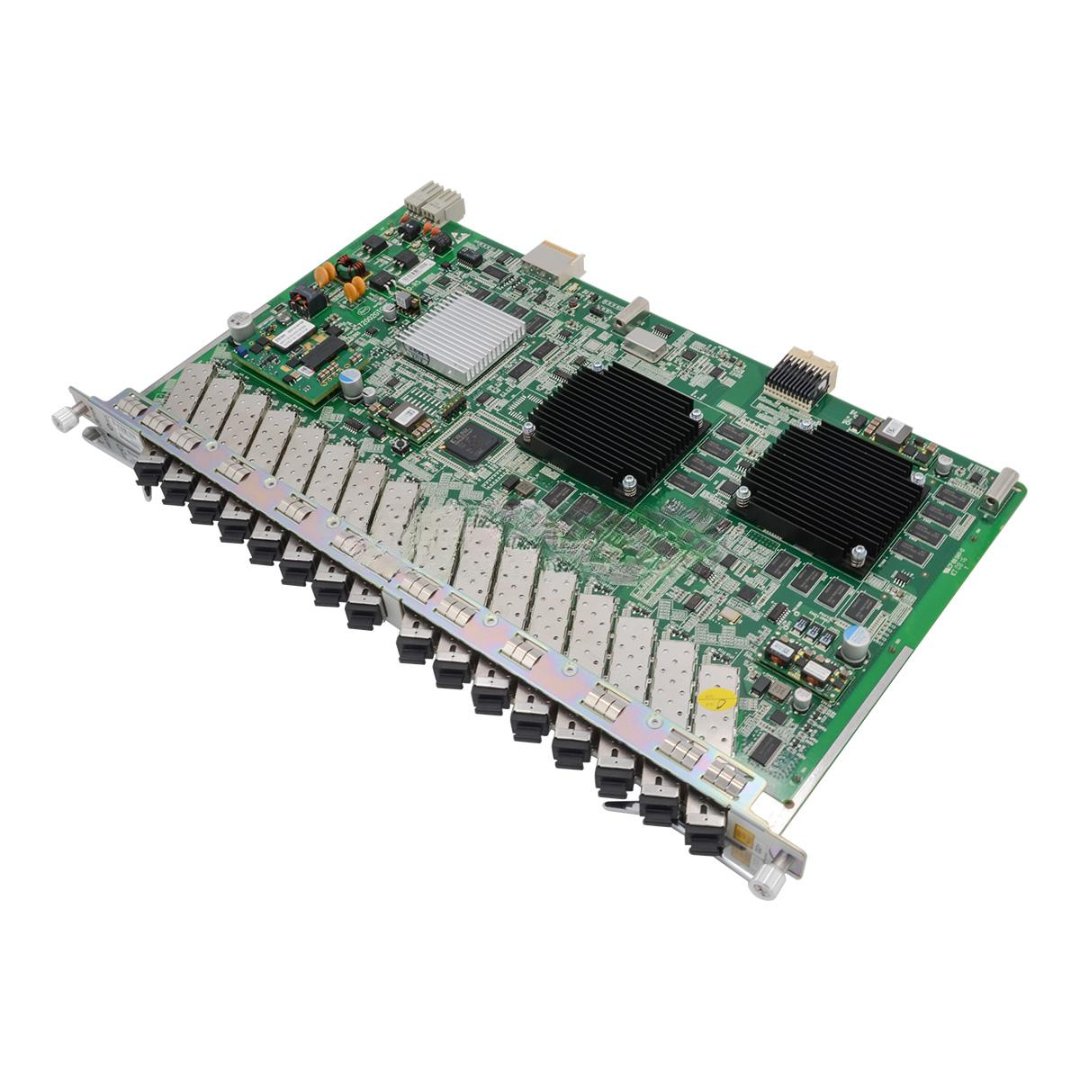

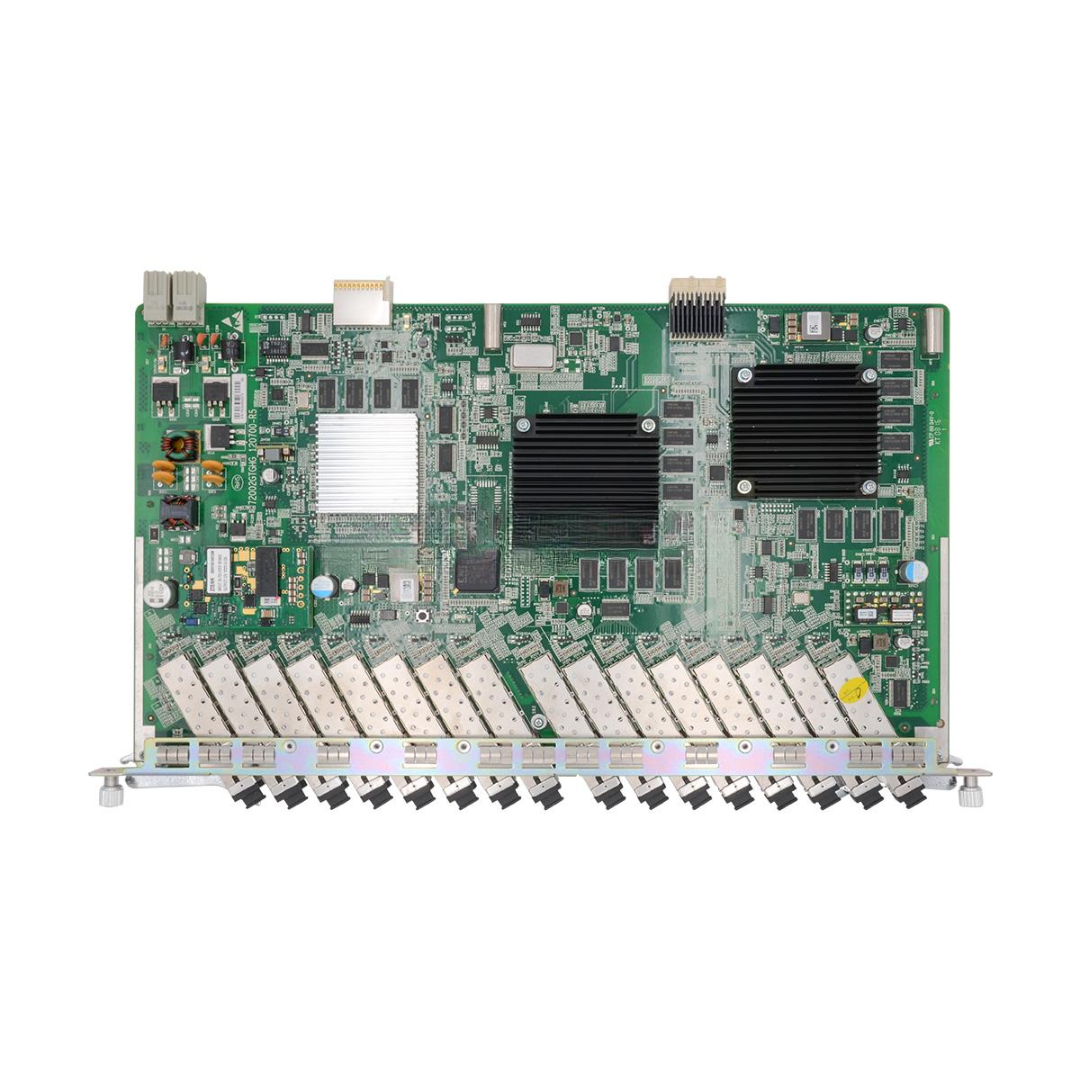

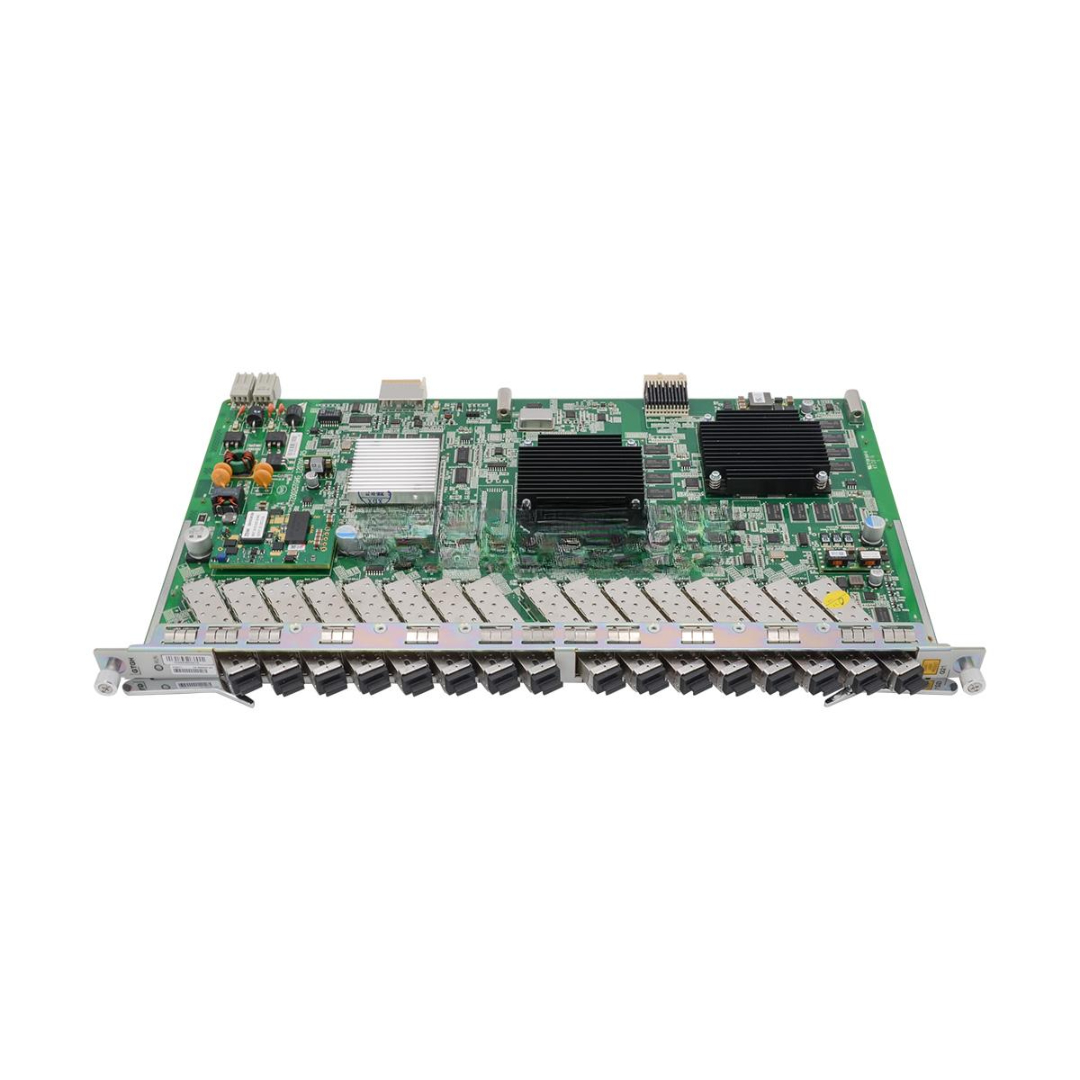

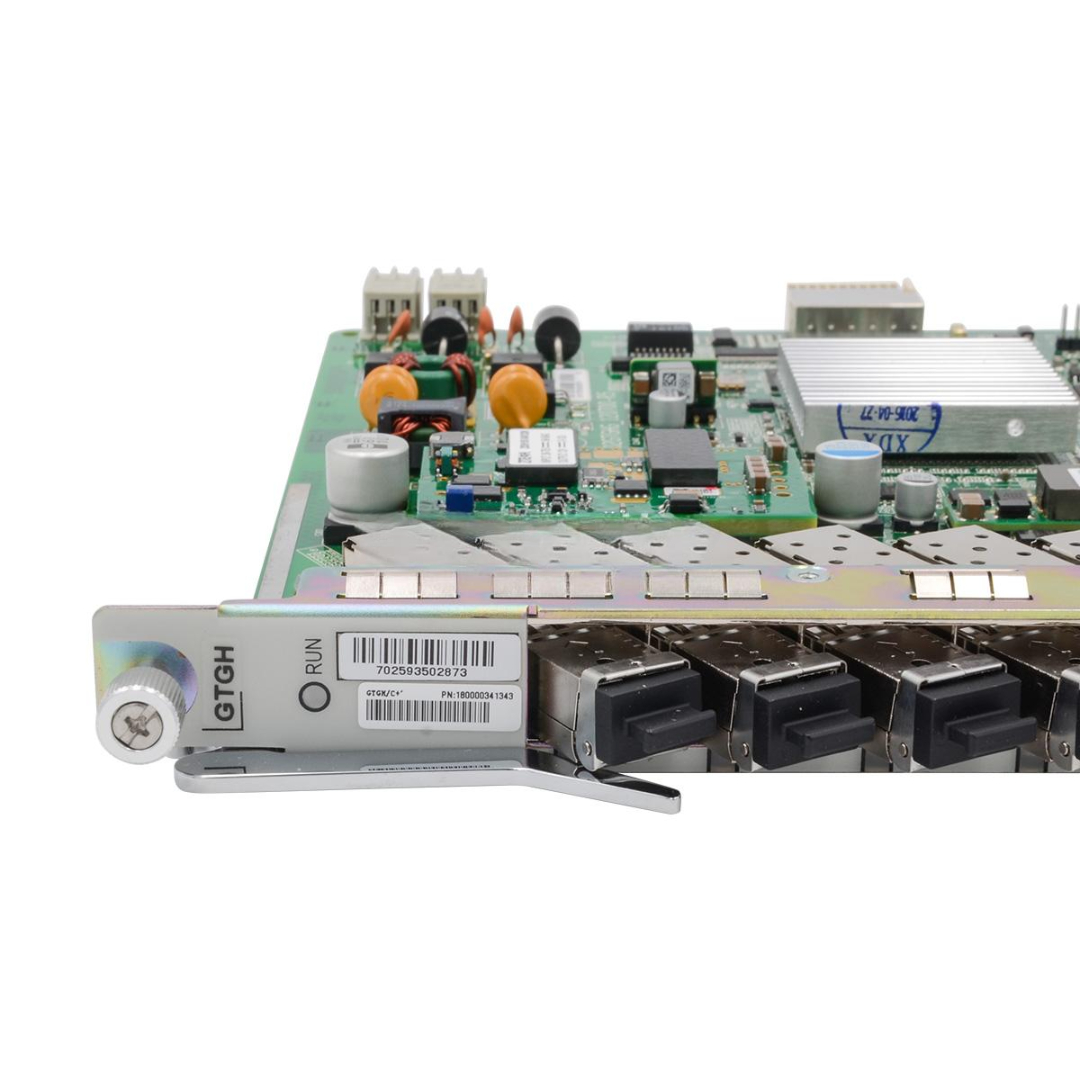

GTGH G22 C+ GPON Brand New 16-Port OLT Interface Board Module
The GTGH G22 C+ GPON is a high-performance 16-port GPON OLT interface board, designed for use in Huawei OLT platforms such as the MA5800 and MA5600 series. Engineered to support Class C+ optical modules, this board ensures long-distance GPON coverage, high subscriber density, and robust access services. It delivers superior downstream (2.5Gbps) and upstream (1.25Gbps) transmission, providing carrier-grade broadband access for fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), and enterprise scenarios.
Ideal for high-density GPON deployments, the GTGH G22 C+ module is the preferred choice of telecom operators, ISPs, and large-scale broadband network providers around the globe.
Key Features
-
Model: GTGH G22 C+
-
Condition: 100% Brand New, Original Huawei Compatible
-
Interface Type: GPON OLT
-
Ports: 16 GPON Ports
-
Optical Class: Class C+ (high optical power and extended distance)
-
Connector Type: SC/PC or SC/APC (based on SFP used)
-
Compatible OLT Platforms: MA5800-X17/X15/X7, MA5600T, MA5680T
-
Upstream Rate: 1.25Gbps
-
Downstream Rate: 2.5Gbps
-
Max Split Ratio: 1:128
-
Hot Swappable: Yes
-
Layer 2/3 Features: VLAN, QoS, ACL, IGMP, and DHCP supported
-
Management: CLI, SNMP, NMS via U2000 or iManager platform
-
Power Consumption: ≤ 55W (with full SFP population)
Technical Specifications
| Specification | Details |
|---|---|
| Model | GTGH G22 C+ |
| Port Count | 16 GPON Ports |
| Supported Standards | ITU-T G.984 series |
| Optical Module Support | Class C+ SFP (TX +6dBm / RX -32dBm) |
| Transmission Distance | Up to 20 km (with C+ module) |
| Connector Type | SC/PC or SC/APC |
| Max Split Ratio | 1:128 per PON port |
| Transmission Rate | 2.5 Gbps Downstream / 1.25 Gbps Upstream |
| Compatibility | Huawei MA5800/MA5600 Series |
| Power Supply | From OLT chassis backplane |
| Operating Temperature | -25°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Installation Method | Plug-in unit into service slot |
| Weight | Approx. 2.5 kg |
GTGH G22 C+ GPON Applications
-
FTTH/FTTB Access Networks — Large-scale residential and business broadband deployments
-
Triple Play Services — Supports voice (VoIP), video (IPTV), and data over one PON
-
Enterprise Broadband — High-capacity and secure fiber access for businesses
-
MDUs & Campuses — Multi-Dwelling Units and campus network infrastructure
-
Greenfield or Expansion Projects — Ideal for GPON rollouts and network upgrades
Customization & OEM Options
-
Private Labeling — Your company branding and part numbers available
-
Preloaded Configurations — SFPs and default service templates pre-configured
-
Firmware Customization — Optimized firmware versions for specific NMS platforms
-
Enhanced C+ Optics — Optional support for C++ modules for even greater reach
-
Packaging — Bulk, single-pack, or project-specific packaging customization available
Wholesale & Global Supply Information
-
Direct Factory Source — Guaranteed new and authentic units with warranty
-
Bulk Discounts — Volume pricing for ISPs, distributors, and integrators
-
Global Shipping — Rapid delivery with export-compliant packaging
-
Safe Packaging — Anti-static and foam-insulated boxes for transit safety
-
Ready Stock — Modules in inventory for immediate dispatch
-
Tech Support — Deployment consultation and technical assistance provided
Why Choose GTGH G22 C+ GPON 16-Port OLT Board
High-Density Ports — 16 GPON interfaces per board for efficient rack space use
Class C+ Optics — Long-range coverage for rural or extended networks
Fully Compatible — Seamless integration with MA5800, MA5600T, and MA5680T
Network Scalability — Support for up to 2048 ONUs with 1:128 split ratio
Carrier-Grade Reliability — Proven hardware for uninterrupted broadband access
Contact Us Now for Datasheets, Pricing & Bulk Orders
Boost your fiber access network with the GTGH G22 C+ 16-Port GPON OLT Board — an ideal solution for modern, high-capacity broadband infrastructure. Reach out now for technical documentation, compatibility guidance, and wholesale supply options.
